Complex Type diggs:FractionalReferenceType
Namespace http://diggsml.org/schemas/3
Annotations

Type for a reference to a feature that can state the proportion the referenced
feature contributes: a diggs:FeatureReferenceType with an optional percentage
attribute (0 to 100).

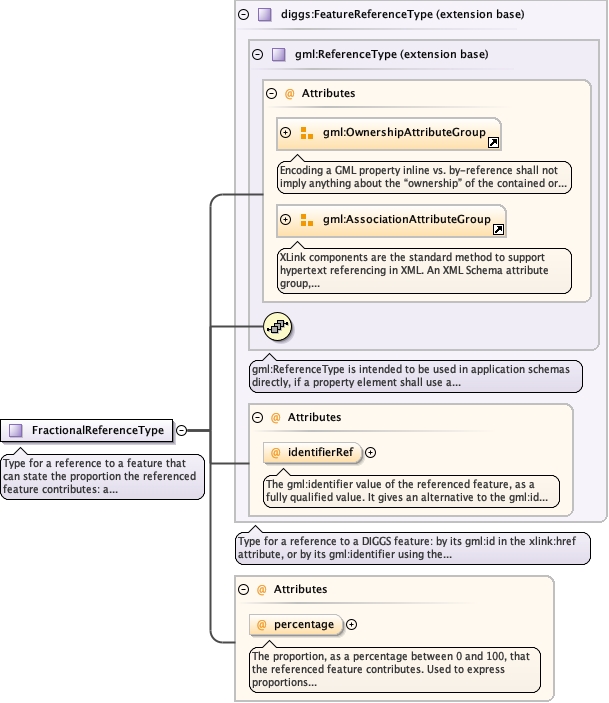

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceTypeCommon_xsd_Complex_Type_diggs_FractionalReferenceType.tmp#FractionalReferenceType_percentage
Type extension of diggs:FeatureReferenceType
Type hierarchy
Used by
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
percentage diggs:Val0-100Type optional
The proportion, as a percentage between 0 and 100, that the referenced
feature contributes. Used to express proportions or composition.
xlink:href anyURI optional
Source

<complexType name="FractionalReferenceType">
  <annotation>
    <documentation>Type for a reference to a feature that can state the proportion the referenced feature contributes: a diggs:FeatureReferenceType with an optional percentage attribute (0 to 100).</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:FeatureReferenceType">
      <attribute name="percentage" type="diggs:Val0-100Type" use="optional">
        <annotation>
          <documentation>The proportion, as a percentage between 0 and 100, that the referenced feature contributes. Used to express proportions or composition.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:FractionalReferenceType / @percentage
Namespace No namespace
Annotations

The proportion, as a percentage between 0 and 100, that the referenced
feature contributes. Used to express proportions or composition.
Type diggs:Val0-100Type
Properties
use optional
Facets
maxInclusive 100
minInclusive 0
Used by
Source

<attribute name="percentage" type="diggs:Val0-100Type" use="optional">
  <annotation>
    <documentation>The proportion, as a percentage between 0 and 100, that the referenced feature contributes. Used to express proportions or composition.</documentation>
  </annotation>
</attribute>
