Complex Type diggs:SamplingIntervalPropertyType
Namespace http://diggsml.org/schemas/3
Annotations

Property type that contains one diggs:SamplingInterval object inline, or refers to
one with xlink:href.

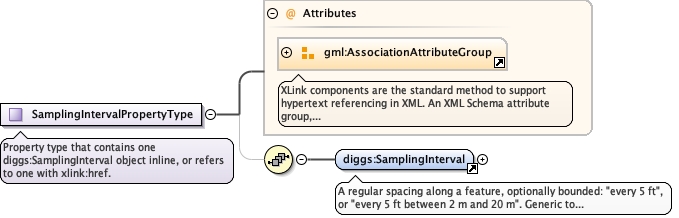

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCommon_xsd_Element_diggs_SamplingInterval.tmp#SamplingInterval
Used by
Model
Children diggs:SamplingInterval
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<complexType name="SamplingIntervalPropertyType">
  <annotation>
    <documentation>Property type that contains one diggs:SamplingInterval object inline, or refers to one with xlink:href.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="diggs:SamplingInterval"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
