Element diggs:SamplingInterval
Namespace http://diggsml.org/schemas/3
Annotations

A regular spacing along a feature, optionally bounded: "every 5 ft", or "every 5 ft
between 2 m and 20 m". Generic to any regularly spaced planned provision along a
feature.

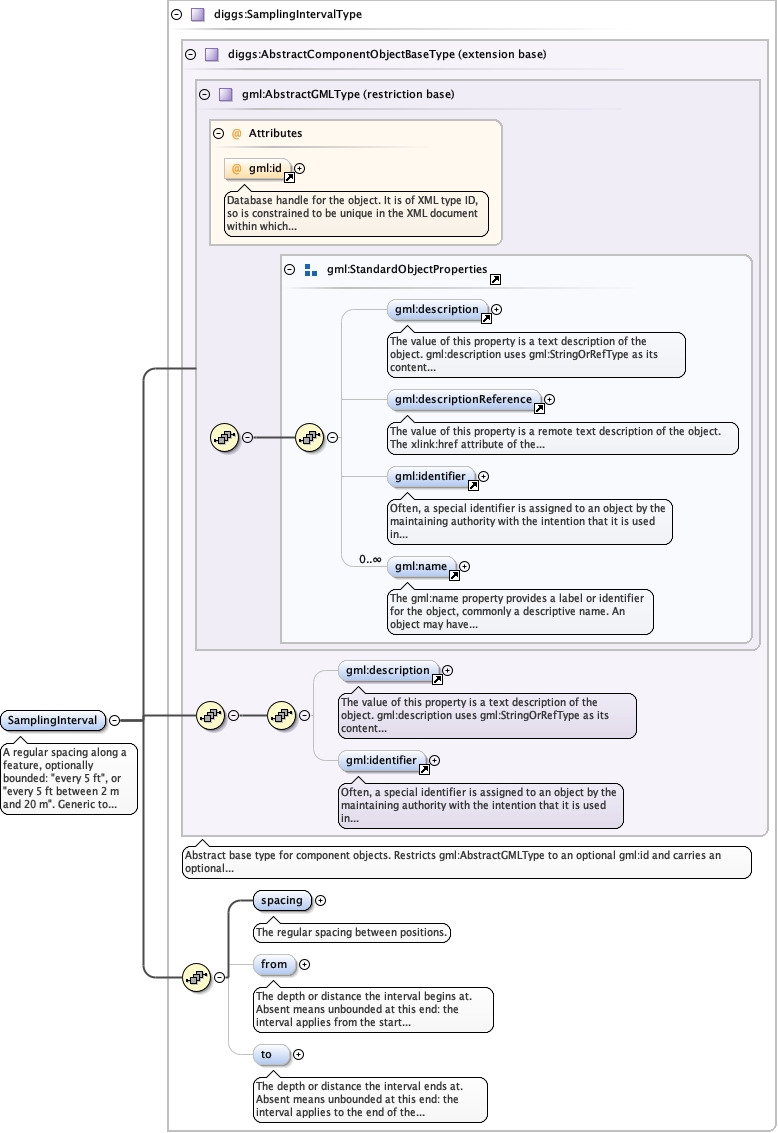

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Complex_Type_diggs_SamplingIntervalType.tmp#SamplingIntervalType_spacingCommon_xsd_Complex_Type_diggs_SamplingIntervalType.tmp#SamplingIntervalType_fromCommon_xsd_Complex_Type_diggs_SamplingIntervalType.tmp#SamplingIntervalType_toCommon_xsd_Complex_Type_diggs_SamplingIntervalType.tmp#SamplingIntervalType
Type diggs:SamplingIntervalType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:from, diggs:spacing, diggs:to, gml:description, gml:identifier
Instance

<diggs:SamplingInterval gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:spacing howDetermined="" qualifier="" uom="">{1,1}</diggs:spacing>
  <diggs:from howDetermined="" qualifier="" uom="">{0,1}</diggs:from>
  <diggs:to howDetermined="" qualifier="" uom="">{0,1}</diggs:to>
</diggs:SamplingInterval>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="SamplingInterval" type="diggs:SamplingIntervalType">
  <annotation>
    <documentation>A regular spacing along a feature, optionally bounded: "every 5 ft", or "every 5 ft between 2 m and 20 m". Generic to any regularly spaced planned provision along a feature.</documentation>
  </annotation>
</element>
