Element diggs:groutSpecificationRef
Namespace http://diggsml.org/schemas/3
Annotations

Reference to grout specification. Reused by
diggs:RIColumnSpecificationType, whose own use-site targets diggs:GroutSpecification
specifically - the sole remaining use as of GB2 (2026-09-28), a component reference
between two specification-family objects, not a design/specification duality (see
that use-site's own documentation). diggs:DesignGroutMixType and
diggs:TrialGroutBatchType no longer declare this element; both express "the
specification this object must satisfy" through the generic programSpecificationRef
instead.

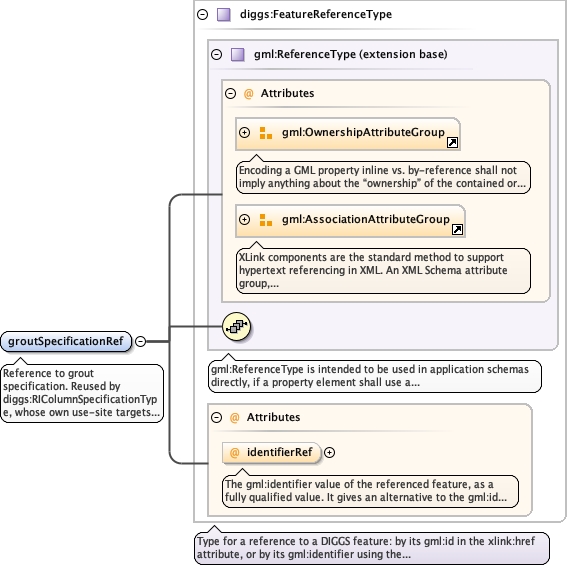

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
Used by
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="groutSpecificationRef" type="diggs:FeatureReferenceType">
  <annotation>
    <documentation>Reference to grout specification. Reused by diggs:RIColumnSpecificationType, whose own use-site targets diggs:GroutSpecification specifically - the sole remaining use as of GB2 (2026-09-28), a component reference between two specification-family objects, not a design/specification duality (see that use-site's own documentation). diggs:DesignGroutMixType and diggs:TrialGroutBatchType no longer declare this element; both express "the specification this object must satisfy" through the generic programSpecificationRef instead.</documentation>
  </annotation>
</element>
