Element diggs:sourceMeasurementRef
Namespace http://diggsml.org/schemas/3
Annotations

A reference to a measurement, a test or a monitoring reading, that provides the
provenance of a diggs:ProvenancedParameter value. Repeat where a value derives from
more than one measurement, for example a correlation drawing on several tests. Do
not mix with diggs:sourceObservationRef or diggs:sourceSamplingFeatureRef on the
same parameter; use one kind of source. Given by reference only.

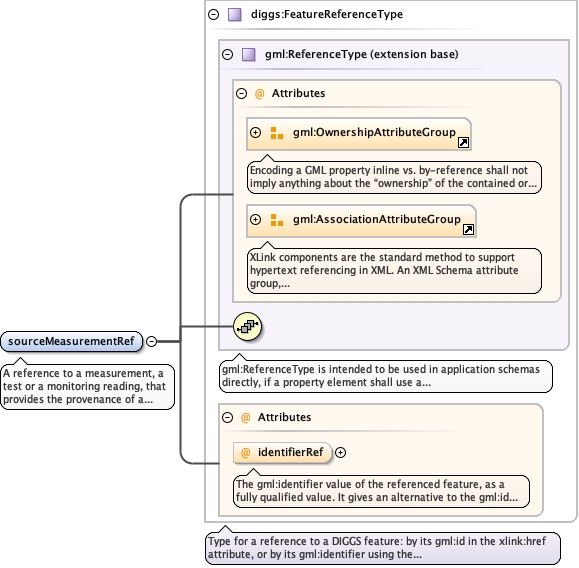

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
Used by
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="sourceMeasurementRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:AbstractMeasurement</appinfo>
    <documentation>A reference to a measurement, a test or a monitoring reading, that provides the provenance of a diggs:ProvenancedParameter value. Repeat where a value derives from more than one measurement, for example a correlation drawing on several tests. Do not mix with diggs:sourceObservationRef or diggs:sourceSamplingFeatureRef on the same parameter; use one kind of source. Given by reference only.</documentation>
  </annotation>
</element>
