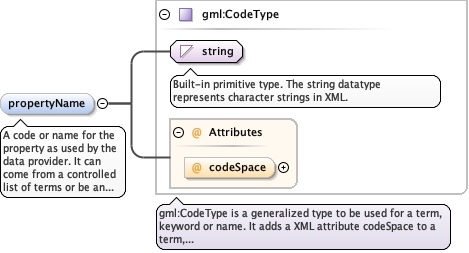

Schema documentation for component diggs:propertyName

A code or name for the property as used by the data provider. It can
come from a controlled list of terms or be an uncontrolled text
string, and is commonly used to label a column of a log sheet or
give the property a local meaning. The value must be unique among
the properties in the dataValues block transmitted as part of this
measurement. No DIGGS-authored dictionary currently exists for this
element.

content	complex
minOccurs	0
maxOccurs	1

QName	Type	Use
codeSpace	anyURI	optional

<element maxOccurs="1" minOccurs="0" name="propertyName" type="gml:CodeType">
  <annotation>
    <documentation>A code or name for the property as used by the data provider. It can come from a controlled list of terms or be an uncontrolled text string, and is commonly used to label a column of a log sheet or give the property a local meaning. The value must be unique among the properties in the dataValues block transmitted as part of this measurement. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

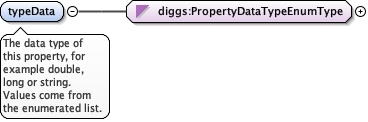

The data type of this property, for example double, long or string.
Values come from the enumerated list.

content	simple
minOccurs	1
maxOccurs	1

<element maxOccurs="1" minOccurs="1" name="typeData" type="diggs:PropertyDataTypeEnumType">
  <annotation>
    <documentation>The data type of this property, for example double, long or string. Values come from the enumerated list.</documentation>
  </annotation>
</element>

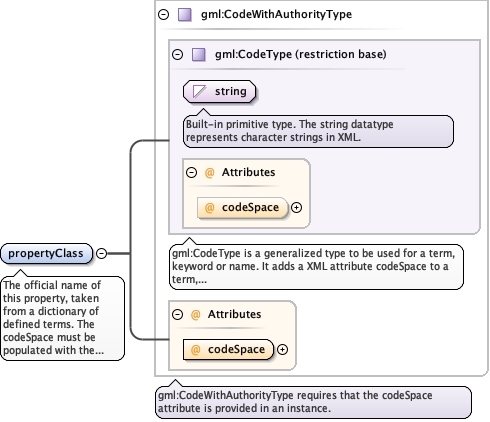

The official name of this property, taken from a dictionary of
defined terms. The codeSpace must be populated with the URI of the
definition, so that applications can validate the value as a known
property. Use the DIGGS property dictionary that serves the host
measurement: properties.xml, cpt_interpreted_properties.xml,
gp_properties.xml, gr_inj_properties.xml, mwd_properties.xml or
pil_properties.xml.

content	complex
minOccurs	1
maxOccurs	1

QName	Type	Use
codeSpace	anyURI	required

<element maxOccurs="1" minOccurs="1" name="propertyClass" type="gml:CodeWithAuthorityType">
  <annotation>
    <documentation>The official name of this property, taken from a dictionary of defined terms. The codeSpace must be populated with the URI of the definition, so that applications can validate the value as a known property. Use the DIGGS property dictionary that serves the host measurement: properties.xml, cpt_interpreted_properties.xml, gp_properties.xml, gr_inj_properties.xml, mwd_properties.xml or pil_properties.xml.</documentation>
  </annotation>
</element>

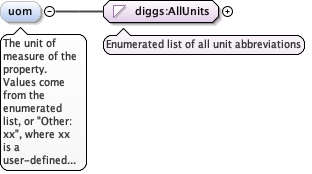

The unit of measure of the property. Values come from the enumerated
list, or "Other: xx", where xx is a user-defined term whose meaning
differs from every listed value (not a synonym of one).

content	simple
minOccurs	0
maxOccurs	1

<element maxOccurs="1" minOccurs="0" name="uom" type="diggs:AllUnits">
  <annotation>
    <documentation>The unit of measure of the property. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
  </annotation>
</element>

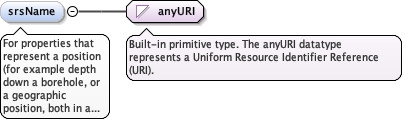

For properties that represent a position (for example depth down a
borehole, or a geographic position, both in a time-indexed record),
the pointer to the spatial reference system the position belongs to:
a geospatialSRS, a localCartesianCRS or a
LinearSpatialReferenceSystem. The URI must resolve to one of those
objects.

content	simple
minOccurs	0

<element minOccurs="0" name="srsName" type="anyURI">
  <annotation>
    <documentation>For properties that represent a position (for example depth down a borehole, or a geographic position, both in a time-indexed record), the pointer to the spatial reference system the position belongs to: a geospatialSRS, a localCartesianCRS or a LinearSpatialReferenceSystem. The URI must resolve to one of those objects.</documentation>
  </annotation>
</element>

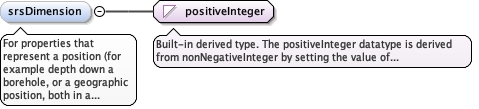

For properties that represent a position (for example depth down a
borehole, or a geographic position, both in a time-indexed record),
the dimensionality of the spatial reference system. Where
srsDimension is greater than 1, the coordinates in the dataValues
block cannot be space-separated, because a parser would read the
space as the end of a data record; separate them with |, so that
coordinates 10 4 12 are written 10|4|12.

content	simple
minOccurs	0

<element minOccurs="0" name="srsDimension" type="positiveInteger">
  <annotation>
    <documentation>For properties that represent a position (for example depth down a borehole, or a geographic position, both in a time-indexed record), the dimensionality of the spatial reference system. Where srsDimension is greater than 1, the coordinates in the dataValues block cannot be space-separated, because a parser would read the space as the end of a data record; separate them with |, so that coordinates 10 4 12 are written 10|4|12.</documentation>
  </annotation>
</element>

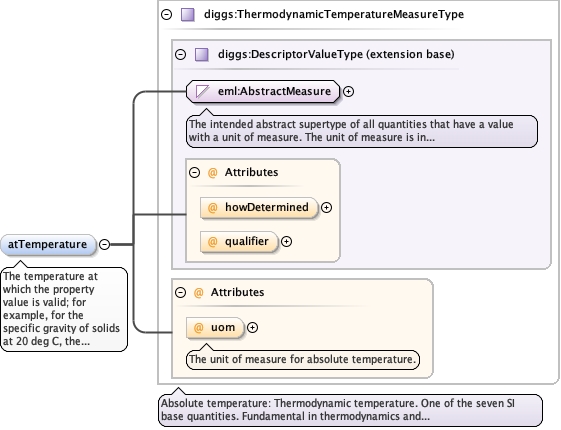

The temperature at which the property value is valid; for example,
for the specific gravity of solids at 20 deg C, the temperature
value.

content	complex
minOccurs	0
maxOccurs	1

QName

Type

Use

Annotation

howDetermined

diggs:DescriptorMethodEnumType

optional

qualifier

diggs:QualifierEnumExtType

optional

uom

diggs:ThermodynamicTemperatureUomEnumType

optional

The unit of measure for absolute temperature.

<element maxOccurs="1" minOccurs="0" name="atTemperature" type="diggs:ThermodynamicTemperatureMeasureType">
  <annotation>
    <documentation>The temperature at which the property value is valid; for example, for the specific gravity of solids at 20 deg C, the temperature value.</documentation>
  </annotation>
</element>

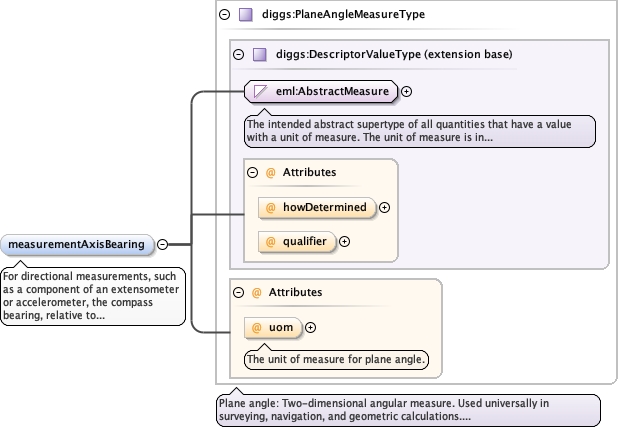

For directional measurements, such as a component of an extensometer
or accelerometer, the compass bearing, relative to true north, of
the measurement axis.

content	complex
minOccurs	0

QName

Type

Use

Annotation

howDetermined

diggs:DescriptorMethodEnumType

optional

qualifier

diggs:QualifierEnumExtType

optional

uom

diggs:PlaneAngleUomEnumType

optional

The unit of measure for plane angle.

<element minOccurs="0" name="measurementAxisBearing" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <documentation>For directional measurements, such as a component of an extensometer or accelerometer, the compass bearing, relative to true north, of the measurement axis.</documentation>
  </annotation>
</element>

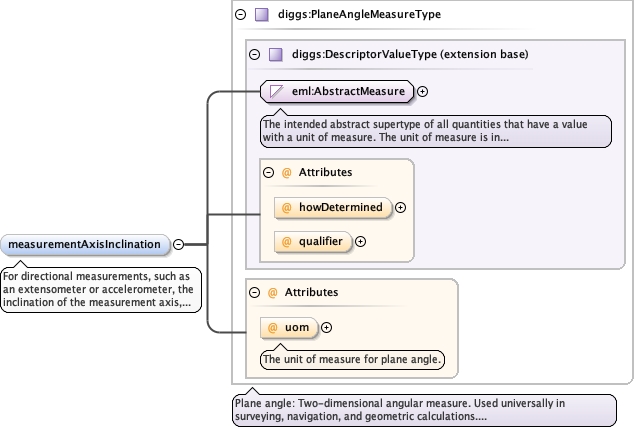

For directional measurements, such as an extensometer or
accelerometer, the inclination of the measurement axis, positive
down from horizontal.

content	complex
minOccurs	0

QName

Type

Use

Annotation

howDetermined

diggs:DescriptorMethodEnumType

optional

qualifier

diggs:QualifierEnumExtType

optional

uom

diggs:PlaneAngleUomEnumType

optional

The unit of measure for plane angle.

<element minOccurs="0" name="measurementAxisInclination" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <documentation>For directional measurements, such as an extensometer or accelerometer, the inclination of the measurement axis, positive down from horizontal.</documentation>
  </annotation>
</element>

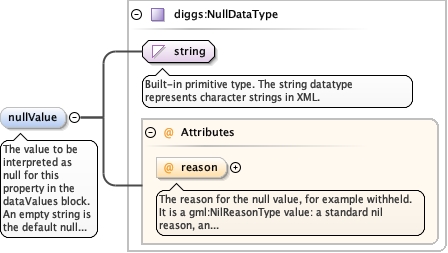

The value to be interpreted as null for this property in the
dataValues block. An empty string is the default null representation
when none is defined. The reason attribute gives the reason for the
null value, for example withheld; it can be customized with an
Other: qualifier (for example Other: below detection limit) or refer
to a URI for a fuller definition.

content	complex
minOccurs	0
maxOccurs	1

QName

Type

Use

Annotation

reason

gml:NilReasonType

optional

The reason for the null value, for example withheld. It is a
gml:NilReasonType value: a standard nil reason, an "other:" term (for
example other:below detection limit), or a URI to a fuller definition.

<element maxOccurs="1" minOccurs="0" name="nullValue" type="diggs:NullDataType">
  <annotation>
    <documentation>The value to be interpreted as null for this property in the dataValues block. An empty string is the default null representation when none is defined. The reason attribute gives the reason for the null value, for example withheld; it can be customized with an Other: qualifier (for example Other: below detection limit) or refer to a URI for a fuller definition.</documentation>
  </annotation>
</element>

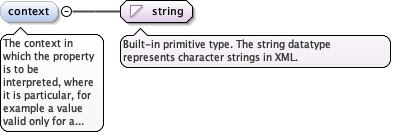

The context in which the property is to be interpreted, where it is
particular, for example a value valid only for a range of overburden
pressures.

content	simple
minOccurs	0

<element minOccurs="0" name="context" type="string">
  <annotation>
    <documentation>The context in which the property is to be interpreted, where it is particular, for example a value valid only for a range of overburden pressures.</documentation>
  </annotation>
</element>

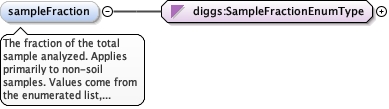

The fraction of the total sample analyzed. Applies primarily to
non-soil samples. Values come from the enumerated list, or "Other:
xx", where xx is a user-defined term whose meaning differs from
every listed value (not a synonym of one).

content	simple
minOccurs	0

<element minOccurs="0" name="sampleFraction" type="diggs:SampleFractionEnumType">
  <annotation>
    <documentation>The fraction of the total sample analyzed. Applies primarily to non-soil samples. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
  </annotation>
</element>

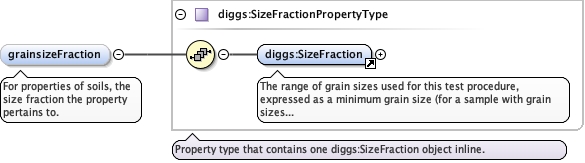

For properties of soils, the size fraction the property pertains to.

content	complex
minOccurs	0

<diggs:grainsizeFraction xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:SizeFraction gml:id="">{1,1}</diggs:SizeFraction>
</diggs:grainsizeFraction>

<element minOccurs="0" name="grainsizeFraction" type="diggs:SizeFractionPropertyType">
  <annotation>
    <documentation>For properties of soils, the size fraction the property pertains to.</documentation>
  </annotation>
</element>

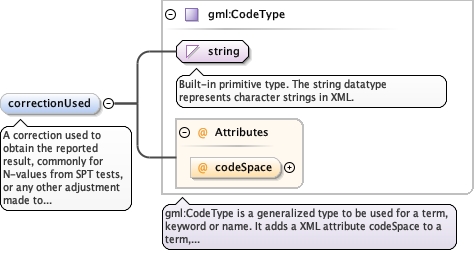

A correction used to obtain the reported result, commonly for
N-values from SPT tests, or any other adjustment made to the
reported data. A controlled term is preferred. Repeat for each
correction. No DIGGS-authored dictionary currently exists for this
element.

content	complex
minOccurs	0
maxOccurs	unbounded

QName	Type	Use
codeSpace	anyURI	optional

<element minOccurs="0" maxOccurs="unbounded" name="correctionUsed" type="gml:CodeType">
  <annotation>
    <documentation>A correction used to obtain the reported result, commonly for N-values from SPT tests, or any other adjustment made to the reported data. A controlled term is preferred. Repeat for each correction. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

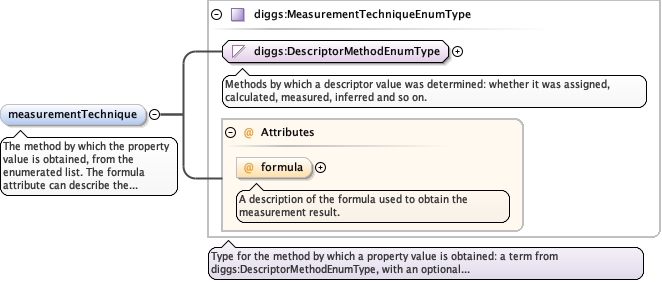

The method by which the property value is obtained, from the
enumerated list. The formula attribute can describe the formula
used.

content	complex
minOccurs	0

QName

Type

Use

Annotation

formula

string

optional

A description of the formula used to obtain the measurement result.

<element minOccurs="0" name="measurementTechnique" type="diggs:MeasurementTechniqueEnumType">
  <annotation>
    <documentation>The method by which the property value is obtained, from the enumerated list. The formula attribute can describe the formula used.</documentation>
  </annotation>
</element>

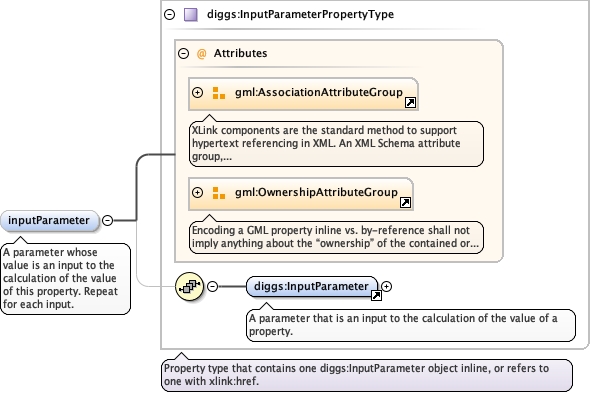

A parameter whose value is an input to the calculation of the value
of this property. Repeat for each input.

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:inputParameter xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:InputParameter gml:id="">{1,1}</diggs:InputParameter>
</diggs:inputParameter>

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

<element minOccurs="0" name="inputParameter" type="diggs:InputParameterPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>A parameter whose value is an input to the calculation of the value of this property. Repeat for each input.</documentation>
  </annotation>
</element>

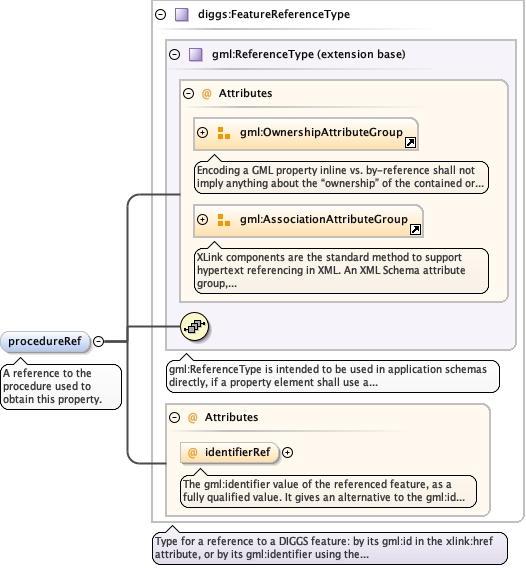

A reference to the procedure used to obtain this property.

content	complex
minOccurs	0

QName

Type

Default

Use

Annotation

identifierRef

diggs:IdentifierReferenceType

optional

The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.

nilReason

gml:NilReasonType

optional

owns

boolean

false

optional

xlink:href

anyURI

optional

<element minOccurs="0" name="procedureRef" type="diggs:FeatureReferenceType">
  <annotation>
    <documentation>A reference to the procedure used to obtain this property.</documentation>
  </annotation>
</element>

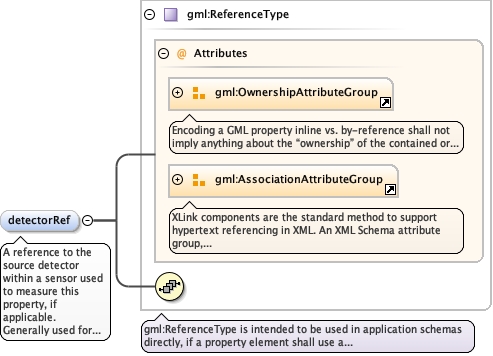

A reference to the source detector within a sensor used to measure
this property, if applicable. Generally used for well logs, downhole
logging procedures, monitoring equipment or MWD readings. Given by
reference only.

content	complex
minOccurs	0
maxOccurs	1

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

<element name="detectorRef" type="gml:ReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <appinfo>diggs:Detector</appinfo>
    <documentation>A reference to the source detector within a sensor used to measure this property, if applicable. Generally used for well logs, downhole logging procedures, monitoring equipment or MWD readings. Given by reference only.</documentation>
  </annotation>
</element>

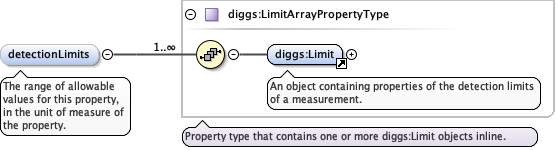

The range of allowable values for this property, in the unit of
measure of the property.

content	complex
minOccurs	0
maxOccurs	1

<diggs:detectionLimits xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Limit gml:id="">{1,1}</diggs:Limit>
</diggs:detectionLimits>

<element maxOccurs="1" minOccurs="0" name="detectionLimits" type="diggs:LimitArrayPropertyType">
  <annotation>
    <documentation>The range of allowable values for this property, in the unit of measure of the property.</documentation>
  </annotation>
</element>

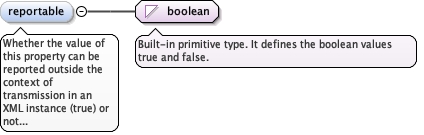

Whether the value of this property can be reported outside the
context of transmission in an XML instance (true) or not (false).

content	simple
minOccurs	0
maxOccurs	1
default	true

<element maxOccurs="1" minOccurs="0" name="reportable" type="boolean" default="true">
  <annotation>
    <documentation>Whether the value of this property can be reported outside the context of transmission in an XML instance (true) or not (false).</documentation>
  </annotation>
</element>

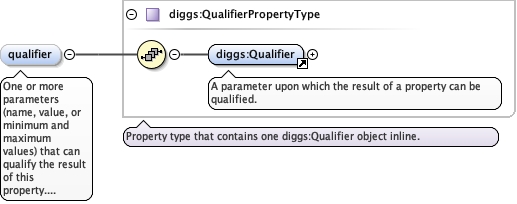

One or more parameters (name, value, or minimum and maximum values)
that can qualify the result of this property. Repeat for each
qualifier.

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:qualifier xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Qualifier gml:id="" index="">{1,1}</diggs:Qualifier>
</diggs:qualifier>

<element maxOccurs="unbounded" minOccurs="0" name="qualifier" type="diggs:QualifierPropertyType">
  <annotation>
    <documentation>One or more parameters (name, value, or minimum and maximum values) that can qualify the result of this property. Repeat for each qualifier.</documentation>
  </annotation>
</element>

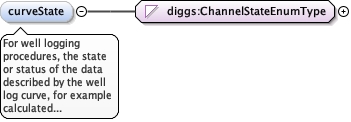

For well logging procedures, the state or status of the data
described by the well log curve, for example calculated from another
source, from archive, or raw real time. Values come from the
enumerated list.

content	simple
minOccurs	0
maxOccurs	1

enumeration

calculated

Calculated from measurements.

enumeration

final

Considered final and not subject to change.

enumeration

memory

Sensor data is recorded into downhole memory of a tool, rather
than transmitting in "real time" to surface.

enumeration

processed

Results of calculations based on measurements.

enumeration

real time

Measurements at the actual time.

<element maxOccurs="1" minOccurs="0" name="curveState" type="diggs:ChannelStateEnumType">
  <annotation>
    <documentation>For well logging procedures, the state or status of the data described by the well log curve, for example calculated from another source, from archive, or raw real time. Values come from the enumerated list.</documentation>
  </annotation>
</element>

For well logging procedures, the source of the data in the channel.
Values come from the enumerated list.

content	simple
minOccurs	0
maxOccurs	1

enumeration

raw

Raw measured data, directly from sensors.

enumeration

simulated

Data produced by simulation rather than measurement.

enumeration

spliced

Derived by splicing values from two or more other
channels.

enumeration

sampled

Derived by sampling values from one or more other
channels.

enumeration

model

Based on modeled results derived from the values in one or more other
channels.

<element maxOccurs="1" minOccurs="0" name="curveDerivation" type="diggs:ChannelDerivationEnumType">
  <annotation>
    <documentation>For well logging procedures, the source of the data in the channel. Values come from the enumerated list.</documentation>
  </annotation>
</element>

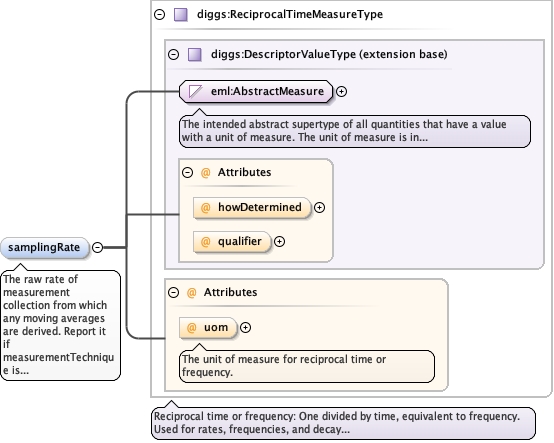

The raw rate of measurement collection from which any moving
averages are derived. Report it if measurementTechnique is moving
average.

content	complex
minOccurs	0
maxOccurs	1

QName

Type

Use

Annotation

howDetermined

diggs:DescriptorMethodEnumType

optional

qualifier

diggs:QualifierEnumExtType

optional

uom

diggs:ReciprocalTimeUomEnumType

optional

The unit of measure for reciprocal time or frequency.

<element maxOccurs="1" minOccurs="0" name="samplingRate" type="diggs:ReciprocalTimeMeasureType">
  <annotation>
    <documentation>The raw rate of measurement collection from which any moving averages are derived. Report it if measurementTechnique is moving average.</documentation>
  </annotation>
</element>

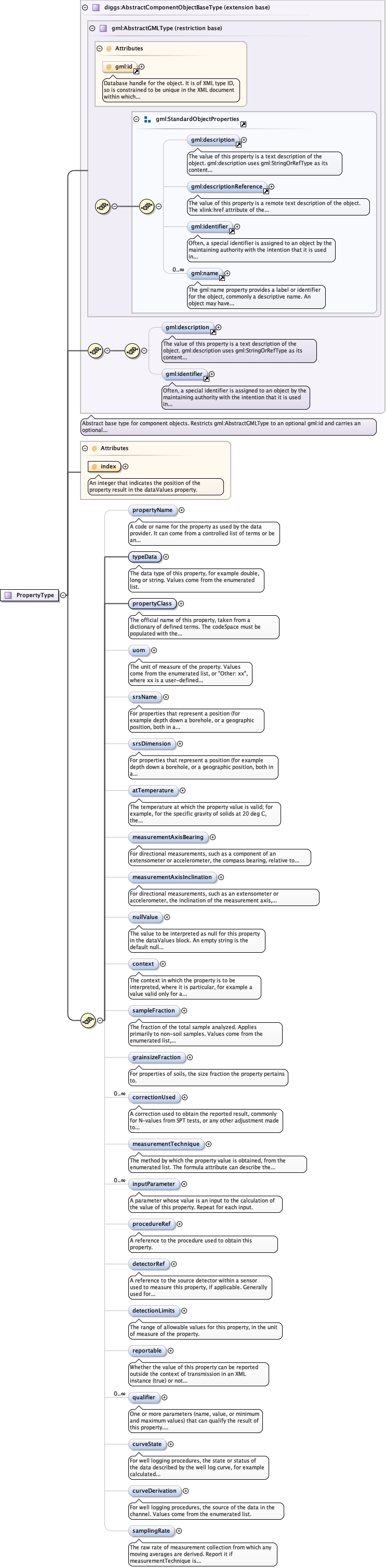

Element

diggs:Property

QName

Type

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

index

positiveInteger

required

An integer that indicates the position of the property result in the
dataValues property.

<complexType name="PropertyType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="propertyName" type="gml:CodeType">
          <annotation>
            <documentation>A code or name for the property as used by the data provider. It can come from a controlled list of terms or be an uncontrolled text string, and is commonly used to label a column of a log sheet or give the property a local meaning. The value must be unique among the properties in the dataValues block transmitted as part of this measurement. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="1" name="typeData" type="diggs:PropertyDataTypeEnumType">
          <annotation>
            <documentation>The data type of this property, for example double, long or string. Values come from the enumerated list.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="1" name="propertyClass" type="gml:CodeWithAuthorityType">
          <annotation>
            <documentation>The official name of this property, taken from a dictionary of defined terms. The codeSpace must be populated with the URI of the definition, so that applications can validate the value as a known property. Use the DIGGS property dictionary that serves the host measurement: properties.xml, cpt_interpreted_properties.xml, gp_properties.xml, gr_inj_properties.xml, mwd_properties.xml or pil_properties.xml.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="uom" type="diggs:AllUnits">
          <annotation>
            <documentation>The unit of measure of the property. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="srsName" type="anyURI">
          <annotation>
            <documentation>For properties that represent a position (for example depth down a borehole, or a geographic position, both in a time-indexed record), the pointer to the spatial reference system the position belongs to: a geospatialSRS, a localCartesianCRS or a LinearSpatialReferenceSystem. The URI must resolve to one of those objects.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="srsDimension" type="positiveInteger">
          <annotation>
            <documentation>For properties that represent a position (for example depth down a borehole, or a geographic position, both in a time-indexed record), the dimensionality of the spatial reference system. Where srsDimension is greater than 1, the coordinates in the dataValues block cannot be space-separated, because a parser would read the space as the end of a data record; separate them with |, so that coordinates 10 4 12 are written 10|4|12.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="atTemperature" type="diggs:ThermodynamicTemperatureMeasureType">
          <annotation>
            <documentation>The temperature at which the property value is valid; for example, for the specific gravity of solids at 20 deg C, the temperature value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="measurementAxisBearing" type="diggs:PlaneAngleMeasureType">
          <annotation>
            <documentation>For directional measurements, such as a component of an extensometer or accelerometer, the compass bearing, relative to true north, of the measurement axis.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="measurementAxisInclination" type="diggs:PlaneAngleMeasureType">
          <annotation>
            <documentation>For directional measurements, such as an extensometer or accelerometer, the inclination of the measurement axis, positive down from horizontal.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="nullValue" type="diggs:NullDataType">
          <annotation>
            <documentation>The value to be interpreted as null for this property in the dataValues block. An empty string is the default null representation when none is defined. The reason attribute gives the reason for the null value, for example withheld; it can be customized with an Other: qualifier (for example Other: below detection limit) or refer to a URI for a fuller definition.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="context" type="string">
          <annotation>
            <documentation>The context in which the property is to be interpreted, where it is particular, for example a value valid only for a range of overburden pressures.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="sampleFraction" type="diggs:SampleFractionEnumType">
          <annotation>
            <documentation>The fraction of the total sample analyzed. Applies primarily to non-soil samples. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="grainsizeFraction" type="diggs:SizeFractionPropertyType">
          <annotation>
            <documentation>For properties of soils, the size fraction the property pertains to.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" name="correctionUsed" type="gml:CodeType">
          <annotation>
            <documentation>A correction used to obtain the reported result, commonly for N-values from SPT tests, or any other adjustment made to the reported data. A controlled term is preferred. Repeat for each correction. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="measurementTechnique" type="diggs:MeasurementTechniqueEnumType">
          <annotation>
            <documentation>The method by which the property value is obtained, from the enumerated list. The formula attribute can describe the formula used.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="inputParameter" type="diggs:InputParameterPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>A parameter whose value is an input to the calculation of the value of this property. Repeat for each input.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="procedureRef" type="diggs:FeatureReferenceType">
          <annotation>
            <documentation>A reference to the procedure used to obtain this property.</documentation>
          </annotation>
        </element>
        <element name="detectorRef" type="gml:ReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <appinfo>diggs:Detector</appinfo>
            <documentation>A reference to the source detector within a sensor used to measure this property, if applicable. Generally used for well logs, downhole logging procedures, monitoring equipment or MWD readings. Given by reference only.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="detectionLimits" type="diggs:LimitArrayPropertyType">
          <annotation>
            <documentation>The range of allowable values for this property, in the unit of measure of the property.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="reportable" type="boolean" default="true">
          <annotation>
            <documentation>Whether the value of this property can be reported outside the context of transmission in an XML instance (true) or not (false).</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="qualifier" type="diggs:QualifierPropertyType">
          <annotation>
            <documentation>One or more parameters (name, value, or minimum and maximum values) that can qualify the result of this property. Repeat for each qualifier.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="curveState" type="diggs:ChannelStateEnumType">
          <annotation>
            <documentation>For well logging procedures, the state or status of the data described by the well log curve, for example calculated from another source, from archive, or raw real time. Values come from the enumerated list.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="curveDerivation" type="diggs:ChannelDerivationEnumType">
          <annotation>
            <documentation>For well logging procedures, the source of the data in the channel. Values come from the enumerated list.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="samplingRate" type="diggs:ReciprocalTimeMeasureType">
          <annotation>
            <documentation>The raw rate of measurement collection from which any moving averages are derived. Report it if measurementTechnique is moving average.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="index" type="positiveInteger" use="required">
        <annotation>
          <documentation>An integer that indicates the position of the property result in the dataValues property.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>

An integer that indicates the position of the property result in the
dataValues property.

Complex Type

diggs:PropertyType

<attribute name="index" type="positiveInteger" use="required">
  <annotation>
    <documentation>An integer that indicates the position of the property result in the dataValues property.</documentation>
  </annotation>
</attribute>

XML Schema documentation generated by <oXygen/>^® XML Editor.

Showing:
