Element diggs:Qualifier
Namespace http://diggsml.org/schemas/3
Annotations

A parameter upon which the result of a property can be qualified.

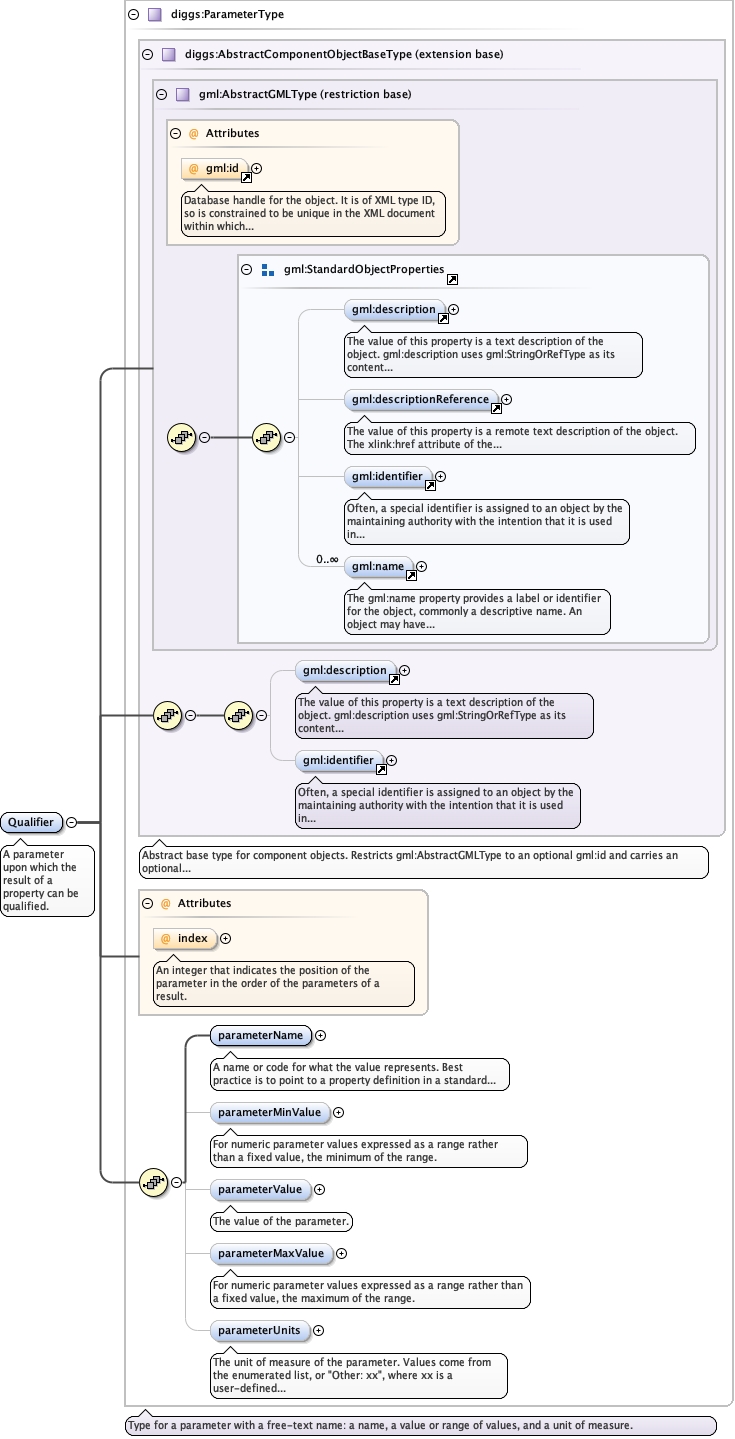

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_indexCommon_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterNameCommon_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterMinValueCommon_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterValueCommon_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterMaxValueCommon_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterUnitsCommon_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType
Type diggs:ParameterType
Type hierarchy
Properties
content complex
abstract false
Used by
Model
Children diggs:parameterMaxValue, diggs:parameterMinValue, diggs:parameterName, diggs:parameterUnits, diggs:parameterValue, gml:description, gml:identifier
Instance

<diggs:Qualifier gml:id="" index="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:parameterName codeSpace="">{1,1}</diggs:parameterName>
  <diggs:parameterMinValue>{0,1}</diggs:parameterMinValue>
  <diggs:parameterValue>{0,1}</diggs:parameterValue>
  <diggs:parameterMaxValue>{0,1}</diggs:parameterMaxValue>
  <diggs:parameterUnits>{0,1}</diggs:parameterUnits>
</diggs:Qualifier>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
index positiveInteger optional
An integer that indicates the position of the parameter in the order of
the parameters of a result.
Source

<element abstract="false" name="Qualifier" type="diggs:ParameterType">
  <annotation>
    <documentation>A parameter upon which the result of a property can be qualified.</documentation>
  </annotation>
</element>
