Element diggs:SizeFraction
Namespace http://diggsml.org/schemas/3
Annotations

The range of grain sizes used for this test procedure, expressed as a minimum grain
size (for a sample with grain sizes above a certain size), a maximum grain size (for
a sample with grain sizes below a certain size), or both, for a sample with grain
sizes between the two. It also states the percentage of the total sample the
fraction represents.

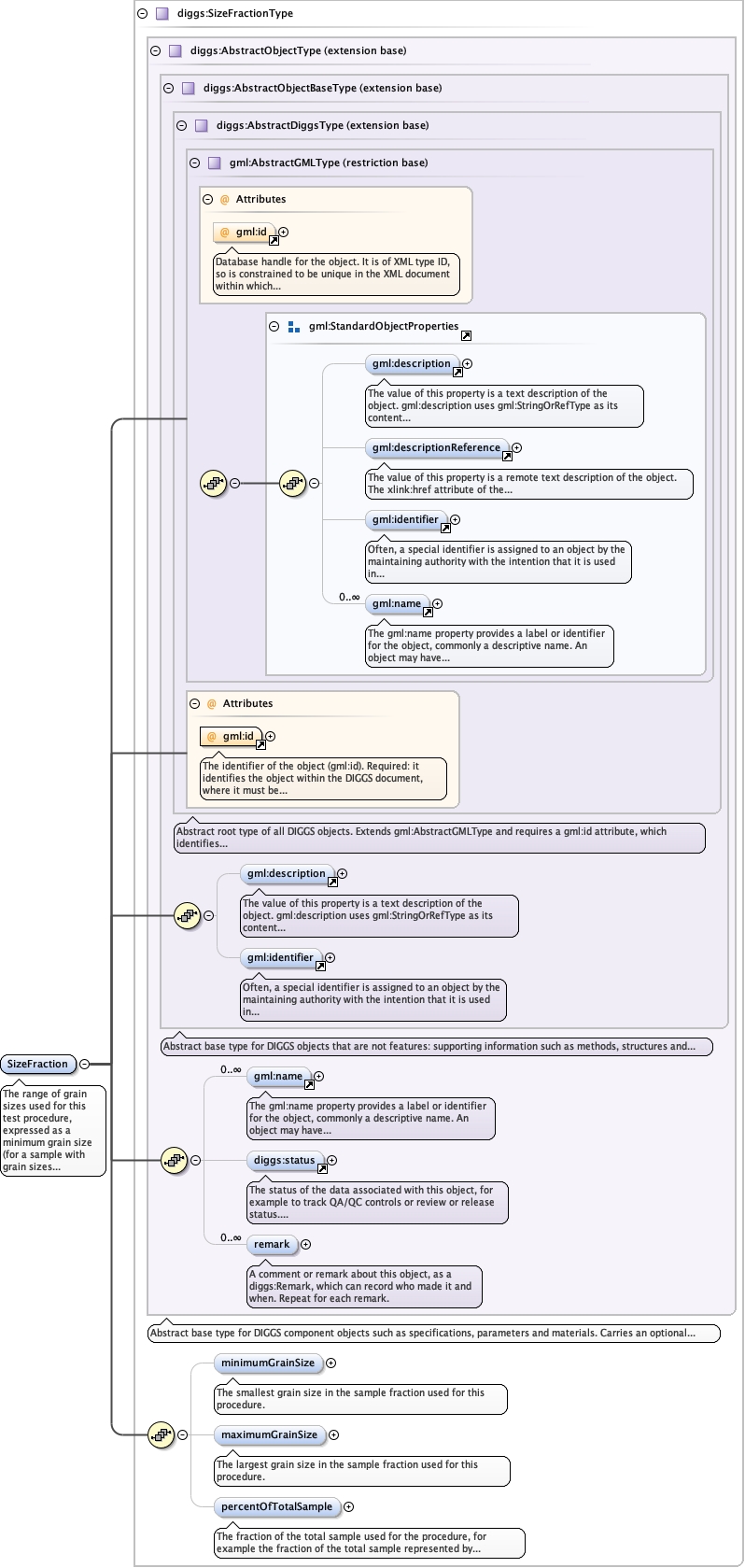

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Complex_Type_diggs_SizeFractionType.tmp#SizeFractionType_minimumGrainSizeCommon_xsd_Complex_Type_diggs_SizeFractionType.tmp#SizeFractionType_maximumGrainSizeCommon_xsd_Complex_Type_diggs_SizeFractionType.tmp#SizeFractionType_percentOfTotalSampleCommon_xsd_Complex_Type_diggs_SizeFractionType.tmp#SizeFractionType
Type diggs:SizeFractionType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:maximumGrainSize, diggs:minimumGrainSize, diggs:percentOfTotalSample, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:SizeFraction gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:minimumGrainSize uom="">{0,1}</diggs:minimumGrainSize>
  <diggs:maximumGrainSize uom="">{0,1}</diggs:maximumGrainSize>
  <diggs:percentOfTotalSample howDetermined="" qualifier="" uom="">{0,1}</diggs:percentOfTotalSample>
</diggs:SizeFraction>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="SizeFraction" type="diggs:SizeFractionType">
  <annotation>
    <documentation>The range of grain sizes used for this test procedure, expressed as a minimum grain size (for a sample with grain sizes above a certain size), a maximum grain size (for a sample with grain sizes below a certain size), or both, for a sample with grain sizes between the two. It also states the percentage of the total sample the fraction represents.</documentation>
  </annotation>
</element>
