Element diggs:ZoneLoadTestType / diggs:loadedFootprint
Namespace http://diggsml.org/schemas/3
Annotations

The plan-view extent of the loaded area, where it does not cover the
whole of the load transfer platform cited through
Test/samplingFeatureRef.
Diagram

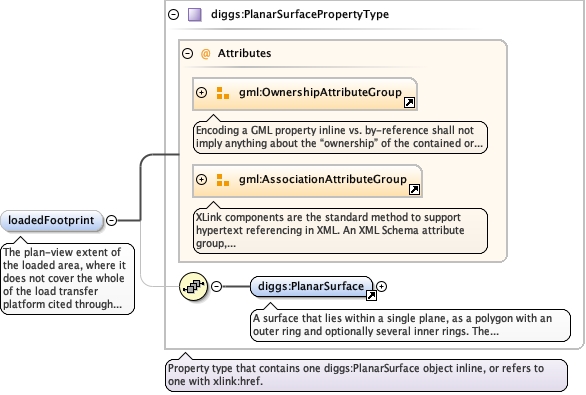

Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PlanarSurface.tmp#PlanarSurfaceCore_xsd_Complex_Type_diggs_PlanarSurfacePropertyType.tmp#PlanarSurfacePropertyType
Type diggs:PlanarSurfacePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:PlanarSurface
Instance

<diggs:loadedFootprint xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PlanarSurface>
</diggs:loadedFootprint>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="loadedFootprint" type="diggs:PlanarSurfacePropertyType">
  <annotation>
    <documentation>The plan-view extent of the loaded area, where it does not cover the whole of the load transfer platform cited through Test/samplingFeatureRef.</documentation>
  </annotation>
</element>
Element diggs:ZoneLoadTestType / diggs:testedColumnRef
Namespace http://diggsml.org/schemas/3
Annotations

The diggs:RIColumn features that the loaded footprint bears on,
where they are a named subset of the platform's columns rather than
all of them. Given by reference only. Repeat for each column.
Diagram

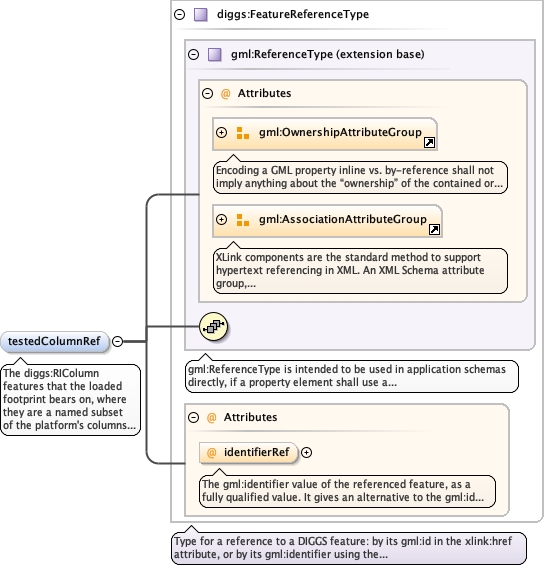

Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" maxOccurs="unbounded" name="testedColumnRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:RIColumn</appinfo>
    <documentation>The diggs:RIColumn features that the loaded footprint bears on, where they are a named subset of the platform's columns rather than all of them. Given by reference only. Repeat for each column.</documentation>
  </annotation>
</element>
Complex Type diggs:ZoneLoadTestType
Namespace http://diggsml.org/schemas/3
Diagram

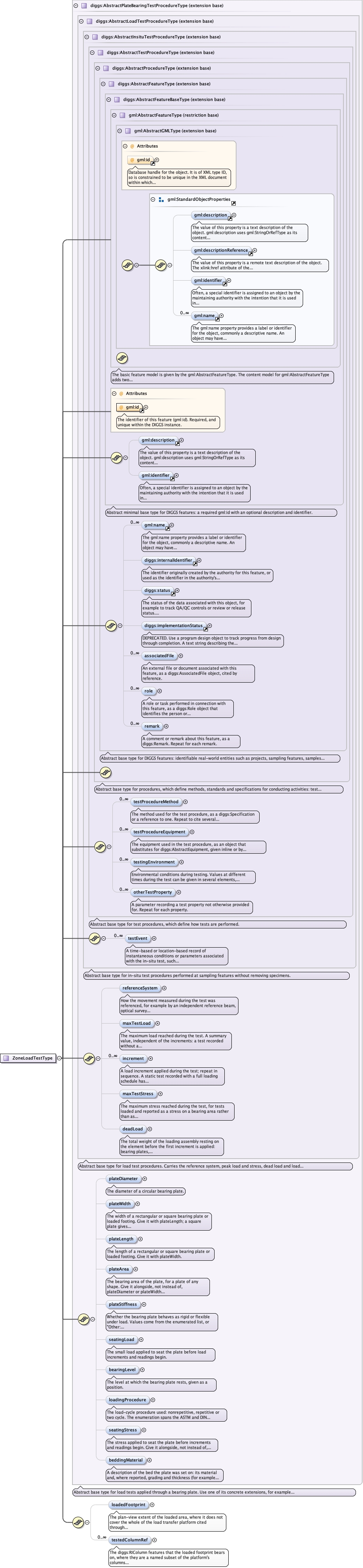

Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_referenceSystemAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_maxTestLoadAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_incrementAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_maxTestStressAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_deadLoadAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_plateDiameterExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_plateWidthExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_plateLengthExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_plateAreaExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_plateStiffnessExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_seatingLoadExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_bearingLevelExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_loadingProcedureExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_seatingStressExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureType_beddingMaterialExtProcedures_xsd_Complex_Type_diggs_AbstractPlateBearingTestProcedureType.tmp#AbstractPlateBearingTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_ZoneLoadTestType.tmp#ZoneLoadTestType_loadedFootprintExtProcedures_xsd_Complex_Type_diggs_ZoneLoadTestType.tmp#ZoneLoadTestType_testedColumnRef
Type extension of diggs:AbstractPlateBearingTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:bearingLevel, diggs:beddingMaterial, diggs:deadLoad, diggs:implementationStatus, diggs:increment, diggs:internalIdentifier, diggs:loadedFootprint, diggs:loadingProcedure, diggs:maxTestLoad, diggs:maxTestStress, diggs:otherTestProperty, diggs:plateArea, diggs:plateDiameter, diggs:plateLength, diggs:plateStiffness, diggs:plateWidth, diggs:referenceSystem, diggs:remark, diggs:role, diggs:seatingLoad, diggs:seatingStress, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testedColumnRef, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="ZoneLoadTestType">
  <complexContent>
    <extension base="diggs:AbstractPlateBearingTestProcedureType">
      <sequence>
        <element minOccurs="0" name="loadedFootprint" type="diggs:PlanarSurfacePropertyType">
          <annotation>
            <documentation>The plan-view extent of the loaded area, where it does not cover the whole of the load transfer platform cited through Test/samplingFeatureRef.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" name="testedColumnRef" type="diggs:FeatureReferenceType">
          <annotation>
            <appinfo source="urn:x-gml:targetElement">diggs:RIColumn</appinfo>
            <documentation>The diggs:RIColumn features that the loaded footprint bears on, where they are a named subset of the platform's columns rather than all of them. Given by reference only. Repeat for each column.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
