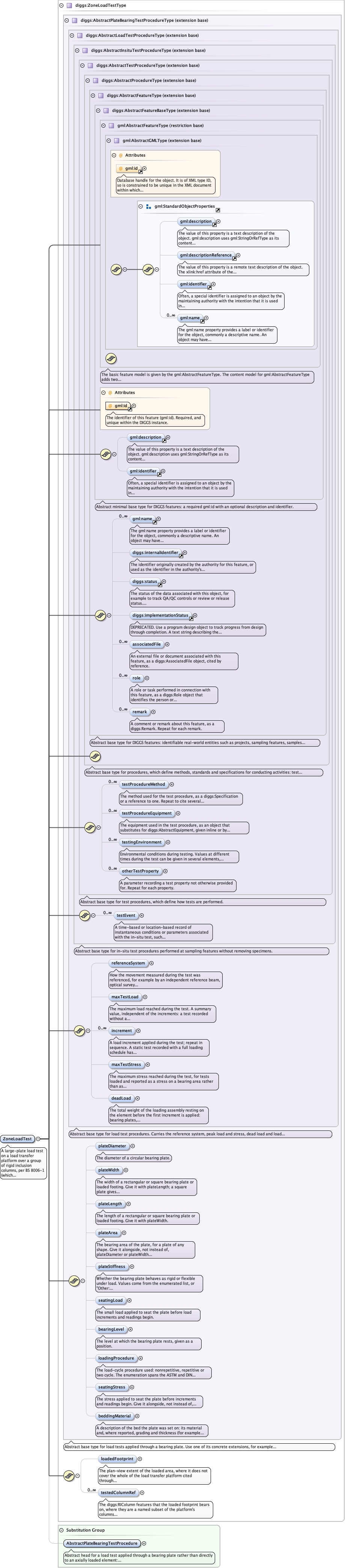

Schema documentation for component diggs:ZoneLoadTest

A large-plate load test on a load transfer platform over a group of rigid inclusion columns, per BS 8006-1 (which requires the test), executed to the methodology of ASTM D1195/D1196 or DIN 18134 (which define how to run it); cite both, as described at diggs:AbstractPlateBearingTestProcedure. Test/samplingFeatureRef cites the diggs:LoadTransferPlatform tested. Give loadedFootprint and testedColumnRef where the tested area is a subset of the platform.

<diggs:ZoneLoadTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs:referenceSystem>{0,1}</diggs:referenceSystem>
  <diggs:maxTestLoad howDetermined="" qualifier="" uom="">{0,1}</diggs:maxTestLoad>
  <diggs:increment>{0,unbounded}</diggs:increment>
  <diggs:maxTestStress howDetermined="" qualifier="" uom="">{0,1}</diggs:maxTestStress>
  <diggs:deadLoad howDetermined="" qualifier="" uom="">{0,1}</diggs:deadLoad>
  <diggs:plateDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:plateDiameter>
  <diggs:plateWidth howDetermined="" qualifier="" uom="">{0,1}</diggs:plateWidth>
  <diggs:plateLength howDetermined="" qualifier="" uom="">{0,1}</diggs:plateLength>
  <diggs:plateArea howDetermined="" qualifier="" uom="">{0,1}</diggs:plateArea>
  <diggs:plateStiffness>{0,1}</diggs:plateStiffness>
  <diggs:seatingLoad howDetermined="" qualifier="" uom="">{0,1}</diggs:seatingLoad>
  <diggs:bearingLevel owns="false" xlink:href="" nilReason="">{0,1}</diggs:bearingLevel>
  <diggs:loadingProcedure>{0,1}</diggs:loadingProcedure>
  <diggs:seatingStress howDetermined="" qualifier="" uom="">{0,1}</diggs:seatingStress>
  <diggs:beddingMaterial>{0,1}</diggs:beddingMaterial>
  <diggs:loadedFootprint xlink:href="" nilReason="" owns="false">{0,1}</diggs:loadedFootprint>
  <diggs:testedColumnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:testedColumnRef>
</diggs:ZoneLoadTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="ZoneLoadTest" type="diggs:ZoneLoadTestType" abstract="false" substitutionGroup="diggs:AbstractPlateBearingTestProcedure"> <annotation> <documentation>A large-plate load test on a load transfer platform over a group of rigid inclusion columns, per BS 8006-1 (which requires the test), executed to the methodology of ASTM D1195/D1196 or DIN 18134 (which define how to run it); cite both, as described at diggs:AbstractPlateBearingTestProcedure. Test/samplingFeatureRef cites the diggs:LoadTransferPlatform tested. Give loadedFootprint and testedColumnRef where the tested area is a subset of the platform.</documentation> </annotation> </element>
