The gml:identifier value of the referenced feature, as a fully qualifiedvalue. It gives an alternative to the gml:id in xlink:href for findingthe referenced feature, mainly to reference a feature by a globallyunique identifier and where naming conflicts occur with gml:id whenaccessing data in external files.

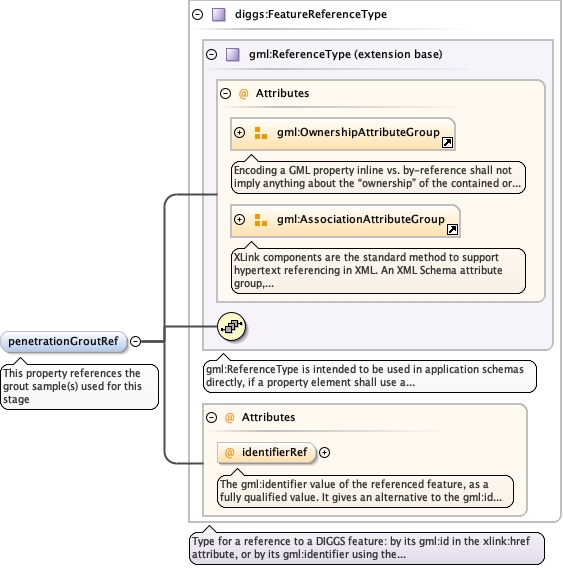

<element maxOccurs="1" minOccurs="0" name="penetrationGroutRef" type="diggs:FeatureReferenceType"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>This property references the grout sample(s) used for this stage</documentation></annotation></element>
The gml:identifier value of the referenced feature, as a fully qualifiedvalue. It gives an alternative to the gml:id in xlink:href for findingthe referenced feature, mainly to reference a feature by a globallyunique identifier and where naming conflicts occur with gml:id whenaccessing data in external files.
<element maxOccurs="1" minOccurs="0" name="withdrawalGroutRef" type="diggs:FeatureReferenceType"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>This property references the grout sample(s) used for this stage</documentation></annotation></element>

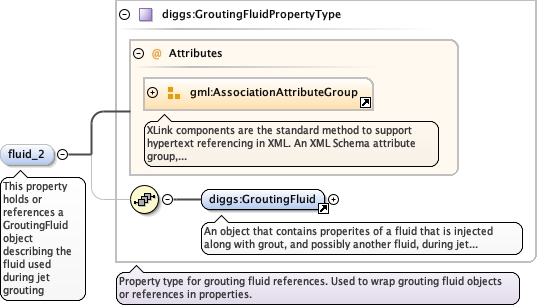

<element maxOccurs="1" minOccurs="0" name="fluid_2" type="diggs:GroutingFluidPropertyType"><annotation><appinfo/><documentation>This property holds or references a GroutingFluid object describing the fluid used during jet grouting</documentation></annotation></element>
<element maxOccurs="1" minOccurs="0" name="fluid_3" type="diggs:GroutingFluidPropertyType"><annotation><appinfo/><documentation>This property holds or references a GroutingFluid object describing the fluid used during jet grouting</documentation></annotation></element>

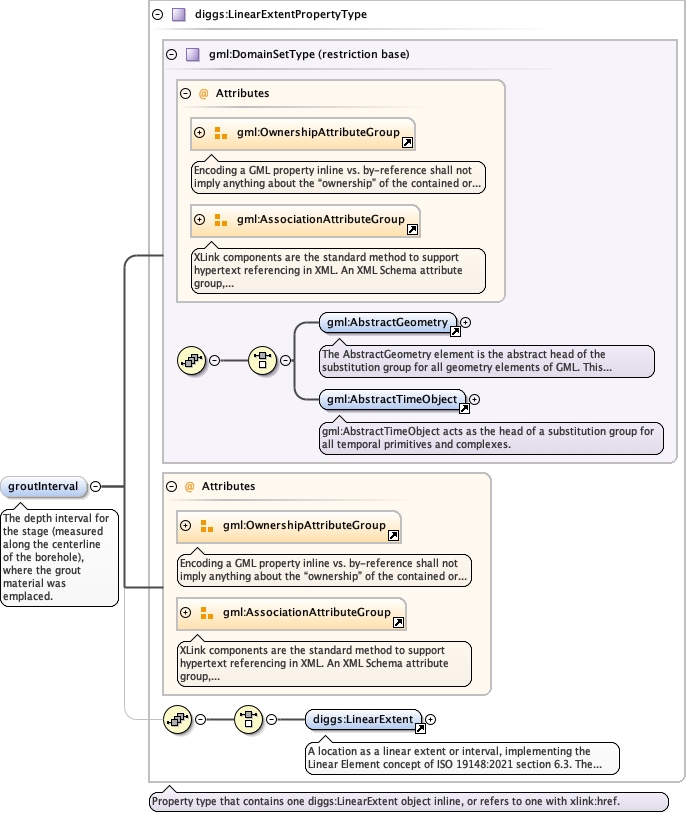

<element minOccurs="0" name="groutInterval" type="diggs:LinearExtentPropertyType"><annotation><documentation>The depth interval for the stage (measured along the centerline of the borehole), where the grout material was emplaced.</documentation></annotation></element>
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
The unit of measure for pressure, stress, or elastic modulus.
Source

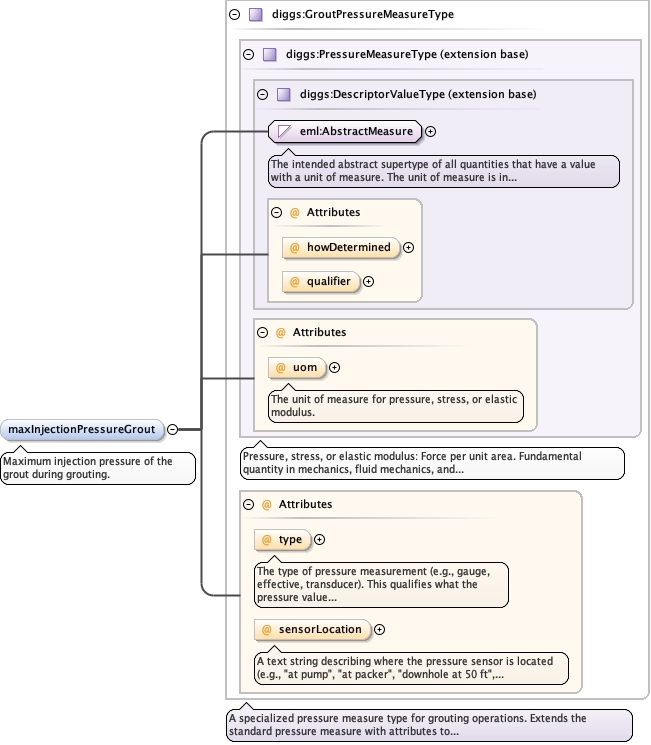

<element name="maxInjectionPressureGrout" minOccurs="0" type="diggs:GroutPressureMeasureType"><annotation><documentation>Maximum injection pressure of the grout during grouting.</documentation></annotation></element>
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
The unit of measure for pressure, stress, or elastic modulus.
Source
<element name="minInjectionPressureGrout" minOccurs="0" type="diggs:GroutPressureMeasureType"><annotation><documentation>Minimum injection pressure of the grout during grouting.</documentation></annotation></element>
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.

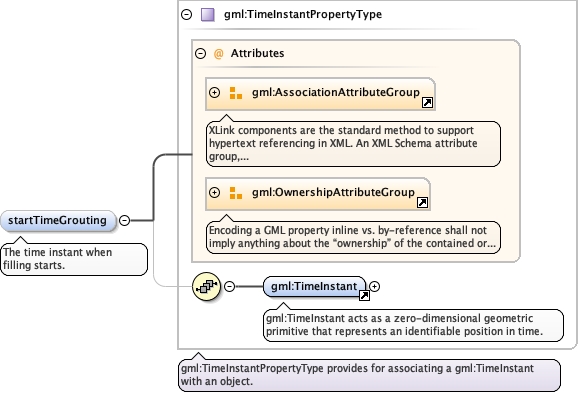

<element minOccurs="0" name="startTimeGrouting" type="gml:TimeInstantPropertyType"><annotation><documentation>The time instant when filling starts.</documentation></annotation></element>

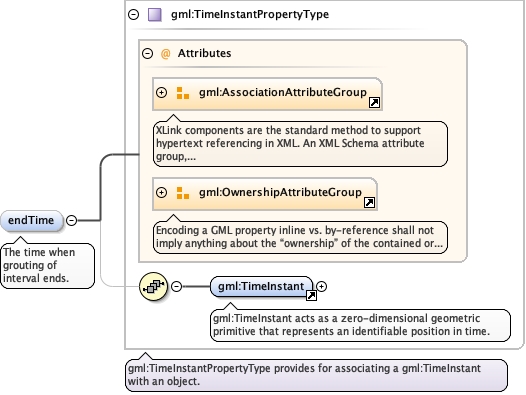

<element minOccurs="0" name="endTime" type="gml:TimeInstantPropertyType"><annotation><documentation>The time when grouting of interval ends.</documentation></annotation></element>

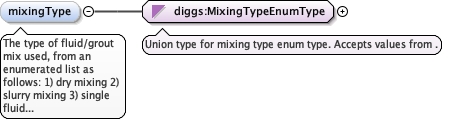

The type of fluid/grout mix used, from an enumerated listas follows: 1) dry mixing 2) slurry mixing 3) single fluid jet 4)double fluid jet 5) triple fluid jet 6) Other:anystring

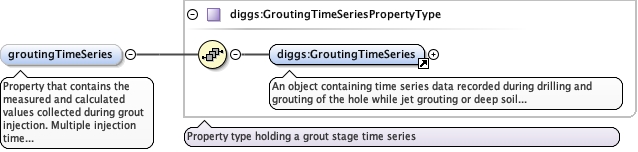

Property that contains the measured and calculated valuescollected during grout injection. Multiple injection time series areallowed to delineate between drilling and grouting, or to allow forstopping of the grouting between injectionintervals.
<element name="groutingTimeSeries" type="diggs:GroutingTimeSeriesPropertyType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>Property that contains the measured and calculated values collected during grout injection. Multiple injection time series are allowed to delineate between drilling and grouting, or to allow for stopping of the grouting between injection intervals.</documentation></annotation></element>

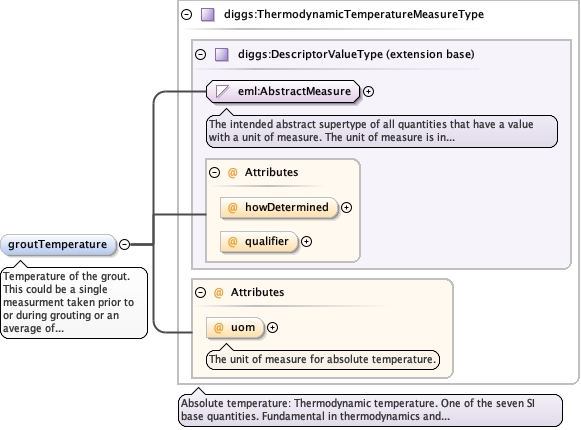

Temperature of the grout. This could be a singlemeasurment taken prior to or during grouting or an average oftemperatures measured during the grouting event. Discretetemperature measurements taken during the grouting should berecorded within the grouting time series object.
<element name="groutTemperature" type="diggs:ThermodynamicTemperatureMeasureType" minOccurs="0"><annotation><documentation>Temperature of the grout. This could be a single measurment taken prior to or during grouting or an average of temperatures measured during the grouting event. Discrete temperature measurements taken during the grouting should be recorded within the grouting time series object.</documentation></annotation></element>

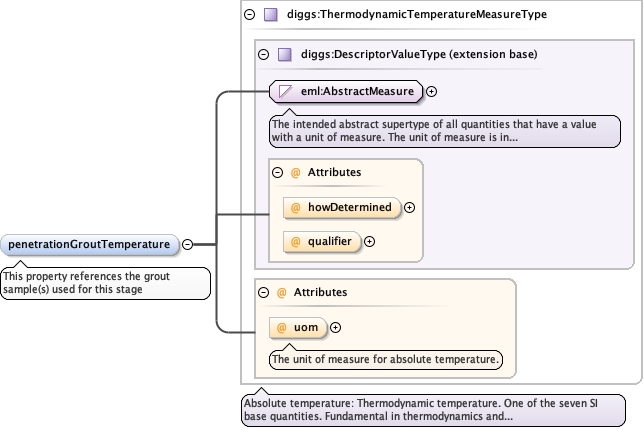

<element maxOccurs="1" minOccurs="0" name="penetrationGroutTemperature" type="diggs:ThermodynamicTemperatureMeasureType"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>This property references the grout sample(s) used for this stage</documentation></annotation></element>
<element maxOccurs="1" minOccurs="0" name="withdrawalGroutTemperature" type="diggs:ThermodynamicTemperatureMeasureType"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>This property references the grout sample(s) used for this stage</documentation></annotation></element>

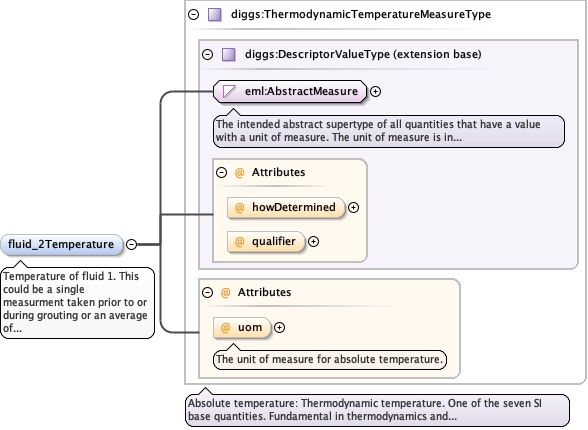

Temperature of fluid 1. This could be a single measurmenttaken prior to or during grouting or an average of temperaturesmeasured during the grouting event. Discrete temperaturemeasurements taken during the grouting should be recorded within thegrouting time series object.
<element name="fluid_2Temperature" type="diggs:ThermodynamicTemperatureMeasureType" minOccurs="0"><annotation><documentation>Temperature of fluid 1. This could be a single measurment taken prior to or during grouting or an average of temperatures measured during the grouting event. Discrete temperature measurements taken during the grouting should be recorded within the grouting time series object.</documentation></annotation></element>

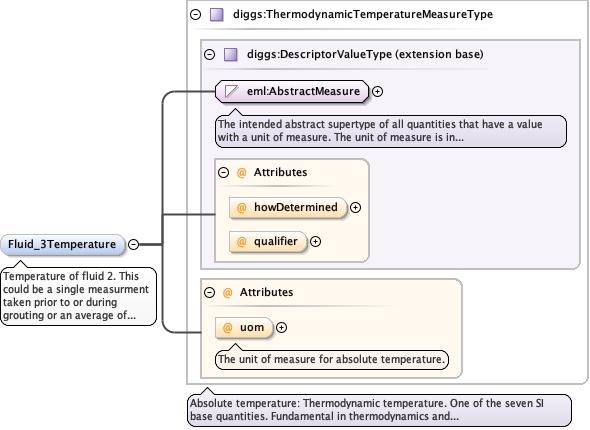

Temperature of fluid 2. This could be a single measurmenttaken prior to or during grouting or an average of temperaturesmeasured during the grouting event. Discrete temperaturemeasurements taken during the grouting should be recorded within thegrouting time series object.
<element name="Fluid_3Temperature" type="diggs:ThermodynamicTemperatureMeasureType" minOccurs="0"><annotation><documentation>Temperature of fluid 2. This could be a single measurment taken prior to or during grouting or an average of temperatures measured during the grouting event. Discrete temperature measurements taken during the grouting should be recorded within the grouting time series object.</documentation></annotation></element>

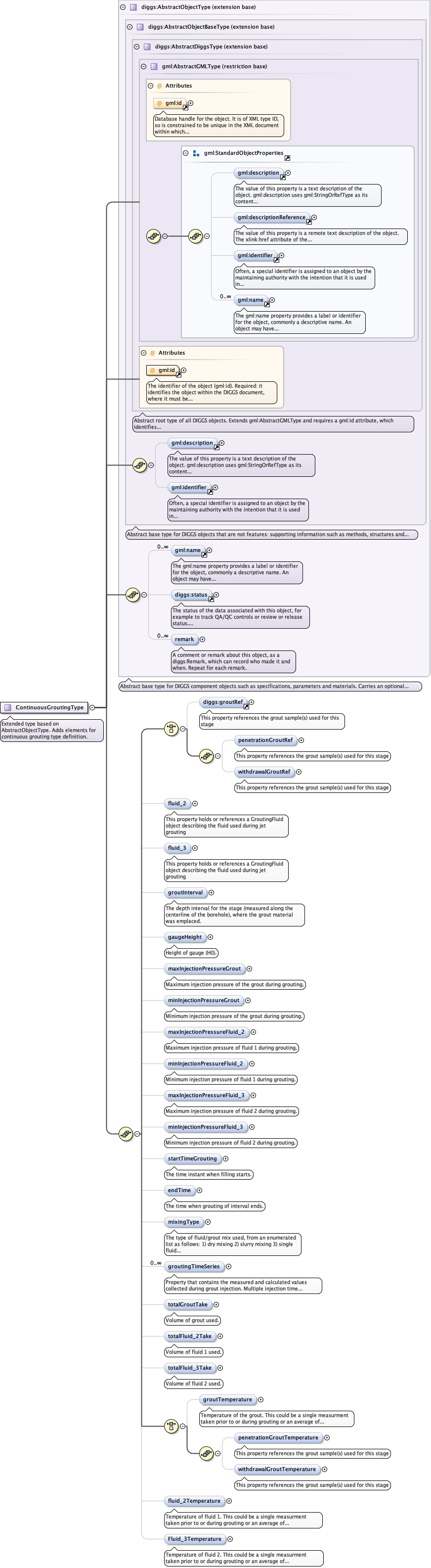

Complex Type diggs:ContinuousGroutingType
Namespace
http://diggsml.org/schemas/3
Annotations
Extended type based on AbstractObjectType. Adds elements for continuous grouting type definition.
Database handle for the object. It is of XML type ID, so is constrained to beunique in the XML document within which it occurs. An external identifier for the object inthe form of a URI may be constructed using standard XML and XPointer methods. This is doneby concatenating the URI for the document, a fragment separator, and the value of the idattribute.
Source
<complexType name="ContinuousGroutingType"><annotation><documentation>Extended type based on AbstractObjectType. Adds elements for continuous grouting type definition.</documentation></annotation><complexContent><extension base="diggs:AbstractObjectType"><sequence><choice><element maxOccurs="1" minOccurs="0" ref="diggs:groutRef"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>This property references the grout sample(s) used for this stage</documentation></annotation></element><sequence><element maxOccurs="1" minOccurs="0" name="penetrationGroutRef" type="diggs:FeatureReferenceType"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>This property references the grout sample(s) used for this stage</documentation></annotation></element><element maxOccurs="1" minOccurs="0" name="withdrawalGroutRef" type="diggs:FeatureReferenceType"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>This property references the grout sample(s) used for this stage</documentation></annotation></element></sequence></choice><element maxOccurs="1" minOccurs="0" name="fluid_2" type="diggs:GroutingFluidPropertyType"><annotation><appinfo/><documentation>This property holds or references a GroutingFluid object describing the fluid used during jet grouting</documentation></annotation></element><element maxOccurs="1" minOccurs="0" name="fluid_3" type="diggs:GroutingFluidPropertyType"><annotation><appinfo/><documentation>This property holds or references a GroutingFluid object describing the fluid used during jet grouting</documentation></annotation></element><element minOccurs="0" name="groutInterval" type="diggs:LinearExtentPropertyType"><annotation><documentation>The depth interval for the stage (measured along the centerline of the borehole), where the grout material was emplaced.</documentation></annotation></element><element name="gaugeHeight" type="diggs:LengthMeasureType" minOccurs="0"><annotation><documentation>Height of gauge (H0).</documentation></annotation></element><element name="maxInjectionPressureGrout" minOccurs="0" type="diggs:GroutPressureMeasureType"><annotation><documentation>Maximum injection pressure of the grout during grouting.</documentation></annotation></element><element name="minInjectionPressureGrout" minOccurs="0" type="diggs:GroutPressureMeasureType"><annotation><documentation>Minimum injection pressure of the grout during grouting.</documentation></annotation></element><element name="maxInjectionPressureFluid_2" minOccurs="0" type="diggs:GroutPressureMeasureType"><annotation><documentation>Maximum injection pressure of fluid 1 during grouting.</documentation></annotation></element><element name="minInjectionPressureFluid_2" minOccurs="0" type="diggs:GroutPressureMeasureType"><annotation><documentation>Minimum injection pressure of fluid 1 during grouting.</documentation></annotation></element><element name="maxInjectionPressureFluid_3" minOccurs="0" type="diggs:GroutPressureMeasureType"><annotation><documentation>Maximum injection pressure of fluid 2 during grouting.</documentation></annotation></element><element name="minInjectionPressureFluid_3" minOccurs="0" type="diggs:GroutPressureMeasureType"><annotation><documentation>Minimum injection pressure of fluid 2 during grouting.</documentation></annotation></element><element minOccurs="0" name="startTimeGrouting" type="gml:TimeInstantPropertyType"><annotation><documentation>The time instant when filling starts.</documentation></annotation></element><element minOccurs="0" name="endTime" type="gml:TimeInstantPropertyType"><annotation><documentation>The time when grouting of interval ends.</documentation></annotation></element><element minOccurs="0" name="mixingType" type="diggs:MixingTypeEnumType"><annotation><documentation>The type of fluid/grout mix used, from an enumerated list as follows: 1) dry mixing 2) slurry mixing 3) single fluid jet 4) double fluid jet 5) triple fluid jet 6) Other:any string</documentation></annotation></element><element name="groutingTimeSeries" type="diggs:GroutingTimeSeriesPropertyType" minOccurs="0" maxOccurs="unbounded"><annotation><documentation>Property that contains the measured and calculated values collected during grout injection. Multiple injection time series are allowed to delineate between drilling and grouting, or to allow for stopping of the grouting between injection intervals.</documentation></annotation></element><element name="totalGroutTake" type="diggs:VolumeMeasureType" minOccurs="0"><annotation><documentation>Volume of grout used.</documentation></annotation></element><element name="totalFluid_2Take" type="diggs:VolumeMeasureType" minOccurs="0"><annotation><documentation>Volume of fluid 1 used.</documentation></annotation></element><element name="totalFluid_3Take" type="diggs:VolumeMeasureType" minOccurs="0"><annotation><documentation>Volume of fluid 2 used.</documentation></annotation></element><choice><element name="groutTemperature" type="diggs:ThermodynamicTemperatureMeasureType" minOccurs="0"><annotation><documentation>Temperature of the grout. This could be a single measurment taken prior to or during grouting or an average of temperatures measured during the grouting event. Discrete temperature measurements taken during the grouting should be recorded within the grouting time series object.</documentation></annotation></element><sequence><element maxOccurs="1" minOccurs="0" name="penetrationGroutTemperature" type="diggs:ThermodynamicTemperatureMeasureType"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>This property references the grout sample(s) used for this stage</documentation></annotation></element><element maxOccurs="1" minOccurs="0" name="withdrawalGroutTemperature" type="diggs:ThermodynamicTemperatureMeasureType"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>This property references the grout sample(s) used for this stage</documentation></annotation></element></sequence></choice><element name="fluid_2Temperature" type="diggs:ThermodynamicTemperatureMeasureType" minOccurs="0"><annotation><documentation>Temperature of fluid 1. This could be a single measurment taken prior to or during grouting or an average of temperatures measured during the grouting event. Discrete temperature measurements taken during the grouting should be recorded within the grouting time series object.</documentation></annotation></element><element name="Fluid_3Temperature" type="diggs:ThermodynamicTemperatureMeasureType" minOccurs="0"><annotation><documentation>Temperature of fluid 2. This could be a single measurment taken prior to or during grouting or an average of temperatures measured during the grouting event. Discrete temperature measurements taken during the grouting should be recorded within the grouting time series object.</documentation></annotation></element></sequence></extension></complexContent></complexType>
