Element diggs:LinearExtent
Namespace http://diggsml.org/schemas/3
Annotations

A location as a linear extent or interval, implementing the Linear Element concept
of ISO 19148:2021 section 6.3. The first vertex is the starting location and the
last vertex the end location, with the coordinates in gml:posList in the order
traversed during measurement. It is the object along which linear referencing
measurements are made, and typically represents a borehole centerline (the
three-dimensional path from collar to bottom), a well trajectory including deviated
wells, a CPT sounding path, a geophysical trackline or a survey transect.

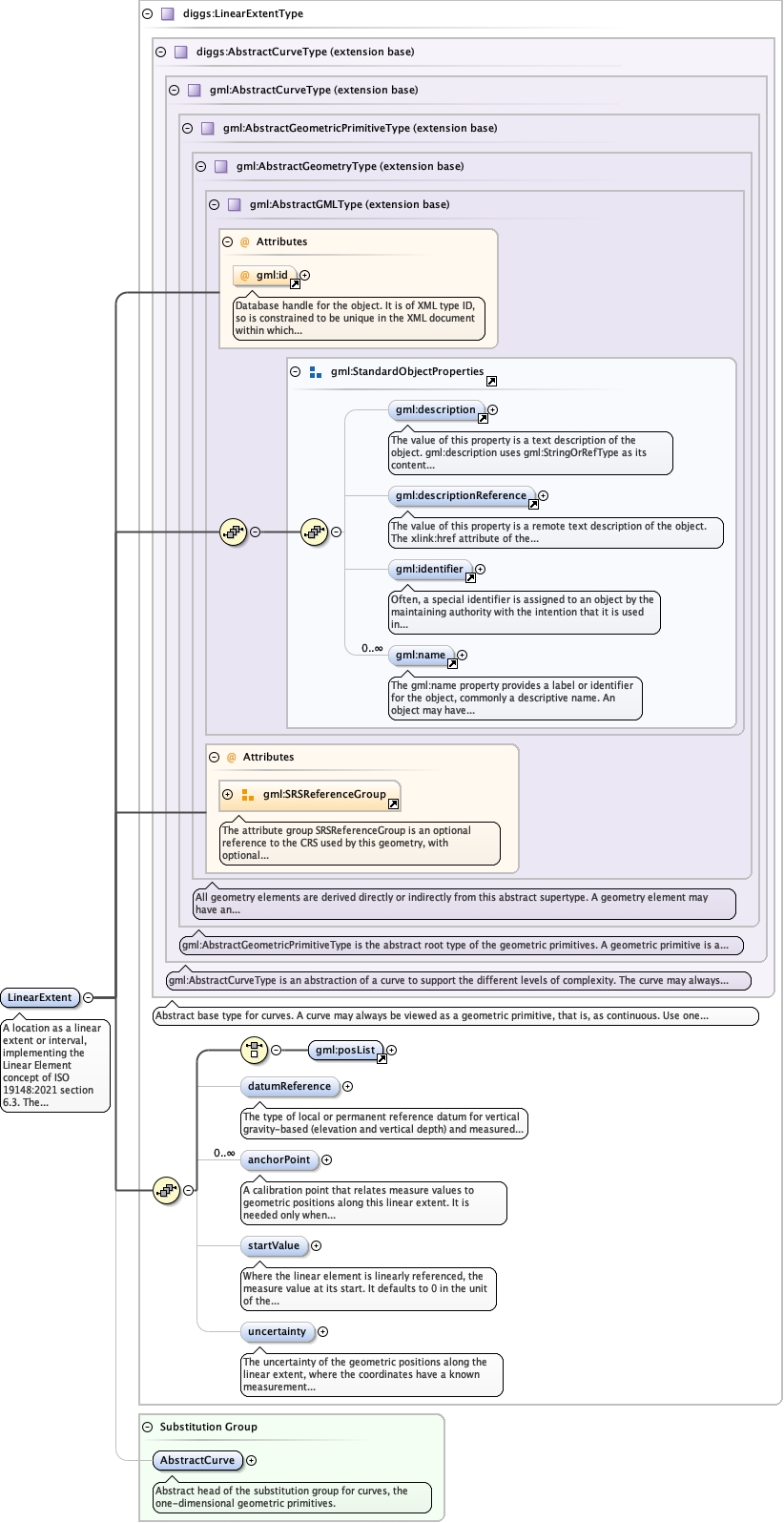

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCurveType.tmp#http___www.opengis.net_gml_3.2_AbstractCurveTypeCore_xsd_Complex_Type_diggs_AbstractCurveType.tmp#AbstractCurveTypegml3_2Profile_diggs_xsd_Element_gml_posList.tmp#posListCore_xsd_Complex_Type_diggs_LinearExtentType.tmp#LinearExtentType_datumReferenceCore_xsd_Complex_Type_diggs_LinearExtentType.tmp#LinearExtentType_anchorPointCore_xsd_Complex_Type_diggs_LinearExtentType.tmp#LinearExtentType_startValueCore_xsd_Complex_Type_diggs_LinearExtentType.tmp#LinearExtentType_uncertaintyCore_xsd_Complex_Type_diggs_LinearExtentType.tmp#LinearExtentTypeCore_xsd_Element_diggs_AbstractCurve.tmp#http___diggsml.org_schemas_3_AbstractCurve
Type diggs:LinearExtentType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:anchorPoint, diggs:datumReference, diggs:startValue, diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:posList
Instance

<diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:posList axisLabels="" count="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:posList>
  <diggs:datumReference>{0,1}</diggs:datumReference>
  <diggs:anchorPoint xlink:href="" nilReason="">{0,unbounded}</diggs:anchorPoint>
  <diggs:startValue howDetermined="" qualifier="" uom="">{0,1}</diggs:startValue>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:LinearExtent>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="LinearExtent" substitutionGroup="diggs:AbstractCurve" type="diggs:LinearExtentType">
  <annotation>
    <documentation>A location as a linear extent or interval, implementing the Linear Element concept of ISO 19148:2021 section 6.3. The first vertex is the starting location and the last vertex the end location, with the coordinates in gml:posList in the order traversed during measurement. It is the object along which linear referencing measurements are made, and typically represents a borehole centerline (the three-dimensional path from collar to bottom), a well trajectory including deviated wells, a CPT sounding path, a geophysical trackline or a survey transect.</documentation>
  </annotation>
</element>
XML Schema documentation generated by ® XML Editor.
