Complex Type diggs:ConstructionActivityMethodPropertyType
Namespace http://diggsml.org/schemas/3
Annotations
Property type for the method followed in a construction activity. Contains a
diggs:ConstructionActivityMethod, which states the method and, where it applies to
only part of the feature, the location it applies to, inline or by reference with
xlink:href. Giving a diggs:Specification directly is deprecated.

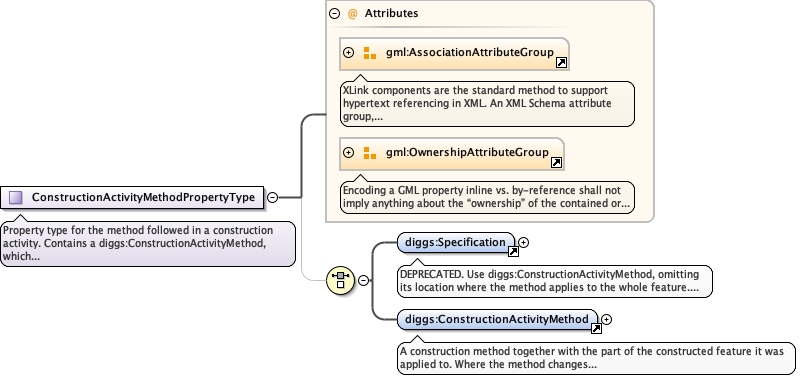

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_Specification.tmp#SpecificationCore_xsd_Element_diggs_ConstructionActivityMethod.tmp#ConstructionActivityMethod
Used by
Model
Children diggs:ConstructionActivityMethod, diggs:Specification
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source
<complexType name="ConstructionActivityMethodPropertyType">
  <annotation>
    <documentation>Property type for the method followed in a construction activity. Contains a diggs:ConstructionActivityMethod, which states the method and, where it applies to only part of the feature, the location it applies to, inline or by reference with xlink:href. Giving a diggs:Specification directly is deprecated.</documentation>
  </annotation>
  <choice minOccurs="0">
    <element ref="diggs:Specification">
      <annotation>
        <appinfo>
          <diggs:deprecated since="3.1.0" replacedBy="diggs:ConstructionActivityMethod" note="omit its location where the method applies to the whole feature"/>
        </appinfo>
        <documentation>DEPRECATED. Use diggs:ConstructionActivityMethod, omitting its location where the method applies to the whole feature. The specification of the method followed.</documentation>
      </annotation>
    </element>
    <element ref="diggs:ConstructionActivityMethod"/>
  </choice>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
