Schema documentation for component diggs:ConstructionActivityMethod

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:ConstructionActivityMethod

Namespace

http://diggsml.org/schemas/3

Annotations

A construction method together with the part of the constructed feature it was
applied to. Where the method changes along the feature, give one object per method,
each with its own location; where one method applies throughout, give one object and
omit location.

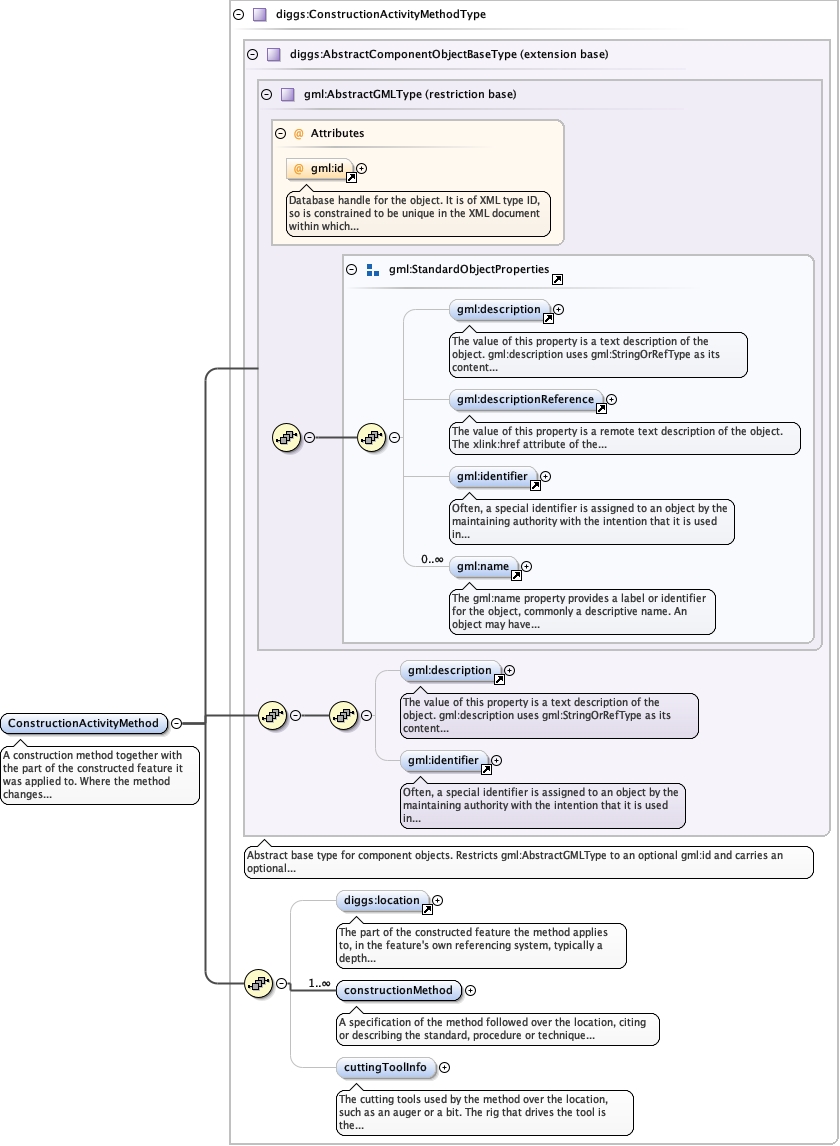

Diagram

Type

diggs:ConstructionActivityMethodType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractComponentObjectBaseType
  - diggs:ConstructionActivityMethodType

Properties

content

complex

Used by

Complex Type

diggs:ConstructionActivityMethodPropertyType

Model

gml:description{0,1} , gml:identifier{0,1} , diggs:location{0,1} , diggs:constructionMethod+ , diggs:cuttingToolInfo{0,1}

Children

diggs:constructionMethod, diggs:cuttingToolInfo, diggs:location, gml:description, gml:identifier

Instance

<diggs:ConstructionActivityMethod gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:location owns="false" xlink:href="" nilReason="">{0,1}</diggs:location>
  <diggs:constructionMethod xlink:href="" nilReason="" owns="false">{1,unbounded}</diggs:constructionMethod>
  <diggs:cuttingToolInfo>{0,1}</diggs:cuttingToolInfo>
</diggs:ConstructionActivityMethod>

Attributes

QName

Type

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="ConstructionActivityMethod" type="diggs:ConstructionActivityMethodType">
  <annotation>
    <documentation>A construction method together with the part of the constructed feature it was applied to. Where the method changes along the feature, give one object per method, each with its own location; where one method applies throughout, give one object and omit location.</documentation>
  </annotation>
</element>
