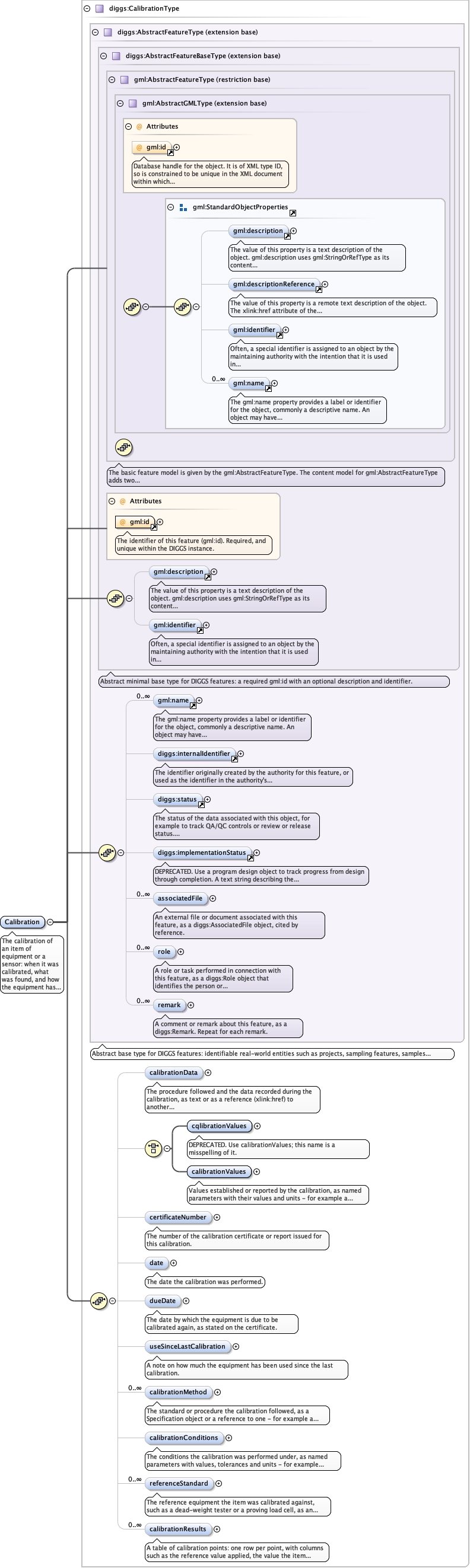

Schema documentation for component diggs:Calibration

The calibration of an item of equipment or a sensor: when it was calibrated, what was found, and how the equipment has been used since. Held on an equipment record through calibrationAuditTrail; an item calibrated more than once carries one Calibration per occasion. The laboratory or person who performed or approved the calibration is stated through the role property inherited from AbstractFeature.

<diggs:Calibration gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:calibrationData xlink:href="" nilReason="">{0,1}</diggs:calibrationData>
  <diggs:cqlibrationValues>{1,1}</diggs:cqlibrationValues>
  <diggs:calibrationValues>{1,1}</diggs:calibrationValues>
  <diggs:certificateNumber>{0,1}</diggs:certificateNumber>
  <diggs:date calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:date>
  <diggs:dueDate calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:dueDate>
  <diggs:useSinceLastCalibration>{0,1}</diggs:useSinceLastCalibration>
  <diggs:calibrationMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:calibrationMethod>
  <diggs:calibrationConditions>{0,1}</diggs:calibrationConditions>
  <diggs:referenceStandard xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:referenceStandard>
  <diggs:calibrationResults>{0,unbounded}</diggs:calibrationResults>
</diggs:Calibration>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="Calibration" type="diggs:CalibrationType" abstract="false"> <annotation> <documentation>The calibration of an item of equipment or a sensor: when it was calibrated, what was found, and how the equipment has been used since. Held on an equipment record through calibrationAuditTrail; an item calibrated more than once carries one Calibration per occasion. The laboratory or person who performed or approved the calibration is stated through the role property inherited from AbstractFeature.</documentation> </annotation> </element>
