Complex Type diggs:CalibrationPropertyType
Namespace http://diggsml.org/schemas/3
Annotations

Property type that contains one diggs:Calibration object inline, or refers to one
with xlink:href. Refer to a calibration where the same calibration applies to more
than one item or is recorded elsewhere in the file.

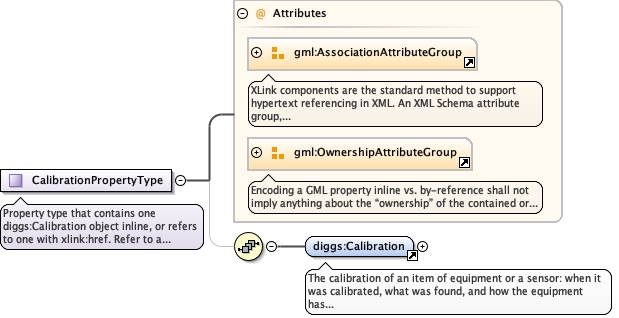

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_Calibration.tmp#Calibration
Used by
Model
Children diggs:Calibration
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<complexType name="CalibrationPropertyType">
  <annotation>
    <documentation>Property type that contains one diggs:Calibration object inline, or refers to one with xlink:href. Refer to a calibration where the same calibration applies to more than one item or is recorded elsewhere in the file.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="diggs:Calibration" maxOccurs="1"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
