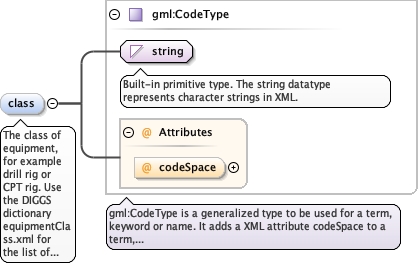

Element diggs:AbstractEquipmentType / diggs:class
Namespace http://diggsml.org/schemas/3
Annotations

The class of equipment, for example drill rig or CPT rig. Use the
DIGGS dictionary equipmentClass.xml for the list of values.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="class" type="gml:CodeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The class of equipment, for example drill rig or CPT rig. Use the DIGGS dictionary equipmentClass.xml for the list of values.</documentation>
  </annotation>
</element>
Element diggs:AbstractEquipmentType / diggs:make
Namespace http://diggsml.org/schemas/3
Annotations

The manufacturer or brand of the equipment.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="make" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The manufacturer or brand of the equipment.</documentation>
  </annotation>
</element>
Element diggs:AbstractEquipmentType / diggs:modelNumber
Namespace http://diggsml.org/schemas/3
Annotations

The model name or number of the equipment.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="modelNumber" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The model name or number of the equipment.</documentation>
  </annotation>
</element>
Element diggs:AbstractEquipmentType / diggs:serialNumber
Namespace http://diggsml.org/schemas/3
Annotations

The serial number that identifies the individual equipment item.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="serialNumber" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The serial number that identifies the individual equipment item.</documentation>
  </annotation>
</element>

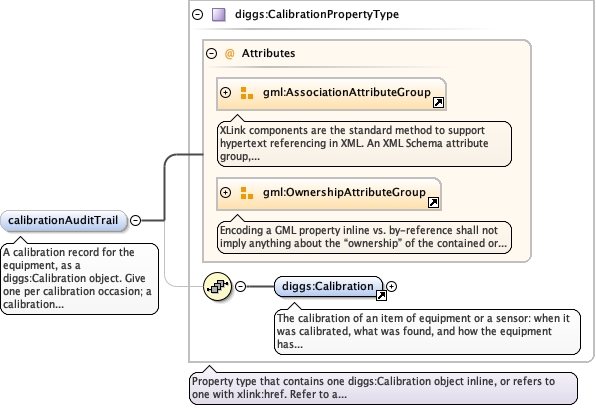

Element diggs:AbstractEquipmentType / diggs:calibrationAuditTrail
Namespace http://diggsml.org/schemas/3
Annotations

A calibration record for the equipment, as a diggs:Calibration
object. Give one per calibration occasion; a calibration recorded
elsewhere is cited by xlink:href.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_Calibration.tmp#CalibrationCommon_xsd_Complex_Type_diggs_CalibrationPropertyType.tmp#CalibrationPropertyType
Type diggs:CalibrationPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Calibration
Instance

<diggs:calibrationAuditTrail xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Calibration gml:id="">{1,1}</diggs:Calibration>
</diggs:calibrationAuditTrail>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="calibrationAuditTrail" type="diggs:CalibrationPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A calibration record for the equipment, as a diggs:Calibration object. Give one per calibration occasion; a calibration recorded elsewhere is cited by xlink:href.</documentation>
  </annotation>
</element>

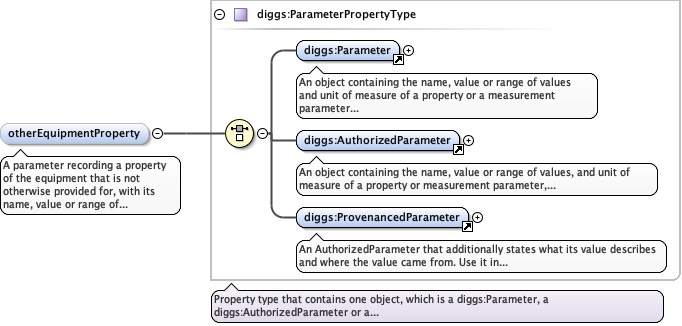

Element diggs:AbstractEquipmentType / diggs:otherEquipmentProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter recording a property of the equipment that is not
otherwise provided for, with its name, value or range of values and
unit of measure. Repeat for each property.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherEquipmentProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherEquipmentProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherEquipmentProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>A parameter recording a property of the equipment that is not otherwise provided for, with its name, value or range of values and unit of measure. Repeat for each property.</documentation>
  </annotation>
</element>

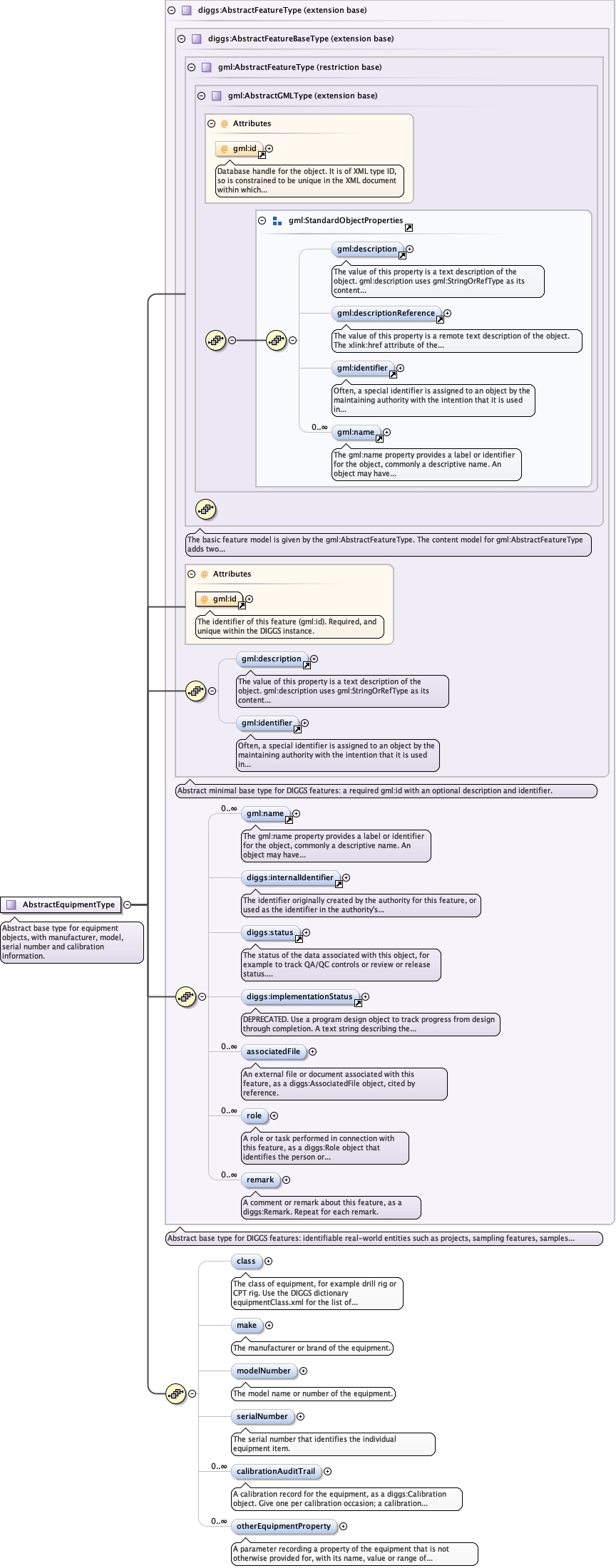

Complex Type diggs:AbstractEquipmentType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for equipment objects, with manufacturer, model, serial number
and calibration information.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentProperty
Type extension of diggs:AbstractFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractEquipmentType" abstract="true">
  <annotation>
    <documentation>Abstract base type for equipment objects, with manufacturer, model, serial number and calibration information.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractFeatureType">
      <sequence>
        <element name="class" type="gml:CodeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The class of equipment, for example drill rig or CPT rig. Use the DIGGS dictionary equipmentClass.xml for the list of values.</documentation>
          </annotation>
        </element>
        <element name="make" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The manufacturer or brand of the equipment.</documentation>
          </annotation>
        </element>
        <element name="modelNumber" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The model name or number of the equipment.</documentation>
          </annotation>
        </element>
        <element name="serialNumber" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The serial number that identifies the individual equipment item.</documentation>
          </annotation>
        </element>
        <element name="calibrationAuditTrail" type="diggs:CalibrationPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A calibration record for the equipment, as a diggs:Calibration object. Give one per calibration occasion; a calibration recorded elsewhere is cited by xlink:href.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherEquipmentProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>A parameter recording a property of the equipment that is not otherwise provided for, with its name, value or range of values and unit of measure. Repeat for each property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
