Element diggs:AbstractSamplingFeatureDesign
Namespace http://diggsml.org/schemas/3
Annotations

Head of the substitution group for designs of sampling features: the planned
counterpart of the sampling features that are built. Sibling of
diggs:AbstractSamplingDesign (samples and sampling activities),
diggs:AbstractConstructionActivityDesign and diggs:AbstractMeasurementDesign.

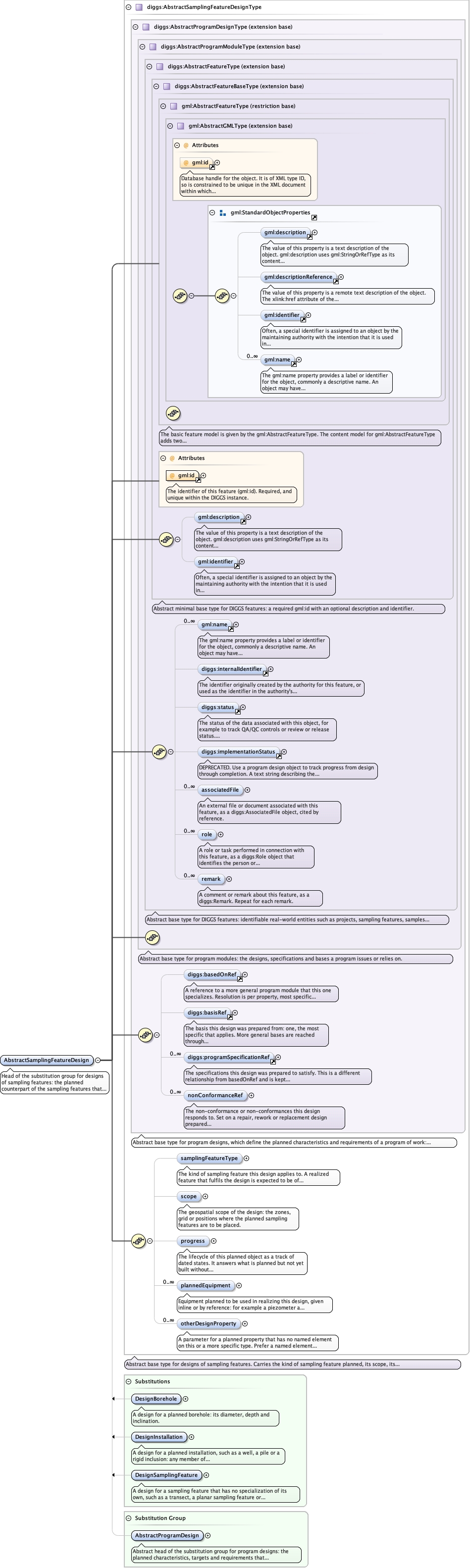

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignType_nonConformanceRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_samplingFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_scopeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_progressAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_plannedEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_otherDesignPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignTypeCore_xsd_Element_diggs_DesignBorehole.tmp#DesignBoreholeCore_xsd_Element_diggs_DesignInstallation.tmp#DesignInstallationCore_xsd_Element_diggs_DesignSamplingFeature.tmp#DesignSamplingFeatureAbstractTypes_xsd_Element_diggs_AbstractProgramDesign.tmp#AbstractProgramDesign
Type diggs:AbstractSamplingFeatureDesignType
Type hierarchy
Properties
content complex
Substitution Group
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:nonConformanceRef, diggs:otherDesignProperty, diggs:plannedEquipment, diggs:programSpecificationRef, diggs:progress, diggs:remark, diggs:role, diggs:samplingFeatureType, diggs:scope, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractSamplingFeatureDesign gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:samplingFeatureType codeSpace="">{0,1}</diggs:samplingFeatureType>
  <diggs:scope>{0,1}</diggs:scope>
  <diggs:progress>{0,1}</diggs:progress>
  <diggs:plannedEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:plannedEquipment>
  <diggs:otherDesignProperty>{0,unbounded}</diggs:otherDesignProperty>
</diggs:AbstractSamplingFeatureDesign>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AbstractSamplingFeatureDesign" type="diggs:AbstractSamplingFeatureDesignType" substitutionGroup="diggs:AbstractProgramDesign">
  <annotation>
    <documentation>Head of the substitution group for designs of sampling features: the planned counterpart of the sampling features that are built. Sibling of diggs:AbstractSamplingDesign (samples and sampling activities), diggs:AbstractConstructionActivityDesign and diggs:AbstractMeasurementDesign.</documentation>
  </annotation>
</element>
