Element diggs:DesignSamplingFeature
Namespace http://diggsml.org/schemas/3
Annotations

A design for a sampling feature that has no specialization of its own, such as a
transect, a planar sampling feature or a volumetric sampling feature, typically one
whose conformance is judged mainly by location.

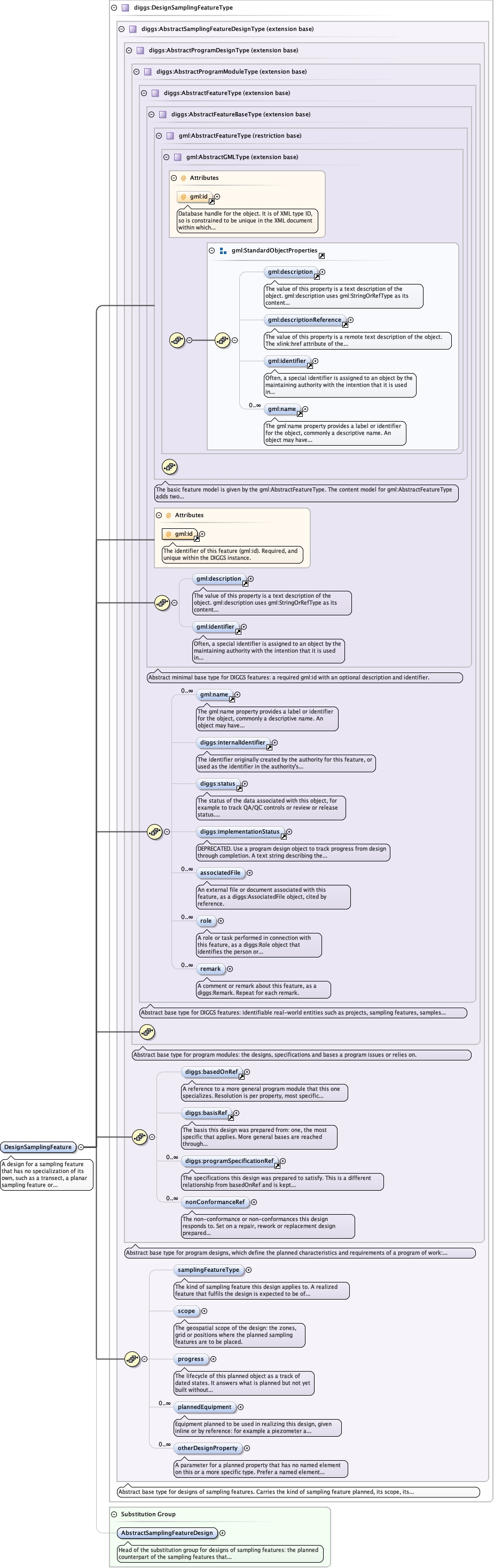

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignType_nonConformanceRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_samplingFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_scopeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_progressAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_plannedEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_otherDesignPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignTypeCore_xsd_Complex_Type_diggs_DesignSamplingFeatureType.tmp#DesignSamplingFeatureTypeAbstractTypes_xsd_Element_diggs_AbstractSamplingFeatureDesign.tmp#AbstractSamplingFeatureDesign
Type diggs:DesignSamplingFeatureType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:nonConformanceRef, diggs:otherDesignProperty, diggs:plannedEquipment, diggs:programSpecificationRef, diggs:progress, diggs:remark, diggs:role, diggs:samplingFeatureType, diggs:scope, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:DesignSamplingFeature gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:samplingFeatureType codeSpace="">{0,1}</diggs:samplingFeatureType>
  <diggs:scope>{0,1}</diggs:scope>
  <diggs:progress>{0,1}</diggs:progress>
  <diggs:plannedEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:plannedEquipment>
  <diggs:otherDesignProperty>{0,unbounded}</diggs:otherDesignProperty>
</diggs:DesignSamplingFeature>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="DesignSamplingFeature" type="diggs:DesignSamplingFeatureType" substitutionGroup="diggs:AbstractSamplingFeatureDesign">
  <annotation>
    <documentation>A design for a sampling feature that has no specialization of its own, such as a transect, a planar sampling feature or a volumetric sampling feature, typically one whose conformance is judged mainly by location.</documentation>
  </annotation>
</element>
