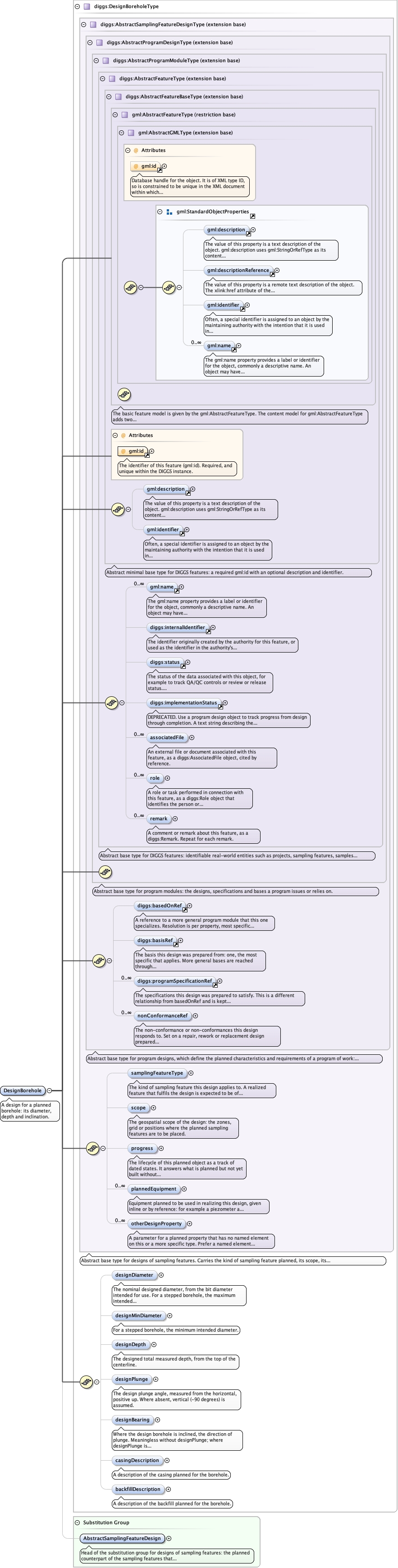

Schema documentation for component diggs:DesignBorehole

<diggs:DesignBorehole gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:samplingFeatureType codeSpace="">{0,1}</diggs:samplingFeatureType>
  <diggs:scope>{0,1}</diggs:scope>
  <diggs:progress>{0,1}</diggs:progress>
  <diggs:plannedEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:plannedEquipment>
  <diggs:otherDesignProperty>{0,unbounded}</diggs:otherDesignProperty>
  <diggs:designDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:designDiameter>
  <diggs:designMinDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:designMinDiameter>
  <diggs:designDepth howDetermined="" qualifier="" uom="">{0,1}</diggs:designDepth>
  <diggs:designPlunge howDetermined="" qualifier="" uom="">{0,1}</diggs:designPlunge>
  <diggs:designBearing howDetermined="" qualifier="" refAzimuth="" uom="">{0,1}</diggs:designBearing>
  <diggs:casingDescription>{0,1}</diggs:casingDescription>
  <diggs:backfillDescription>{0,1}</diggs:backfillDescription>
</diggs:DesignBorehole>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="DesignBorehole" type="diggs:DesignBoreholeType" substitutionGroup="diggs:AbstractSamplingFeatureDesign"> <annotation> <documentation>A design for a planned borehole: its diameter, depth and inclination.</documentation> </annotation> </element>
