Element diggs:SFDesignScope
Namespace http://diggsml.org/schemas/3
Annotations

Defines which sampling features fulfil a design, at one of three levels of
generality: a zone with a count but no individual positions, a set of planned
positions (a grid, or a general pattern with no grid), or a single target location.

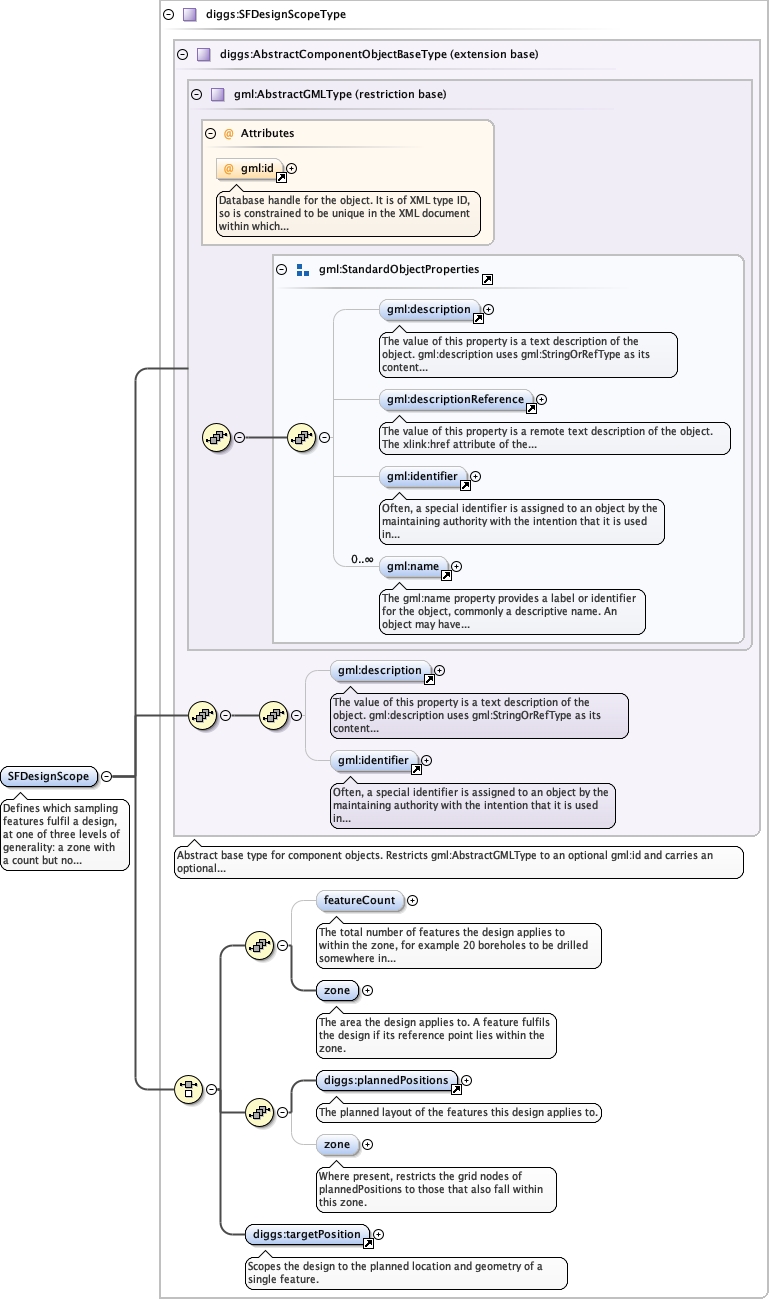

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCore_xsd_Complex_Type_diggs_SFDesignScopeType.tmp#SFDesignScopeType_featureCountCore_xsd_Complex_Type_diggs_SFDesignScopeType.tmp#SFDesignScopeType_zoneCore_xsd_Element_diggs_plannedPositions.tmp#plannedPositionsCore_xsd_Element_diggs_targetPosition.tmp#targetPositionCore_xsd_Complex_Type_diggs_SFDesignScopeType.tmp#SFDesignScopeType
Type diggs:SFDesignScopeType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:featureCount, diggs:plannedPositions, diggs:targetPosition, diggs:zone, gml:description, gml:identifier
Instance

<diggs:SFDesignScope gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:featureCount>{0,1}</diggs:featureCount>
  <diggs:zone xlink:href="" nilReason="" owns="false">{1,1}</diggs:zone>
  <diggs:plannedPositions xlink:href="" nilReason="" owns="false">{1,1}</diggs:plannedPositions>
  <diggs:zone xlink:href="" nilReason="" owns="false">{0,1}</diggs:zone>
  <diggs:targetPosition>{1,1}</diggs:targetPosition>
</diggs:SFDesignScope>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="SFDesignScope" type="diggs:SFDesignScopeType">
  <annotation>
    <documentation>Defines which sampling features fulfil a design, at one of three levels of generality: a zone with a count but no individual positions, a set of planned positions (a grid, or a general pattern with no grid), or a single target location.</documentation>
  </annotation>
</element>
