Element diggs:GroutSpecimenConditionsType / diggs:dateTime
Namespace http://diggsml.org/schemas/3
Annotations

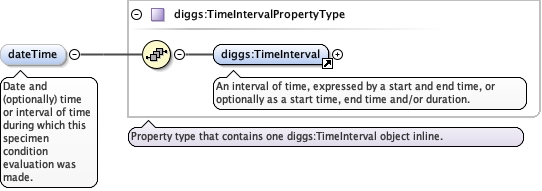

Date and (optionally) time or interval of time during
which this specimen condition evaluation was made.
Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
nillable false
Model
Children diggs:TimeInterval
Instance

<diggs:dateTime xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:dateTime>
Source

<element minOccurs="0" name="dateTime" nillable="false" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>Date and (optionally) time or interval of time during which this specimen condition evaluation was made.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:bulkUnitWeight
Namespace http://diggsml.org/schemas/3
Annotations

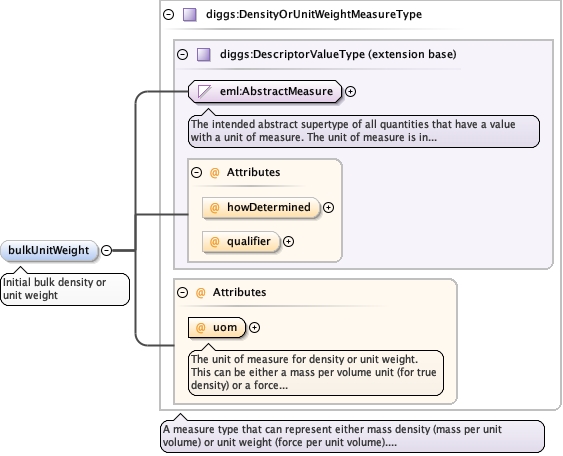

Initial bulk density or unit weight
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsDensityOrUnitWeightUomEnumType required
The unit of measure for density or unit weight. This can be either a mass per volume unit (for true density) or a force per volume unit (for unit weight).
Source

<element minOccurs="0" name="bulkUnitWeight" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>Initial bulk density or unit weight</documentation>
  </annotation>
</element>

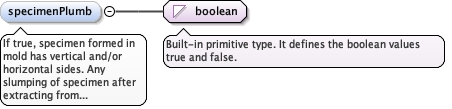

Element diggs:GroutSpecimenConditionsType / diggs:specimenPlumb
Namespace http://diggsml.org/schemas/3
Annotations

If true, specimen formed in mold has vertical and/or
horizontal sides. Any slumping of specimen after extracting from
mold should have this property set as false.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="specimenPlumb" type="boolean">
  <annotation>
    <documentation>If true, specimen formed in mold has vertical and/or horizontal sides. Any slumping of specimen after extracting from mold should have this property set as false.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:dimensionMeasurementTechnique
Namespace http://diggsml.org/schemas/3
Annotations

Technique used to measure specimen lengths and diameters.
Enumerated list. - 1) Calipers, 2) PI-tape, 3) Other: (uncontrolled
string after colon)
Diagram
DiagramCore_xsd_Simple_Type_diggs_DimensionMeasurementTechniqueType.tmp#DimensionMeasurementTechniqueType
Type diggs:DimensionMeasurementTechniqueType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="dimensionMeasurementTechnique" type="diggs:DimensionMeasurementTechniqueType">
  <annotation>
    <documentation>Technique used to measure specimen lengths and diameters. Enumerated list. - 1) Calipers, 2) PI-tape, 3) Other: (uncontrolled string after colon)</documentation>
  </annotation>
</element>

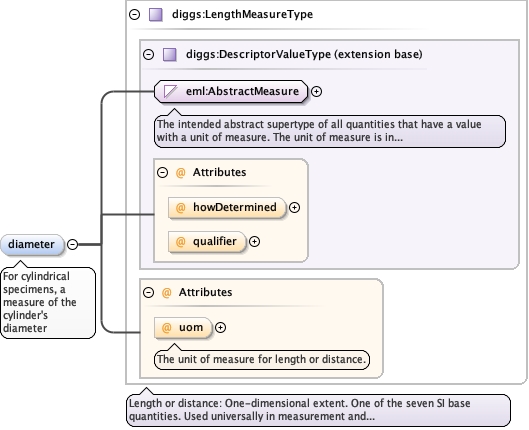

Element diggs:GroutSpecimenConditionsType / diggs:diameter
Namespace http://diggsml.org/schemas/3
Annotations

For cylindrical specimens, a measure of the
cylinder's diameter
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="diameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>For cylindrical specimens, a measure of the cylinder's diameter</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:length
Namespace http://diggsml.org/schemas/3
Annotations

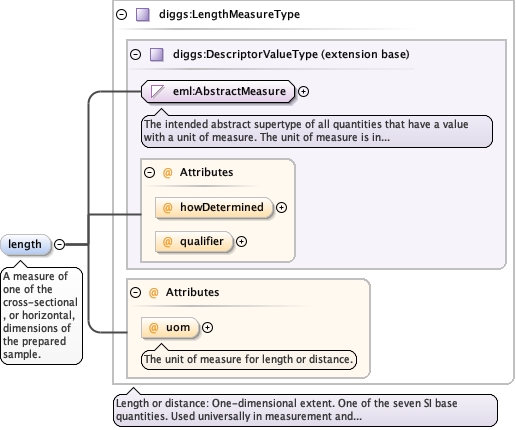

A measure of one of the cross-sectional, or
horizontal, dimensions of the prepared
sample.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="length" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>A measure of one of the cross-sectional, or horizontal, dimensions of the prepared sample.</documentation>
  </annotation>
</element>

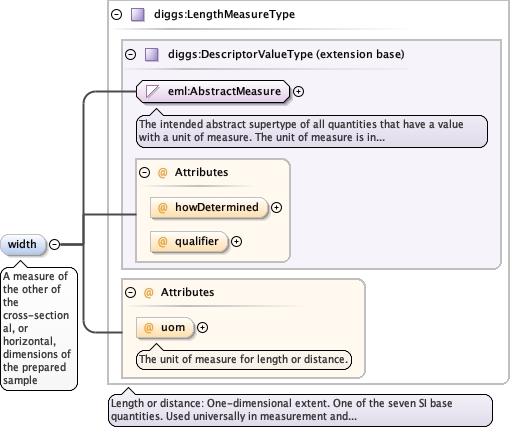

Element diggs:GroutSpecimenConditionsType / diggs:width
Namespace http://diggsml.org/schemas/3
Annotations

A measure of the other of the cross-sectional, or
horizontal, dimensions of the prepared
sample
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="width" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>A measure of the other of the cross-sectional, or horizontal, dimensions of the prepared sample</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:height
Namespace http://diggsml.org/schemas/3
Annotations

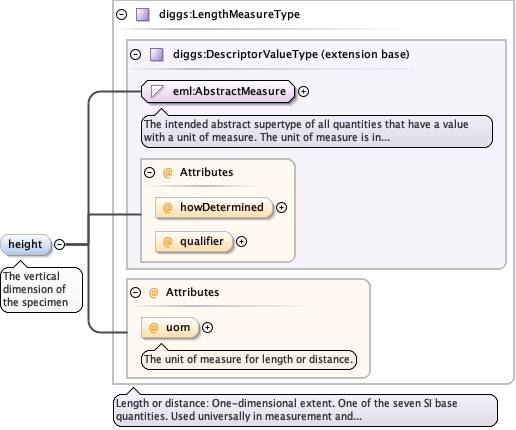

The vertical dimension of the specimen
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="height" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The vertical dimension of the specimen</documentation>
  </annotation>
</element>

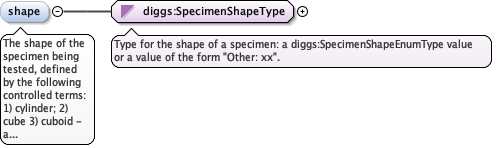

Element diggs:GroutSpecimenConditionsType / diggs:shape
Namespace http://diggsml.org/schemas/3
Annotations

The shape of the specimen being tested, defined by the
following controlled terms: 1) cylinder; 2) cube 3) cuboid - a
square cylinder or cube with uneven sides; 4) non-solid - sample is
a paste, liquid, or gas with no defined shape; 5)
sphere
Diagram
DiagramCore_xsd_Simple_Type_diggs_SpecimenShapeType.tmp#SpecimenShapeType
Type diggs:SpecimenShapeType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="shape" type="diggs:SpecimenShapeType">
  <annotation>
    <documentation>The shape of the specimen being tested, defined by the following controlled terms: 1) cylinder; 2) cube 3) cuboid - a square cylinder or cube with uneven sides; 4) non-solid - sample is a paste, liquid, or gas with no defined shape; 5) sphere</documentation>
  </annotation>
</element>

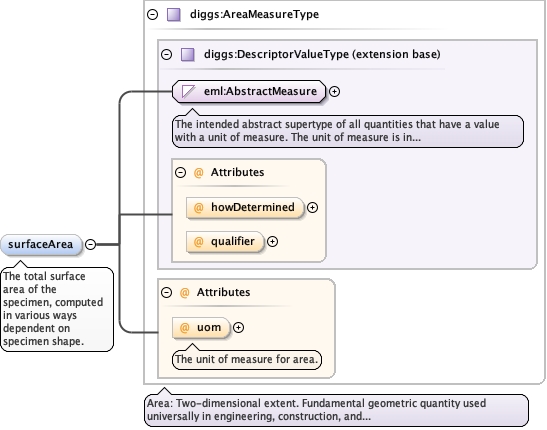

Element diggs:GroutSpecimenConditionsType / diggs:surfaceArea
Namespace http://diggsml.org/schemas/3
Annotations

The total surface area of the specimen, computed in
various ways dependent on specimen shape.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType
Type diggs:AreaMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Source

<element minOccurs="0" name="surfaceArea" type="diggs:AreaMeasureType">
  <annotation>
    <documentation>The total surface area of the specimen, computed in various ways dependent on specimen shape.</documentation>
  </annotation>
</element>

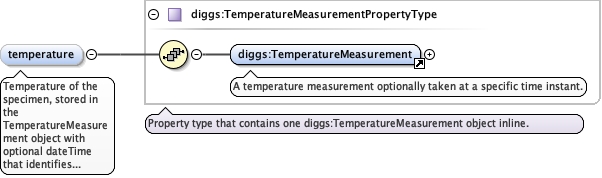

Element diggs:GroutSpecimenConditionsType / diggs:temperature
Namespace http://diggsml.org/schemas/3
Annotations

Temperature of the specimen, stored in the
TemperatureMeasurement object with optional dateTime that identifies
specific time instant for the measurement. Multiple temperature
measurements are permitted.
Diagram
DiagramCommon_xsd_Element_diggs_TemperatureMeasurement.tmp#TemperatureMeasurementCommon_xsd_Complex_Type_diggs_TemperatureMeasurementPropertyType.tmp#TemperatureMeasurementPropertyType
Type diggs:TemperatureMeasurementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TemperatureMeasurement
Instance

<diggs:temperature xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TemperatureMeasurement gml:id="">{1,1}</diggs:TemperatureMeasurement>
</diggs:temperature>
Source

<element maxOccurs="unbounded" minOccurs="0" name="temperature" type="diggs:TemperatureMeasurementPropertyType">
  <annotation>
    <documentation>Temperature of the specimen, stored in the TemperatureMeasurement object with optional dateTime that identifies specific time instant for the measurement. Multiple temperature measurements are permitted.</documentation>
  </annotation>
</element>

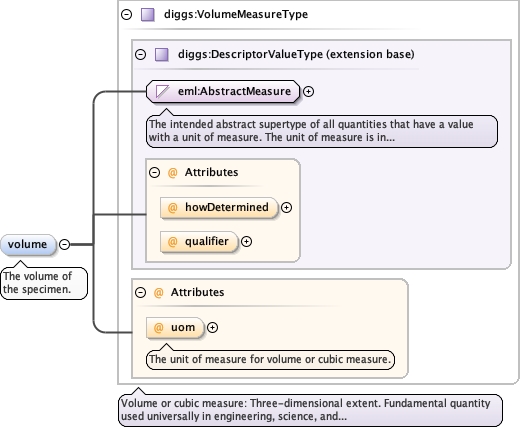

Element diggs:GroutSpecimenConditionsType / diggs:volume
Namespace http://diggsml.org/schemas/3
Annotations

The volume of the specimen.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="volume" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>The volume of the specimen.</documentation>
  </annotation>
</element>

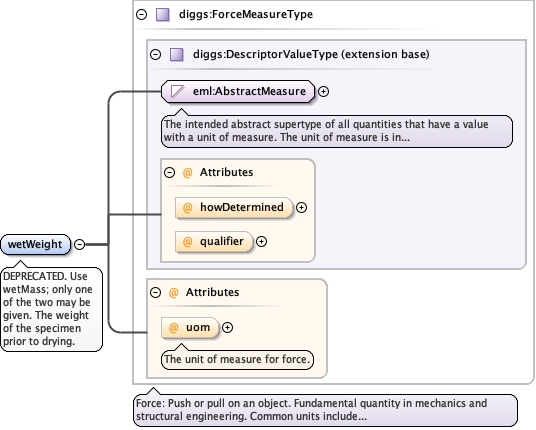

Element diggs:GroutSpecimenConditionsType / diggs:wetWeight
Namespace http://diggsml.org/schemas/3
Annotations

DEPRECATED. Use wetMass; only one of the two may be
given. The weight of the specimen prior to
drying.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element name="wetWeight" type="diggs:ForceMeasureType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.1.0" replacedBy="diggs:wetMass"/>
    </appinfo>
    <documentation>DEPRECATED. Use wetMass; only one of the two may be given. The weight of the specimen prior to drying.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:wetMass
Namespace http://diggsml.org/schemas/3
Annotations

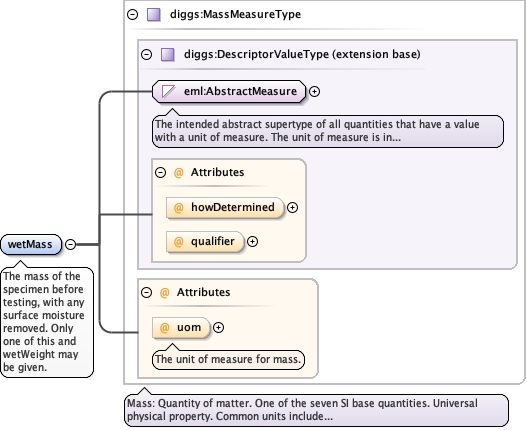

The mass of the specimen before testing, with any
surface moisture removed. Only one of this and wetWeight may be
given.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassMeasureType.tmp#MassMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MassMeasureType.tmp#MassMeasureType
Type diggs:MassMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassUomEnumType optional
The unit of measure for mass.
Source

<element name="wetMass" type="diggs:MassMeasureType">
  <annotation>
    <documentation>The mass of the specimen before testing, with any surface moisture removed. Only one of this and wetWeight may be given.</documentation>
  </annotation>
</element>

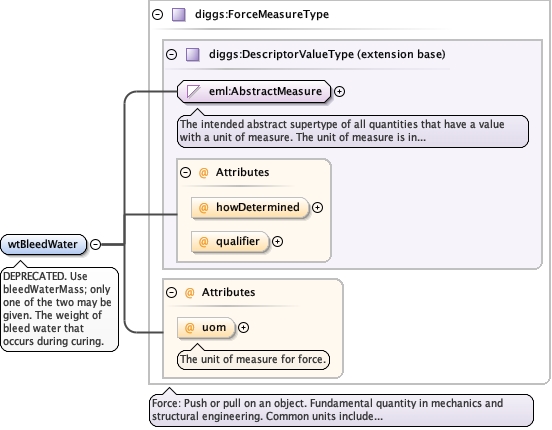

Element diggs:GroutSpecimenConditionsType / diggs:wtBleedWater
Namespace http://diggsml.org/schemas/3
Annotations

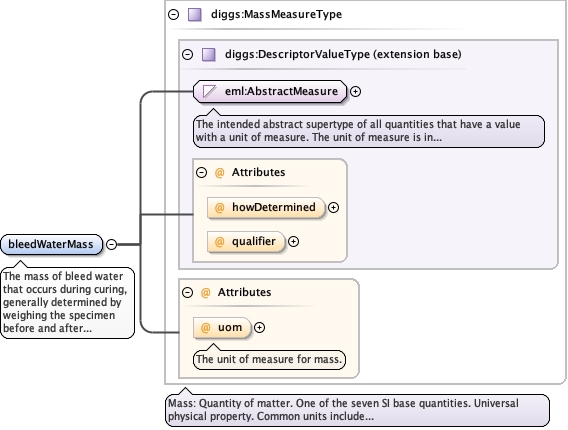

DEPRECATED. Use bleedWaterMass; only one of the two
may be given. The weight of bleed water that occurs during
curing.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element name="wtBleedWater" type="diggs:ForceMeasureType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.1.0" replacedBy="diggs:bleedWaterMass"/>
    </appinfo>
    <documentation>DEPRECATED. Use bleedWaterMass; only one of the two may be given. The weight of bleed water that occurs during curing.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:bleedWaterMass
Namespace http://diggsml.org/schemas/3
Annotations

The mass of bleed water that occurs during curing,
generally determined by weighing the specimen before and after
draining the bleed water off the sample. Only one of this and
wtBleedWater may be given.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassMeasureType.tmp#MassMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MassMeasureType.tmp#MassMeasureType
Type diggs:MassMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassUomEnumType optional
The unit of measure for mass.
Source

<element name="bleedWaterMass" type="diggs:MassMeasureType">
  <annotation>
    <documentation>The mass of bleed water that occurs during curing, generally determined by weighing the specimen before and after draining the bleed water off the sample. Only one of this and wtBleedWater may be given.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:crossSectionalArea
Namespace http://diggsml.org/schemas/3
Annotations

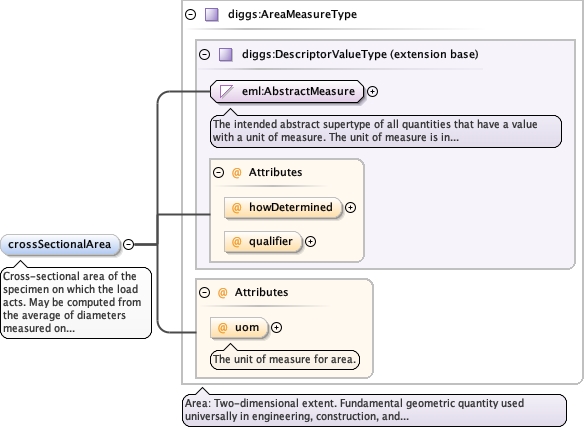

Cross-sectional area of the specimen on which the load
acts. May be computed from the average of diameters measured on
this specimen, or on a group of specimens from the same mold
lot.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType
Type diggs:AreaMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Source

<element minOccurs="0" name="crossSectionalArea" type="diggs:AreaMeasureType">
  <annotation>
    <documentation>Cross-sectional area of the specimen on which the load acts. May be computed from the average of diameters measured on this specimen, or on a group of specimens from the same mold lot.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:heightDiameterRatio
Namespace http://diggsml.org/schemas/3
Annotations

For cylindrical specimens, the specimen height divided
by the specimen diameter (H/D, also written L/D): the ratio that
compressive strength standards use to decide whether a correction
to the measured strength applies. To facilitate processing, where
relevant, this value should be provided even if the specimen
diameter and height are also provided.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="heightDiameterRatio" type="double">
  <annotation>
    <documentation>For cylindrical specimens, the specimen height divided by the specimen diameter (H/D, also written L/D): the ratio that compressive strength standards use to decide whether a correction to the measured strength applies. To facilitate processing, where relevant, this value should be provided even if the specimen diameter and height are also provided.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:bulkDensity
Namespace http://diggsml.org/schemas/3
Annotations

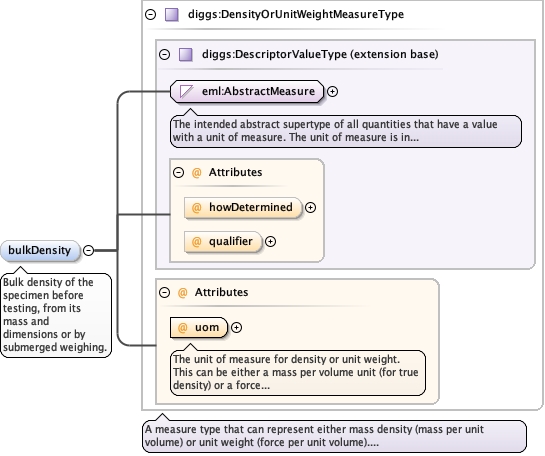

Bulk density of the specimen before testing, from its
mass and dimensions or by submerged weighing.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsDensityOrUnitWeightUomEnumType required
The unit of measure for density or unit weight. This can be either a mass per volume unit (for true density) or a force per volume unit (for unit weight).
Source

<element minOccurs="0" name="bulkDensity" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>Bulk density of the specimen before testing, from its mass and dimensions or by submerged weighing.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:dimensionBasis
Namespace http://diggsml.org/schemas/3
Annotations

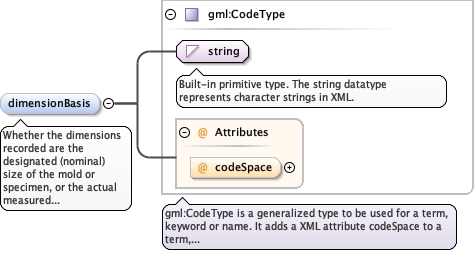

Whether the dimensions recorded are the designated
(nominal) size of the mold or specimen, or the actual measured
dimensions. Intended to come from a controlled list of
terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="dimensionBasis" type="gml:CodeType">
  <annotation>
    <documentation>Whether the dimensions recorded are the designated (nominal) size of the mold or specimen, or the actual measured dimensions. Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:moistureConditionAtTest
Namespace http://diggsml.org/schemas/3
Annotations

Moisture condition of the specimen when tested (e.g.
moist, dry, soaked).
Diagram
DiagramGrouting_xsd_Simple_Type_diggs_MoistureConditionAtTestEnumExtType.tmp#MoistureConditionAtTestEnumExtType
Type diggs:MoistureConditionAtTestEnumExtType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="moistureConditionAtTest" type="diggs:MoistureConditionAtTestEnumExtType">
  <annotation>
    <documentation>Moisture condition of the specimen when tested (e.g. moist, dry, soaked).</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:conditionOnReceipt
Namespace http://diggsml.org/schemas/3
Annotations

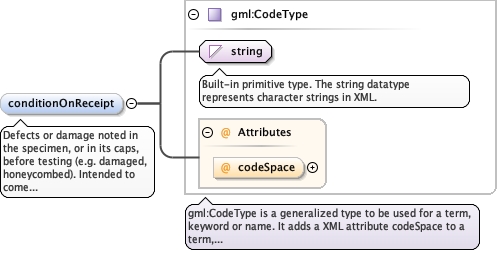

Defects or damage noted in the specimen, or in its caps,
before testing (e.g. damaged, honeycombed). Intended to come from a
controlled list of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="conditionOnReceipt" type="gml:CodeType">
  <annotation>
    <documentation>Defects or damage noted in the specimen, or in its caps, before testing (e.g. damaged, honeycombed). Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecimenConditionsType / diggs:otherConditionProperty
Namespace http://diggsml.org/schemas/3
Annotations

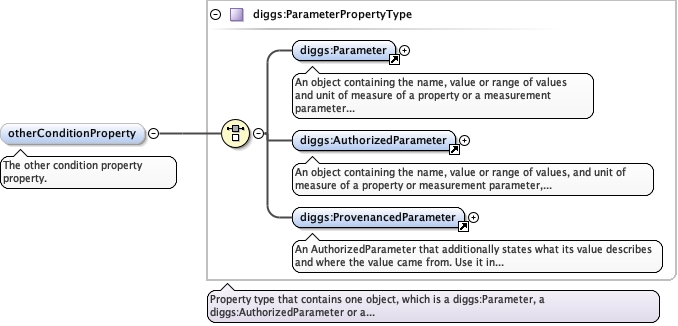

The other condition property property.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherConditionProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherConditionProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherConditionProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>The other condition property property.</documentation>
  </annotation>
</element>

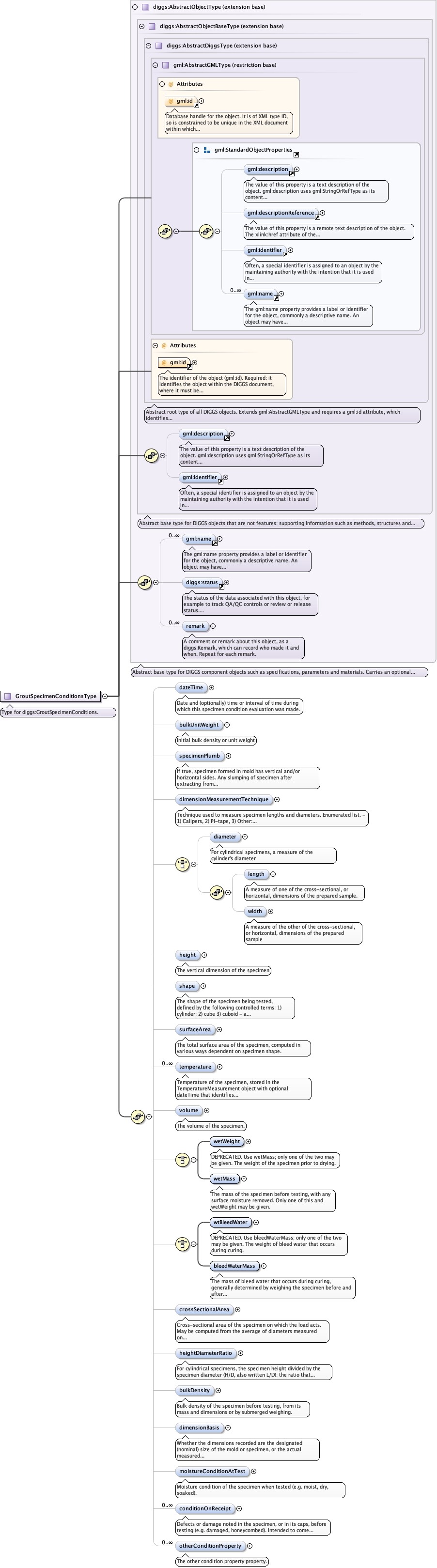

Complex Type diggs:GroutSpecimenConditionsType
Namespace http://diggsml.org/schemas/3
Annotations

Type for diggs:GroutSpecimenConditions.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_dateTimeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_bulkUnitWeightGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_specimenPlumbGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_dimensionMeasurementTechniqueGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_diameterGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_lengthGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_widthGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_heightGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_shapeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_surfaceAreaGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_temperatureGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_volumeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_wetWeightGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_wetMassGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_wtBleedWaterGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_bleedWaterMassGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_crossSectionalAreaGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_heightDiameterRatioGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_bulkDensityGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_dimensionBasisGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_moistureConditionAtTestGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_conditionOnReceiptGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_otherConditionProperty
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:bleedWaterMass, diggs:bulkDensity, diggs:bulkUnitWeight, diggs:conditionOnReceipt, diggs:crossSectionalArea, diggs:dateTime, diggs:diameter, diggs:dimensionBasis, diggs:dimensionMeasurementTechnique, diggs:height, diggs:heightDiameterRatio, diggs:length, diggs:moistureConditionAtTest, diggs:otherConditionProperty, diggs:remark, diggs:shape, diggs:specimenPlumb, diggs:status, diggs:surfaceArea, diggs:temperature, diggs:volume, diggs:wetMass, diggs:wetWeight, diggs:width, diggs:wtBleedWater, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutSpecimenConditionsType">
  <annotation>
    <documentation>Type for diggs:GroutSpecimenConditions.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="dateTime" nillable="false" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>Date and (optionally) time or interval of time during which this specimen condition evaluation was made.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="bulkUnitWeight" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>Initial bulk density or unit weight</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="specimenPlumb" type="boolean">
          <annotation>
            <documentation>If true, specimen formed in mold has vertical and/or horizontal sides. Any slumping of specimen after extracting from mold should have this property set as false.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dimensionMeasurementTechnique" type="diggs:DimensionMeasurementTechniqueType">
          <annotation>
            <documentation>Technique used to measure specimen lengths and diameters. Enumerated list. - 1) Calipers, 2) PI-tape, 3) Other: (uncontrolled string after colon)</documentation>
          </annotation>
        </element>
        <choice minOccurs="0">
          <element minOccurs="0" name="diameter" type="diggs:LengthMeasureType">
            <annotation>
              <documentation>For cylindrical specimens, a measure of the cylinder's diameter</documentation>
            </annotation>
          </element>
          <sequence minOccurs="0">
            <element minOccurs="0" name="length" type="diggs:LengthMeasureType">
              <annotation>
                <documentation>A measure of one of the cross-sectional, or horizontal, dimensions of the prepared sample.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="width" type="diggs:LengthMeasureType">
              <annotation>
                <documentation>A measure of the other of the cross-sectional, or horizontal, dimensions of the prepared sample</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
        <element minOccurs="0" name="height" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The vertical dimension of the specimen</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="shape" type="diggs:SpecimenShapeType">
          <annotation>
            <documentation>The shape of the specimen being tested, defined by the following controlled terms: 1) cylinder; 2) cube 3) cuboid - a square cylinder or cube with uneven sides; 4) non-solid - sample is a paste, liquid, or gas with no defined shape; 5) sphere</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="surfaceArea" type="diggs:AreaMeasureType">
          <annotation>
            <documentation>The total surface area of the specimen, computed in various ways dependent on specimen shape.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="temperature" type="diggs:TemperatureMeasurementPropertyType">
          <annotation>
            <documentation>Temperature of the specimen, stored in the TemperatureMeasurement object with optional dateTime that identifies specific time instant for the measurement. Multiple temperature measurements are permitted.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="volume" type="diggs:VolumeMeasureType">
          <annotation>
            <documentation>The volume of the specimen.</documentation>
          </annotation>
        </element>
        <choice minOccurs="0">
          <element name="wetWeight" type="diggs:ForceMeasureType">
            <annotation>
              <appinfo>
                <diggs:deprecated since="3.1.0" replacedBy="diggs:wetMass"/>
              </appinfo>
              <documentation>DEPRECATED. Use wetMass; only one of the two may be given. The weight of the specimen prior to drying.</documentation>
            </annotation>
          </element>
          <element name="wetMass" type="diggs:MassMeasureType">
            <annotation>
              <documentation>The mass of the specimen before testing, with any surface moisture removed. Only one of this and wetWeight may be given.</documentation>
            </annotation>
          </element>
        </choice>
        <choice minOccurs="0">
          <element name="wtBleedWater" type="diggs:ForceMeasureType">
            <annotation>
              <appinfo>
                <diggs:deprecated since="3.1.0" replacedBy="diggs:bleedWaterMass"/>
              </appinfo>
              <documentation>DEPRECATED. Use bleedWaterMass; only one of the two may be given. The weight of bleed water that occurs during curing.</documentation>
            </annotation>
          </element>
          <element name="bleedWaterMass" type="diggs:MassMeasureType">
            <annotation>
              <documentation>The mass of bleed water that occurs during curing, generally determined by weighing the specimen before and after draining the bleed water off the sample. Only one of this and wtBleedWater may be given.</documentation>
            </annotation>
          </element>
        </choice>
        <element minOccurs="0" name="crossSectionalArea" type="diggs:AreaMeasureType">
          <annotation>
            <documentation>Cross-sectional area of the specimen on which the load acts. May be computed from the average of diameters measured on this specimen, or on a group of specimens from the same mold lot.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="heightDiameterRatio" type="double">
          <annotation>
            <documentation>For cylindrical specimens, the specimen height divided by the specimen diameter (H/D, also written L/D): the ratio that compressive strength standards use to decide whether a correction to the measured strength applies. To facilitate processing, where relevant, this value should be provided even if the specimen diameter and height are also provided.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="bulkDensity" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>Bulk density of the specimen before testing, from its mass and dimensions or by submerged weighing.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dimensionBasis" type="gml:CodeType">
          <annotation>
            <documentation>Whether the dimensions recorded are the designated (nominal) size of the mold or specimen, or the actual measured dimensions. Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="moistureConditionAtTest" type="diggs:MoistureConditionAtTestEnumExtType">
          <annotation>
            <documentation>Moisture condition of the specimen when tested (e.g. moist, dry, soaked).</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="conditionOnReceipt" type="gml:CodeType">
          <annotation>
            <documentation>Defects or damage noted in the specimen, or in its caps, before testing (e.g. damaged, honeycombed). Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherConditionProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>The other condition property property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
