Complex Type diggs:AreaMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Area: Two-dimensional extent. Fundamental geometric quantity used universally in engineering, construction, and science. Common units include m², ft², cm², in², acre, and hectare.

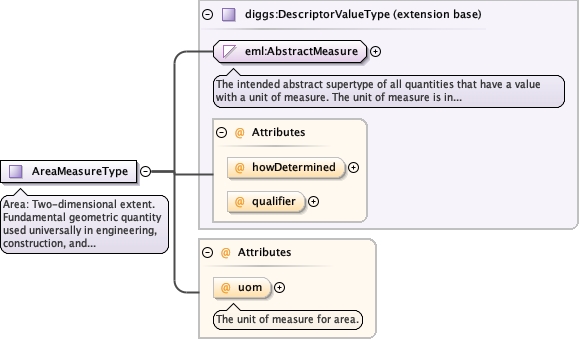

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Elements diggs:AbstractPlateBearingTestProcedureType/diggs:plateArea, diggs:BoreholeDiameterType/diggs:computedBoreholeCrossSectionalArea, diggs:CompressionIncrementType/diggs:correctedArea, diggs:CushionType/diggs:areaAfterDrive, diggs:CushionType/diggs:areaBeforeDrive, diggs:DirectShearTestType/diggs:areaShearBox, diggs:DrillRigType/diggs:crowdCylinderArea, diggs:GP_ArealSurveyType/diggs:totalSurveyArea, diggs:GroutSpecimenConditionsType/diggs:crossSectionalArea, diggs:GroutSpecimenConditionsType/diggs:surfaceArea, diggs:LabCBRTestTrialType/diggs:pistonArea, diggs:LabPermeabilityTestType/diggs:effluentArea, diggs:LabPermeabilityTestType/diggs:influentArea, diggs:LoadTransferPlatformType/diggs:totalArea, diggs:PDARecordType/diggs:crossSectionAreaAtGages, diggs:PileDriveHammerType/diggs:pistonAreaDblActing, diggs:PileDriveHammerType/diggs:smallPistonAreaDifActing, diggs:RITreatedAreaType/diggs:totalArea, diggs:ReinforcementType/diggs:steelArea, diggs:SpecimenConditionsType/diggs:crossSectionalArea, diggs:SpecimenConditionsType/diggs:surfaceArea, diggs:StaticConePenetrationTestType/diggs:frictionSleeveArea, diggs:StaticConePenetrationTestType/diggs:tipArea, diggs:WorkingPlatformType/diggs:totalArea, diggs_geo:CompressionIncrementType/diggs_geo:correctedArea, diggs_geo:DirectShearTestType/diggs_geo:areaShearBox, diggs_geo:LabPermeabilityTestType/diggs_geo:effluentArea, diggs_geo:LabPermeabilityTestType/diggs_geo:influentArea, diggs_geo:StaticConePenetrationTestType/diggs_geo:frictionSleeveArea, diggs_geo:StaticConePenetrationTestType/diggs_geo:tipArea
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Source

<complexType name="AreaMeasureType">
  <annotation>
    <documentation>Area: Two-dimensional extent. Fundamental geometric quantity used universally in engineering, construction, and science. Common units include m², ft², cm², in², acre, and hectare.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:AreaUomEnumType">
        <annotation>
          <documentation>The unit of measure for area.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:AreaMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for area.
Type diggs:AreaUomEnumType
Properties
content simple
Used by
Complex Type diggs:AreaMeasureType
Source

<attribute name="uom" type="diggs:AreaUomEnumType">
  <annotation>
    <documentation>The unit of measure for area.</documentation>
  </annotation>
</attribute>
