Element diggs:AbstractProcedureTrialType / diggs:otherProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter recording a property of the trial that is not otherwise
provided for. Repeat for each property.

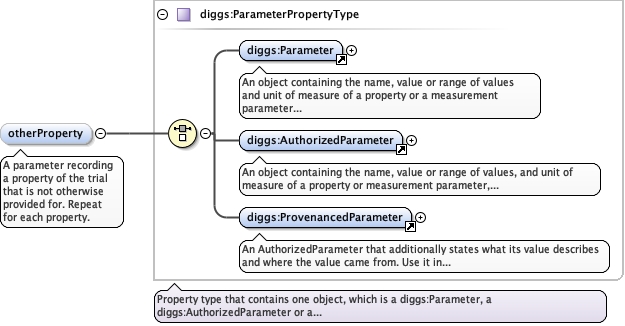

Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>A parameter recording a property of the trial that is not otherwise provided for. Repeat for each property.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractProcedureTrialType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for individual trials or repetitions within a test procedure,
such as the blows of a Standard Penetration Test or repeated readings in a
laboratory consolidation test. Each trial is a discrete execution of the test
methodology; trial results can be aggregated or analyzed to produce the final test
result.

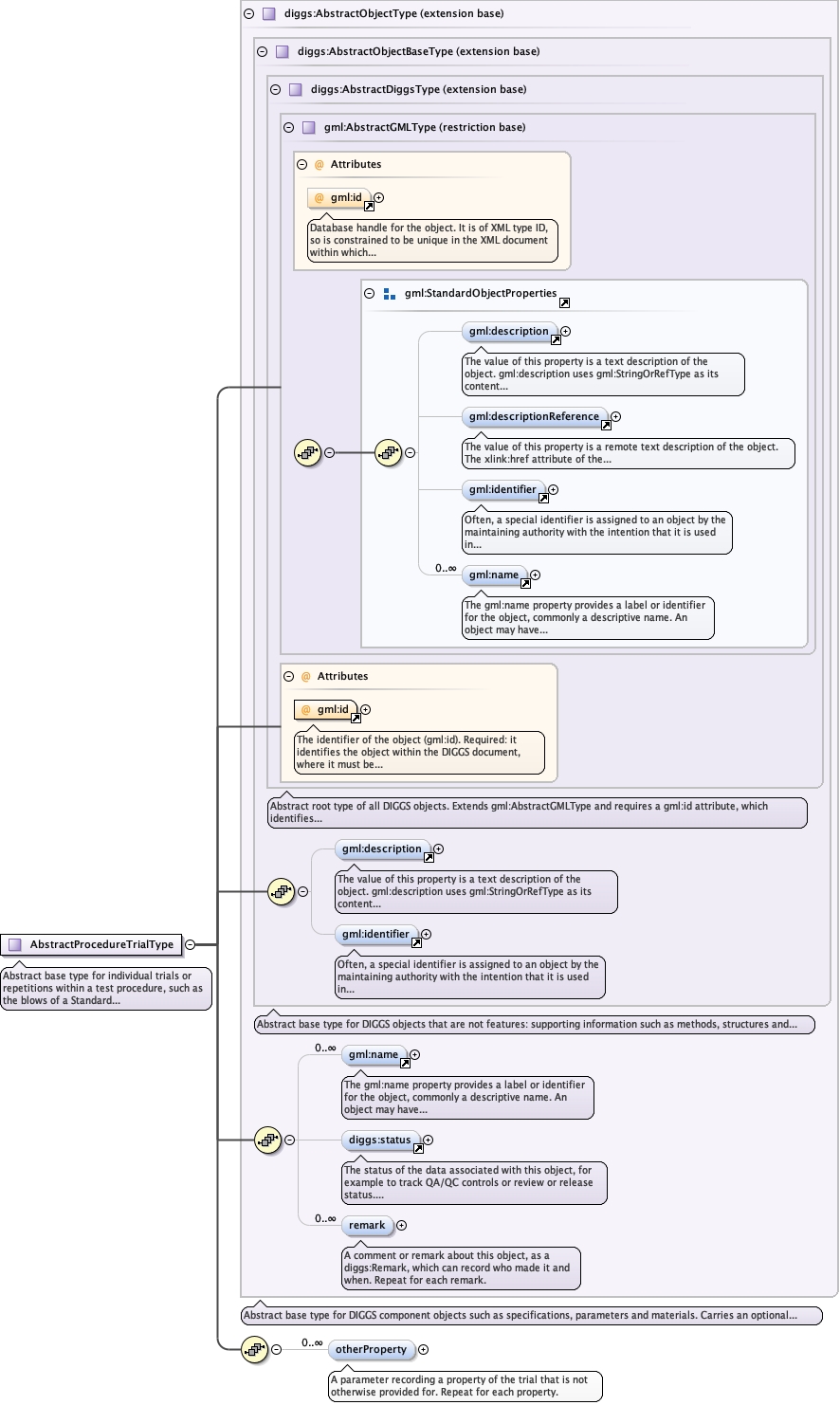

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherProperty
Type extension of diggs:AbstractObjectType
Type hierarchy
Properties
abstract true
Used by
Complex Types diggs:BackPressureIncrementType, diggs:CBRIncrementType, diggs:CTConsolidationIncrementType, diggs:CasagrandeTrialType, diggs:CompressionIncrementType, diggs:ConsolidationIncrementType, diggs:ConsolidationTestTrialType, diggs:DSConConsolidationIncrementType, diggs:DirectShearConsolidationTrialType, diggs:DirectShearTestIncrementType, diggs:FallConeTrialType, diggs:LabPermeationTrialType, diggs:LoadTestIncrementType, diggs:PlasticLimitTrialType, diggs:ShearingIncrementType, diggs:SwellOrCollapseMeasurementType, diggs:SwellOrCollapseStageType, diggs:SwellTestConsolidationStageType, diggs:SwellTestIncrementType, diggs:ThermalProbeReadingType, diggs:TorqueIncrementType, diggs:TriaxialTestConsolidationStageType, diggs:TriaxialTestSaturationStageType, diggs:TriaxialTestShearStageType, diggs:TriaxialTestTrialType, diggs_geo:BackPressureIncrementType, diggs_geo:CBRIncrementType, diggs_geo:CasagrandeTrialType, diggs_geo:CompressionIncrementType, diggs_geo:ConsolidationIncrementType, diggs_geo:ConsolidationTestTrialType, diggs_geo:DSConConsoiidationIncrementType, diggs_geo:DirectShearConsolidationTrialType, diggs_geo:DirectShearTestIncrementType, diggs_geo:FallConeTrialType, diggs_geo:LabPermeationTrialType, diggs_geo:PlasticLimitTrialType, diggs_geo:ShearingIncrementType, diggs_geo:TorqueIncrementType, diggs_geo:TriaxialTestConsolidationStageType, diggs_geo:TriaxialTestSaturationStageType, diggs_geo:TriaxialTestShearStageType, diggs_geo:TriaxialTestTrialType
Element diggs:AbstractProcedureTrial
Model
Children diggs:otherProperty, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractProcedureTrialType" abstract="true">
  <annotation>
    <documentation>Abstract base type for individual trials or repetitions within a test procedure, such as the blows of a Standard Penetration Test or repeated readings in a laboratory consolidation test. Each trial is a discrete execution of the test methodology; trial results can be aggregated or analyzed to produce the final test result.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" name="otherProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>A parameter recording a property of the trial that is not otherwise provided for. Repeat for each property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
