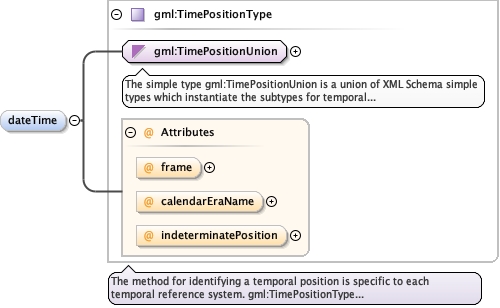

Element diggs:EnvironmentType / diggs:dateTime
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="dateTime" type="gml:TimePositionType"/>

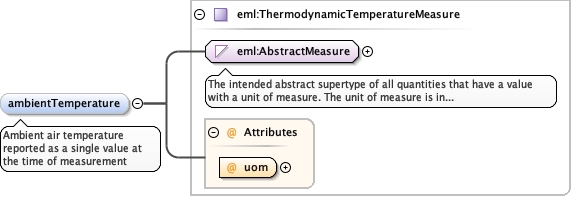

Element diggs:EnvironmentType / diggs:ambientTemperature
Namespace http://diggsml.org/schema-dev
Annotations

Ambient air temperature reported as a single value at the
time of measurement
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure_uomMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure
Type eml:ThermodynamicTemperatureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ThermodynamicTemperatureUom required
Source

<element name="ambientTemperature" type="eml:ThermodynamicTemperatureMeasure" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Ambient air temperature reported as a single value at the time of measurement</documentation>
  </annotation>
</element>

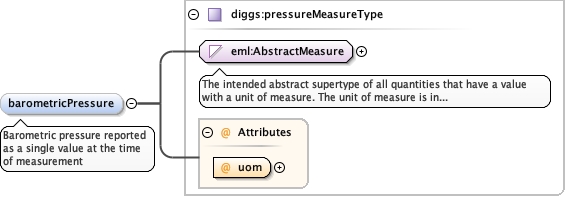

Element diggs:EnvironmentType / diggs:barometricPressure
Namespace http://diggsml.org/schema-dev
Annotations

Barometric pressure reported as a single value at the
time of measurement
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType
Type diggs:pressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom diggs:diggsPressureUom required
Source

<element name="barometricPressure" type="diggs:pressureMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Barometric pressure reported as a single value at the time of measurement</documentation>
  </annotation>
</element>

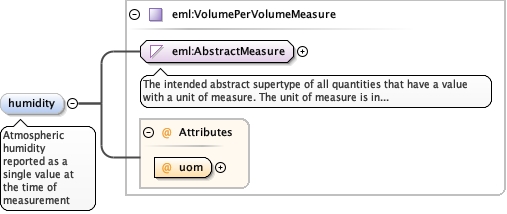

Element diggs:EnvironmentType / diggs:humidity
Namespace http://diggsml.org/schema-dev
Annotations

Atmospheric humidity reported as a single value at the
time of measurement
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element name="humidity" type="eml:VolumePerVolumeMeasure" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Atmospheric humidity reported as a single value at the time of measurement</documentation>
  </annotation>
</element>

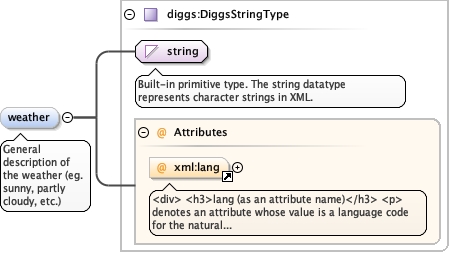

Element diggs:EnvironmentType / diggs:weather
Namespace http://diggsml.org/schema-dev
Annotations

General description of the weather (eg. sunny, partly
cloudy, etc.)
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="weather" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>General description of the weather (eg. sunny, partly cloudy, etc.)</documentation>
  </annotation>
</element>

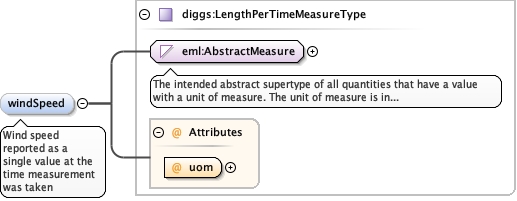

Element diggs:EnvironmentType / diggs:windSpeed
Namespace http://diggsml.org/schema-dev
Annotations

Wind speed reported as a single value at the time
measurement was taken
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType_uomKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType
Type diggs:LengthPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom diggs:lengthPerTimeUom required
Source

<element name="windSpeed" type="diggs:LengthPerTimeMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Wind speed reported as a single value at the time measurement was taken</documentation>
  </annotation>
</element>

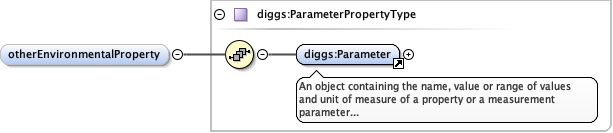

Element diggs:EnvironmentType / diggs:otherEnvironmentalProperty
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherEnvironmentalProperty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherEnvironmentalProperty>
Source

<element minOccurs="0" name="otherEnvironmentalProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded"/>

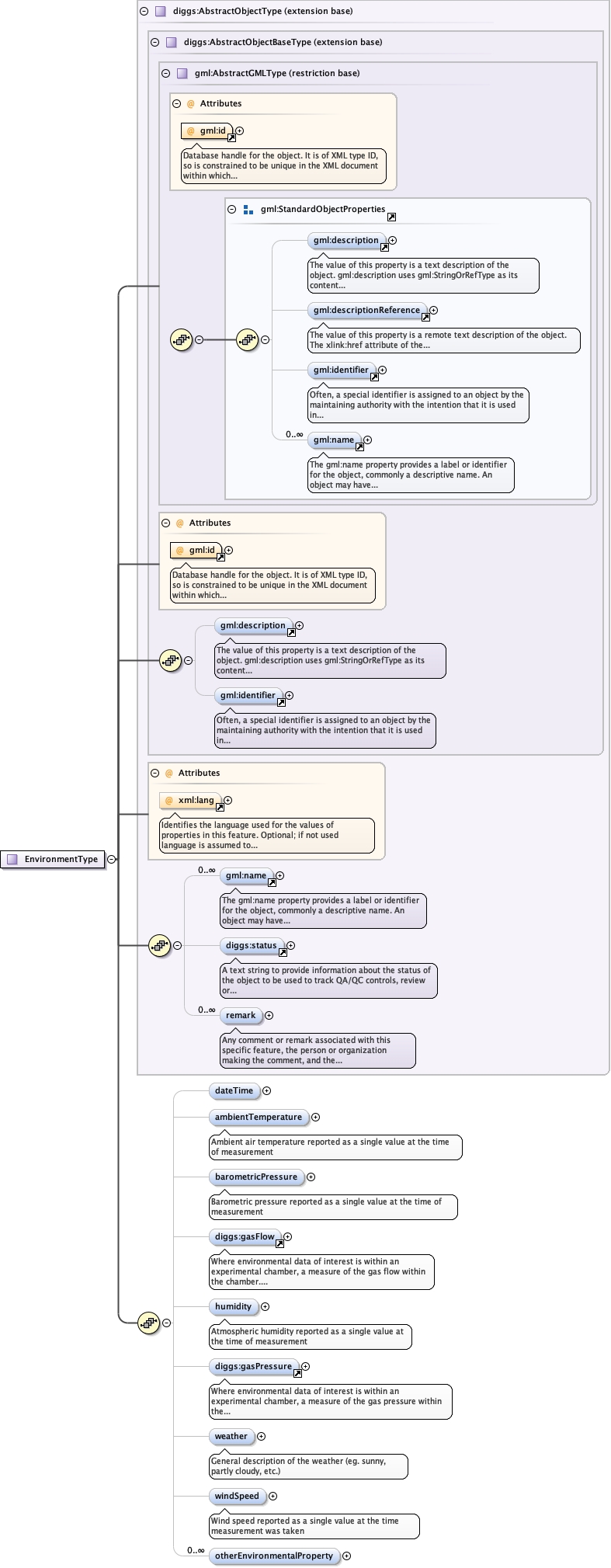

Complex Type diggs:EnvironmentType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_dateTimeKernel_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_ambientTemperatureKernel_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_barometricPressureDeprecated_xsd_Element_diggs_gasFlow.tmp#gasFlowKernel_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_humidityDeprecated_xsd_Element_diggs_gasPressure.tmp#gasPressureKernel_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_weatherKernel_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_windSpeedKernel_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_otherEnvironmentalProperty
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:ambientTemperature, diggs:barometricPressure, diggs:dateTime, diggs:gasFlow, diggs:gasPressure, diggs:humidity, diggs:otherEnvironmentalProperty, diggs:remark, diggs:status, diggs:weather, diggs:windSpeed, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="EnvironmentType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="dateTime" type="gml:TimePositionType"/>
        <element name="ambientTemperature" type="eml:ThermodynamicTemperatureMeasure" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Ambient air temperature reported as a single value at the time of measurement</documentation>
          </annotation>
        </element>
        <element name="barometricPressure" type="diggs:pressureMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Barometric pressure reported as a single value at the time of measurement</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="1" ref="diggs:gasFlow">
          <annotation>
            <documentation>Where environmental data of interest is within an experimental chamber, a measure of the gas flow within the chamber. Deprecated; use test procedure specific properties where relevant.</documentation>
          </annotation>
        </element>
        <element name="humidity" type="eml:VolumePerVolumeMeasure" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Atmospheric humidity reported as a single value at the time of measurement</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="1" ref="diggs:gasPressure">
          <annotation>
            <documentation>Where environmental data of interest is within an experimental chamber, a measure of the gas pressure within the chamber. Deprecated; use test procedure specific properties where relevant.</documentation>
          </annotation>
        </element>
        <element name="weather" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>General description of the weather (eg. sunny, partly cloudy, etc.)</documentation>
          </annotation>
        </element>
        <element name="windSpeed" type="diggs:LengthPerTimeMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Wind speed reported as a single value at the time measurement was taken</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="otherEnvironmentalProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
