Element diggs:OrientationType / diggs:strikeOrBearing
Namespace http://diggsml.org/schema-dev
Annotations

The true bearing of the feature (if linear) or strike of
the plane, from north (range 0-360), where 0 is north and 90 east,
etc.

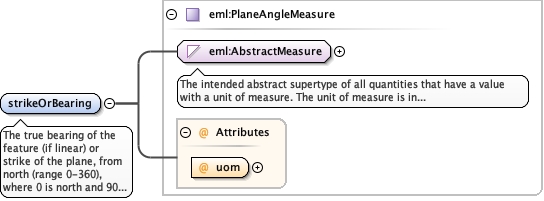

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure
Type eml:PlaneAngleMeasure
Type hierarchy
Properties
content complex
Attributes
QName Type Use
uom eml:PlaneAngleUom required
Source

<element name="strikeOrBearing" type="eml:PlaneAngleMeasure">
  <annotation>
    <documentation>The true bearing of the feature (if linear) or strike of the plane, from north (range 0-360), where 0 is north and 90 east, etc.</documentation>
  </annotation>
</element>
Element diggs:OrientationType / diggs:dipOrPlunge
Namespace http://diggsml.org/schema-dev
Annotations

The inclination of the feature from horizontal (eg. 0 is
vertical, 90 degrees is vertical DOWN)

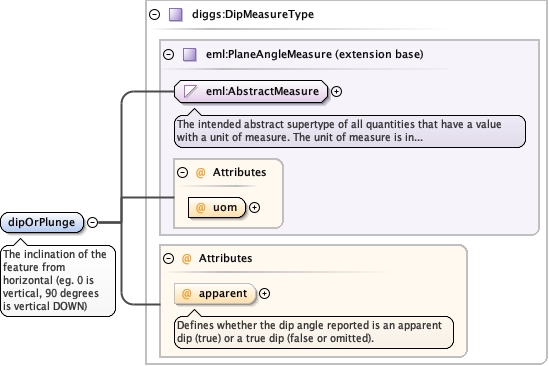

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasureKernel_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType_apparentKernel_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType
Type diggs:DipMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
apparent boolean optional
Defines whether the dip angle reported is an apparent dip (true) or a true dip (false or omitted).
uom eml:PlaneAngleUom required
Source

<element name="dipOrPlunge" type="diggs:DipMeasureType">
  <annotation>
    <documentation>The inclination of the feature from horizontal (eg. 0 is vertical, 90 degrees is vertical DOWN)</documentation>
  </annotation>
</element>
Complex Type diggs:OrientationType
Namespace http://diggsml.org/schema-dev

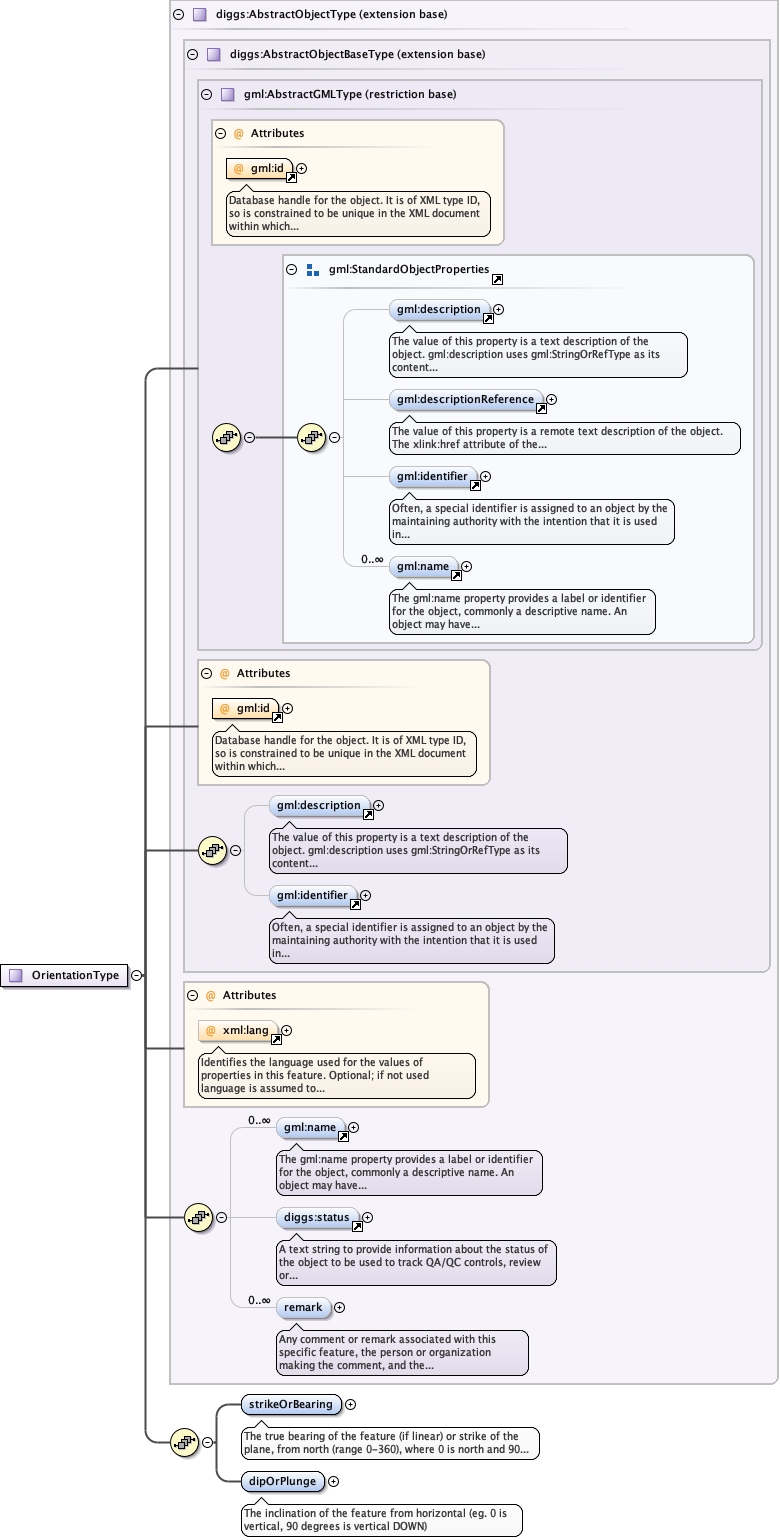

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_OrientationType.tmp#OrientationType_strikeOrBearingKernel_xsd_Complex_Type_diggs_OrientationType.tmp#OrientationType_dipOrPlunge
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:dipOrPlunge, diggs:remark, diggs:status, diggs:strikeOrBearing, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="OrientationType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="strikeOrBearing" type="eml:PlaneAngleMeasure">
          <annotation>
            <documentation>The true bearing of the feature (if linear) or strike of the plane, from north (range 0-360), where 0 is north and 90 east, etc.</documentation>
          </annotation>
        </element>
        <element name="dipOrPlunge" type="diggs:DipMeasureType">
          <annotation>
            <documentation>The inclination of the feature from horizontal (eg. 0 is vertical, 90 degrees is vertical DOWN)</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
