Element diggs:UncertaintyType / diggs:plusUncertaintyValue
Namespace http://diggsml.org/schema-dev
Annotations

Uncertainty is reported as +/- from the reported value
(in the same UOM as the value reported); this property reports the +
value.

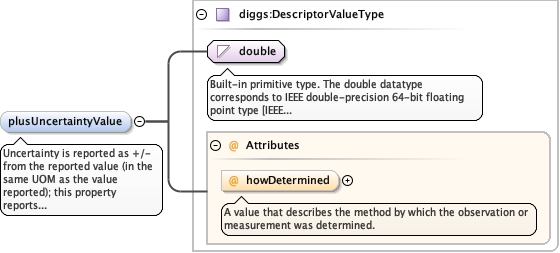

Diagram
DiagramKernel_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedKernel_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType
Type diggs:DescriptorValueType
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
A value that describes the method by which the observation or measurement
was determined.
Source

<element minOccurs="0" name="plusUncertaintyValue" type="diggs:DescriptorValueType">
  <annotation>
    <documentation>Uncertainty is reported as +/- from the reported value (in the same UOM as the value reported); this property reports the + value.</documentation>
  </annotation>
</element>
Element diggs:UncertaintyType / diggs:minusUncertaintyValue
Namespace http://diggsml.org/schema-dev
Annotations

Accuracy is reported as +/- from the reported value (in
the same UOM as the value reported); this property reports the -
value.

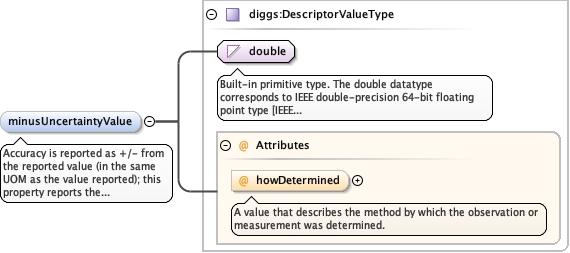

Diagram
DiagramKernel_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedKernel_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType
Type diggs:DescriptorValueType
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
A value that describes the method by which the observation or measurement
was determined.
Source

<element minOccurs="0" name="minusUncertaintyValue" type="diggs:DescriptorValueType">
  <annotation>
    <documentation>Accuracy is reported as +/- from the reported value (in the same UOM as the value reported); this property reports the - value.</documentation>
  </annotation>
</element>
Element diggs:UncertaintyType / diggs:confidenceLevel
Namespace http://diggsml.org/schema-dev
Annotations

Reported as a percentage (eg. 95%)

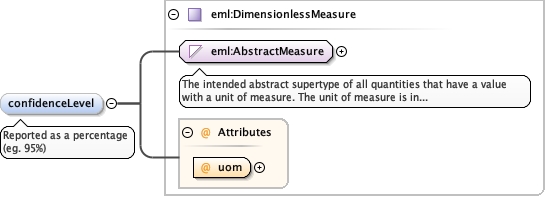

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure_uomMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure
Type eml:DimensionlessMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DimensionlessUom required
Source

<element minOccurs="0" name="confidenceLevel" type="eml:DimensionlessMeasure">
  <annotation>
    <documentation>Reported as a percentage (eg. 95%)</documentation>
  </annotation>
</element>
Complex Type diggs:UncertaintyType
Namespace http://diggsml.org/schema-dev

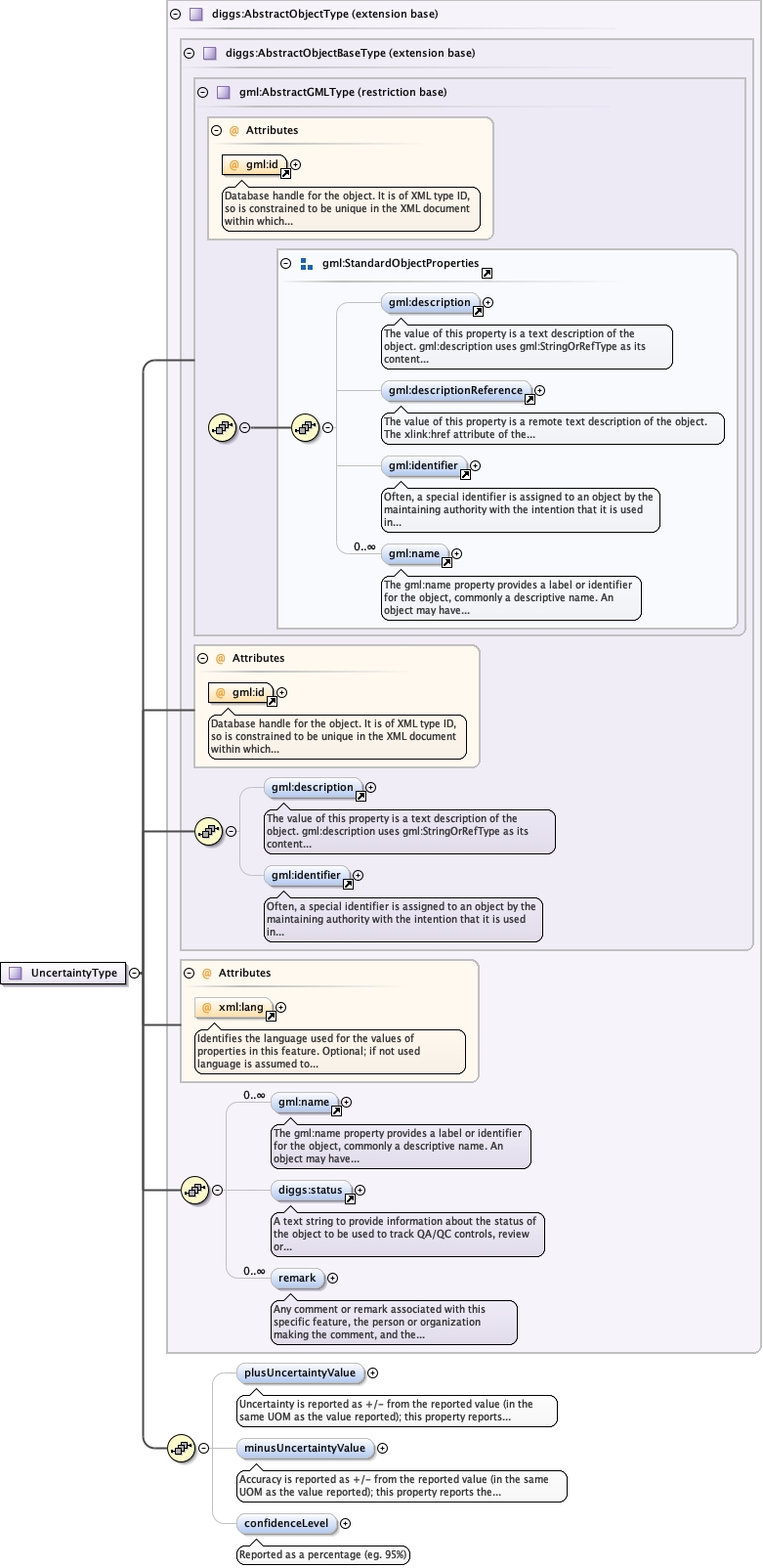

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_UncertaintyType.tmp#UncertaintyType_plusUncertaintyValueKernel_xsd_Complex_Type_diggs_UncertaintyType.tmp#UncertaintyType_minusUncertaintyValueKernel_xsd_Complex_Type_diggs_UncertaintyType.tmp#UncertaintyType_confidenceLevel
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:confidenceLevel, diggs:minusUncertaintyValue, diggs:plusUncertaintyValue, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="UncertaintyType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="plusUncertaintyValue" type="diggs:DescriptorValueType">
          <annotation>
            <documentation>Uncertainty is reported as +/- from the reported value (in the same UOM as the value reported); this property reports the + value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="minusUncertaintyValue" type="diggs:DescriptorValueType">
          <annotation>
            <documentation>Accuracy is reported as +/- from the reported value (in the same UOM as the value reported); this property reports the - value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="confidenceLevel" type="eml:DimensionlessMeasure">
          <annotation>
            <documentation>Reported as a percentage (eg. 95%)</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
