Element diggs:AbstractEventType / diggs:time
Namespace http://diggsml.org/schema-dev
Annotations

Date/time when this event information was
recorded

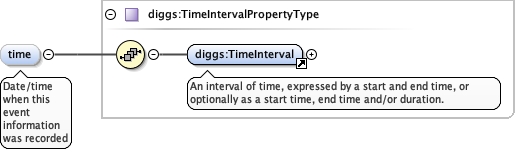

Diagram
DiagramKernel_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalKernel_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:time xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs:time>
Source

<element name="time" type="diggs:TimeIntervalPropertyType" minOccurs="0">
  <annotation>
    <documentation>Date/time when this event information was recorded</documentation>
  </annotation>
</element>
Element diggs:AbstractEventType / diggs:infoRecorded
Namespace http://diggsml.org/schema-dev
Annotations

Other associated data measured or observed at this time

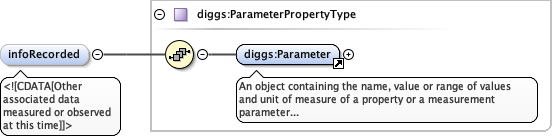

Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:infoRecorded xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:infoRecorded>
Source

<element maxOccurs="unbounded" minOccurs="0" name="infoRecorded" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>
      <![CDATA[Other associated data measured or observed at this time]]>
    </documentation>
  </annotation>
</element>
Complex Type diggs:AbstractEventType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Element_diggs_location.tmp#locationKernel_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_timeKernel_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_infoRecorded
Type extension of diggs:AbstractObjectType
Type hierarchy
Properties
abstract true
mixed false
Used by
Model
Children diggs:infoRecorded, diggs:location, diggs:remark, diggs:status, diggs:time, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType mixed="false" name="AbstractEventType" abstract="true">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" ref="diggs:location">
          <annotation>
            <documentation>The measured depth interval over which the event takes place, recorded in the hole's linear referencing system.</documentation>
          </annotation>
        </element>
        <element name="time" type="diggs:TimeIntervalPropertyType" minOccurs="0">
          <annotation>
            <documentation>Date/time when this event information was recorded</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="infoRecorded" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>
              <![CDATA[Other associated data measured or observed at this time]]>
            </documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
