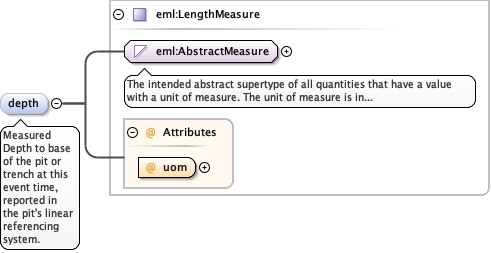

Element diggs:TrialPitEventType / diggs:depth
Namespace http://diggsml.org/schema-dev
Annotations

Measured Depth to base of the pit or trench at this event
time, reported in the pit's linear referencing
system.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="depth" type="eml:LengthMeasure">
  <annotation>
    <documentation>Measured Depth to base of the pit or trench at this event time, reported in the pit's linear referencing system.</documentation>
  </annotation>
</element>

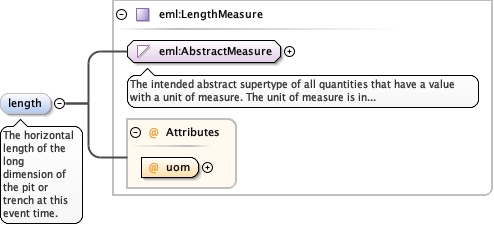

Element diggs:TrialPitEventType / diggs:length
Namespace http://diggsml.org/schema-dev
Annotations

The horizontal length of the long dimension of the pit or
trench at this event time.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="length" type="eml:LengthMeasure">
  <annotation>
    <documentation>The horizontal length of the long dimension of the pit or trench at this event time.</documentation>
  </annotation>
</element>

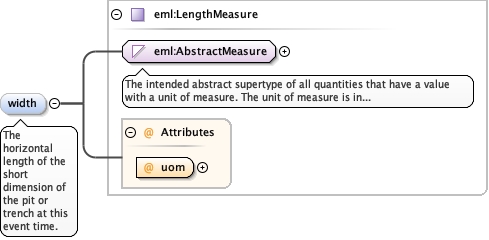

Element diggs:TrialPitEventType / diggs:width
Namespace http://diggsml.org/schema-dev
Annotations

The horizontal length of the short dimension of the pit
or trench at this event time.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="width" type="eml:LengthMeasure">
  <annotation>
    <documentation>The horizontal length of the short dimension of the pit or trench at this event time.</documentation>
  </annotation>
</element>

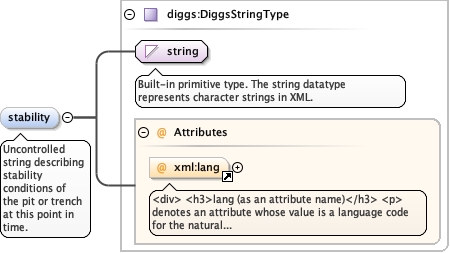

Element diggs:TrialPitEventType / diggs:stability
Namespace http://diggsml.org/schema-dev
Annotations

Uncontrolled string describing stability conditions of
the pit or trench at this point in time.
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="stability" type="diggs:DiggsStringType">
  <annotation>
    <documentation>Uncontrolled string describing stability conditions of the pit or trench at this point in time.</documentation>
  </annotation>
</element>

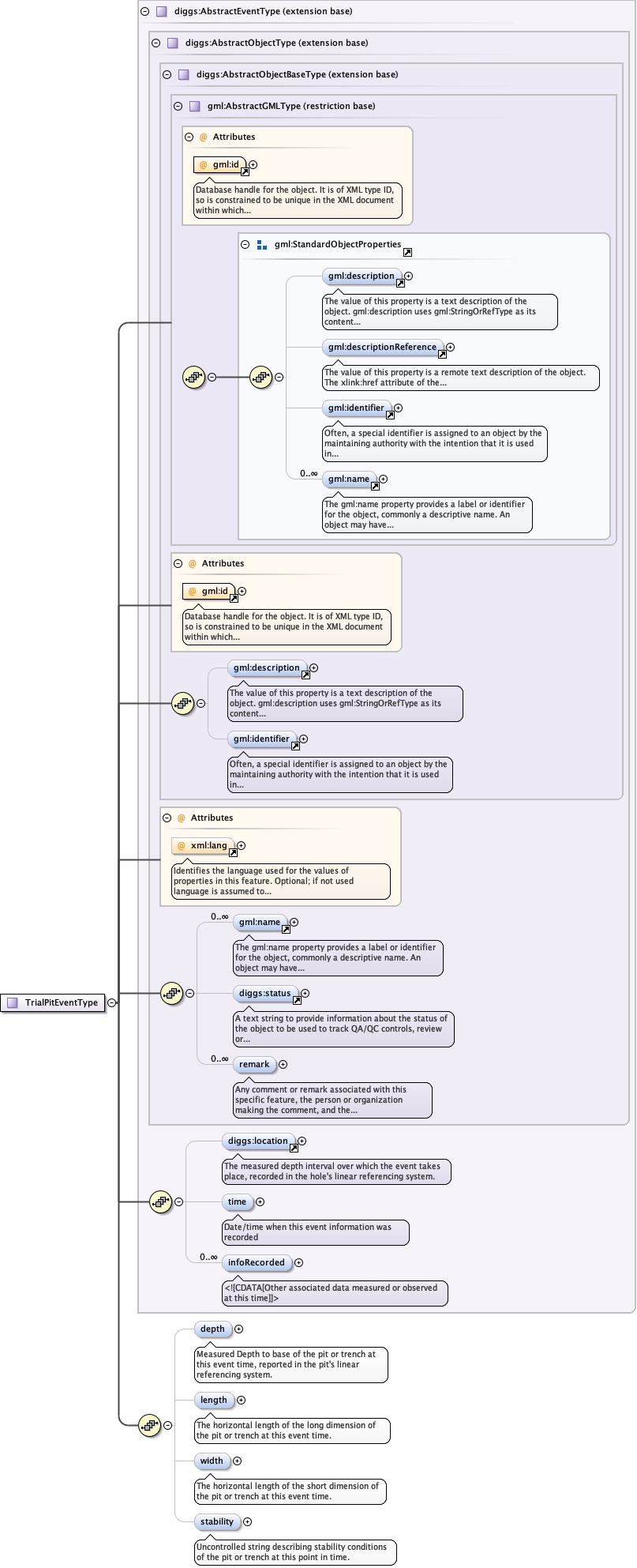

Complex Type diggs:TrialPitEventType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Element_diggs_location.tmp#locationKernel_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_timeKernel_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_infoRecordedKernel_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventTypeKernel_xsd_Complex_Type_diggs_TrialPitEventType.tmp#TrialPitEventType_depthKernel_xsd_Complex_Type_diggs_TrialPitEventType.tmp#TrialPitEventType_lengthKernel_xsd_Complex_Type_diggs_TrialPitEventType.tmp#TrialPitEventType_widthKernel_xsd_Complex_Type_diggs_TrialPitEventType.tmp#TrialPitEventType_stability
Type extension of diggs:AbstractEventType
Type hierarchy
Used by
Model
Children diggs:depth, diggs:infoRecorded, diggs:length, diggs:location, diggs:remark, diggs:stability, diggs:status, diggs:time, diggs:width, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="TrialPitEventType">
  <complexContent>
    <extension base="diggs:AbstractEventType">
      <sequence>
        <element minOccurs="0" name="depth" type="eml:LengthMeasure">
          <annotation>
            <documentation>Measured Depth to base of the pit or trench at this event time, reported in the pit's linear referencing system.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="length" type="eml:LengthMeasure">
          <annotation>
            <documentation>The horizontal length of the long dimension of the pit or trench at this event time.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="width" type="eml:LengthMeasure">
          <annotation>
            <documentation>The horizontal length of the short dimension of the pit or trench at this event time.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="stability" type="diggs:DiggsStringType">
          <annotation>
            <documentation>Uncontrolled string describing stability conditions of the pit or trench at this point in time.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
