Complex Type eml:LengthMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

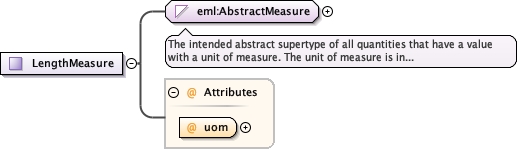

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Used by
Complex Type diggs:MovementMeasureType
Elements diggs:AbstractSamplingActivityType/diggs:lengthLongestPortion, diggs:AbstractSamplingActivityType/diggs:rockQualityDesignationLength, diggs:AbstractSamplingActivityType/diggs:solidCoreRecoveryLength, diggs:AbstractSamplingActivityType/diggs:totalSampleRecoveryLength, diggs:BoreholeDiameterType/diggs:diameter, diggs:BoreholeType/diggs:totalMeasuredDepth, diggs:CTConsoiidationIncrementType/diggs:axialDeformation, diggs:CasingType/diggs:casingInsideDiameter, diggs:CasingType/diggs:casingOutsideDiameter, diggs:CasingType/diggs:casingWallThickness, diggs:ConsolidationIncrementType/diggs:deformationIndicatorReading, diggs:ConsolidationTestTrialType/diggs:finalaxialDeformation, diggs:ContainerType/diggs:containerHeight, diggs:ContainerType/diggs:containerLength, diggs:ContainerType/diggs:containerWidth, diggs:ContinuousGroutingType/diggs:gaugeHeight, diggs:CoringDeviceType/diggs:barrelExtension, diggs:CoringDeviceType/diggs:barrelInnerDiameter, diggs:CoringDeviceType/diggs:barrelLength, diggs:CoringDeviceType/diggs:barrelOuterDiameter, diggs:CoringDeviceType/diggs:shoeInnerDiameter, diggs:CoringDeviceType/diggs:shoeLength, diggs:CoringDeviceType/diggs:shoeOuterDiameter, diggs:CutterSoilMixingToolType/diggs:diameterCuttingWheels, diggs:CutterSoilMixingToolType/diggs:panelLength, diggs:CutterSoilMixingToolType/diggs:panelWidth, diggs:DSConConsoiidationIncrementType/diggs:axialDeformation, diggs:DeepSoilMixingToolType/diggs:diameterMixingBlades, diggs:DeepSoilMixingToolType/diggs:mixingToolHeight, diggs:DeepSoilMixingToolType/diggs:panelLength, diggs:DepthDependentGroutConstructionCriteriaType/diggs:maximumDepthBelowLS, diggs:DepthDependentGroutConstructionCriteriaType/diggs:minimumDepthBelowLS, diggs:DepthDependentGroutConstructionCriteriaType/diggs:stageLengthMaximum, diggs:DepthDependentGroutConstructionCriteriaType/diggs:stageLengthMinimum, diggs:DesignGroutMixType/diggs:slumpDesign, diggs:DirectShearConsolidationTrialType/diggs:finalNormalDisplacement, diggs:DirectShearTestIncrementType/diggs:lateralDisplacement, diggs:DirectShearTestIncrementType/diggs:verticalDisplacement, diggs:DirectShearTestType/diggs:HorizDisplPeakShear, diggs:DirectShearTestType/diggs:HorizDisplResidualShear, diggs:DirectShearTestType/diggs:VertDisplPeakShear, diggs:DirectShearTestType/diggs:VertDisplResidualShear, diggs:DirectShearTestType/diggs:verticalDisplacementPriorToShearing, diggs:DriveSetType/diggs:penetration, diggs:DrivenPenetrationTestType/diggs:depthCasing, diggs:DrivenPenetrationTestType/diggs:hammerDropHeight, diggs:DrivenPenetrationTestType/diggs:rodExternalDiameter, diggs:DrivenPenetrationTestType/diggs:rodSectionLength, diggs:DrivenPenetrationTestType/diggs:samplerInternalDiameter, diggs:DrivenPenetrationTestType/diggs:samplerLength, diggs:DrivenPenetrationTestType/diggs:selfWeightPenetration, diggs:DrivenPenetrationTestType/diggs:totalPenetration, diggs:DrivenPenetrationTestType/diggs:waterDepth, diggs:DynamicProbeTestType/diggs:depthCasing, diggs:DynamicProbeTestType/diggs:hammerDropHeight, diggs:DynamicProbeTestType/diggs:rodExternalDiameter, diggs:DynamicProbeTestType/diggs:rodSectionLength, diggs:DynamicProbeTestType/diggs:samplerInternalDiameter, diggs:DynamicProbeTestType/diggs:samplerLength, diggs:DynamicProbeTestType/diggs:selfWeightPenetration, diggs:DynamicProbeTestType/diggs:totalPenetration, diggs:DynamicProbeTestType/diggs:waterDepth, diggs:FallConeTrialType/diggs:penetration, diggs:FilterInfoType/diggs:perimeterCarriedbyFilterPaperStrips, diggs:FlatPlateDilatometerTestType/diggs:bladeThickness, diggs:FlatPlateDilatometerTestType/diggs:bladeWidth, diggs:FlatPlateDilatometerTestType/diggs:frictionReducerDiameter, diggs:FlatPlateDilatometerTestType/diggs:frictionReducerLocation, diggs:FlatPlateDilatometerTestType/diggs:rodDiameter, diggs:FractureObservationType/diggs:aperatureMeasurement, diggs:FractureObservationType/diggs:wavinessAmplitude, diggs:FractureObservationType/diggs:wavinessWavelength, diggs:FractureSpacingType/diggs:averageSpacing, diggs:FractureSpacingType/diggs:maxSpacing, diggs:FractureSpacingType/diggs:minSpacing, diggs:GP_TracklineType/diggs:totalTracklineLength, diggs:GeoUnitObservationType/diggs:verticalDistanceToBaseOfUnit, diggs:GeoUnitObservationType/diggs:verticalDistanceToTopOfUnit, diggs:GeoUnitObservationType/diggs:verticallThicknessOfUnit, diggs:GradingType/diggs:particleSize, diggs:GroutConstructionSpecificationType/diggs:stageLengthMaximum, diggs:GroutConstructionSpecificationType/diggs:stageLengthMinimum, diggs:GroutInjectionEquipmentType/diggs:groutPipeInnerDiameter, diggs:GroutInjectionEquipmentType/diggs:headerRadius, diggs:GroutInjectionEquipmentType/diggs:headerSize, diggs:GroutInjectionEquipmentType/diggs:lanceLength, diggs:GroutInjectionEquipmentType/diggs:lanceOuterDiameter, diggs:GroutInjectionEquipmentType/diggs:lengthOfOCSP, diggs:GroutInjectionEquipmentType/diggs:packerSpacing, diggs:GroutInjectionEquipmentType/diggs:portSpacing, diggs:GroutInjectionEquipmentType/diggs:riserRadius, diggs:GroutInjectionEquipmentType/diggs:tubeInnerDiameter, diggs:GroutPumpType/diggs:inletPipeSize, diggs:GroutPumpType/diggs:outletPipeSize, diggs:GroutPumpType/diggs:pistonDiameter, diggs:GroutPumpType/diggs:pistonStroke, diggs:GroutSpecificationType/diggs:maxSlumpAllowed, diggs:GroutSpecimenConditionsType/diggs:diameter, diggs:GroutSpecimenConditionsType/diggs:height, diggs:GroutSpecimenConditionsType/diggs:length, diggs:GroutSpecimenConditionsType/diggs:width, diggs:GroutStageType/diggs:gaugeHeight, diggs:GroutTrenchCutoffWallType/diggs:cutoffWallWidth, diggs:InsituCBRTestType/diggs:pistonDiameter, diggs:InsituVaneTestType/diggs:vaneBladeThickness, diggs:InsituVaneTestType/diggs:vaneDepthBelow, diggs:InsituVaneTestType/diggs:vaneDiameter, diggs:InsituVaneTestType/diggs:vaneHeight, diggs:InsituVaneTestType/diggs:vaneShaftDiameter, diggs:JetGroutingMonitorType/diggs:diameterOfFluid_2Nozzles, diggs:JetGroutingMonitorType/diggs:diameterOfFluid_3Nozzles, diggs:JetGroutingMonitorType/diggs:diameterOfGroutNozzles, diggs:JetGroutingMonitorType/diggs:innerDiameterOfFluid_2Nozzles, diggs:JetGroutingMonitorType/diggs:innerDiameterOfFluid_3Nozzles, diggs:JetGroutingMonitorType/diggs:outerDiameterOfFluid_2Nozzles, diggs:JetGroutingMonitorType/diggs:outerDiameterOfFluid_3Nozzles, diggs:LabCBRTestTrialType/diggs:pistonDiameter, diggs:LabCompactionTestType/diggs:mouldDiameter, diggs:LabCompactionTestType/diggs:rammerDiameter, diggs:LabCompactionTestType/diggs:rammerDrop, diggs:LabPermeabilityTestType/diggs:drainDiameter, diggs:LabPermeationTrialType/diggs:averageHeadLoss, diggs:LabPermeationTrialType/diggs:deltaHg1, diggs:LabPermeationTrialType/diggs:deltaHg2, diggs:LabPermeationTrialType/diggs:deltaHgC, diggs:LabPermeationTrialType/diggs:deltaHgTail, diggs:LabPermeationTrialType/diggs:headLossEndOfTrial, diggs:LabPermeationTrialType/diggs:headLossStartOfTrial, diggs:LabVaneTestType/diggs:vaneDiameter, diggs:LabVaneTestType/diggs:vaneHeight, diggs:LineLossTestType/diggs:lineLength, diggs:LinearGroutingActivityType/diggs:cavity_depth, diggs:LinearGroutingActivityType/diggs:overburdenVerticalThickness, diggs:LithPropertiesType/diggs:unitRQDLength, diggs:LithPropertiesType/diggs:unitRecoveryLength, diggs:LocalCoordinateType/diggs:easting, diggs:LocalCoordinateType/diggs:elevation, diggs:LocalCoordinateType/diggs:northing, diggs:LocalityType/diggs:mileMarker, diggs:LugeonTestType/diggs:depthToGroundWater, diggs:LugeonTestType/diggs:pressureGaugeHeight, diggs:MembraneInfoType/diggs:membraneThickness, diggs:MembraneInfoType/diggs:unstretchedMembraneCircumference, diggs:MembraneInfoType/diggs:unstretchedMembraneLength, diggs:PlatformType/diggs:maxSourceReceiverSpacing, diggs:PlatformType/diggs:minSourceReceiverSpacing, diggs:PorePressureDissipationTestType/diggs:estimatedWaterDepth, diggs:PorePressureElementType/diggs:filterElementLocation, diggs:SampleDimensionsType/diggs:diameter, diggs:SampleDimensionsType/diggs:height, diggs:SampleDimensionsType/diggs:length, diggs:SampleDimensionsType/diggs:width, diggs:SedimentationType/diggs:effectiveLength, diggs:SedimentationType/diggs:particleDiameter, diggs:SensorSpacingType/diggs:avgSpacing, diggs:SensorSpacingType/diggs:maxSpacing, diggs:SensorSpacingType/diggs:minSpacing, diggs:ShearingIncrementType/diggs:axialDeflection, diggs:SoundingType/diggs:totalMeasuredDepth, diggs:SpecimenConditionsType/diggs:diameter, diggs:SpecimenConditionsType/diggs:height, diggs:SpecimenConditionsType/diggs:length, diggs:SpecimenConditionsType/diggs:width, diggs:StaticConePenetrationTestType/diggs:distanceTipToSleeve, diggs:StaticConePenetrationTestType/diggs:estimatedWaterDepth, diggs:TransectType/diggs:totalTransectLength, diggs:TrenchWallType/diggs:trenchDepth, diggs:TrenchWallType/diggs:trenchLength, diggs:TrenchWallType/diggs:trenchWidth, diggs:TrialPitEventType/diggs:depth, diggs:TrialPitEventType/diggs:length, diggs:TrialPitEventType/diggs:width, diggs:TrialPitType/diggs:pitLength, diggs:TrialPitType/diggs:pitWidth, diggs:TrialPitType/diggs:totalMeasuredDepth, diggs:TriaxialTestConsolidationStageType/diggs:specimenHeightChangeAfterConsolidation, diggs:TriaxialTestEquipmentType/diggs:pistonDiameter, diggs:WellOpeningType/diggs:openingDiameter, diggs:WellOpeningType/diggs:openingLength, diggs:WellOpeningType/diggs:openingWidth, diggs:WellType/diggs:wellDepth, diggs_geo:ConsolidationTestTrialType/diggs_geo:finalaxialDeformation, diggs_geo:DSConConsoiidationIncrementType/diggs_geo:axialDeformation, diggs_geo:DirectShearConsolidationTrialType/diggs_geo:finalNormalDisplacement, diggs_geo:DirectShearTestIncrementType/diggs_geo:lateralDisplacement, diggs_geo:DirectShearTestIncrementType/diggs_geo:verticalDisplacement, diggs_geo:DirectShearTestType/diggs_geo:HorizDisplPeakShear, diggs_geo:DirectShearTestType/diggs_geo:HorizDisplResidualShear, diggs_geo:DirectShearTestType/diggs_geo:VertDisplPeakShear, diggs_geo:DirectShearTestType/diggs_geo:VertDisplResidualShear, diggs_geo:DirectShearTestType/diggs_geo:verticalDisplacementPriorToShearing, diggs_geo:DriveSetType/diggs_geo:penetration, diggs_geo:DrivenPenetrationTestType/diggs_geo:depthCasing, diggs_geo:DrivenPenetrationTestType/diggs_geo:hammerDropHeight, diggs_geo:DrivenPenetrationTestType/diggs_geo:rodExternalDiameter, diggs_geo:DrivenPenetrationTestType/diggs_geo:rodSectionLength, diggs_geo:DrivenPenetrationTestType/diggs_geo:samplerInternalDiameter, diggs_geo:DrivenPenetrationTestType/diggs_geo:samplerLength, diggs_geo:DrivenPenetrationTestType/diggs_geo:selfWeightPenetration, diggs_geo:DrivenPenetrationTestType/diggs_geo:totalPenetration, diggs_geo:DrivenPenetrationTestType/diggs_geo:waterDepth, diggs_geo:DynamicProbeTestType/diggs_geo:depthCasing, diggs_geo:DynamicProbeTestType/diggs_geo:hammerDropHeight, diggs_geo:DynamicProbeTestType/diggs_geo:rodExternalDiameter, diggs_geo:DynamicProbeTestType/diggs_geo:rodSectionLength, diggs_geo:DynamicProbeTestType/diggs_geo:samplerInternalDiameter, diggs_geo:DynamicProbeTestType/diggs_geo:samplerLength, diggs_geo:DynamicProbeTestType/diggs_geo:selfWeightPenetration, diggs_geo:DynamicProbeTestType/diggs_geo:totalPenetration, diggs_geo:DynamicProbeTestType/diggs_geo:waterDepth, diggs_geo:FallConeTrialType/diggs_geo:penetration, diggs_geo:FlatPlateDilatometerTestType/diggs_geo:bladeThickness, diggs_geo:FlatPlateDilatometerTestType/diggs_geo:bladeWidth, diggs_geo:FlatPlateDilatometerTestType/diggs_geo:frictionReducerDiameter, diggs_geo:FlatPlateDilatometerTestType/diggs_geo:frictionReducerLocation, diggs_geo:FlatPlateDilatometerTestType/diggs_geo:rodDiameter, diggs_geo:GradingType/diggs_geo:particleSize, diggs_geo:InsituCBRTestType/diggs_geo:pistonDiameter, diggs_geo:InsituVaneTestType/diggs_geo:vaneBladeThickness, diggs_geo:InsituVaneTestType/diggs_geo:vaneDepthBelow, diggs_geo:InsituVaneTestType/diggs_geo:vaneDiameter, diggs_geo:InsituVaneTestType/diggs_geo:vaneHeight, diggs_geo:InsituVaneTestType/diggs_geo:vaneShaftDiameter, diggs_geo:LabCBRTestTrialType/diggs_geo:pistonDiameter, diggs_geo:LabCompactionTestType/diggs_geo:mouldDiameter, diggs_geo:LabCompactionTestType/diggs_geo:rammerDiameter, diggs_geo:LabCompactionTestType/diggs_geo:rammerDrop, diggs_geo:LabPermeabilityTestType/diggs_geo:drainDiameter, diggs_geo:LabPermeationTrial/diggs_geo:averageHeadLoss, diggs_geo:LabPermeationTrial/diggs_geo:deltaHg1, diggs_geo:LabPermeationTrial/diggs_geo:deltaHg2, diggs_geo:LabPermeationTrial/diggs_geo:deltaHgC, diggs_geo:LabPermeationTrial/diggs_geo:deltaHgTail, diggs_geo:LabPermeationTrial/diggs_geo:headLossEndOfTrial, diggs_geo:LabPermeationTrial/diggs_geo:headLossStartOfTrial, diggs_geo:LabVaneTestType/diggs_geo:vaneDiameter, diggs_geo:LabVaneTestType/diggs_geo:vaneHeight, diggs_geo:PorePressureDissipationTestType/diggs_geo:estimatedWaterDepth, diggs_geo:PorePressureElementType/diggs_geo:filterElementLocation, diggs_geo:SedimentationType/diggs_geo:effectiveLength, diggs_geo:SedimentationType/diggs_geo:particleDiameter, diggs_geo:StaticConePenetrationTestType/diggs_geo:distanceTipToSleeve, diggs_geo:StaticConePenetrationTestType/diggs_geo:estimatedWaterDepth
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:complexType name="LengthMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:LengthUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:LengthMeasure / @uom
Namespace No namespace
Type eml:LengthUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 0.1 ft
tenth of foot
enumeration 0.1 ft[US]
tenth of US survey foot
enumeration 0.1 in
tenth of inch
enumeration 0.1 yd
tenth of yard
enumeration 1/16 in
sixteenth of inch
enumeration 1/2 ft
half of Foot
enumeration 1/32 in
thirty-second of inch
enumeration 1/64 in
sixty-fourth of inch
enumeration 10 ft
ten foot
enumeration 10 in
ten inch
enumeration 10 km
10 kilometre
enumeration 100 ft
hundred foot
enumeration 100 km
100 kilometre
enumeration 1000 ft
thousand foot
enumeration 30 ft
thirty foot
enumeration 30 m
thirty metres
enumeration angstrom
angstrom
enumeration chain
chain
enumeration chain[BnA]
British chain [Benoit 1895 A]
enumeration chain[BnB]
British chain [Benoit 1895 B]
enumeration chain[Cla]
Clarke chain
enumeration chain[Ind37]
Indian Chain [1937]
enumeration chain[Se]
British chain [Sears 1922]
enumeration chain[SeT]
British chain [Sears 1922 truncated]
enumeration chain[US]
US survey chain
enumeration cm
centimetre
enumeration dam
dekametre
enumeration dm
decimetre
enumeration Em
exametre
enumeration fathom
international fathom
enumeration fm
femtometre
enumeration ft
foot
enumeration ft[BnA]
British foot [Benoit 1895 A]
enumeration ft[BnB]
British foot [Benoit 1895 B]
enumeration ft[Br36]
British foot [1936]
enumeration ft[Br65]
British foot [1865]
enumeration ft[Cla]
Clarke foot
enumeration ft[GC]
Gold Coast foot
enumeration ft[Ind]
indian foot
enumeration ft[Ind37]
indian foot [1937]
enumeration ft[Ind62]
indian foot ]1962]
enumeration ft[Ind75]
indian foot [1975]
enumeration ft[Se]
British foot [Sears 1922]
enumeration ft[SeT]
British foot [Sears 1922 truncated]
enumeration ft[US]
US survey foot
enumeration fur[US]
furlong US survey
enumeration Gm
gigametre
enumeration hm
hectometre
enumeration in
inch
enumeration in[US]
US survey inch
enumeration km
kilometre
enumeration link
link
enumeration link[BnA]
British link [Benoit 1895 A]
enumeration link[BnB]
British link [Benoit 1895 B]
enumeration link[Cla]
Clarke link
enumeration link[Se]
British link [Sears 1922]
enumeration link[SeT]
British link [Sears 1922 truncated]
enumeration link[US]
US survey link
enumeration m
metre
enumeration m[Ger]
German legal metre
enumeration mi
mile
enumeration mi[naut]
international nautical mile
enumeration mi[nautUK]
United Kingdom nautical mile
enumeration mi[US]
US survey mile
enumeration mil
mil
enumeration mm
millimetre
enumeration Mm
megametre
enumeration nm
nanometre
enumeration pm
picometre
enumeration rod[US]
rod US Survey
enumeration Tm
terametre
enumeration um
micrometre
enumeration yd
yard
enumeration yd[BnA]
British yard [Benoit 1895 A]
enumeration yd[BnB]
British yard [Benoit 1895 B]
enumeration yd[Cla]
Clarke yard
enumeration yd[Ind]
Indian yard
enumeration yd[Ind37]
Indian yard [1937]
enumeration yd[Ind62]
Indian yard [1962]
enumeration yd[Ind75]
Indian yard [1975]
enumeration yd[Se]
British yard [Sears 1922]
enumeration yd[SeT]
British yard [Sears 1922 truncated]
enumeration yd[US]
US survey yard
Used by
Complex Type eml:LengthMeasure
Source

<xs:attribute name="uom" use="required" type="eml:LengthUom"/>
