Element diggs:LabCompactionTestType / diggs:compactionTestType
Namespace http://diggsml.org/schema-dev
Diagram
DiagramTestProcedures_xsd_Simple_Type_diggs_CompactionTestEnumType.tmp#http___diggsml.org_schema-dev_CompactionTestEnumType
Type diggs:CompactionTestEnumType
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="compactionTestType" type="diggs:CompactionTestEnumType"/>
Element diggs:LabCompactionTestType / diggs:mouldDiameter
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="mouldDiameter" type="eml:LengthMeasure" minOccurs="0"/>
Element diggs:LabCompactionTestType / diggs:mouldVolume
Namespace http://diggsml.org/schema-dev

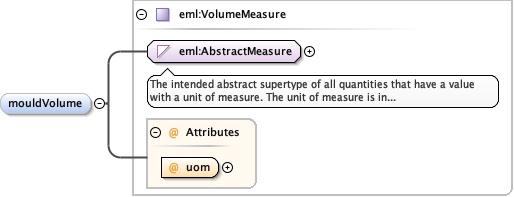

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element name="mouldVolume" type="eml:VolumeMeasure" minOccurs="0"/>
Element diggs:LabCompactionTestType / diggs:rammerDiameter
Namespace http://diggsml.org/schema-dev

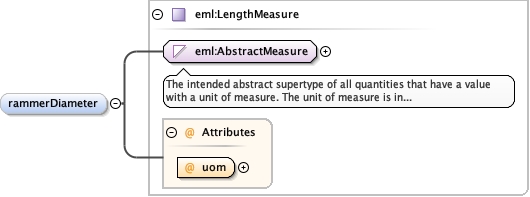

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="rammerDiameter" type="eml:LengthMeasure" minOccurs="0"/>
Element diggs:LabCompactionTestType / diggs:rammerMass
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassMeasure.tmp#MassMeasure_uomMeasureType_xsd_Complex_Type_eml_MassMeasure.tmp#MassMeasure
Type eml:MassMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassUom required
Source

<element name="rammerMass" type="eml:MassMeasure" minOccurs="0"/>
Element diggs:LabCompactionTestType / diggs:rammerDrop
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="rammerDrop" type="eml:LengthMeasure" minOccurs="0"/>
Element diggs:LabCompactionTestType / diggs:rammerIsManual
Namespace http://diggsml.org/schema-dev
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element name="rammerIsManual" type="boolean" minOccurs="0"/>
Element diggs:LabCompactionTestType / diggs:numberOfLayers
Namespace http://diggsml.org/schema-dev
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="numberOfLayers" type="positiveInteger" minOccurs="0"/>
Element diggs:LabCompactionTestType / diggs:blowsPerLayer
Namespace http://diggsml.org/schema-dev
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="blowsPerLayer" type="positiveInteger" minOccurs="0"/>
Element diggs:LabCompactionTestType / diggs:trial
Namespace http://diggsml.org/schema-dev

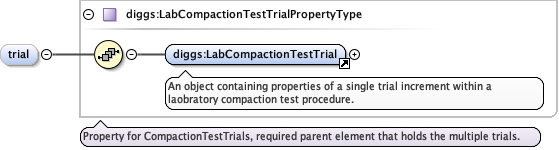

Diagram
DiagramTestProcedures_xsd_Element_diggs_LabCompactionTestTrial.tmp#http___diggsml.org_schema-dev_LabCompactionTestTrialTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestTrialPropertyType.tmp#http___diggsml.org_schema-dev_LabCompactionTestTrialPropertyType
Type diggs:LabCompactionTestTrialPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:LabCompactionTestTrial
Children diggs:LabCompactionTestTrial
Instance

<diggs:trial xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:LabCompactionTestTrial gml:id="" xml:lang="">{1,1}</diggs:LabCompactionTestTrial>
</diggs:trial>
Source

<element name="trial" type="diggs:LabCompactionTestTrialPropertyType" minOccurs="0" maxOccurs="unbounded"/>
Complex Type diggs:LabCompactionTestType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for CompactionTest

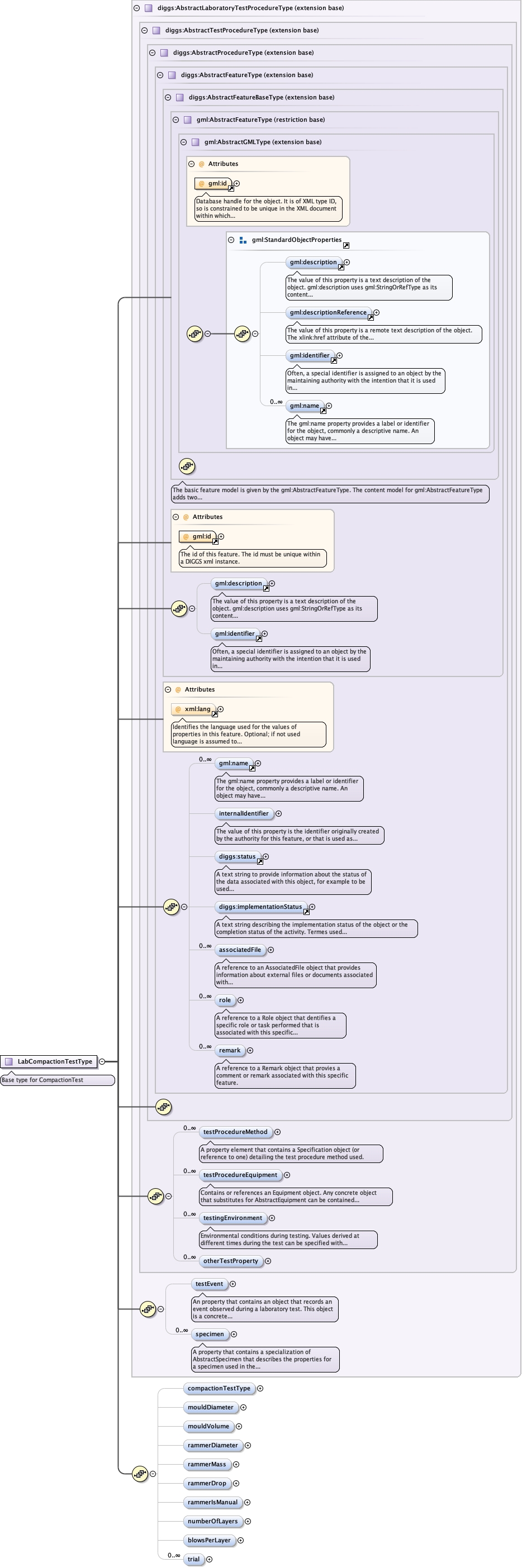

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_specimenKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_compactionTestTypeTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_mouldDiameterTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_mouldVolumeTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_rammerDiameterTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_rammerMassTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_rammerDropTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_rammerIsManualTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_numberOfLayersTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_blowsPerLayerTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestType.tmp#http___diggsml.org_schema-dev_LabCompactionTestType_trial
Type extension of diggs:AbstractLaboratoryTestProcedureType
Type hierarchy
Used by
Element diggs:LabCompactionTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent{0,1} , diggs:specimen* , diggs:compactionTestType{0,1} , diggs:mouldDiameter{0,1} , diggs:mouldVolume{0,1} , diggs:rammerDiameter{0,1} , diggs:rammerMass{0,1} , diggs:rammerDrop{0,1} , diggs:rammerIsManual{0,1} , diggs:numberOfLayers{0,1} , diggs:blowsPerLayer{0,1} , diggs:trial*
Children diggs:associatedFile, diggs:blowsPerLayer, diggs:compactionTestType, diggs:implementationStatus, diggs:internalIdentifier, diggs:mouldDiameter, diggs:mouldVolume, diggs:numberOfLayers, diggs:otherTestProperty, diggs:rammerDiameter, diggs:rammerDrop, diggs:rammerIsManual, diggs:rammerMass, diggs:remark, diggs:role, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:trial, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="LabCompactionTestType">
  <annotation>
    <documentation>Base type for CompactionTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLaboratoryTestProcedureType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="compactionTestType" type="diggs:CompactionTestEnumType"/>
        <element name="mouldDiameter" type="eml:LengthMeasure" minOccurs="0"/>
        <element name="mouldVolume" type="eml:VolumeMeasure" minOccurs="0"/>
        <element name="rammerDiameter" type="eml:LengthMeasure" minOccurs="0"/>
        <element name="rammerMass" type="eml:MassMeasure" minOccurs="0"/>
        <element name="rammerDrop" type="eml:LengthMeasure" minOccurs="0"/>
        <element name="rammerIsManual" type="boolean" minOccurs="0"/>
        <element name="numberOfLayers" type="positiveInteger" minOccurs="0"/>
        <element name="blowsPerLayer" type="positiveInteger" minOccurs="0"/>
        <element name="trial" type="diggs:LabCompactionTestTrialPropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
