Element diggs:AbstractFeatureType / diggs:internalIdentifier
Namespace http://diggsml.org/schema-dev
Annotations

The value of this property is the identifier originally
created by the authority for this feature, or that is used as the
identifier in the authority's internal data management system -
commonly this might be a borehole number or id, job number, or
contract number. There is no assumption as to the unique scope or
persistence of this identifier. In cases where the original or
internal identifier does not meet the semantic requirements for
gml:id, the internal identifier may be used in order for the
originating authority to "map back" the identifier to an internal
data management system. The codeSpace attribute must be populated to
identify the authority that uses the internalIdentifier
value.

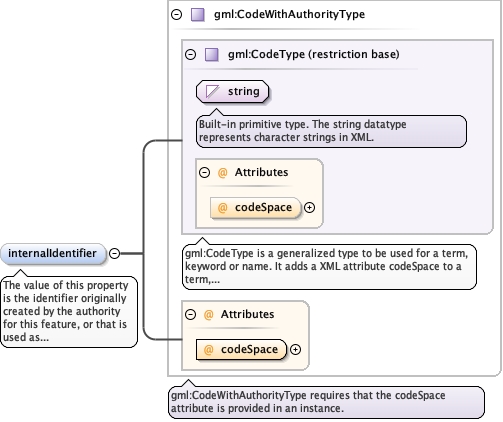

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeTypegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeWithAuthorityType.tmp#CodeWithAuthorityType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeWithAuthorityType.tmp#CodeWithAuthorityType
Type gml:CodeWithAuthorityType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI required
Source

<element minOccurs="0" name="internalIdentifier" type="gml:CodeWithAuthorityType" maxOccurs="1">
  <annotation>
    <documentation>The value of this property is the identifier originally created by the authority for this feature, or that is used as the identifier in the authority's internal data management system - commonly this might be a borehole number or id, job number, or contract number. There is no assumption as to the unique scope or persistence of this identifier. In cases where the original or internal identifier does not meet the semantic requirements for gml:id, the internal identifier may be used in order for the originating authority to "map back" the identifier to an internal data management system. The codeSpace attribute must be populated to identify the authority that uses the internalIdentifier value.</documentation>
  </annotation>
</element>
Element diggs:AbstractFeatureType / diggs:associatedFile
Namespace http://diggsml.org/schema-dev
Annotations

A reference to an AssociatedFile object that provides
information about external files or documents associated with this
feature. The target value is indicated in the appinfo
element.

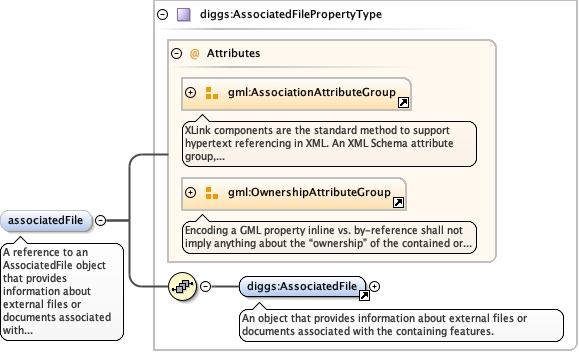

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_AssociatedFile.tmp#AssociatedFileKernel_xsd_Complex_Type_diggs_AssociatedFilePropertyType.tmp#AssociatedFilePropertyType
Type diggs:AssociatedFilePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AssociatedFile
Instance

<diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AssociatedFile gml:id="" xml:lang="">{1,1}</diggs:AssociatedFile>
</diggs:associatedFile>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="associatedFile" type="diggs:AssociatedFilePropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:AssociatedFile</appinfo>
    <documentation>A reference to an AssociatedFile object that provides information about external files or documents associated with this feature. The target value is indicated in the appinfo element.</documentation>
  </annotation>
</element>
Element diggs:AbstractFeatureType / diggs:role
Namespace http://diggsml.org/schema-dev
Annotations

A reference to a Role object that dentifies a specific
role or task performed that is associated with this specific
feature, the person or organization that performed the role, and
associated time frame, if applicable..

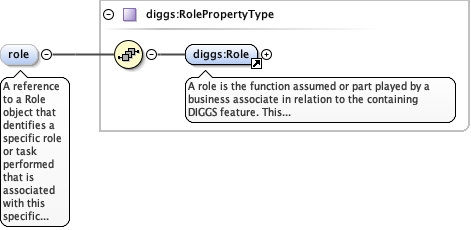

Diagram
DiagramKernel_xsd_Element_diggs_Role.tmp#http___diggsml.org_schema-dev_RoleKernel_xsd_Complex_Type_diggs_RolePropertyType.tmp#RolePropertyType
Type diggs:RolePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Role
Instance

<diggs:role xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Role owns="false">{1,1}</diggs:Role>
</diggs:role>
Source

<element name="role" type="diggs:RolePropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A reference to a Role object that dentifies a specific role or task performed that is associated with this specific feature, the person or organization that performed the role, and associated time frame, if applicable..</documentation>
  </annotation>
</element>
Element diggs:AbstractFeatureType / diggs:remark
Namespace http://diggsml.org/schema-dev
Annotations

A reference to a Remark object that provies a comment or
remark associated with this specific feature.

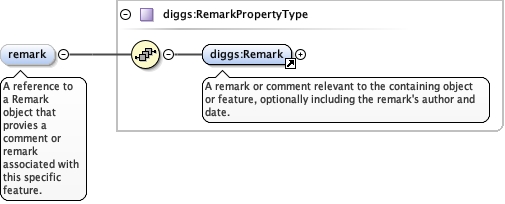

Diagram
DiagramKernel_xsd_Element_diggs_Remark.tmp#RemarkKernel_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A reference to a Remark object that provies a comment or remark associated with this specific feature.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractFeatureType
Namespace http://diggsml.org/schema-dev

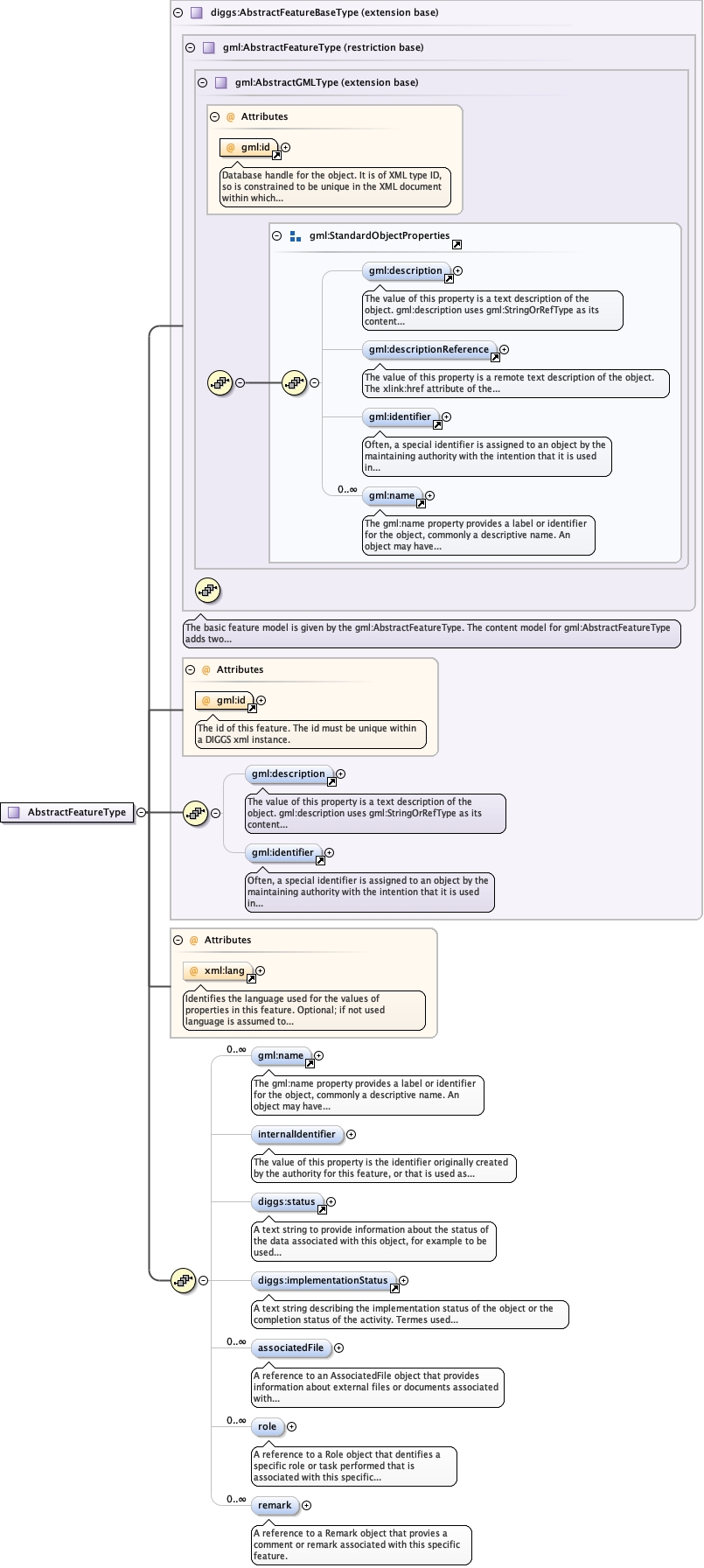

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remark
Type extension of diggs:AbstractFeatureBaseType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="AbstractFeatureType">
  <complexContent>
    <extension base="diggs:AbstractFeatureBaseType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" ref="gml:name"/>
        <element minOccurs="0" name="internalIdentifier" type="gml:CodeWithAuthorityType" maxOccurs="1">
          <annotation>
            <documentation>The value of this property is the identifier originally created by the authority for this feature, or that is used as the identifier in the authority's internal data management system - commonly this might be a borehole number or id, job number, or contract number. There is no assumption as to the unique scope or persistence of this identifier. In cases where the original or internal identifier does not meet the semantic requirements for gml:id, the internal identifier may be used in order for the originating authority to "map back" the identifier to an internal data management system. The codeSpace attribute must be populated to identify the authority that uses the internalIdentifier value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:status"/>
        <element minOccurs="0" ref="diggs:implementationStatus">
          <annotation>
            <documentation>A text string describing the implementation status of the object or the completion status of the activity. Termes used (usch as in progress, completed, etc.) are intended to come from a controlled list of terms from a dictionary or authority identified in the codeSpace attribute.</documentation>
          </annotation>
        </element>
        <element name="associatedFile" type="diggs:AssociatedFilePropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <appinfo source="urn:x-gml:targetElement">diggs:AssociatedFile</appinfo>
            <documentation>A reference to an AssociatedFile object that provides information about external files or documents associated with this feature. The target value is indicated in the appinfo element.</documentation>
          </annotation>
        </element>
        <element name="role" type="diggs:RolePropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A reference to a Role object that dentifies a specific role or task performed that is associated with this specific feature, the person or organization that performed the role, and associated time frame, if applicable..</documentation>
          </annotation>
        </element>
        <element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A reference to a Remark object that provies a comment or remark associated with this specific feature.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute ref="xml:lang">
        <annotation>
          <documentation>Identifies the language used for the values of properties in this feature. Optional; if not used language is assumed to be English.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
