Element diggs:AbstractEquipmentType / diggs:class
Namespace http://diggsml.org/schema-dev
Annotations

The class or type of equipment - eg. drill rig, CPT rig,
etc. Intended to come from a controlled list.

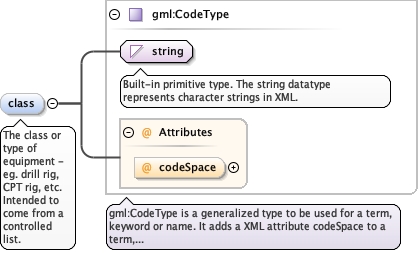

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="class" type="gml:CodeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The class or type of equipment - eg. drill rig, CPT rig, etc. Intended to come from a controlled list.</documentation>
  </annotation>
</element>
Element diggs:AbstractEquipmentType / diggs:make
Namespace http://diggsml.org/schema-dev
Annotations

The manufacturer or brand of the
equipment

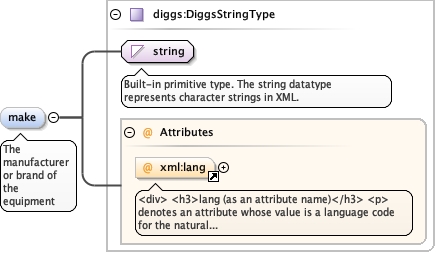

Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="make" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The manufacturer or brand of the equipment</documentation>
  </annotation>
</element>
Element diggs:AbstractEquipmentType / diggs:modelNumber
Namespace http://diggsml.org/schema-dev
Annotations

The model name or number of the equipment

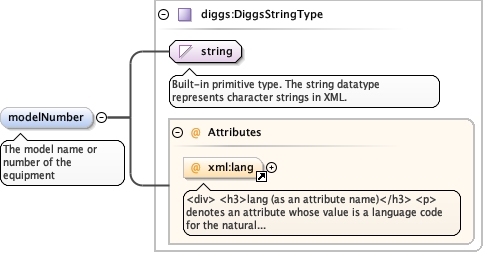

Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="modelNumber" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The model name or number of the equipment</documentation>
  </annotation>
</element>
Element diggs:AbstractEquipmentType / diggs:serialNumber
Namespace http://diggsml.org/schema-dev
Annotations

The serial number that identifies the unique equipment
item.

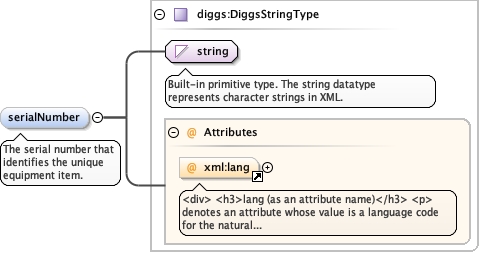

Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="serialNumber" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The serial number that identifies the unique equipment item.</documentation>
  </annotation>
</element>
Element diggs:AbstractEquipmentType / diggs:calibrationAuditTrail
Namespace http://diggsml.org/schema-dev
Annotations

A reference to a Calibration object that stores
calibration information for the equipment

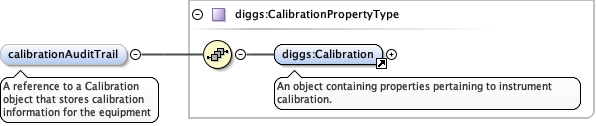

Diagram
DiagramKernel_xsd_Element_diggs_Calibration.tmp#CalibrationKernel_xsd_Complex_Type_diggs_CalibrationPropertyType.tmp#CalibrationPropertyType
Type diggs:CalibrationPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Calibration
Instance

<diggs:calibrationAuditTrail xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Calibration gml:id="" xml:lang="">{1,1}</diggs:Calibration>
</diggs:calibrationAuditTrail>
Source

<element name="calibrationAuditTrail" type="diggs:CalibrationPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A reference to a Calibration object that stores calibration information for the equipment</documentation>
  </annotation>
</element>
Element diggs:AbstractEquipmentType / diggs:otherEquipmentProperty
Namespace http://diggsml.org/schema-dev
Annotations

Reference to a Parameter object containing the name,
value or range of values and unit of measure of a property or a
measurement parameter (result).

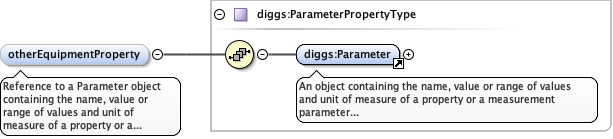

Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherEquipmentProperty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherEquipmentProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherEquipmentProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>Reference to a Parameter object containing the name, value or range of values and unit of measure of a property or a measurement parameter (result).</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractEquipmentType
Namespace http://diggsml.org/schema-dev

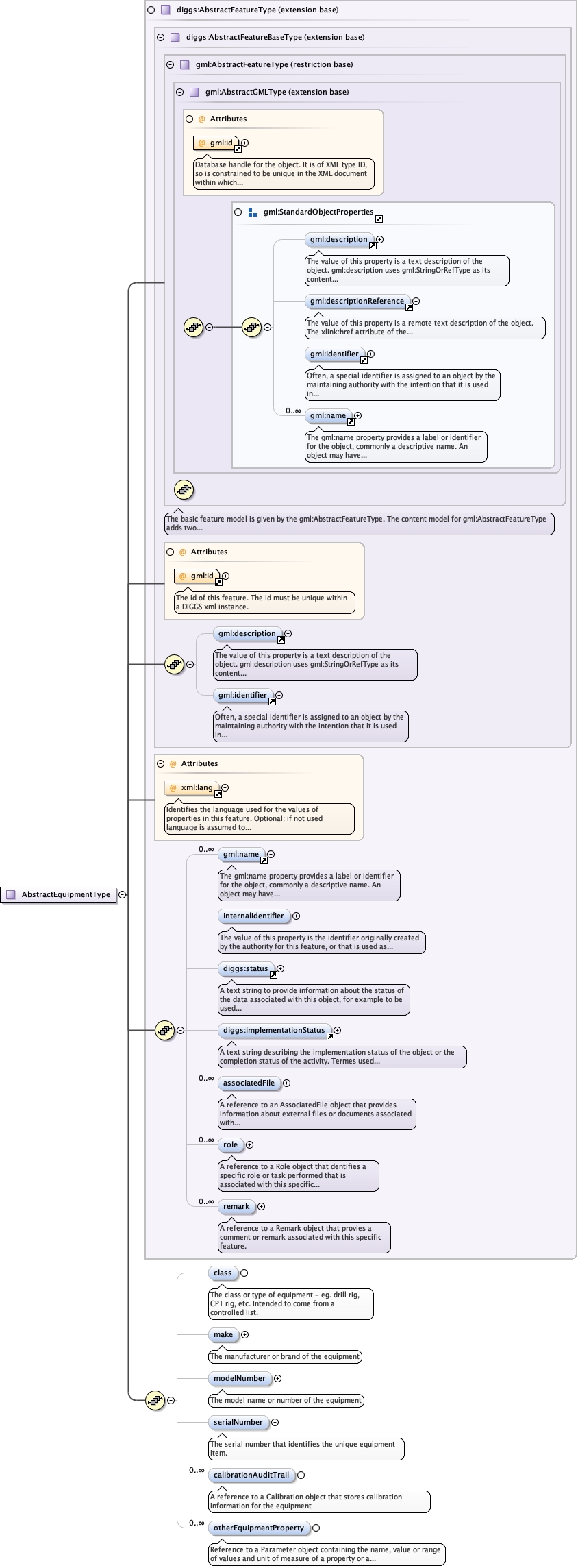

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentProperty
Type extension of diggs:AbstractFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="AbstractEquipmentType" abstract="true">
  <complexContent>
    <extension base="diggs:AbstractFeatureType">
      <sequence>
        <element name="class" type="gml:CodeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The class or type of equipment - eg. drill rig, CPT rig, etc. Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element name="make" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The manufacturer or brand of the equipment</documentation>
          </annotation>
        </element>
        <element name="modelNumber" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The model name or number of the equipment</documentation>
          </annotation>
        </element>
        <element name="serialNumber" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The serial number that identifies the unique equipment item.</documentation>
          </annotation>
        </element>
        <element name="calibrationAuditTrail" type="diggs:CalibrationPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A reference to a Calibration object that stores calibration information for the equipment</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherEquipmentProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>Reference to a Parameter object containing the name, value or range of values and unit of measure of a property or a measurement parameter (result).</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
