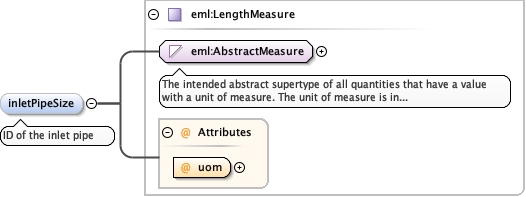

Element diggs:GroutPumpType / diggs:inletPipeSize
Namespace http://diggsml.org/schema-dev
Annotations

ID of the inlet pipe
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="inletPipeSize" type="eml:LengthMeasure">
  <annotation>
    <documentation>ID of the inlet pipe</documentation>
  </annotation>
</element>

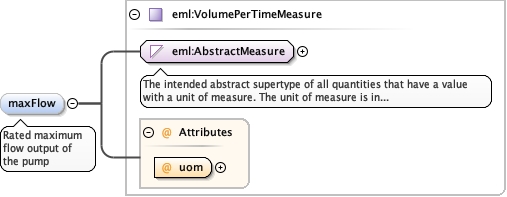

Element diggs:GroutPumpType / diggs:maxFlow
Namespace http://diggsml.org/schema-dev
Annotations

Rated maximum flow output of the pump
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="maxFlow" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Rated maximum flow output of the pump</documentation>
  </annotation>
</element>

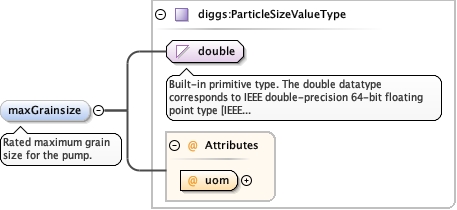

Element diggs:GroutPumpType / diggs:maxGrainsize
Namespace http://diggsml.org/schema-dev
Annotations

Rated maximum grain size for the pump.
Diagram
DiagramKernel_xsd_Complex_Type_diggs_ParticleSizeValueType.tmp#ParticleSizeValueType_uomKernel_xsd_Complex_Type_diggs_ParticleSizeValueType.tmp#ParticleSizeValueType
Type diggs:ParticleSizeValueType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:particleSizeUom required
Source

<element minOccurs="0" name="maxGrainsize" type="diggs:ParticleSizeValueType">
  <annotation>
    <documentation>Rated maximum grain size for the pump.</documentation>
  </annotation>
</element>

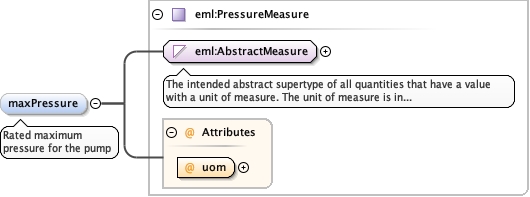

Element diggs:GroutPumpType / diggs:maxPressure
Namespace http://diggsml.org/schema-dev
Annotations

Rated maximum pressure for the pump
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="maxPressure" type="eml:PressureMeasure">
  <annotation>
    <documentation>Rated maximum pressure for the pump</documentation>
  </annotation>
</element>
Element diggs:GroutPumpType / diggs:numberOfPistons
Namespace http://diggsml.org/schema-dev
Annotations

Number of pistons (for piston pumps)
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="numberOfPistons" type="positiveInteger">
  <annotation>
    <documentation>Number of pistons (for piston pumps)</documentation>
  </annotation>
</element>

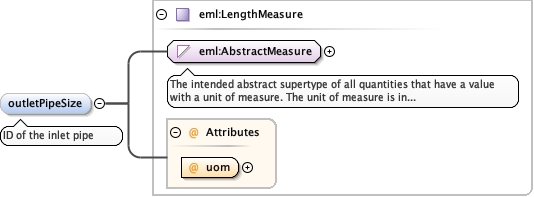

Element diggs:GroutPumpType / diggs:outletPipeSize
Namespace http://diggsml.org/schema-dev
Annotations

ID of the inlet pipe
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="outletPipeSize" type="eml:LengthMeasure">
  <annotation>
    <documentation>ID of the inlet pipe</documentation>
  </annotation>
</element>

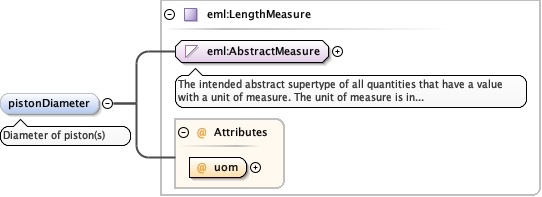

Element diggs:GroutPumpType / diggs:pistonDiameter
Namespace http://diggsml.org/schema-dev
Annotations

Diameter of piston(s)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="pistonDiameter" type="eml:LengthMeasure">
  <annotation>
    <documentation>Diameter of piston(s)</documentation>
  </annotation>
</element>

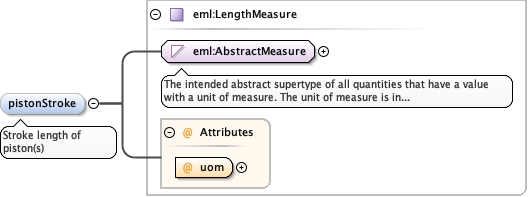

Element diggs:GroutPumpType / diggs:pistonStroke
Namespace http://diggsml.org/schema-dev
Annotations

Stroke length of piston(s)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="pistonStroke" type="eml:LengthMeasure">
  <annotation>
    <documentation>Stroke length of piston(s)</documentation>
  </annotation>
</element>

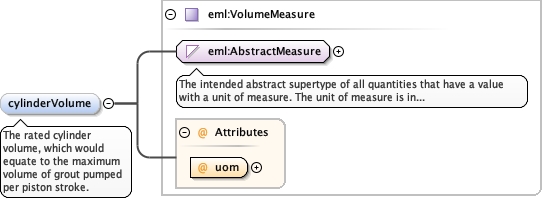

Element diggs:GroutPumpType / diggs:cylinderVolume
Namespace http://diggsml.org/schema-dev
Annotations

The rated cylinder volume, which would equate to the
maximum volume of grout pumped per piston stroke.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="cylinderVolume" type="eml:VolumeMeasure">
  <annotation>
    <documentation>The rated cylinder volume, which would equate to the maximum volume of grout pumped per piston stroke.</documentation>
  </annotation>
</element>

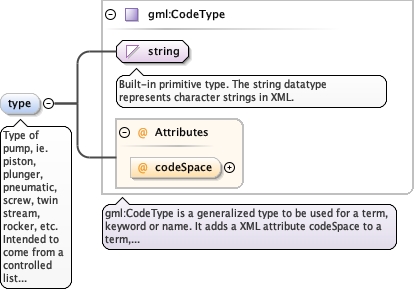

Element diggs:GroutPumpType / diggs:type
Namespace http://diggsml.org/schema-dev
Annotations

Type of pump, ie. piston, plunger, pneumatic, screw, twin
stream, rocker, etc. Intended to come from a controlled list of
terms
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="type" type="gml:CodeType">
  <annotation>
    <documentation>Type of pump, ie. piston, plunger, pneumatic, screw, twin stream, rocker, etc. Intended to come from a controlled list of terms</documentation>
  </annotation>
</element>

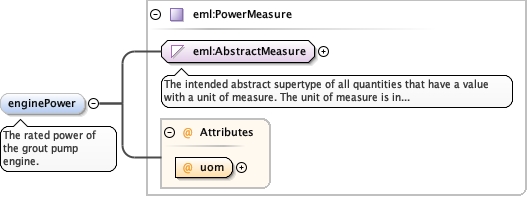

Element diggs:GroutPumpType / diggs:enginePower
Namespace http://diggsml.org/schema-dev
Annotations

The rated power of the grout pump engine.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PowerMeasure.tmp#PowerMeasure_uomMeasureType_xsd_Complex_Type_eml_PowerMeasure.tmp#PowerMeasure
Type eml:PowerMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PowerUom required
Source

<element minOccurs="0" name="enginePower" type="eml:PowerMeasure">
  <annotation>
    <documentation>The rated power of the grout pump engine.</documentation>
  </annotation>
</element>

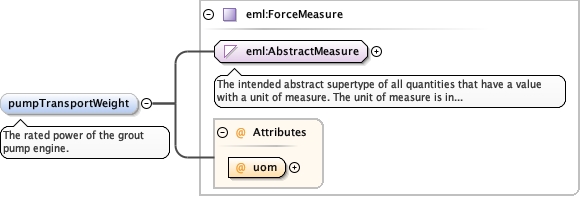

Element diggs:GroutPumpType / diggs:pumpTransportWeight
Namespace http://diggsml.org/schema-dev
Annotations

The rated power of the grout pump engine.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="pumpTransportWeight" type="eml:ForceMeasure">
  <annotation>
    <documentation>The rated power of the grout pump engine.</documentation>
  </annotation>
</element>
Element diggs:GroutPumpType / diggs:pressureFlowCurveData
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_pressureUOMConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_flowRateUOMConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_indexConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_measuredPressureConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_measuredFlowRateConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType
Type diggs:PressureFlowCurveDataType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:flowRateUOM, diggs:index, diggs:measuredFlowRate, diggs:measuredPressure, diggs:pressureUOM
Instance

<diggs:pressureFlowCurveData owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:pressureUOM>{1,1}</diggs:pressureUOM>
  <diggs:flowRateUOM>{1,1}</diggs:flowRateUOM>
  <diggs:index>{1,1}</diggs:index>
  <diggs:measuredPressure>{1,1}</diggs:measuredPressure>
  <diggs:measuredFlowRate>{1,1}</diggs:measuredFlowRate>
</diggs:pressureFlowCurveData>
Attributes
QName Type Default Use
owns boolean false optional
Source

<element minOccurs="0" name="pressureFlowCurveData" type="diggs:PressureFlowCurveDataType"/>

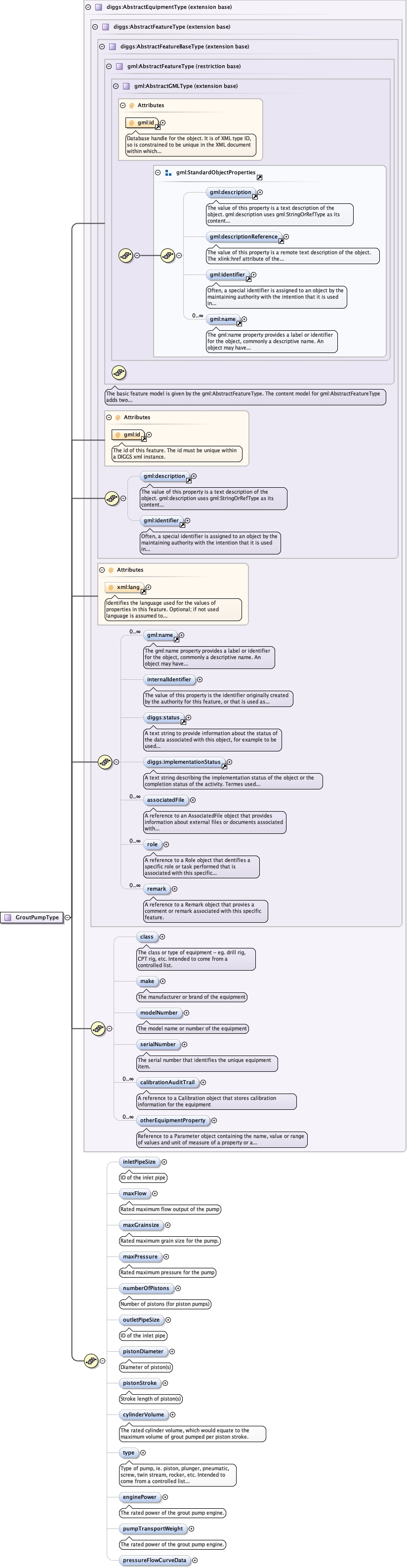

Complex Type diggs:GroutPumpType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_inletPipeSizeConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_maxFlowConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_maxGrainsizeConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_maxPressureConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_numberOfPistonsConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_outletPipeSizeConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_pistonDiameterConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_pistonStrokeConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_cylinderVolumeConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_typeConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_enginePowerConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_pumpTransportWeightConstruction_xsd_Complex_Type_diggs_GroutPumpType.tmp#GroutPumpType_pressureFlowCurveData
Type extension of diggs:AbstractEquipmentType
Type hierarchy
Used by
Element diggs:GroutPump
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:cylinderVolume, diggs:enginePower, diggs:implementationStatus, diggs:inletPipeSize, diggs:internalIdentifier, diggs:make, diggs:maxFlow, diggs:maxGrainsize, diggs:maxPressure, diggs:modelNumber, diggs:numberOfPistons, diggs:otherEquipmentProperty, diggs:outletPipeSize, diggs:pistonDiameter, diggs:pistonStroke, diggs:pressureFlowCurveData, diggs:pumpTransportWeight, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, diggs:type, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="GroutPumpType">
  <complexContent>
    <extension base="diggs:AbstractEquipmentType">
      <sequence>
        <element minOccurs="0" name="inletPipeSize" type="eml:LengthMeasure">
          <annotation>
            <documentation>ID of the inlet pipe</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxFlow" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>Rated maximum flow output of the pump</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxGrainsize" type="diggs:ParticleSizeValueType">
          <annotation>
            <documentation>Rated maximum grain size for the pump.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxPressure" type="eml:PressureMeasure">
          <annotation>
            <documentation>Rated maximum pressure for the pump</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="numberOfPistons" type="positiveInteger">
          <annotation>
            <documentation>Number of pistons (for piston pumps)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="outletPipeSize" type="eml:LengthMeasure">
          <annotation>
            <documentation>ID of the inlet pipe</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pistonDiameter" type="eml:LengthMeasure">
          <annotation>
            <documentation>Diameter of piston(s)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pistonStroke" type="eml:LengthMeasure">
          <annotation>
            <documentation>Stroke length of piston(s)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="cylinderVolume" type="eml:VolumeMeasure">
          <annotation>
            <documentation>The rated cylinder volume, which would equate to the maximum volume of grout pumped per piston stroke.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="type" type="gml:CodeType">
          <annotation>
            <documentation>Type of pump, ie. piston, plunger, pneumatic, screw, twin stream, rocker, etc. Intended to come from a controlled list of terms</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="enginePower" type="eml:PowerMeasure">
          <annotation>
            <documentation>The rated power of the grout pump engine.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pumpTransportWeight" type="eml:ForceMeasure">
          <annotation>
            <documentation>The rated power of the grout pump engine.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureFlowCurveData" type="diggs:PressureFlowCurveDataType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
