Complex Type eml:PressureMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

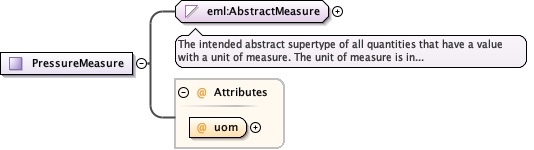

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Used by
Elements diggs:AbstractSamplingActivityType/diggs:coringPushPressure, diggs:AbstractSamplingActivityType/diggs:coringPushPressureMax, diggs:AbstractSamplingActivityType/diggs:coringPushPressureMin, diggs:BackPressureIncrementType/diggs:backPressureApplied, diggs:BackPressureIncrementType/diggs:chamberPressureApplied, diggs:CompressionIncrementType/diggs:stress, diggs:ConsolidationTestTrialType/diggs:finalStress, diggs:ConsolidationTestTrialType/diggs:loadingStress, diggs:ConsolidationTestType/diggs:estimatedPreConsolidationStress, diggs:ConsolidationTestType/diggs:swellingPressure, diggs:DesignGroutMixType/diggs:strengthDesign, diggs:DirectShearTestIncrementType/diggs:normalStress, diggs:DirectShearTestIncrementType/diggs:shearStress, diggs:DirectShearTestType/diggs:normalStressApplied, diggs:DirectShearTestType/diggs:peakShearStress, diggs:DirectShearTestType/diggs:residualShearStress, diggs:FlatPlateDilatometerTestType/diggs:deltaA, diggs:FlatPlateDilatometerTestType/diggs:deltaB, diggs:FlatPlateDilatometerTestType/diggs:zm, diggs:FlowReadingType/diggs:gaugePressure, diggs:FractureObservationType/diggs:wallStrength, diggs:GroutMixerType/diggs:outletPressure, diggs:GroutPumpType/diggs:maxPressure, diggs:GroutSpecificationType/diggs:strength90Percent, diggs:GroutSpecificationType/diggs:strengthAverage, diggs:GroutSpecificationType/diggs:strengthMinimum, diggs:GroutStageType/diggs:maxHeaderPressureAtZeroFlow, diggs:GroutStageType/diggs:staticLineResistanceAtZeroFlow, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilCPTTip90Percent, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilCPTTipAverage, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilCPTTipMinimum, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilConfinedCompressiveStrength90Percent, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilConfinedCompressiveStrengthAverage, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilConfinedCompressiveStrengthMinimum, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilShearStrength90Percent, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilShearStrengthAverage, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilShearStrengthMinimum, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilUnconfinedCompressiveStrength90Percent, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilUnconfinedCompressiveStrengthAverage, diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilUnconfinedCompressiveStrengthMinimum, diggs:InsituCBRTestType/diggs:surchargePressure, diggs:LabCBRTestTrialType/diggs:surchargePressure, diggs:LabPermeabilityTestType/diggs:backPressure, diggs:LabPermeabilityTestType/diggs:effectiveConsolidationStress, diggs:LineLossDataType/diggs:lineLoss, diggs:LineLossDataType/diggs:p1, diggs:LineLossDataType/diggs:p2, diggs:LugeonStepType/diggs:pressure, diggs:LugeonTestType/diggs:pMax, diggs:MembraneInfoType/diggs:membraneYoungsModulus, diggs:MixedGrout-SoilSpecificationType/diggs:strengthMinimum, diggs:PorePressureDissipationTestType/diggs:estimatedU0, diggs:PorePressureDissipationTestType/diggs:estimatedU50, diggs:ShearingIncrementType/diggs:deviatorStress, diggs:ShearingIncrementType/diggs:inducedPoreWaterPressure, diggs:ShearingIncrementType/diggs:totalCellPressure, diggs:ShearingIncrementType/diggs:totalPoreWaterPressure, diggs:TriaxialTestConsolidationStageType/diggs:effectiveStressEndofConsolidationStage, diggs:TriaxialTestSaturationStageType/diggs:maximumBackPressureApplied, diggs:TriaxialTestShearStageType/diggs:deviatorStressAtFailure, diggs:TriaxialTestShearStageType/diggs:inducedPorewaterPressureAtFailure, diggs:TriaxialTestShearStageType/diggs:porewaterPressureStartOfShearing, diggs:TriaxialTestShearStageType/diggs:totalCellPressureDuringShearStage, diggs:TriaxialTestShearStageType/diggs:totalPorewaterPressureAtFailure, diggs:TriaxialTestShearStageType/diggs:undrainedShearStrengthAtFailure, diggs_geo:CompressionIncrementType/diggs_geo:stress, diggs_geo:ConsolidationTestTrialType/diggs_geo:appliedLoad, diggs_geo:ConsolidationTestTrialType/diggs_geo:finalStess, diggs_geo:ConsolidationTestTrialType/diggs_geo:loadingStess, diggs_geo:ConsolidationTestType/diggs_geo:estimatedPreConsolidationStress, diggs_geo:ConsolidationTestType/diggs_geo:swellingPressure, diggs_geo:DirectShearTestIncrementType/diggs_geo:normalStress, diggs_geo:DirectShearTestIncrementType/diggs_geo:shearStress, diggs_geo:DirectShearTestType/diggs_geo:normalStressApplied, diggs_geo:DirectShearTestType/diggs_geo:peakShearStress, diggs_geo:DirectShearTestType/diggs_geo:residualShearStress, diggs_geo:FlatPlateDilatometerTestType/diggs_geo:deltaA, diggs_geo:FlatPlateDilatometerTestType/diggs_geo:deltaB, diggs_geo:FlatPlateDilatometerTestType/diggs_geo:zm, diggs_geo:InsituCBRTestType/diggs_geo:surchargePressure, diggs_geo:LabCBRTestTrialType/diggs_geo:surchargePressure, diggs_geo:LabPermeabilityTestType/diggs_geo:backPressure, diggs_geo:LabPermeabilityTestType/diggs_geo:effectiveConsolidationStress, diggs_geo:PorePressureDissipationTestType/diggs_geo:estimatedU0, diggs_geo:PorePressureDissipationTestType/diggs_geo:estimatedU50
Attributes
QName Type Use
uom eml:PressureUom required
Source

<xs:complexType name="PressureMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:PressureUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:PressureMeasure / @uom
Namespace No namespace
Type eml:PressureUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 0.01 lbf/ft2
pound-force per hundred square foot
enumeration at
technical atmosphere
enumeration atm
standard atmosphere
enumeration bar
bar
enumeration cmH2O[4degC]
centimetre of water at 4 degree Celsius
enumeration cPa
centipascal
enumeration dPa
decipascal
enumeration dyne/cm2
dyne per square centimetre
enumeration EPa
exapascal
enumeration fPa
femtopascal
enumeration GPa
gigapascal
enumeration hbar
hundred bar
enumeration inH2O[39degF]
inch of water at 39.2 degree Fahrenheit
enumeration inH2O[60degF]
inch of water at 60 degree Fahrenheit
enumeration inHg[32degF]
inch of mercury at 32 degree Fahrenheit
enumeration inHg[60degF]
inch of mercury at 60 degree Fahrenheit
enumeration kgf/cm2
thousand gram-force per square centimetre
enumeration kgf/m2
thousand gram-force per square metre
enumeration kgf/mm2
thousand gram-force per square millimetre
enumeration kN/m2
kilonewton per square metre
enumeration kPa
kilopascal
enumeration kpsi
thousand psi
enumeration lbf/ft2
pound-force per square foot
enumeration mbar
thousandth of bar
enumeration mmHg[0degC]
millimetres of Mercury at 0 deg C
enumeration mPa
millipascal
enumeration MPa
megapascal
enumeration Mpsi
million psi
enumeration N/m2
newton per square metre
enumeration N/mm2
newton per square millimetre
enumeration nPa
nanopascal
enumeration Pa
pascal
enumeration pPa
picopascal
enumeration psi
pound-force per square inch
enumeration tonf[UK]/ft2
UK ton-force per square foot
enumeration tonf[US]/ft2
US ton-force per square foot
enumeration tonf[US]/in2
US ton-force per square inch
enumeration torr
torr
enumeration TPa
terapascal
enumeration ubar
millionth of bar
enumeration umHg[0degC]
micrometre of mercury at 0 degree Celsius
enumeration uPa
micropascal
enumeration upsi
millionth of psi
Used by
Complex Type eml:PressureMeasure
Source

<xs:attribute name="uom" use="required" type="eml:PressureUom"/>
