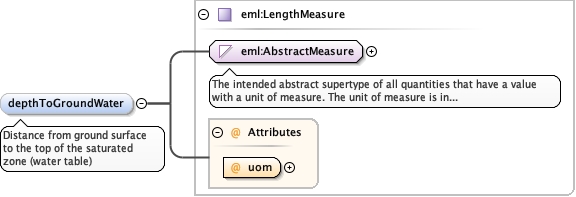

Element diggs:LugeonTestType / diggs:depthToGroundWater
Namespace http://diggsml.org/schema-dev
Annotations

Distance from ground surface to the top of the saturated
zone (water table)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="depthToGroundWater" type="eml:LengthMeasure">
  <annotation>
    <documentation>Distance from ground surface to the top of the saturated zone (water table)</documentation>
  </annotation>
</element>
Element diggs:LugeonTestType / diggs:pressureMeasurementConfiguration
Namespace http://diggsml.org/schema-dev
Annotations

Describes how pressure is measured during the test; from
a controlled list. Allowed values are: - pressure gauge - borehole
transducer
Diagram
DiagramConstruction_xsd_Simple_Type_diggs_pressureMeasurementConfigurationEnumType.tmp#pressureMeasurementConfigurationEnumType
Type diggs:pressureMeasurementConfigurationEnumType
Properties
content simple
minOccurs 0
Facets
enumeration pressure gauge
enumeration borehole transducer
Source

<element minOccurs="0" name="pressureMeasurementConfiguration" type="diggs:pressureMeasurementConfigurationEnumType">
  <annotation>
    <documentation>Describes how pressure is measured during the test; from a controlled list. Allowed values are: - pressure gauge - borehole transducer</documentation>
  </annotation>
</element>

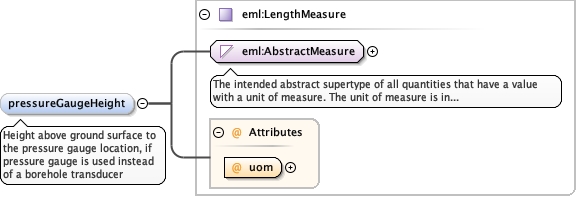

Element diggs:LugeonTestType / diggs:pressureGaugeHeight
Namespace http://diggsml.org/schema-dev
Annotations

Height above ground surface to the pressure gauge
location, if pressure gauge is used instead of a borehole
transducer
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="pressureGaugeHeight" type="eml:LengthMeasure">
  <annotation>
    <documentation>Height above ground surface to the pressure gauge location, if pressure gauge is used instead of a borehole transducer</documentation>
  </annotation>
</element>

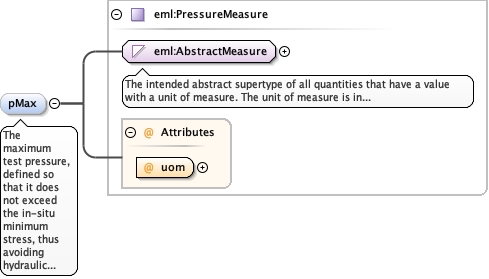

Element diggs:LugeonTestType / diggs:pMax
Namespace http://diggsml.org/schema-dev
Annotations

The maximum test pressure, defined so that it does not
exceed the in-situ minimum stress, thus avoiding hydraulic
fracturing.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="pMax" type="eml:PressureMeasure">
  <annotation>
    <documentation>The maximum test pressure, defined so that it does not exceed the in-situ minimum stress, thus avoiding hydraulic fracturing.</documentation>
  </annotation>
</element>

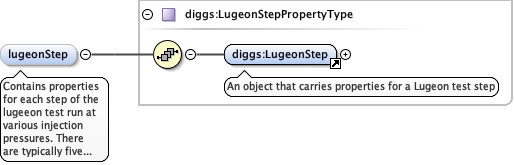

Element diggs:LugeonTestType / diggs:lugeonStep
Namespace http://diggsml.org/schema-dev
Annotations

Contains properties for each step of the lugeeon test run
at various injection pressures. There are typically five steps in a
lugeon test.
Diagram
DiagramConstruction_xsd_Element_diggs_LugeonStep.tmp#LugeonStepConstruction_xsd_Complex_Type_diggs_LugeonStepPropertyType.tmp#LugeonStepPropertyType
Type diggs:LugeonStepPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:LugeonStep
Instance

<diggs:lugeonStep xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:LugeonStep gml:id="" xml:lang="">{1,1}</diggs:LugeonStep>
</diggs:lugeonStep>
Source

<element maxOccurs="unbounded" minOccurs="0" name="lugeonStep" type="diggs:LugeonStepPropertyType">
  <annotation>
    <documentation>Contains properties for each step of the lugeeon test run at various injection pressures. There are typically five steps in a lugeon test.</documentation>
  </annotation>
</element>

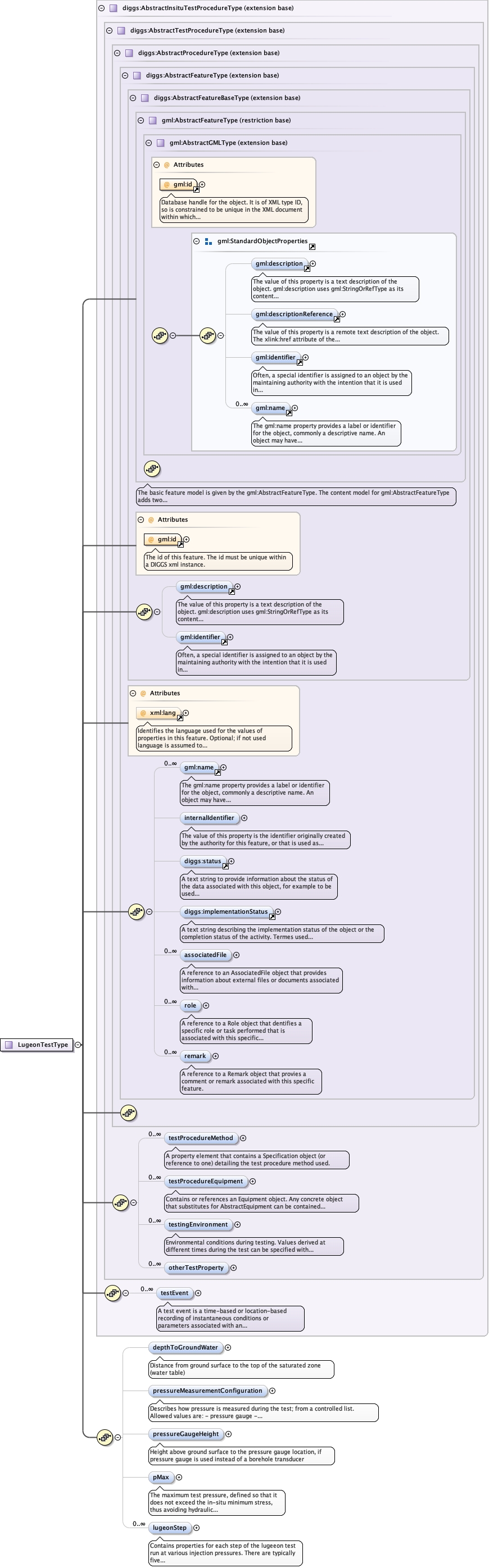

Complex Type diggs:LugeonTestType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeConstruction_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_depthToGroundWaterConstruction_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_pressureMeasurementConfigurationConstruction_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_pressureGaugeHeightConstruction_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_pMaxConstruction_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_lugeonStep
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:associatedFile, diggs:depthToGroundWater, diggs:implementationStatus, diggs:internalIdentifier, diggs:lugeonStep, diggs:otherTestProperty, diggs:pMax, diggs:pressureGaugeHeight, diggs:pressureMeasurementConfiguration, diggs:remark, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType mixed="false" name="LugeonTestType">
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="depthToGroundWater" type="eml:LengthMeasure">
          <annotation>
            <documentation>Distance from ground surface to the top of the saturated zone (water table)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureMeasurementConfiguration" type="diggs:pressureMeasurementConfigurationEnumType">
          <annotation>
            <documentation>Describes how pressure is measured during the test; from a controlled list. Allowed values are: - pressure gauge - borehole transducer</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureGaugeHeight" type="eml:LengthMeasure">
          <annotation>
            <documentation>Height above ground surface to the pressure gauge location, if pressure gauge is used instead of a borehole transducer</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pMax" type="eml:PressureMeasure">
          <annotation>
            <documentation>The maximum test pressure, defined so that it does not exceed the in-situ minimum stress, thus avoiding hydraulic fracturing.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="lugeonStep" type="diggs:LugeonStepPropertyType">
          <annotation>
            <documentation>Contains properties for each step of the lugeeon test run at various injection pressures. There are typically five steps in a lugeon test.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
