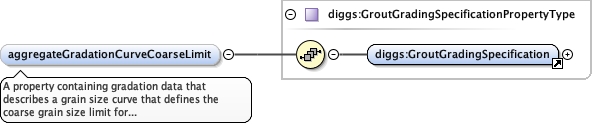

Element diggs:GroutSpecificationType / diggs:aggregateGradationCurveCoarseLimit
Namespace http://diggsml.org/schema-dev
Annotations

A property containing gradation data that describes a
grain size curve that defines the coarse grain size limit for grout
aggregate.
Diagram
DiagramConstruction_xsd_Element_diggs_GroutGradingSpecification.tmp#GroutGradingSpecificationConstruction_xsd_Complex_Type_diggs_GroutGradingSpecificationPropertyType.tmp#GroutGradingSpecificationPropertyType
Type diggs:GroutGradingSpecificationPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:GroutGradingSpecification
Instance

<diggs:aggregateGradationCurveCoarseLimit xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutGradingSpecification gml:id="" xml:lang="">{1,1}</diggs:GroutGradingSpecification>
</diggs:aggregateGradationCurveCoarseLimit>
Source

<element minOccurs="0" name="aggregateGradationCurveCoarseLimit" type="diggs:GroutGradingSpecificationPropertyType">
  <annotation>
    <documentation>A property containing gradation data that describes a grain size curve that defines the coarse grain size limit for grout aggregate.</documentation>
  </annotation>
</element>

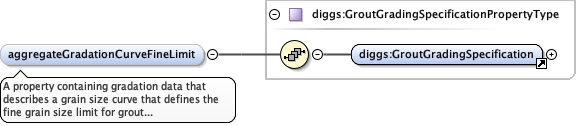

Element diggs:GroutSpecificationType / diggs:aggregateGradationCurveFineLimit
Namespace http://diggsml.org/schema-dev
Annotations

A property containing gradation data that describes a
grain size curve that defines the fine grain size limit for grout
aggregate.
Diagram
DiagramConstruction_xsd_Element_diggs_GroutGradingSpecification.tmp#GroutGradingSpecificationConstruction_xsd_Complex_Type_diggs_GroutGradingSpecificationPropertyType.tmp#GroutGradingSpecificationPropertyType
Type diggs:GroutGradingSpecificationPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:GroutGradingSpecification
Instance

<diggs:aggregateGradationCurveFineLimit xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutGradingSpecification gml:id="" xml:lang="">{1,1}</diggs:GroutGradingSpecification>
</diggs:aggregateGradationCurveFineLimit>
Source

<element minOccurs="0" name="aggregateGradationCurveFineLimit" type="diggs:GroutGradingSpecificationPropertyType">
  <annotation>
    <documentation>A property containing gradation data that describes a grain size curve that defines the fine grain size limit for grout aggregate.</documentation>
  </annotation>
</element>

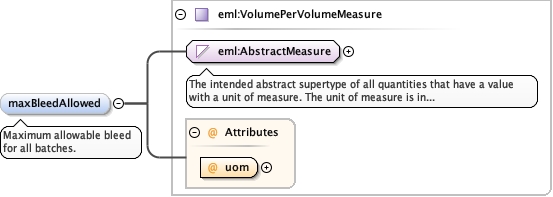

Element diggs:GroutSpecificationType / diggs:maxBleedAllowed
Namespace http://diggsml.org/schema-dev
Annotations

Maximum allowable bleed for all batches.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element minOccurs="0" name="maxBleedAllowed" type="eml:VolumePerVolumeMeasure">
  <annotation>
    <documentation>Maximum allowable bleed for all batches.</documentation>
  </annotation>
</element>

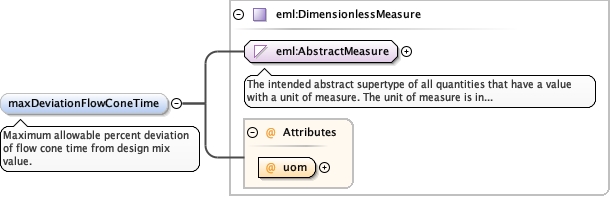

Element diggs:GroutSpecificationType / diggs:maxDeviationFlowConeTime
Namespace http://diggsml.org/schema-dev
Annotations

Maximum allowable percent deviation of flow cone time
from design mix value.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure_uomMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure
Type eml:DimensionlessMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DimensionlessUom required
Source

<element minOccurs="0" name="maxDeviationFlowConeTime" type="eml:DimensionlessMeasure">
  <annotation>
    <documentation>Maximum allowable percent deviation of flow cone time from design mix value.</documentation>
  </annotation>
</element>

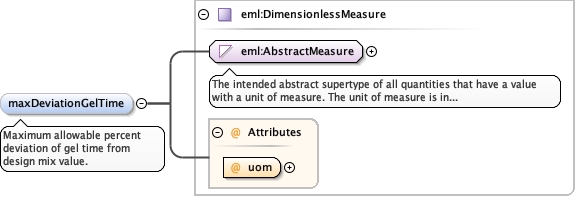

Element diggs:GroutSpecificationType / diggs:maxDeviationGelTime
Namespace http://diggsml.org/schema-dev
Annotations

Maximum allowable percent deviation of gel time from
design mix value.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure_uomMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure
Type eml:DimensionlessMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DimensionlessUom required
Source

<element minOccurs="0" name="maxDeviationGelTime" type="eml:DimensionlessMeasure">
  <annotation>
    <documentation>Maximum allowable percent deviation of gel time from design mix value.</documentation>
  </annotation>
</element>

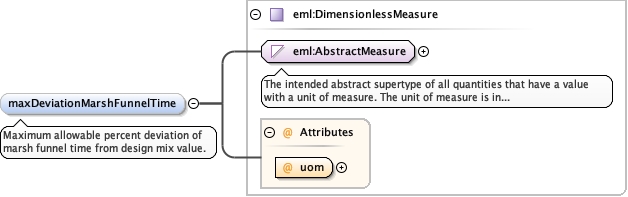

Element diggs:GroutSpecificationType / diggs:maxDeviationMarshFunnelTime
Namespace http://diggsml.org/schema-dev
Annotations

Maximum allowable percent deviation of marsh funnel time
from design mix value.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure_uomMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure
Type eml:DimensionlessMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DimensionlessUom required
Source

<element minOccurs="0" name="maxDeviationMarshFunnelTime" type="eml:DimensionlessMeasure">
  <annotation>
    <documentation>Maximum allowable percent deviation of marsh funnel time from design mix value.</documentation>
  </annotation>
</element>

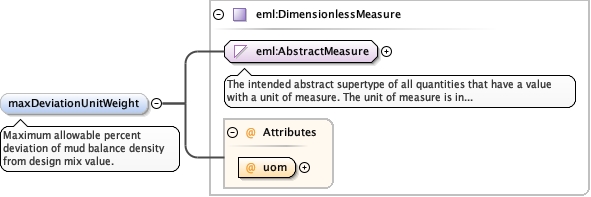

Element diggs:GroutSpecificationType / diggs:maxDeviationUnitWeight
Namespace http://diggsml.org/schema-dev
Annotations

Maximum allowable percent deviation of mud balance
density from design mix value.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure_uomMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure
Type eml:DimensionlessMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DimensionlessUom required
Source

<element minOccurs="0" name="maxDeviationUnitWeight" type="eml:DimensionlessMeasure">
  <annotation>
    <documentation>Maximum allowable percent deviation of mud balance density from design mix value.</documentation>
  </annotation>
</element>

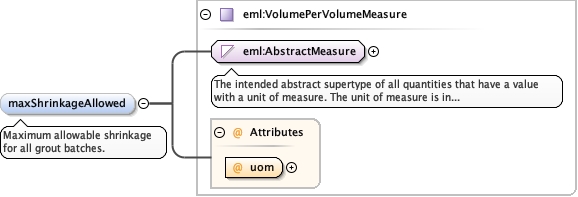

Element diggs:GroutSpecificationType / diggs:maxShrinkageAllowed
Namespace http://diggsml.org/schema-dev
Annotations

Maximum allowable shrinkage for all grout
batches.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element minOccurs="0" name="maxShrinkageAllowed" type="eml:VolumePerVolumeMeasure">
  <annotation>
    <documentation>Maximum allowable shrinkage for all grout batches.</documentation>
  </annotation>
</element>

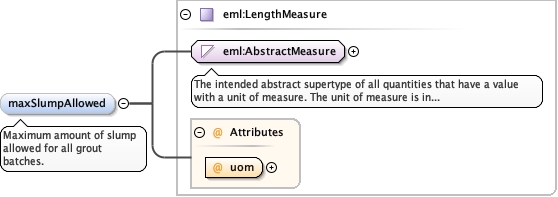

Element diggs:GroutSpecificationType / diggs:maxSlumpAllowed
Namespace http://diggsml.org/schema-dev
Annotations

Maximum amount of slump allowed for all grout
batches.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="maxSlumpAllowed" type="eml:LengthMeasure">
  <annotation>
    <documentation>Maximum amount of slump allowed for all grout batches.</documentation>
  </annotation>
</element>

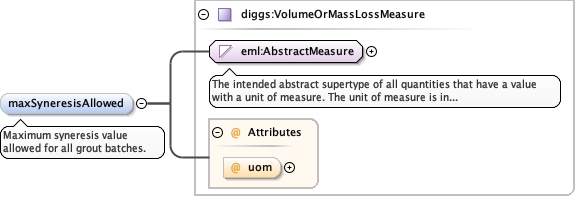

Element diggs:GroutSpecificationType / diggs:maxSyneresisAllowed
Namespace http://diggsml.org/schema-dev
Annotations

Maximum syneresis value allowed for all grout
batches.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureConstruction_xsd_Complex_Type_diggs_VolumeOrMassLossMeasure.tmp#VolumeOrMassLossMeasure_uomConstruction_xsd_Complex_Type_diggs_VolumeOrMassLossMeasure.tmp#VolumeOrMassLossMeasure
Type diggs:VolumeOrMassLossMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:VolumeOrMassLossMeasureUOM optional
Source

<element minOccurs="0" name="maxSyneresisAllowed" type="diggs:VolumeOrMassLossMeasure">
  <annotation>
    <documentation>Maximum syneresis value allowed for all grout batches.</documentation>
  </annotation>
</element>

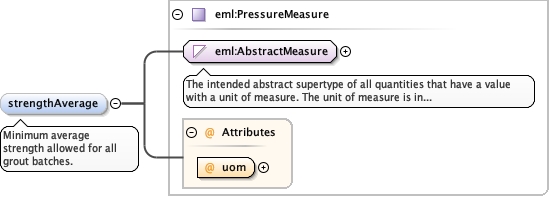

Element diggs:GroutSpecificationType / diggs:strengthAverage
Namespace http://diggsml.org/schema-dev
Annotations

Minimum average strength allowed for all grout
batches.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="strengthAverage" type="eml:PressureMeasure">
  <annotation>
    <documentation>Minimum average strength allowed for all grout batches.</documentation>
  </annotation>
</element>

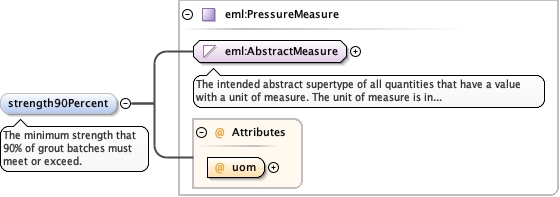

Element diggs:GroutSpecificationType / diggs:strength90Percent
Namespace http://diggsml.org/schema-dev
Annotations

The minimum strength that 90% of grout batches must meet
or exceed.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="strength90Percent" type="eml:PressureMeasure">
  <annotation>
    <documentation>The minimum strength that 90% of grout batches must meet or exceed.</documentation>
  </annotation>
</element>

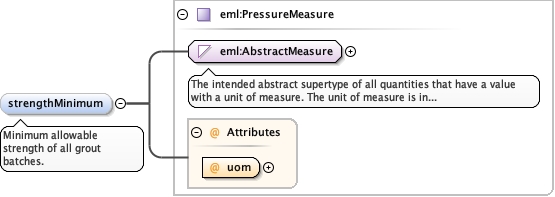

Element diggs:GroutSpecificationType / diggs:strengthMinimum
Namespace http://diggsml.org/schema-dev
Annotations

Minimum allowable strength of all grout
batches.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="strengthMinimum" type="eml:PressureMeasure">
  <annotation>
    <documentation>Minimum allowable strength of all grout batches.</documentation>
  </annotation>
</element>

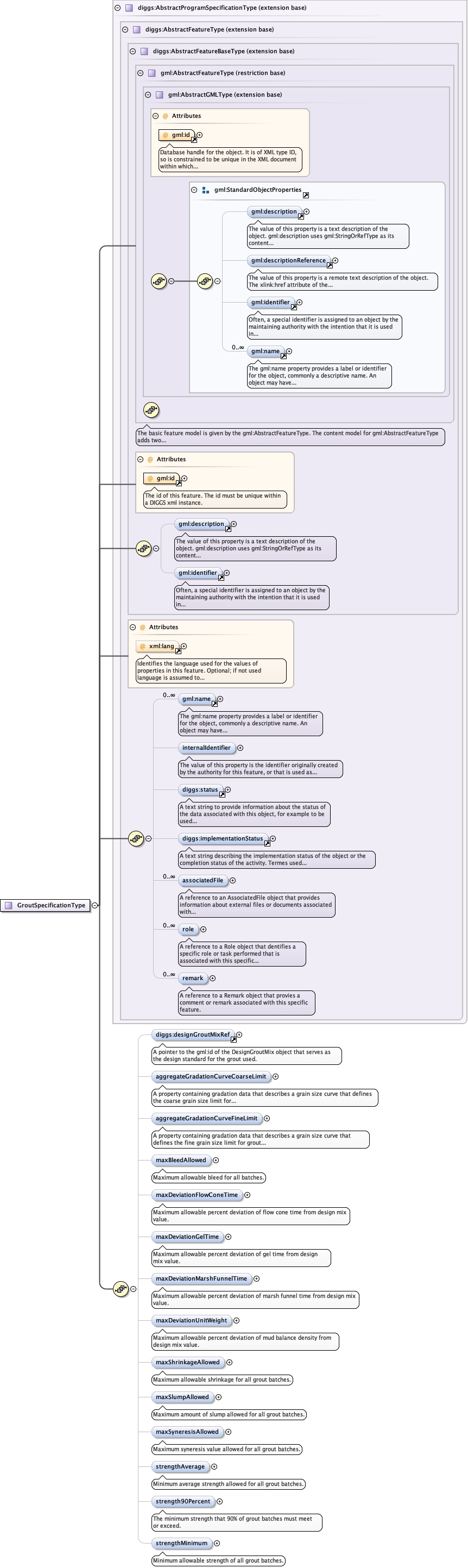

Complex Type diggs:GroutSpecificationType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeConstruction_xsd_Complex_Type_diggs_AbstractProgramSpecificationType.tmp#AbstractProgramSpecificationTypeConstruction_xsd_Element_diggs_designGroutMixRef.tmp#designGroutMixRefConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_aggregateGradationCurveCoarseLimitConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_aggregateGradationCurveFineLimitConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxBleedAllowedConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxDeviationFlowConeTimeConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxDeviationGelTimeConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxDeviationMarshFunnelTimeConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxDeviationUnitWeightConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxShrinkageAllowedConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxSlumpAllowedConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxSyneresisAllowedConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_strengthAverageConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_strength90PercentConstruction_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_strengthMinimum
Type extension of diggs:AbstractProgramSpecificationType
Type hierarchy
Used by
Model
Children diggs:aggregateGradationCurveCoarseLimit, diggs:aggregateGradationCurveFineLimit, diggs:associatedFile, diggs:designGroutMixRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:maxBleedAllowed, diggs:maxDeviationFlowConeTime, diggs:maxDeviationGelTime, diggs:maxDeviationMarshFunnelTime, diggs:maxDeviationUnitWeight, diggs:maxShrinkageAllowed, diggs:maxSlumpAllowed, diggs:maxSyneresisAllowed, diggs:remark, diggs:role, diggs:status, diggs:strength90Percent, diggs:strengthAverage, diggs:strengthMinimum, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="GroutSpecificationType">
  <complexContent>
    <extension base="diggs:AbstractProgramSpecificationType">
      <sequence>
        <element minOccurs="0" ref="diggs:designGroutMixRef"/>
        <element minOccurs="0" name="aggregateGradationCurveCoarseLimit" type="diggs:GroutGradingSpecificationPropertyType">
          <annotation>
            <documentation>A property containing gradation data that describes a grain size curve that defines the coarse grain size limit for grout aggregate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="aggregateGradationCurveFineLimit" type="diggs:GroutGradingSpecificationPropertyType">
          <annotation>
            <documentation>A property containing gradation data that describes a grain size curve that defines the fine grain size limit for grout aggregate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxBleedAllowed" type="eml:VolumePerVolumeMeasure">
          <annotation>
            <documentation>Maximum allowable bleed for all batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxDeviationFlowConeTime" type="eml:DimensionlessMeasure">
          <annotation>
            <documentation>Maximum allowable percent deviation of flow cone time from design mix value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxDeviationGelTime" type="eml:DimensionlessMeasure">
          <annotation>
            <documentation>Maximum allowable percent deviation of gel time from design mix value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxDeviationMarshFunnelTime" type="eml:DimensionlessMeasure">
          <annotation>
            <documentation>Maximum allowable percent deviation of marsh funnel time from design mix value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxDeviationUnitWeight" type="eml:DimensionlessMeasure">
          <annotation>
            <documentation>Maximum allowable percent deviation of mud balance density from design mix value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxShrinkageAllowed" type="eml:VolumePerVolumeMeasure">
          <annotation>
            <documentation>Maximum allowable shrinkage for all grout batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxSlumpAllowed" type="eml:LengthMeasure">
          <annotation>
            <documentation>Maximum amount of slump allowed for all grout batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxSyneresisAllowed" type="diggs:VolumeOrMassLossMeasure">
          <annotation>
            <documentation>Maximum syneresis value allowed for all grout batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strengthAverage" type="eml:PressureMeasure">
          <annotation>
            <documentation>Minimum average strength allowed for all grout batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strength90Percent" type="eml:PressureMeasure">
          <annotation>
            <documentation>The minimum strength that 90% of grout batches must meet or exceed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strengthMinimum" type="eml:PressureMeasure">
          <annotation>
            <documentation>Minimum allowable strength of all grout batches.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
