Namespace http://diggsml.org/schema-dev

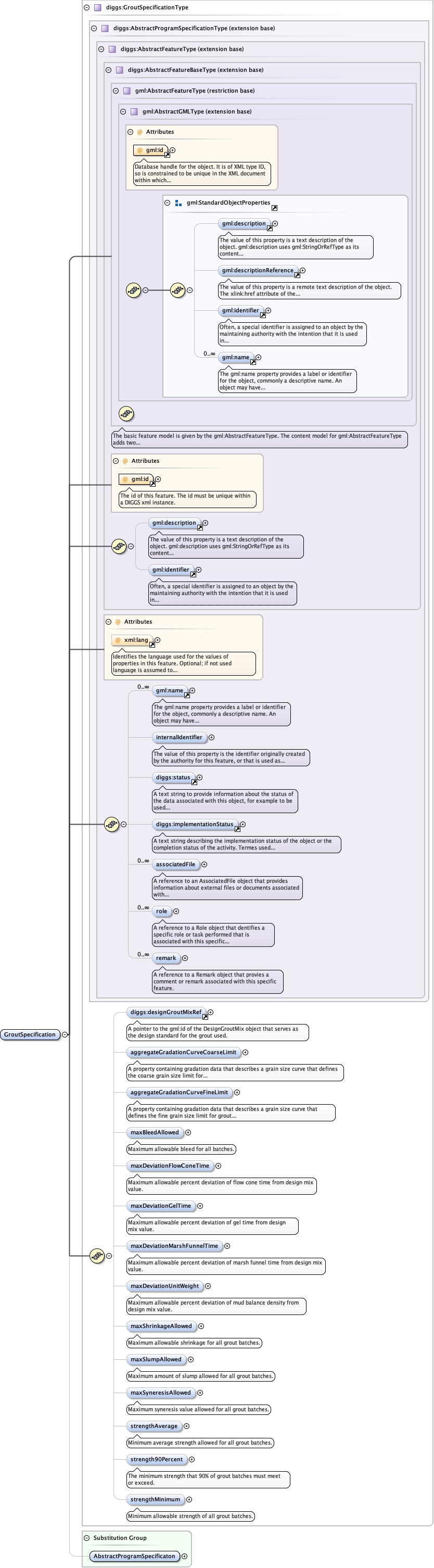

Diagram
Type diggs:GroutSpecificationType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:designGroutMixRef{0,1} ,
diggs:aggregateGradationCurveCoarseLimit{0,1} ,
diggs:aggregateGradationCurveFineLimit{0,1} ,
diggs:maxBleedAllowed{0,1} ,
diggs:maxDeviationFlowConeTime{0,1} ,
diggs:maxDeviationGelTime{0,1} ,
diggs:maxDeviationMarshFunnelTime{0,1} ,
diggs:maxDeviationUnitWeight{0,1} ,
diggs:maxShrinkageAllowed{0,1} ,
diggs:maxSlumpAllowed{0,1} ,
diggs:maxSyneresisAllowed{0,1} ,
diggs:strengthAverage{0,1} ,
diggs:strength90Percent{0,1} ,
diggs:strengthMinimum{0,1}
Children diggs:aggregateGradationCurveCoarseLimit diggs:aggregateGradationCurveFineLimit diggs:associatedFile diggs:designGroutMixRef diggs:implementationStatus diggs:internalIdentifier diggs:maxBleedAllowed diggs:maxDeviationFlowConeTime diggs:maxDeviationGelTime diggs:maxDeviationMarshFunnelTime diggs:maxDeviationUnitWeight diggs:maxShrinkageAllowed diggs:maxSlumpAllowed diggs:maxSyneresisAllowed diggs:remark diggs:role diggs:status diggs:strength90Percent diggs:strengthAverage diggs:strengthMinimum gml:description gml:identifier gml:name
Instance
<diggs:GroutSpecification gml:id= "" xml:lang= "" xmlns:diggs= "http://diggsml.org/schema-dev" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:designGroutMixRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:designGroutMixRef>
<diggs:aggregateGradationCurveCoarseLimit > {0,1} </diggs:aggregateGradationCurveCoarseLimit>
<diggs:aggregateGradationCurveFineLimit > {0,1} </diggs:aggregateGradationCurveFineLimit>
<diggs:maxBleedAllowed uom= "" > {0,1} </diggs:maxBleedAllowed>
<diggs:maxDeviationFlowConeTime uom= "" > {0,1} </diggs:maxDeviationFlowConeTime>
<diggs:maxDeviationGelTime uom= "" > {0,1} </diggs:maxDeviationGelTime>
<diggs:maxDeviationMarshFunnelTime uom= "" > {0,1} </diggs:maxDeviationMarshFunnelTime>
<diggs:maxDeviationUnitWeight uom= "" > {0,1} </diggs:maxDeviationUnitWeight>
<diggs:maxShrinkageAllowed uom= "" > {0,1} </diggs:maxShrinkageAllowed>
<diggs:maxSlumpAllowed uom= "" > {0,1} </diggs:maxSlumpAllowed>
<diggs:maxSyneresisAllowed uom= "" > {0,1} </diggs:maxSyneresisAllowed>
<diggs:strengthAverage uom= "" > {0,1} </diggs:strengthAverage>
<diggs:strength90Percent uom= "" > {0,1} </diggs:strength90Percent>
<diggs:strengthMinimum uom= "" > {0,1} </diggs:strengthMinimum>
</diggs:GroutSpecification>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language , restriction of xs:string )
optional
<div >
<h3 > lang (as an attribute name) </h3>
<p > denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification. </p>
</div>
<div >
<h4 > Notes </h4>
<p > Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility. </p>
<p > See BCP 47 at
<a href= "http://www.rfc-editor.org/rfc/bcp/bcp47.txt" > http://www.rfc-editor.org/rfc/bcp/bcp47.txt </a> and the IANA language subtag registry at
<a href= "http://www.iana.org/assignments/language-subtag-registry" > http://www.iana.org/assignments/language-subtag-registry </a> for further information. </p>
<p > The union allows for the 'un-declaration' of xml:lang with the empty string. </p>
</div>
Source
<element name= "GroutSpecification" type= "diggs:GroutSpecificationType" substitutionGroup= "diggs:AbstractProgramSpecificaton" />
