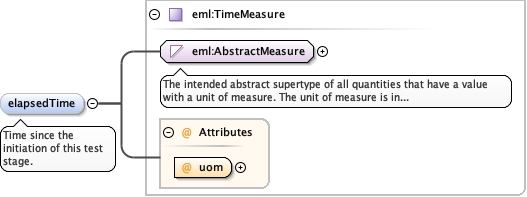

Element diggs:CompressionIncrementType / diggs:elapsedTime
Namespace http://diggsml.org/schema-dev
Annotations

Time since the initiation of this test
stage.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="elapsedTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>Time since the initiation of this test stage.</documentation>
  </annotation>
</element>

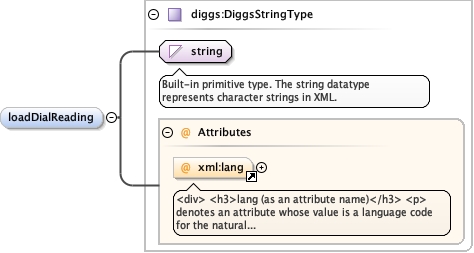

Element diggs:CompressionIncrementType / diggs:loadDialReading
Namespace http://diggsml.org/schema-dev
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="loadDialReading" type="diggs:DiggsStringType"/>

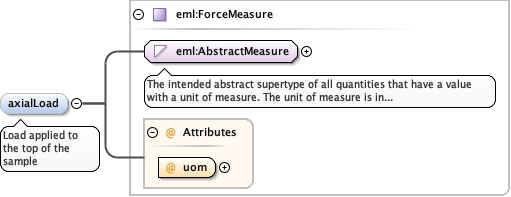

Element diggs:CompressionIncrementType / diggs:axialLoad
Namespace http://diggsml.org/schema-dev
Annotations

Load applied to the top of the sample
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="axialLoad" type="eml:ForceMeasure">
  <annotation>
    <documentation>Load applied to the top of the sample</documentation>
  </annotation>
</element>

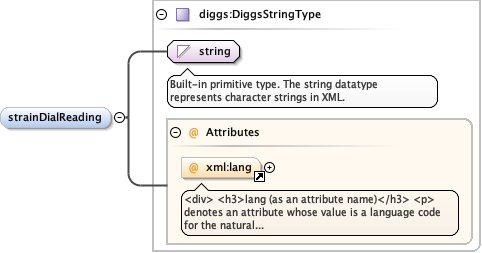

Element diggs:CompressionIncrementType / diggs:strainDialReading
Namespace http://diggsml.org/schema-dev
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="strainDialReading" type="diggs:DiggsStringType"/>

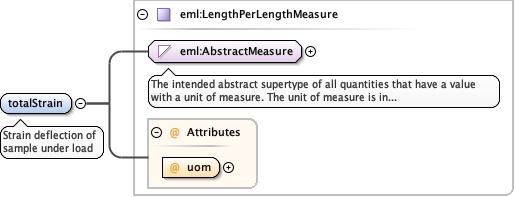

Element diggs:CompressionIncrementType / diggs:totalStrain
Namespace http://diggsml.org/schema-dev
Annotations

Strain deflection of sample under load
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure
Type eml:LengthPerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:LengthPerLengthUom required
Source

<element minOccurs="1" name="totalStrain" type="eml:LengthPerLengthMeasure">
  <annotation>
    <documentation>Strain deflection of sample under load</documentation>
  </annotation>
</element>

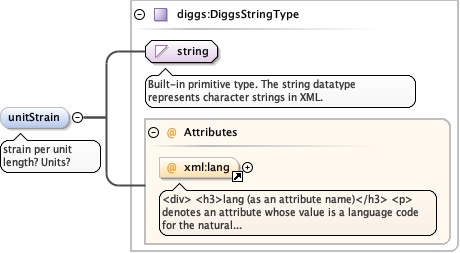

Element diggs:CompressionIncrementType / diggs:unitStrain
Namespace http://diggsml.org/schema-dev
Annotations

strain per unit length? Units?
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="unitStrain" type="diggs:DiggsStringType">
  <annotation>
    <documentation>strain per unit length? Units?</documentation>
  </annotation>
</element>

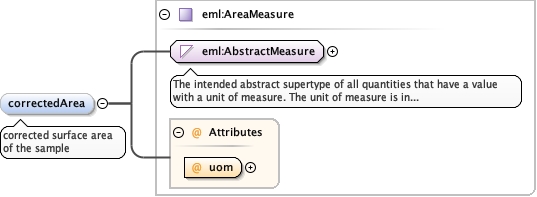

Element diggs:CompressionIncrementType / diggs:correctedArea
Namespace http://diggsml.org/schema-dev
Annotations

corrected surface area of the sample
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure_uomMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure
Type eml:AreaMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUom required
Source

<element minOccurs="0" name="correctedArea" type="eml:AreaMeasure">
  <annotation>
    <documentation>corrected surface area of the sample</documentation>
  </annotation>
</element>

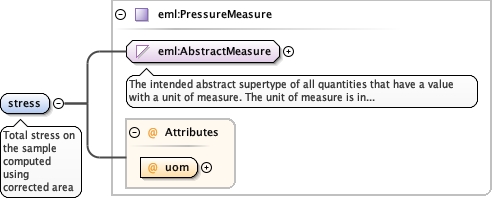

Element diggs:CompressionIncrementType / diggs:stress
Namespace http://diggsml.org/schema-dev
Annotations

Total stress on the sample computed using corrected
area
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="1" name="stress" type="eml:PressureMeasure">
  <annotation>
    <documentation>Total stress on the sample computed using corrected area</documentation>
  </annotation>
</element>

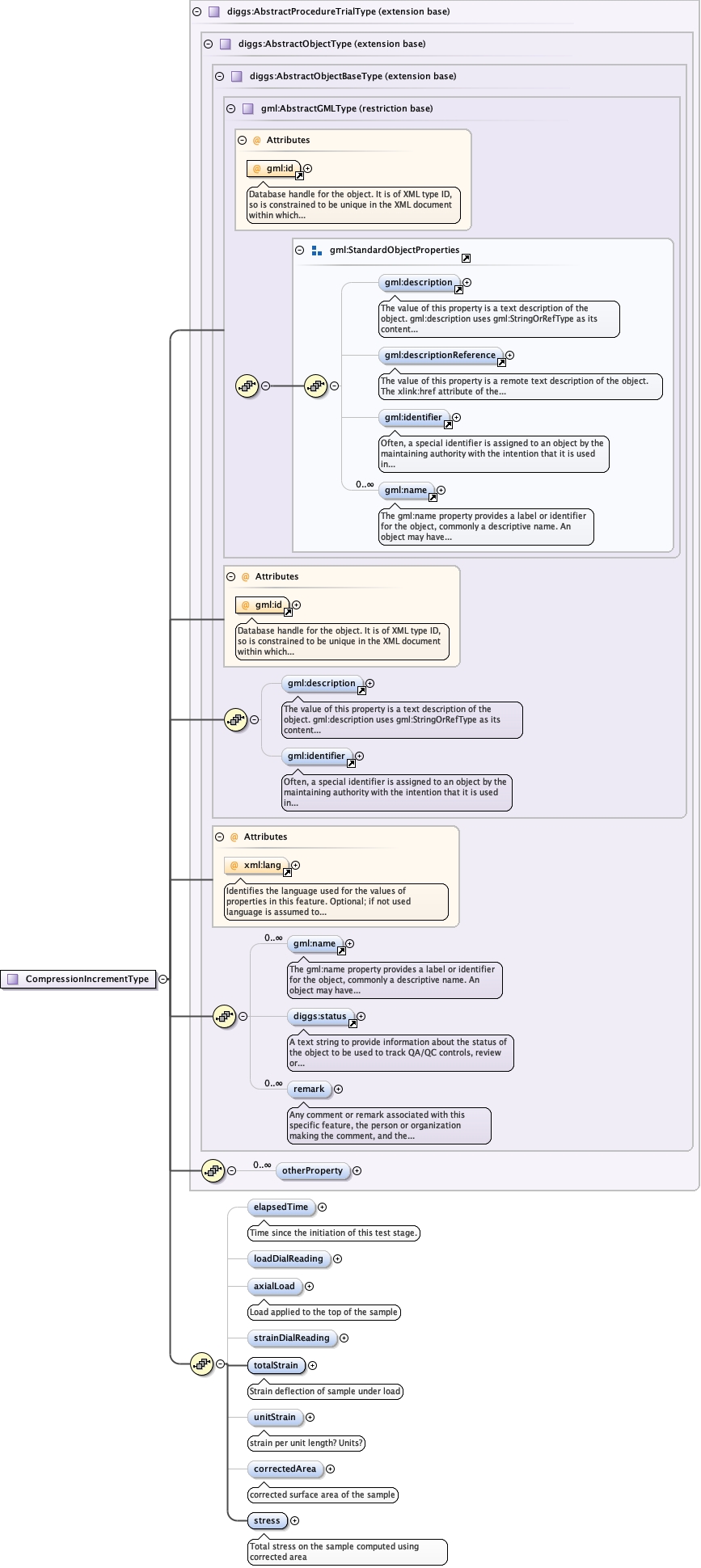

Complex Type diggs:CompressionIncrementType
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeTestProcedures_xsd_Complex_Type_diggs_CompressionIncrementType.tmp#http___diggsml.org_schema-dev_CompressionIncrementType_elapsedTimeTestProcedures_xsd_Complex_Type_diggs_CompressionIncrementType.tmp#http___diggsml.org_schema-dev_CompressionIncrementType_loadDialReadingTestProcedures_xsd_Complex_Type_diggs_CompressionIncrementType.tmp#http___diggsml.org_schema-dev_CompressionIncrementType_axialLoadTestProcedures_xsd_Complex_Type_diggs_CompressionIncrementType.tmp#http___diggsml.org_schema-dev_CompressionIncrementType_strainDialReadingTestProcedures_xsd_Complex_Type_diggs_CompressionIncrementType.tmp#http___diggsml.org_schema-dev_CompressionIncrementType_totalStrainTestProcedures_xsd_Complex_Type_diggs_CompressionIncrementType.tmp#http___diggsml.org_schema-dev_CompressionIncrementType_unitStrainTestProcedures_xsd_Complex_Type_diggs_CompressionIncrementType.tmp#http___diggsml.org_schema-dev_CompressionIncrementType_correctedAreaTestProcedures_xsd_Complex_Type_diggs_CompressionIncrementType.tmp#http___diggsml.org_schema-dev_CompressionIncrementType_stress
Type extension of diggs:AbstractProcedureTrialType
Type hierarchy
Used by
Element diggs:CompressionIncrement
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs:elapsedTime{0,1} , diggs:loadDialReading{0,1} , diggs:axialLoad{0,1} , diggs:strainDialReading{0,1} , diggs:totalStrain , diggs:unitStrain{0,1} , diggs:correctedArea{0,1} , diggs:stress
Children diggs:axialLoad, diggs:correctedArea, diggs:elapsedTime, diggs:loadDialReading, diggs:otherProperty, diggs:remark, diggs:status, diggs:strainDialReading, diggs:stress, diggs:totalStrain, diggs:unitStrain, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="CompressionIncrementType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProcedureTrialType">
      <sequence>
        <element minOccurs="0" name="elapsedTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>Time since the initiation of this test stage.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="loadDialReading" type="diggs:DiggsStringType"/>
        <element minOccurs="0" name="axialLoad" type="eml:ForceMeasure">
          <annotation>
            <documentation>Load applied to the top of the sample</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strainDialReading" type="diggs:DiggsStringType"/>
        <element minOccurs="1" name="totalStrain" type="eml:LengthPerLengthMeasure">
          <annotation>
            <documentation>Strain deflection of sample under load</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="unitStrain" type="diggs:DiggsStringType">
          <annotation>
            <documentation>strain per unit length? Units?</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="correctedArea" type="eml:AreaMeasure">
          <annotation>
            <documentation>corrected surface area of the sample</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="stress" type="eml:PressureMeasure">
          <annotation>
            <documentation>Total stress on the sample computed using corrected area</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
