Complex Type eml:AreaMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

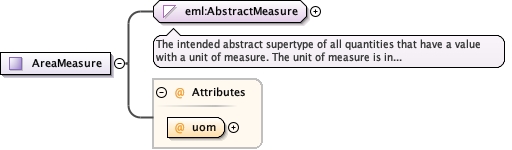

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Used by
Attributes
QName Type Use
uom eml:AreaUom required
Source

<xs:complexType name="AreaMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:AreaUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:AreaMeasure / @uom
Namespace No namespace
Type eml:AreaUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration acre
acre
enumeration b
barn
enumeration cm2
square centimetre
enumeration ft2
square foot
enumeration ha
hectare
enumeration in2
square inch
enumeration km2
square kilometre
enumeration m2
square metre
enumeration mi[US]2
square US survey mile
enumeration mi2
square mile
enumeration mm2
square millimetre
enumeration section
section
enumeration um2
square micrometre
enumeration yd2
square yard
Used by
Complex Type eml:AreaMeasure
Source

<xs:attribute name="uom" use="required" type="eml:AreaUom"/>
