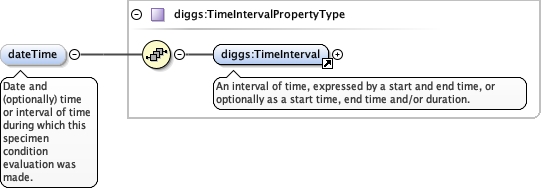

Element diggs:SpecimenConditionsType / diggs:dateTime
Namespace http://diggsml.org/schema-dev
Annotations

Date and (optionally) time or interval of time during
which this specimen condition evaluation was made.
Diagram
DiagramKernel_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalKernel_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
nillable false
Model
Children diggs:TimeInterval
Instance

<diggs:dateTime xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs:dateTime>
Source

<element minOccurs="0" name="dateTime" nillable="false" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>Date and (optionally) time or interval of time during which this specimen condition evaluation was made.</documentation>
  </annotation>
</element>

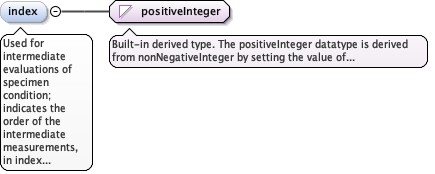

Element diggs:SpecimenConditionsType / diggs:index
Namespace http://diggsml.org/schema-dev
Annotations

Used for intermediate evaluations of specimen condition;
indicates the order of the intermediate measurements, in index order
(eg. 1, 2, 3 etc.)
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
nillable false
Source

<element minOccurs="0" name="index" nillable="false" type="positiveInteger">
  <annotation>
    <documentation>Used for intermediate evaluations of specimen condition; indicates the order of the intermediate measurements, in index order (eg. 1, 2, 3 etc.)</documentation>
  </annotation>
</element>

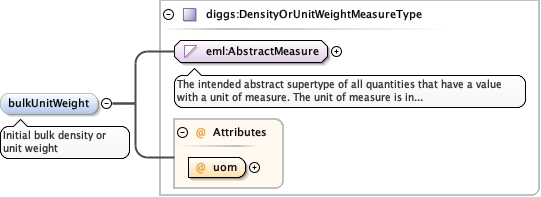

Element diggs:SpecimenConditionsType / diggs:bulkUnitWeight
Namespace http://diggsml.org/schema-dev
Annotations

Initial bulk density or unit weight
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsDensityOrUnitWeightUom required
Source

<element minOccurs="0" name="bulkUnitWeight" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>Initial bulk density or unit weight</documentation>
  </annotation>
</element>

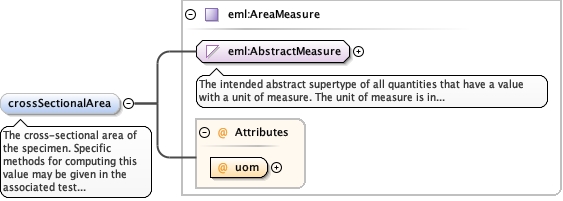

Element diggs:SpecimenConditionsType / diggs:crossSectionalArea
Namespace http://diggsml.org/schema-dev
Annotations

The cross-sectional area of the specimen. Specific
methods for computing this value may be given in the associated test
procedure object.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure_uomMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure
Type eml:AreaMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUom required
Source

<element minOccurs="0" name="crossSectionalArea" type="eml:AreaMeasure">
  <annotation>
    <documentation>The cross-sectional area of the specimen. Specific methods for computing this value may be given in the associated test procedure object.</documentation>
  </annotation>
</element>
Element diggs:SpecimenConditionsType / diggs:dimensionMeasurementTechnique
Namespace http://diggsml.org/schema-dev
Annotations

Technique used to measure specimen lengths and diameters.
Enumerated list. - 1) Calipers, 2) PI-tape, 3) Other: (uncontrolled
string after colon)
Diagram
DiagramKernel_xsd_Simple_Type_diggs_DimensionMeasurementTechniqueType.tmp#DimensionMeasurementTechniqueType
Type diggs:DimensionMeasurementTechniqueType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="dimensionMeasurementTechnique" type="diggs:DimensionMeasurementTechniqueType">
  <annotation>
    <documentation>Technique used to measure specimen lengths and diameters. Enumerated list. - 1) Calipers, 2) PI-tape, 3) Other: (uncontrolled string after colon)</documentation>
  </annotation>
</element>

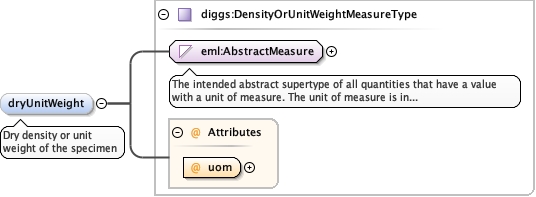

Element diggs:SpecimenConditionsType / diggs:dryUnitWeight
Namespace http://diggsml.org/schema-dev
Annotations

Dry density or unit weight of the
specimen
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsDensityOrUnitWeightUom required
Source

<element minOccurs="0" name="dryUnitWeight" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>Dry density or unit weight of the specimen</documentation>
  </annotation>
</element>

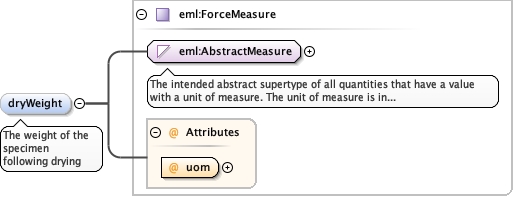

Element diggs:SpecimenConditionsType / diggs:dryWeight
Namespace http://diggsml.org/schema-dev
Annotations

The weight of the specimen following
drying
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="dryWeight" type="eml:ForceMeasure">
  <annotation>
    <documentation>The weight of the specimen following drying</documentation>
  </annotation>
</element>

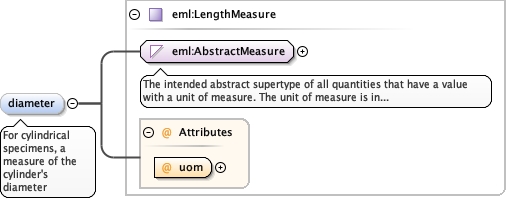

Element diggs:SpecimenConditionsType / diggs:diameter
Namespace http://diggsml.org/schema-dev
Annotations

For cylindrical specimens, a measure of the
cylinder's diameter
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="diameter" type="eml:LengthMeasure">
  <annotation>
    <documentation>For cylindrical specimens, a measure of the cylinder's diameter</documentation>
  </annotation>
</element>

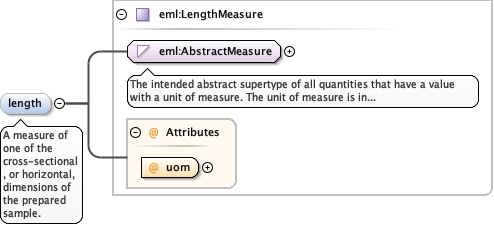

Element diggs:SpecimenConditionsType / diggs:length
Namespace http://diggsml.org/schema-dev
Annotations

A measure of one of the cross-sectional, or
horizontal, dimensions of the prepared
sample.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="length" type="eml:LengthMeasure">
  <annotation>
    <documentation>A measure of one of the cross-sectional, or horizontal, dimensions of the prepared sample.</documentation>
  </annotation>
</element>

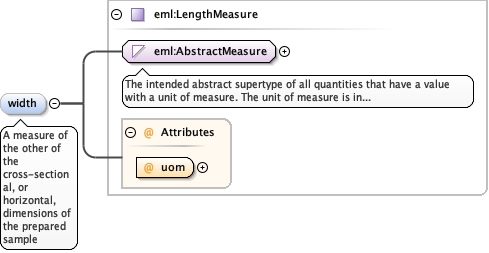

Element diggs:SpecimenConditionsType / diggs:width
Namespace http://diggsml.org/schema-dev
Annotations

A measure of the other of the cross-sectional, or
horizontal, dimensions of the prepared
sample
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="width" type="eml:LengthMeasure">
  <annotation>
    <documentation>A measure of the other of the cross-sectional, or horizontal, dimensions of the prepared sample</documentation>
  </annotation>
</element>

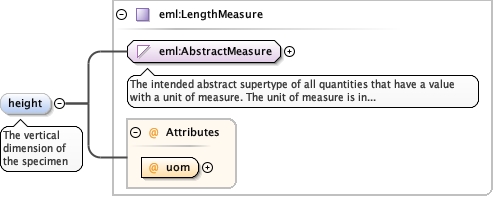

Element diggs:SpecimenConditionsType / diggs:height
Namespace http://diggsml.org/schema-dev
Annotations

The vertical dimension of the specimen
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="height" type="eml:LengthMeasure">
  <annotation>
    <documentation>The vertical dimension of the specimen</documentation>
  </annotation>
</element>

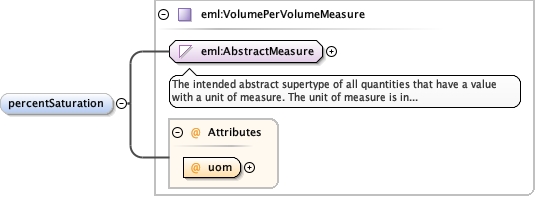

Element diggs:SpecimenConditionsType / diggs:percentSaturation
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element minOccurs="0" name="percentSaturation" type="eml:VolumePerVolumeMeasure"/>

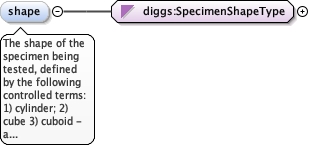

Element diggs:SpecimenConditionsType / diggs:shape
Namespace http://diggsml.org/schema-dev
Annotations

The shape of the specimen being tested, defined by the
following controlled terms: 1) cylinder; 2) cube 3) cuboid - a
square cylinder or cube with uneven sides; 4) non-solid - sample is
a paste, liquid, or gas with no defined shape; 5)
sphere
Diagram
DiagramKernel_xsd_Simple_Type_diggs_SpecimenShapeType.tmp#SpecimenShapeType
Type diggs:SpecimenShapeType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="shape" type="diggs:SpecimenShapeType">
  <annotation>
    <documentation>The shape of the specimen being tested, defined by the following controlled terms: 1) cylinder; 2) cube 3) cuboid - a square cylinder or cube with uneven sides; 4) non-solid - sample is a paste, liquid, or gas with no defined shape; 5) sphere</documentation>
  </annotation>
</element>

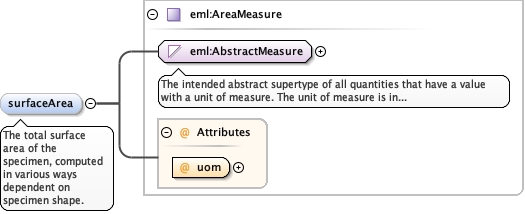

Element diggs:SpecimenConditionsType / diggs:surfaceArea
Namespace http://diggsml.org/schema-dev
Annotations

The total surface area of the specimen, computed in
various ways dependent on specimen shape.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure_uomMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure
Type eml:AreaMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUom required
Source

<element minOccurs="0" name="surfaceArea" type="eml:AreaMeasure">
  <annotation>
    <documentation>The total surface area of the specimen, computed in various ways dependent on specimen shape.</documentation>
  </annotation>
</element>

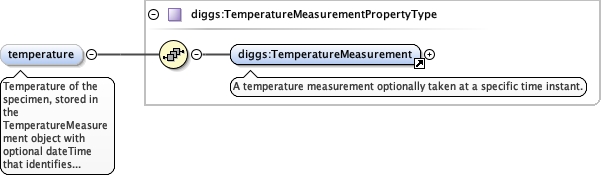

Element diggs:SpecimenConditionsType / diggs:temperature
Namespace http://diggsml.org/schema-dev
Annotations

Temperature of the specimen, stored in the
TemperatureMeasurement object with optional dateTime that identifies
specific time instant for the measurement. Multiple temperature
measurements are permitted.
Diagram
DiagramKernel_xsd_Element_diggs_TemperatureMeasurement.tmp#TemperatureMeasurementKernel_xsd_Complex_Type_diggs_TemperatureMeasurementPropertyType.tmp#TemperatureMeasurementPropertyType
Type diggs:TemperatureMeasurementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TemperatureMeasurement
Instance

<diggs:temperature xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TemperatureMeasurement gml:id="" xml:lang="">{1,1}</diggs:TemperatureMeasurement>
</diggs:temperature>
Source

<element maxOccurs="unbounded" minOccurs="0" name="temperature" type="diggs:TemperatureMeasurementPropertyType">
  <annotation>
    <documentation>Temperature of the specimen, stored in the TemperatureMeasurement object with optional dateTime that identifies specific time instant for the measurement. Multiple temperature measurements are permitted.</documentation>
  </annotation>
</element>

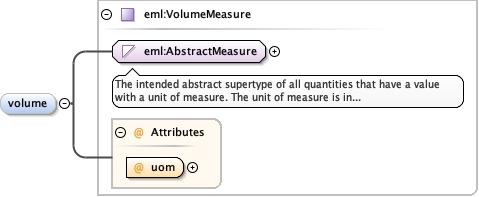

Element diggs:SpecimenConditionsType / diggs:volume
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="volume" type="eml:VolumeMeasure">
  <annotation>
    <documentation/>
  </annotation>
</element>

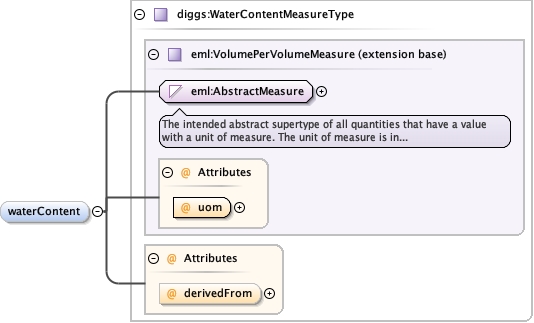

Element diggs:SpecimenConditionsType / diggs:waterContent
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasureKernel_xsd_Complex_Type_diggs_WaterContentMeasureType.tmp#WaterContentMeasureType_derivedFromKernel_xsd_Complex_Type_diggs_WaterContentMeasureType.tmp#WaterContentMeasureType
Type diggs:WaterContentMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
Source

<element minOccurs="0" name="waterContent" type="diggs:WaterContentMeasureType"/>

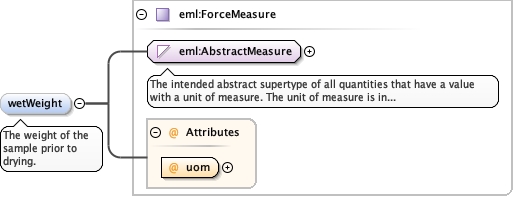

Element diggs:SpecimenConditionsType / diggs:wetWeight
Namespace http://diggsml.org/schema-dev
Annotations

The weight of the sample prior to drying.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="wetWeight" type="eml:ForceMeasure">
  <annotation>
    <documentation>The weight of the sample prior to drying.</documentation>
  </annotation>
</element>

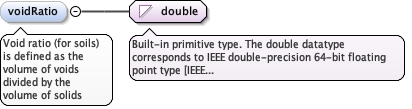

Element diggs:SpecimenConditionsType / diggs:voidRatio
Namespace http://diggsml.org/schema-dev
Annotations

Void ratio (for soils) is defined as the volume of voids
divided by the volume of solids
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="voidRatio" type="double">
  <annotation>
    <documentation>Void ratio (for soils) is defined as the volume of voids divided by the volume of solids</documentation>
  </annotation>
</element>

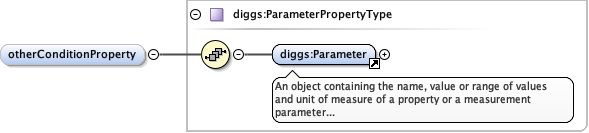

Element diggs:SpecimenConditionsType / diggs:otherConditionProperty
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherConditionProperty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherConditionProperty>
Source

<element minOccurs="0" name="otherConditionProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded"/>

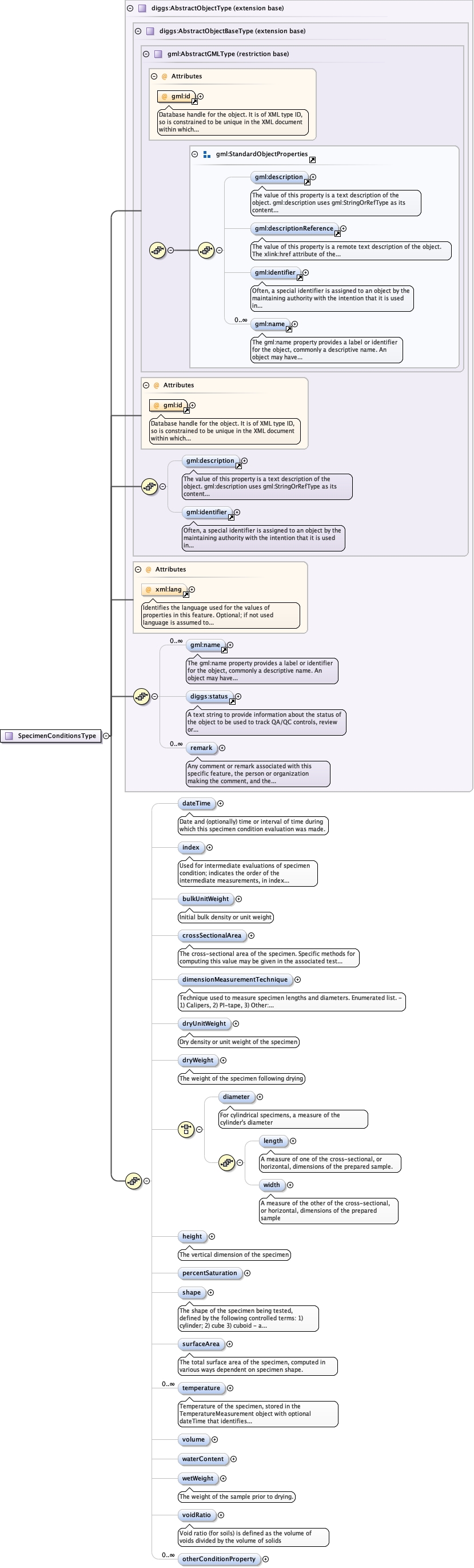

Complex Type diggs:SpecimenConditionsType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_dateTimeKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_indexKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_bulkUnitWeightKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_crossSectionalAreaKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_dimensionMeasurementTechniqueKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_dryUnitWeightKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_dryWeightKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_diameterKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_lengthKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_widthKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_heightKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_percentSaturationKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_shapeKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_surfaceAreaKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_temperatureKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_volumeKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_waterContentKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_wetWeightKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_voidRatioKernel_xsd_Complex_Type_diggs_SpecimenConditionsType.tmp#SpecimenConditionsType_otherConditionProperty
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:bulkUnitWeight, diggs:crossSectionalArea, diggs:dateTime, diggs:diameter, diggs:dimensionMeasurementTechnique, diggs:dryUnitWeight, diggs:dryWeight, diggs:height, diggs:index, diggs:length, diggs:otherConditionProperty, diggs:percentSaturation, diggs:remark, diggs:shape, diggs:status, diggs:surfaceArea, diggs:temperature, diggs:voidRatio, diggs:volume, diggs:waterContent, diggs:wetWeight, diggs:width, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="SpecimenConditionsType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="dateTime" nillable="false" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>Date and (optionally) time or interval of time during which this specimen condition evaluation was made.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="index" nillable="false" type="positiveInteger">
          <annotation>
            <documentation>Used for intermediate evaluations of specimen condition; indicates the order of the intermediate measurements, in index order (eg. 1, 2, 3 etc.)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="bulkUnitWeight" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>Initial bulk density or unit weight</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="crossSectionalArea" type="eml:AreaMeasure">
          <annotation>
            <documentation>The cross-sectional area of the specimen. Specific methods for computing this value may be given in the associated test procedure object.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dimensionMeasurementTechnique" type="diggs:DimensionMeasurementTechniqueType">
          <annotation>
            <documentation>Technique used to measure specimen lengths and diameters. Enumerated list. - 1) Calipers, 2) PI-tape, 3) Other: (uncontrolled string after colon)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dryUnitWeight" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>Dry density or unit weight of the specimen</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dryWeight" type="eml:ForceMeasure">
          <annotation>
            <documentation>The weight of the specimen following drying</documentation>
          </annotation>
        </element>
        <choice minOccurs="0">
          <element minOccurs="0" name="diameter" type="eml:LengthMeasure">
            <annotation>
              <documentation>For cylindrical specimens, a measure of the cylinder's diameter</documentation>
            </annotation>
          </element>
          <sequence minOccurs="0">
            <element minOccurs="0" name="length" type="eml:LengthMeasure">
              <annotation>
                <documentation>A measure of one of the cross-sectional, or horizontal, dimensions of the prepared sample.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="width" type="eml:LengthMeasure">
              <annotation>
                <documentation>A measure of the other of the cross-sectional, or horizontal, dimensions of the prepared sample</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
        <element minOccurs="0" name="height" type="eml:LengthMeasure">
          <annotation>
            <documentation>The vertical dimension of the specimen</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="percentSaturation" type="eml:VolumePerVolumeMeasure"/>
        <element minOccurs="0" name="shape" type="diggs:SpecimenShapeType">
          <annotation>
            <documentation>The shape of the specimen being tested, defined by the following controlled terms: 1) cylinder; 2) cube 3) cuboid - a square cylinder or cube with uneven sides; 4) non-solid - sample is a paste, liquid, or gas with no defined shape; 5) sphere</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="surfaceArea" type="eml:AreaMeasure">
          <annotation>
            <documentation>The total surface area of the specimen, computed in various ways dependent on specimen shape.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="temperature" type="diggs:TemperatureMeasurementPropertyType">
          <annotation>
            <documentation>Temperature of the specimen, stored in the TemperatureMeasurement object with optional dateTime that identifies specific time instant for the measurement. Multiple temperature measurements are permitted.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="volume" type="eml:VolumeMeasure">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="waterContent" type="diggs:WaterContentMeasureType"/>
        <element minOccurs="0" name="wetWeight" type="eml:ForceMeasure">
          <annotation>
            <documentation>The weight of the sample prior to drying.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="voidRatio" type="double">
          <annotation>
            <documentation>Void ratio (for soils) is defined as the volume of voids divided by the volume of solids</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="otherConditionProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
