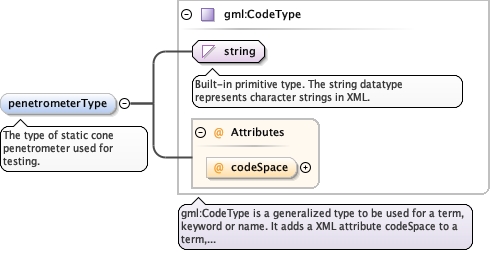

Element diggs:StaticConePenetrationTestType / diggs:penetrometerType
Namespace http://diggsml.org/schema-dev
Annotations

The type of static cone penetrometer used for
testing.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="penetrometerType" type="gml:CodeType">
  <annotation>
    <documentation>The type of static cone penetrometer used for testing.</documentation>
  </annotation>
</element>

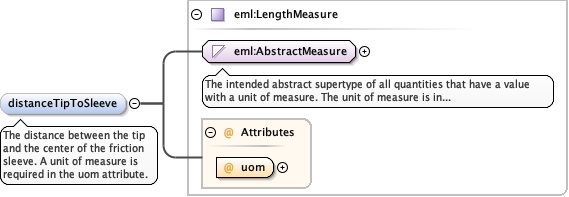

Element diggs:StaticConePenetrationTestType / diggs:distanceTipToSleeve
Namespace http://diggsml.org/schema-dev
Annotations

The distance between the tip and the center of the
friction sleeve. A unit of measure is required in the uom
attribute.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="distanceTipToSleeve" type="eml:LengthMeasure">
  <annotation>
    <documentation>The distance between the tip and the center of the friction sleeve. A unit of measure is required in the uom attribute.</documentation>
  </annotation>
</element>

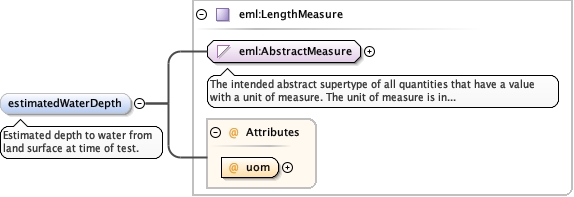

Element diggs:StaticConePenetrationTestType / diggs:estimatedWaterDepth
Namespace http://diggsml.org/schema-dev
Annotations

Estimated depth to water from land surface at time of test.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="estimatedWaterDepth" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>Estimated depth to water from land surface at time of test.</documentation>
  </annotation>
</element>

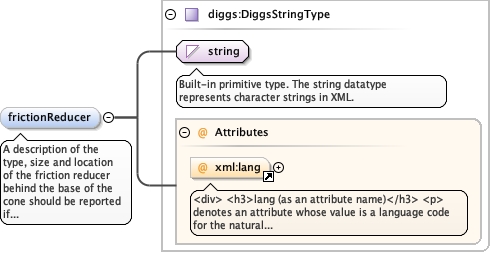

Element diggs:StaticConePenetrationTestType / diggs:frictionReducer
Namespace http://diggsml.org/schema-dev
Annotations

A description of the type, size and location of the
friction reducer behind the base of the cone should be reported if
used
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="frictionReducer" type="diggs:DiggsStringType">
  <annotation>
    <documentation>A description of the type, size and location of the friction reducer behind the base of the cone should be reported if used</documentation>
  </annotation>
</element>

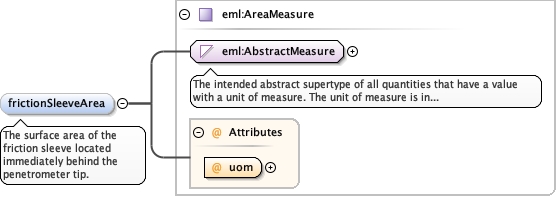

Element diggs:StaticConePenetrationTestType / diggs:frictionSleeveArea
Namespace http://diggsml.org/schema-dev
Annotations

The surface area of the friction sleeve located
immediately behind the penetrometer tip.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure_uomMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure
Type eml:AreaMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUom required
Source

<element minOccurs="0" name="frictionSleeveArea" type="eml:AreaMeasure">
  <annotation>
    <documentation>The surface area of the friction sleeve located immediately behind the penetrometer tip.</documentation>
  </annotation>
</element>
Element diggs:StaticConePenetrationTestType / diggs:netAreaRatioCorrection
Namespace http://diggsml.org/schema-dev
Annotations

The correction necessary to adjust the penetration cone
resistance due to penetration water pressures acting behind the cone
tip.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="netAreaRatioCorrection" type="double">
  <annotation>
    <documentation>The correction necessary to adjust the penetration cone resistance due to penetration water pressures acting behind the cone tip.</documentation>
  </annotation>
</element>

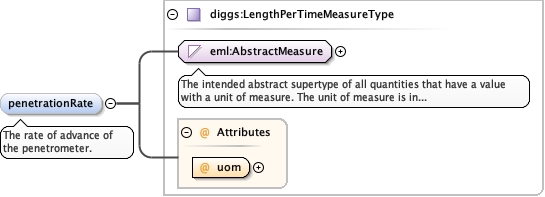

Element diggs:StaticConePenetrationTestType / diggs:penetrationRate
Namespace http://diggsml.org/schema-dev
Annotations

The rate of advance of the penetrometer.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType_uomKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType
Type diggs:LengthPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:lengthPerTimeUom required
Source

<element minOccurs="0" name="penetrationRate" type="diggs:LengthPerTimeMeasureType">
  <annotation>
    <documentation>The rate of advance of the penetrometer.</documentation>
  </annotation>
</element>

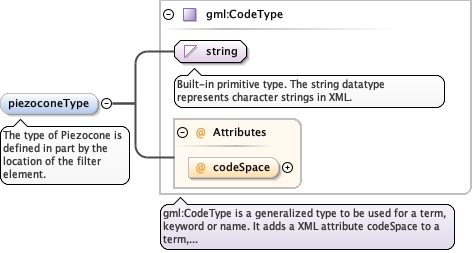

Element diggs:StaticConePenetrationTestType / diggs:piezoconeType
Namespace http://diggsml.org/schema-dev
Annotations

The type of Piezocone is defined in part by the location
of the filter element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="piezoconeType" type="gml:CodeType">
  <annotation>
    <documentation>The type of Piezocone is defined in part by the location of the filter element.</documentation>
  </annotation>
</element>

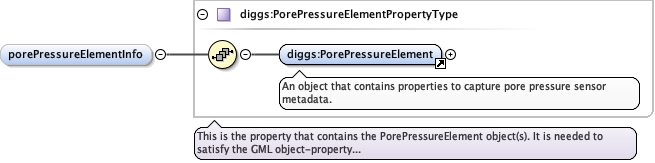

Element diggs:StaticConePenetrationTestType / diggs:porePressureElementInfo
Namespace http://diggsml.org/schema-dev
Diagram
DiagramTestProcedures_xsd_Element_diggs_PorePressureElement.tmp#http___diggsml.org_schema-dev_PorePressureElementTestProcedures_xsd_Complex_Type_diggs_PorePressureElementPropertyType.tmp#http___diggsml.org_schema-dev_PorePressureElementPropertyType
Type diggs:PorePressureElementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:PorePressureElement
Children diggs:PorePressureElement
Instance

<diggs:porePressureElementInfo xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PorePressureElement gml:id="" xml:lang="">{1,1}</diggs:PorePressureElement>
</diggs:porePressureElementInfo>
Source

<element maxOccurs="unbounded" minOccurs="0" name="porePressureElementInfo" type="diggs:PorePressureElementPropertyType"/>

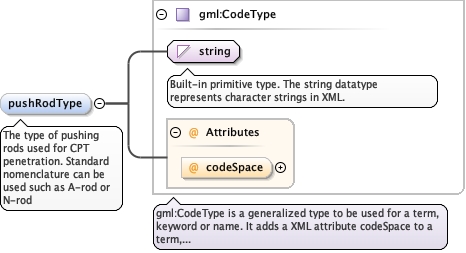

Element diggs:StaticConePenetrationTestType / diggs:pushRodType
Namespace http://diggsml.org/schema-dev
Annotations

The type of pushing rods used for CPT penetration.
Standard nomenclature can be used such as A-rod or
N-rod
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="pushRodType" type="gml:CodeType">
  <annotation>
    <documentation>The type of pushing rods used for CPT penetration. Standard nomenclature can be used such as A-rod or N-rod</documentation>
  </annotation>
</element>

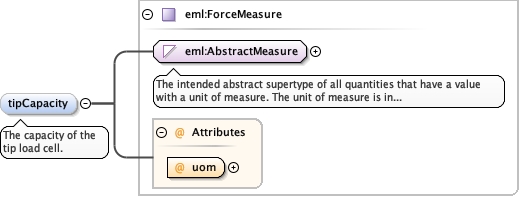

Element diggs:StaticConePenetrationTestType / diggs:tipCapacity
Namespace http://diggsml.org/schema-dev
Annotations

The capacity of the tip load cell.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="tipCapacity" type="eml:ForceMeasure">
  <annotation>
    <documentation>The capacity of the tip load cell.</documentation>
  </annotation>
</element>
Element diggs:StaticConePenetrationTestType / diggs:sleeveCapacity
Namespace http://diggsml.org/schema-dev
Annotations

The capacity of the sleeve load cell.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="sleeveCapacity" type="eml:ForceMeasure">
  <annotation>
    <documentation>The capacity of the sleeve load cell.</documentation>
  </annotation>
</element>

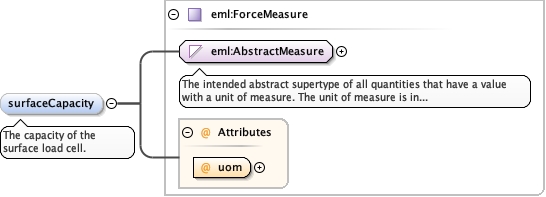

Element diggs:StaticConePenetrationTestType / diggs:surfaceCapacity
Namespace http://diggsml.org/schema-dev
Annotations

The capacity of the surface load cell.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="surfaceCapacity" type="eml:ForceMeasure">
  <annotation>
    <documentation>The capacity of the surface load cell.</documentation>
  </annotation>
</element>

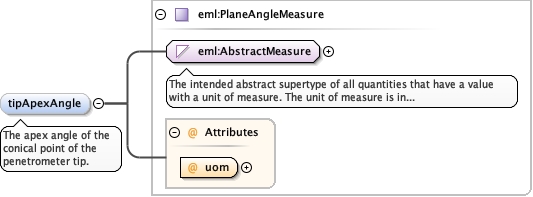

Element diggs:StaticConePenetrationTestType / diggs:tipApexAngle
Namespace http://diggsml.org/schema-dev
Annotations

The apex angle of the conical point of the penetrometer
tip.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure
Type eml:PlaneAngleMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="tipApexAngle" type="eml:PlaneAngleMeasure">
  <annotation>
    <documentation>The apex angle of the conical point of the penetrometer tip.</documentation>
  </annotation>
</element>

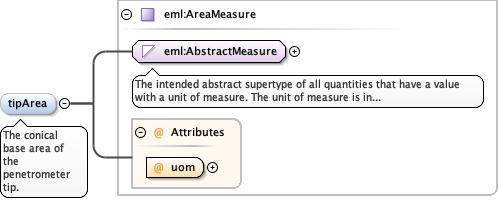

Element diggs:StaticConePenetrationTestType / diggs:tipArea
Namespace http://diggsml.org/schema-dev
Annotations

The conical base area of the penetrometer
tip.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure_uomMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure
Type eml:AreaMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUom required
Source

<element minOccurs="0" name="tipArea" type="eml:AreaMeasure">
  <annotation>
    <documentation>The conical base area of the penetrometer tip.</documentation>
  </annotation>
</element>

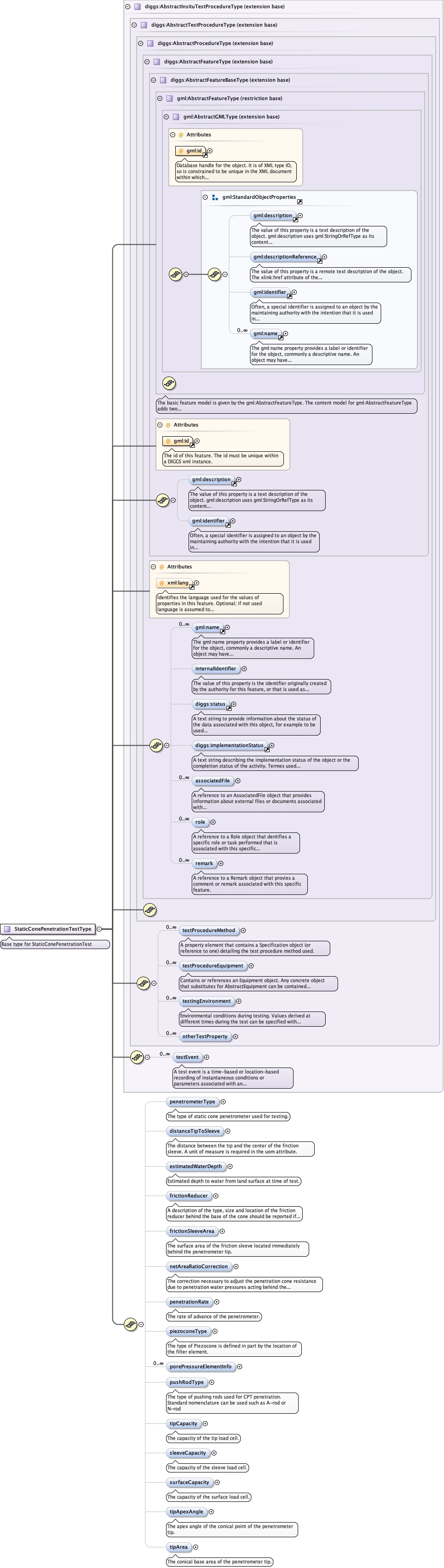

Complex Type diggs:StaticConePenetrationTestType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for StaticConePenetrationTest
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_penetrometerTypeTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_distanceTipToSleeveTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_estimatedWaterDepthTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_frictionReducerTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_frictionSleeveAreaTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_netAreaRatioCorrectionTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_penetrationRateTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_piezoconeTypeTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_porePressureElementInfoTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_pushRodTypeTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_tipCapacityTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_sleeveCapacityTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_surfaceCapacityTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_tipApexAngleTestProcedures_xsd_Complex_Type_diggs_StaticConePenetrationTestType.tmp#http___diggsml.org_schema-dev_StaticConePenetrationTestType_tipArea
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Element diggs:StaticConePenetrationTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent* , diggs:penetrometerType{0,1} , diggs:distanceTipToSleeve{0,1} , diggs:estimatedWaterDepth{0,1} , diggs:frictionReducer{0,1} , diggs:frictionSleeveArea{0,1} , diggs:netAreaRatioCorrection{0,1} , diggs:penetrationRate{0,1} , diggs:piezoconeType{0,1} , diggs:porePressureElementInfo* , diggs:pushRodType{0,1} , diggs:tipCapacity{0,1} , diggs:sleeveCapacity{0,1} , diggs:surfaceCapacity{0,1} , diggs:tipApexAngle{0,1} , diggs:tipArea{0,1}
Children diggs:associatedFile, diggs:distanceTipToSleeve, diggs:estimatedWaterDepth, diggs:frictionReducer, diggs:frictionSleeveArea, diggs:implementationStatus, diggs:internalIdentifier, diggs:netAreaRatioCorrection, diggs:otherTestProperty, diggs:penetrationRate, diggs:penetrometerType, diggs:piezoconeType, diggs:porePressureElementInfo, diggs:pushRodType, diggs:remark, diggs:role, diggs:sleeveCapacity, diggs:status, diggs:surfaceCapacity, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:tipApexAngle, diggs:tipArea, diggs:tipCapacity, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="StaticConePenetrationTestType">
  <annotation>
    <documentation>Base type for StaticConePenetrationTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="penetrometerType" type="gml:CodeType">
          <annotation>
            <documentation>The type of static cone penetrometer used for testing.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="distanceTipToSleeve" type="eml:LengthMeasure">
          <annotation>
            <documentation>The distance between the tip and the center of the friction sleeve. A unit of measure is required in the uom attribute.</documentation>
          </annotation>
        </element>
        <element name="estimatedWaterDepth" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>Estimated depth to water from land surface at time of test.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="frictionReducer" type="diggs:DiggsStringType">
          <annotation>
            <documentation>A description of the type, size and location of the friction reducer behind the base of the cone should be reported if used</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="frictionSleeveArea" type="eml:AreaMeasure">
          <annotation>
            <documentation>The surface area of the friction sleeve located immediately behind the penetrometer tip.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="netAreaRatioCorrection" type="double">
          <annotation>
            <documentation>The correction necessary to adjust the penetration cone resistance due to penetration water pressures acting behind the cone tip.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="penetrationRate" type="diggs:LengthPerTimeMeasureType">
          <annotation>
            <documentation>The rate of advance of the penetrometer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="piezoconeType" type="gml:CodeType">
          <annotation>
            <documentation>The type of Piezocone is defined in part by the location of the filter element.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="porePressureElementInfo" type="diggs:PorePressureElementPropertyType"/>
        <element minOccurs="0" name="pushRodType" type="gml:CodeType">
          <annotation>
            <documentation>The type of pushing rods used for CPT penetration. Standard nomenclature can be used such as A-rod or N-rod</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tipCapacity" type="eml:ForceMeasure">
          <annotation>
            <documentation>The capacity of the tip load cell.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="sleeveCapacity" type="eml:ForceMeasure">
          <annotation>
            <documentation>The capacity of the sleeve load cell.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="surfaceCapacity" type="eml:ForceMeasure">
          <annotation>
            <documentation>The capacity of the surface load cell.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tipApexAngle" type="eml:PlaneAngleMeasure">
          <annotation>
            <documentation>The apex angle of the conical point of the penetrometer tip.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tipArea" type="eml:AreaMeasure">
          <annotation>
            <documentation>The conical base area of the penetrometer tip.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
