Element diggs:DirectShearTestType / diggs:areaShearBox
Namespace http://diggsml.org/schema-dev
Annotations

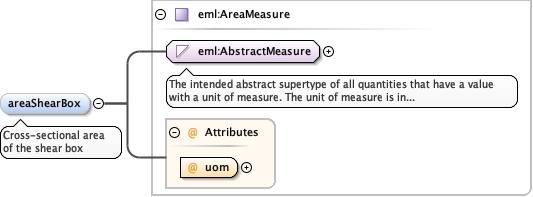

Cross-sectional area of the shear box
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure_uomMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure
Type eml:AreaMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUom required
Source

<element minOccurs="0" name="areaShearBox" type="eml:AreaMeasure">
  <annotation>
    <documentation>Cross-sectional area of the shear box</documentation>
  </annotation>
</element>

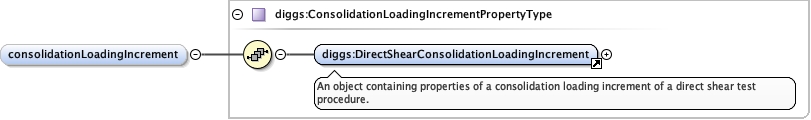

Element diggs:DirectShearTestType / diggs:consolidationLoadingIncrement
Namespace http://diggsml.org/schema-dev
Diagram
DiagramTestProcedures_xsd_Element_diggs_DirectShearConsolidationLoadingIncrement.tmp#http___diggsml.org_schema-dev_DirectShearConsolidationLoadingIncrementTestProcedures_xsd_Complex_Type_diggs_ConsolidationLoadingIncrementPropertyType.tmp#http___diggsml.org_schema-dev_ConsolidationLoadingIncrementPropertyType
Type diggs:ConsolidationLoadingIncrementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:DirectShearConsolidationLoadingIncrement
Children diggs:DirectShearConsolidationLoadingIncrement
Instance

<diggs:consolidationLoadingIncrement xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:DirectShearConsolidationLoadingIncrement gml:id="" xml:lang="">{1,1}</diggs:DirectShearConsolidationLoadingIncrement>
</diggs:consolidationLoadingIncrement>
Source

<element maxOccurs="unbounded" minOccurs="0" name="consolidationLoadingIncrement" type="diggs:ConsolidationLoadingIncrementPropertyType"/>
Element diggs:DirectShearTestType / diggs:directShearTestType
Namespace http://diggsml.org/schema-dev
Annotations

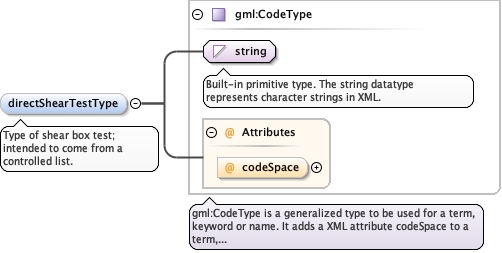

Type of shear box test; intended to come from a
controlled list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
default false
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element default="false" minOccurs="0" name="directShearTestType" type="gml:CodeType">
  <annotation>
    <documentation>Type of shear box test; intended to come from a controlled list.</documentation>
  </annotation>
</element>

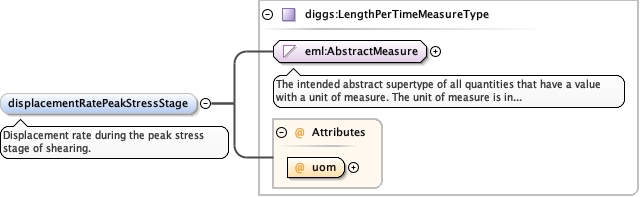

Element diggs:DirectShearTestType / diggs:displacementRatePeakStressStage
Namespace http://diggsml.org/schema-dev
Annotations

Displacement rate during the peak stress stage of
shearing.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType_uomKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType
Type diggs:LengthPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:lengthPerTimeUom required
Source

<element minOccurs="0" name="displacementRatePeakStressStage" type="diggs:LengthPerTimeMeasureType">
  <annotation>
    <documentation>Displacement rate during the peak stress stage of shearing.</documentation>
  </annotation>
</element>

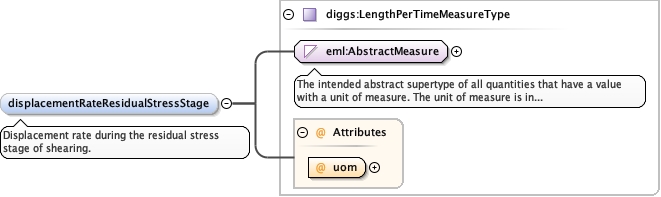

Element diggs:DirectShearTestType / diggs:displacementRateResidualStressStage
Namespace http://diggsml.org/schema-dev
Annotations

Displacement rate during the residual stress stage of
shearing.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType_uomKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType
Type diggs:LengthPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:lengthPerTimeUom required
Source

<element minOccurs="0" name="displacementRateResidualStressStage" type="diggs:LengthPerTimeMeasureType">
  <annotation>
    <documentation>Displacement rate during the residual stress stage of shearing.</documentation>
  </annotation>
</element>

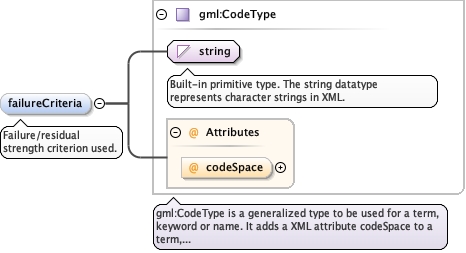

Element diggs:DirectShearTestType / diggs:failureCriteria
Namespace http://diggsml.org/schema-dev
Annotations

Failure/residual strength criterion used.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="failureCriteria" type="gml:CodeType">
  <annotation>
    <documentation>Failure/residual strength criterion used.</documentation>
  </annotation>
</element>

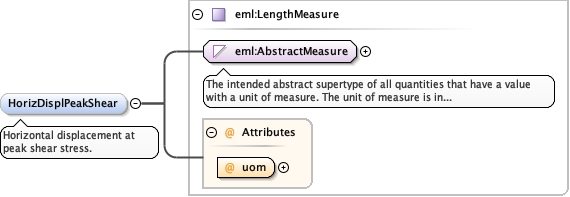

Element diggs:DirectShearTestType / diggs:HorizDisplPeakShear
Namespace http://diggsml.org/schema-dev
Annotations

Horizontal displacement at peak shear
stress.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="HorizDisplPeakShear" type="eml:LengthMeasure">
  <annotation>
    <documentation>Horizontal displacement at peak shear stress.</documentation>
  </annotation>
</element>

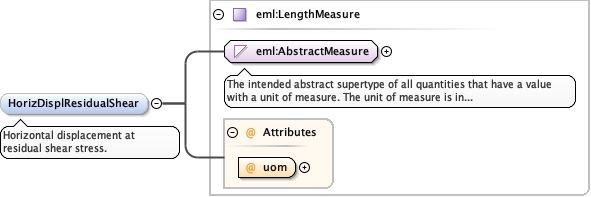

Element diggs:DirectShearTestType / diggs:HorizDisplResidualShear
Namespace http://diggsml.org/schema-dev
Annotations

Horizontal displacement at residual shear
stress.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="HorizDisplResidualShear" type="eml:LengthMeasure">
  <annotation>
    <documentation>Horizontal displacement at residual shear stress.</documentation>
  </annotation>
</element>
Element diggs:DirectShearTestType / diggs:normalForcePriorToShearing
Namespace http://diggsml.org/schema-dev
Annotations

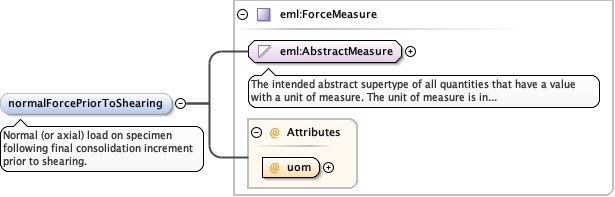

Normal (or axial) load on specimen following final
consolidation increment prior to shearing.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="normalForcePriorToShearing" type="eml:ForceMeasure">
  <annotation>
    <documentation>Normal (or axial) load on specimen following final consolidation increment prior to shearing.</documentation>
  </annotation>
</element>
Element diggs:DirectShearTestType / diggs:normalStressApplied
Namespace http://diggsml.org/schema-dev
Annotations

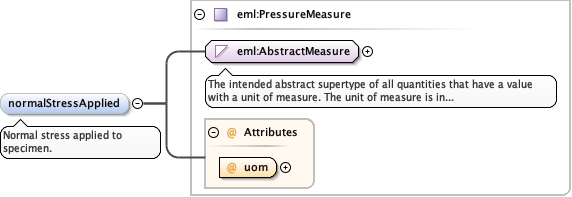

Normal stress applied to specimen.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="normalStressApplied" type="eml:PressureMeasure">
  <annotation>
    <documentation>Normal stress applied to specimen.</documentation>
  </annotation>
</element>

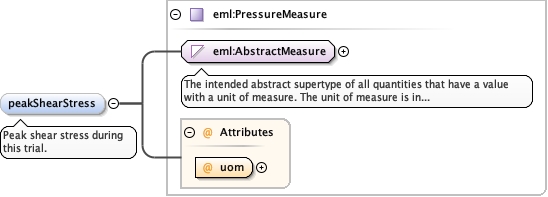

Element diggs:DirectShearTestType / diggs:peakShearStress
Namespace http://diggsml.org/schema-dev
Annotations

Peak shear stress during this trial.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="peakShearStress" type="eml:PressureMeasure">
  <annotation>
    <documentation>Peak shear stress during this trial.</documentation>
  </annotation>
</element>

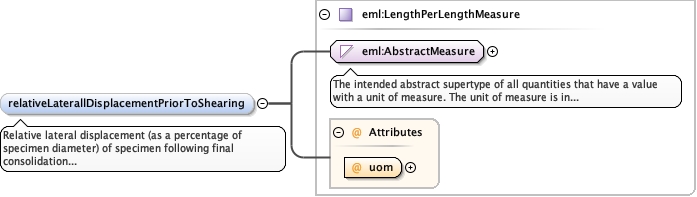

Element diggs:DirectShearTestType / diggs:relativeLaterallDisplacementPriorToShearing
Namespace http://diggsml.org/schema-dev
Annotations

Relative lateral displacement (as a percentage of
specimen diameter) of specimen following final consolidation
increment prior to shearing.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure
Type eml:LengthPerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthPerLengthUom required
Source

<element minOccurs="0" name="relativeLaterallDisplacementPriorToShearing" type="eml:LengthPerLengthMeasure">
  <annotation>
    <documentation>Relative lateral displacement (as a percentage of specimen diameter) of specimen following final consolidation increment prior to shearing.</documentation>
  </annotation>
</element>

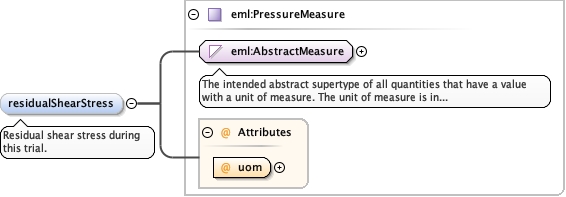

Element diggs:DirectShearTestType / diggs:residualShearStress
Namespace http://diggsml.org/schema-dev
Annotations

Residual shear stress during this trial.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="residualShearStress" type="eml:PressureMeasure">
  <annotation>
    <documentation>Residual shear stress during this trial.</documentation>
  </annotation>
</element>
Element diggs:DirectShearTestType / diggs:shearForcePriorToShearing
Namespace http://diggsml.org/schema-dev
Annotations

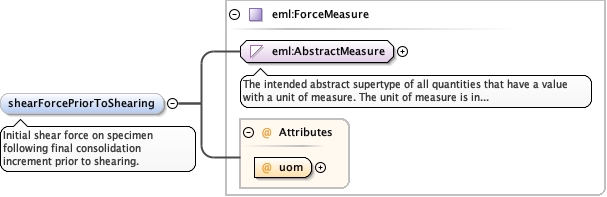

Initial shear force on specimen following final
consolidation increment prior to shearing.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="shearForcePriorToShearing" type="eml:ForceMeasure">
  <annotation>
    <documentation>Initial shear force on specimen following final consolidation increment prior to shearing.</documentation>
  </annotation>
</element>
Element diggs:DirectShearTestType / diggs:verticalDisplacementPriorToShearing
Namespace http://diggsml.org/schema-dev
Annotations

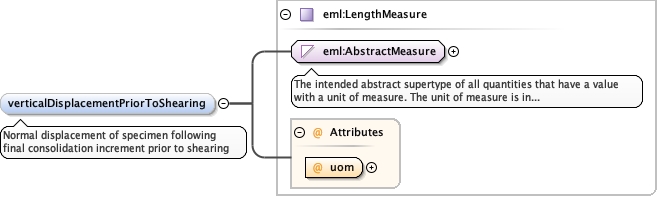

Normal displacement of specimen following final
consolidation increment prior to shearing
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="verticalDisplacementPriorToShearing" type="eml:LengthMeasure">
  <annotation>
    <documentation>Normal displacement of specimen following final consolidation increment prior to shearing</documentation>
  </annotation>
</element>

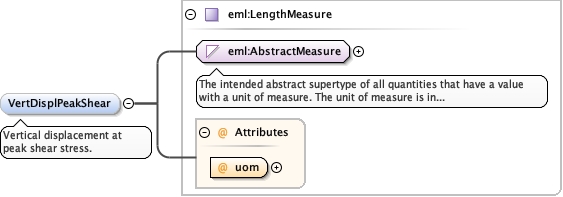

Element diggs:DirectShearTestType / diggs:VertDisplPeakShear
Namespace http://diggsml.org/schema-dev
Annotations

Vertical displacement at peak shear
stress.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="VertDisplPeakShear" type="eml:LengthMeasure">
  <annotation>
    <documentation>Vertical displacement at peak shear stress.</documentation>
  </annotation>
</element>

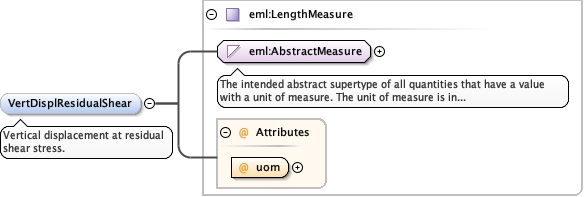

Element diggs:DirectShearTestType / diggs:VertDisplResidualShear
Namespace http://diggsml.org/schema-dev
Annotations

Vertical displacement at residual shear
stress.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="VertDisplResidualShear" type="eml:LengthMeasure">
  <annotation>
    <documentation>Vertical displacement at residual shear stress.</documentation>
  </annotation>
</element>

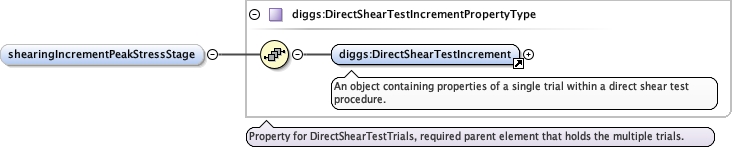

Element diggs:DirectShearTestType / diggs:shearingIncrementPeakStressStage
Namespace http://diggsml.org/schema-dev
Diagram
DiagramTestProcedures_xsd_Element_diggs_DirectShearTestIncrement.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementPropertyType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementPropertyType
Type diggs:DirectShearTestIncrementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:DirectShearTestIncrement
Children diggs:DirectShearTestIncrement
Instance

<diggs:shearingIncrementPeakStressStage xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:DirectShearTestIncrement gml:id="" xml:lang="">{1,1}</diggs:DirectShearTestIncrement>
</diggs:shearingIncrementPeakStressStage>
Source

<element maxOccurs="unbounded" minOccurs="0" name="shearingIncrementPeakStressStage" type="diggs:DirectShearTestIncrementPropertyType"/>
Element diggs:DirectShearTestType / diggs:shearingIncrementResidualStressStage
Namespace http://diggsml.org/schema-dev

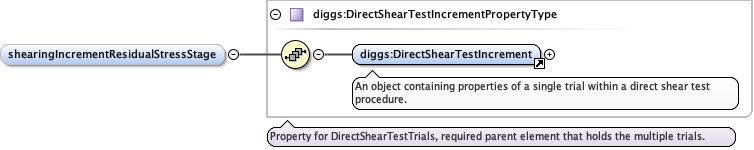

Diagram
DiagramTestProcedures_xsd_Element_diggs_DirectShearTestIncrement.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementPropertyType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementPropertyType
Type diggs:DirectShearTestIncrementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:DirectShearTestIncrement
Children diggs:DirectShearTestIncrement
Instance

<diggs:shearingIncrementResidualStressStage xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:DirectShearTestIncrement gml:id="" xml:lang="">{1,1}</diggs:DirectShearTestIncrement>
</diggs:shearingIncrementResidualStressStage>
Source

<element maxOccurs="unbounded" minOccurs="0" name="shearingIncrementResidualStressStage" type="diggs:DirectShearTestIncrementPropertyType"/>
Complex Type diggs:DirectShearTestType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for DirectShearTest

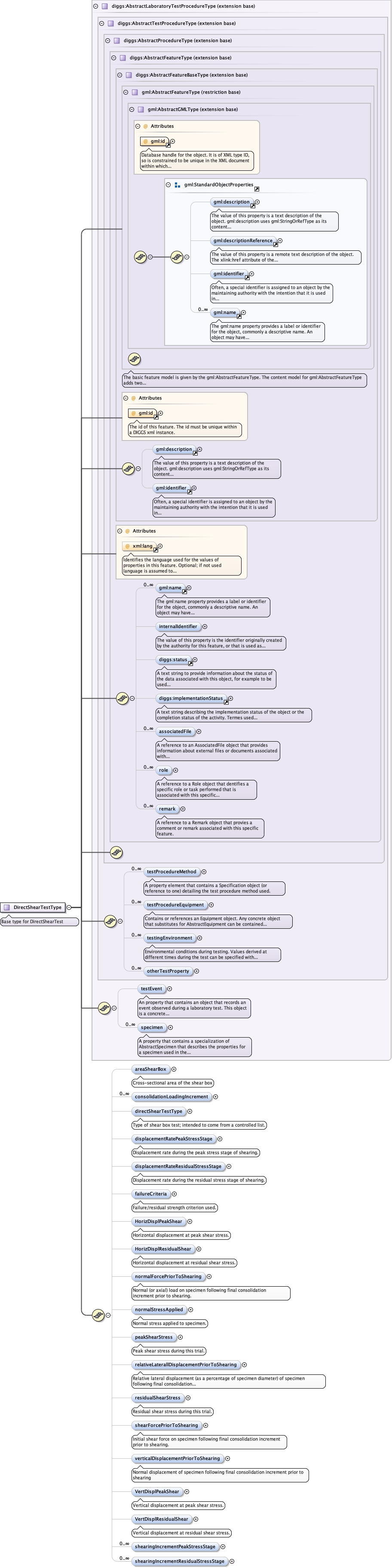

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_specimenKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_areaShearBoxTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_consolidationLoadingIncrementTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_directShearTestTypeTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_displacementRatePeakStressStageTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_displacementRateResidualStressStageTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_failureCriteriaTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_HorizDisplPeakShearTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_HorizDisplResidualShearTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_normalForcePriorToShearingTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_normalStressAppliedTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_peakShearStressTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_relativeLaterallDisplacementPriorToShearingTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_residualShearStressTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_shearForcePriorToShearingTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_verticalDisplacementPriorToShearingTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_VertDisplPeakShearTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_VertDisplResidualShearTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_shearingIncrementPeakStressStageTestProcedures_xsd_Complex_Type_diggs_DirectShearTestType.tmp#http___diggsml.org_schema-dev_DirectShearTestType_shearingIncrementResidualStressStage
Type extension of diggs:AbstractLaboratoryTestProcedureType
Type hierarchy
Used by
Element diggs:DirectShearTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent{0,1} , diggs:specimen* , diggs:areaShearBox{0,1} , diggs:consolidationLoadingIncrement* , diggs:directShearTestType{0,1} , diggs:displacementRatePeakStressStage{0,1} , diggs:displacementRateResidualStressStage{0,1} , diggs:failureCriteria{0,1} , diggs:HorizDisplPeakShear{0,1} , diggs:HorizDisplResidualShear{0,1} , diggs:normalForcePriorToShearing{0,1} , diggs:normalStressApplied{0,1} , diggs:peakShearStress{0,1} , diggs:relativeLaterallDisplacementPriorToShearing{0,1} , diggs:residualShearStress{0,1} , diggs:shearForcePriorToShearing{0,1} , diggs:verticalDisplacementPriorToShearing{0,1} , diggs:VertDisplPeakShear{0,1} , diggs:VertDisplResidualShear{0,1} , diggs:shearingIncrementPeakStressStage* , diggs:shearingIncrementResidualStressStage*
Children diggs:HorizDisplPeakShear, diggs:HorizDisplResidualShear, diggs:VertDisplPeakShear, diggs:VertDisplResidualShear, diggs:areaShearBox, diggs:associatedFile, diggs:consolidationLoadingIncrement, diggs:directShearTestType, diggs:displacementRatePeakStressStage, diggs:displacementRateResidualStressStage, diggs:failureCriteria, diggs:implementationStatus, diggs:internalIdentifier, diggs:normalForcePriorToShearing, diggs:normalStressApplied, diggs:otherTestProperty, diggs:peakShearStress, diggs:relativeLaterallDisplacementPriorToShearing, diggs:remark, diggs:residualShearStress, diggs:role, diggs:shearForcePriorToShearing, diggs:shearingIncrementPeakStressStage, diggs:shearingIncrementResidualStressStage, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:verticalDisplacementPriorToShearing, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="DirectShearTestType">
  <annotation>
    <documentation>Base type for DirectShearTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLaboratoryTestProcedureType">
      <sequence>
        <element minOccurs="0" name="areaShearBox" type="eml:AreaMeasure">
          <annotation>
            <documentation>Cross-sectional area of the shear box</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="consolidationLoadingIncrement" type="diggs:ConsolidationLoadingIncrementPropertyType"/>
        <element default="false" minOccurs="0" name="directShearTestType" type="gml:CodeType">
          <annotation>
            <documentation>Type of shear box test; intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="displacementRatePeakStressStage" type="diggs:LengthPerTimeMeasureType">
          <annotation>
            <documentation>Displacement rate during the peak stress stage of shearing.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="displacementRateResidualStressStage" type="diggs:LengthPerTimeMeasureType">
          <annotation>
            <documentation>Displacement rate during the residual stress stage of shearing.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="failureCriteria" type="gml:CodeType">
          <annotation>
            <documentation>Failure/residual strength criterion used.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="HorizDisplPeakShear" type="eml:LengthMeasure">
          <annotation>
            <documentation>Horizontal displacement at peak shear stress.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="HorizDisplResidualShear" type="eml:LengthMeasure">
          <annotation>
            <documentation>Horizontal displacement at residual shear stress.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="normalForcePriorToShearing" type="eml:ForceMeasure">
          <annotation>
            <documentation>Normal (or axial) load on specimen following final consolidation increment prior to shearing.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="normalStressApplied" type="eml:PressureMeasure">
          <annotation>
            <documentation>Normal stress applied to specimen.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="peakShearStress" type="eml:PressureMeasure">
          <annotation>
            <documentation>Peak shear stress during this trial.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="relativeLaterallDisplacementPriorToShearing" type="eml:LengthPerLengthMeasure">
          <annotation>
            <documentation>Relative lateral displacement (as a percentage of specimen diameter) of specimen following final consolidation increment prior to shearing.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="residualShearStress" type="eml:PressureMeasure">
          <annotation>
            <documentation>Residual shear stress during this trial.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="shearForcePriorToShearing" type="eml:ForceMeasure">
          <annotation>
            <documentation>Initial shear force on specimen following final consolidation increment prior to shearing.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="verticalDisplacementPriorToShearing" type="eml:LengthMeasure">
          <annotation>
            <documentation>Normal displacement of specimen following final consolidation increment prior to shearing</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="VertDisplPeakShear" type="eml:LengthMeasure">
          <annotation>
            <documentation>Vertical displacement at peak shear stress.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="VertDisplResidualShear" type="eml:LengthMeasure">
          <annotation>
            <documentation>Vertical displacement at residual shear stress.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="shearingIncrementPeakStressStage" type="diggs:DirectShearTestIncrementPropertyType"/>
        <element maxOccurs="unbounded" minOccurs="0" name="shearingIncrementResidualStressStage" type="diggs:DirectShearTestIncrementPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
