Complex Type eml:LengthPerLengthMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

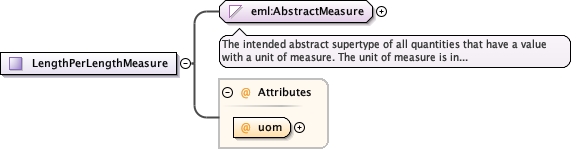

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Used by
Attributes
QName Type Use
uom eml:LengthPerLengthUom required
Source

<xs:complexType name="LengthPerLengthMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:LengthPerLengthUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:LengthPerLengthMeasure / @uom
Namespace No namespace
Type eml:LengthPerLengthUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration %
percent
enumeration 0.01 ft/ft
foot per hundred foot
enumeration 1/30 m/m
metre per thirty metre
enumeration Euc
euclid
enumeration ft/ft
foot per foot
enumeration ft/in
foot per inch
enumeration ft/m
foot per metre
enumeration ft/mi
foot per mile
enumeration km/cm
kilometre per centimetre
enumeration m/cm
metre per centimetre
enumeration m/km
metre per kilometre
enumeration m/m
metre per metre
enumeration mi/in
mile per inch
Used by
Source

<xs:attribute name="uom" use="required" type="eml:LengthPerLengthUom"/>
