Element diggs:LabCBRTestTrialType / diggs:trialNo
Namespace http://diggsml.org/schema-dev
Annotations

The count of the test cycle
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="trialNo" type="positiveInteger" minOccurs="0">
  <annotation>
    <documentation>The count of the test cycle</documentation>
  </annotation>
</element>

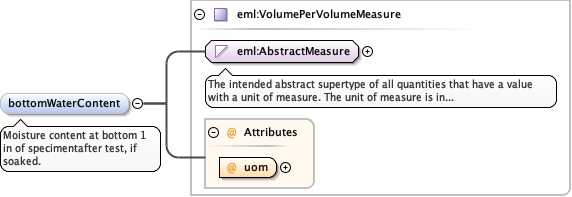

Element diggs:LabCBRTestTrialType / diggs:bottomWaterContent
Namespace http://diggsml.org/schema-dev
Annotations

Moisture content at bottom 1 in of specimentafter test, if soaked.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element name="bottomWaterContent" type="eml:VolumePerVolumeMeasure" minOccurs="0">
  <annotation>
    <documentation>Moisture content at bottom 1 in of specimentafter test, if soaked.</documentation>
  </annotation>
</element>

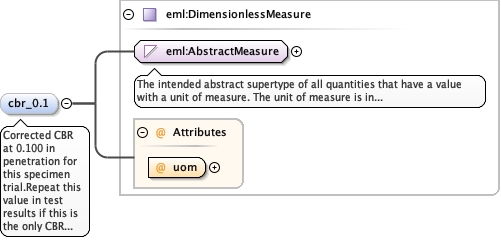

Element diggs:LabCBRTestTrialType / diggs:cbr_0.1
Namespace http://diggsml.org/schema-dev
Annotations

Corrected CBR at 0.100 in penetration for this specimen trial.Repeat this value in test results if this is the only CBR trial for this sample. If other CBRs at different compaction and water content are run, overall test CBR value (as average or otherwise) is reported in the test result.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure_uomMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure
Type eml:DimensionlessMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DimensionlessUom required
Source

<element minOccurs="0" name="cbr_0.1" type="eml:DimensionlessMeasure">
  <annotation>
    <documentation>Corrected CBR at 0.100 in penetration for this specimen trial.Repeat this value in test results if this is the only CBR trial for this sample. If other CBRs at different compaction and water content are run, overall test CBR value (as average or otherwise) is reported in the test result.</documentation>
  </annotation>
</element>
Element diggs:LabCBRTestTrialType / diggs:cbr_0.2
Namespace http://diggsml.org/schema-dev
Annotations

Corrected CBR at 0.200 in penetration for this specimen trial.Repeat this value in test results if this is the only CBR trial for this sample. If other CBRs at different compaction and water content are run, overall test CBR value (as average or otherwise) is reported in the test result.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure_uomMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure
Type eml:DimensionlessMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DimensionlessUom required
Source

<element minOccurs="0" name="cbr_0.2" type="eml:DimensionlessMeasure">
  <annotation>
    <documentation>Corrected CBR at 0.200 in penetration for this specimen trial.Repeat this value in test results if this is the only CBR trial for this sample. If other CBRs at different compaction and water content are run, overall test CBR value (as average or otherwise) is reported in the test result.</documentation>
  </annotation>
</element>
Element diggs:LabCBRTestTrialType / diggs:penetrationIncrement
Namespace http://diggsml.org/schema-dev
Annotations

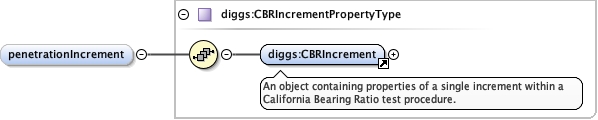

Diagram
DiagramTestProcedures_xsd_Element_diggs_CBRIncrement.tmp#http___diggsml.org_schema-dev_CBRIncrementTestProcedures_xsd_Complex_Type_diggs_CBRIncrementPropertyType.tmp#http___diggsml.org_schema-dev_CBRIncrementPropertyType
Type diggs:CBRIncrementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:CBRIncrement
Children diggs:CBRIncrement
Instance

<diggs:penetrationIncrement xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:CBRIncrement gml:id="" xml:lang="">{1,1}</diggs:CBRIncrement>
</diggs:penetrationIncrement>
Source

<element minOccurs="0" name="penetrationIncrement" type="diggs:CBRIncrementPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation/>
  </annotation>
</element>

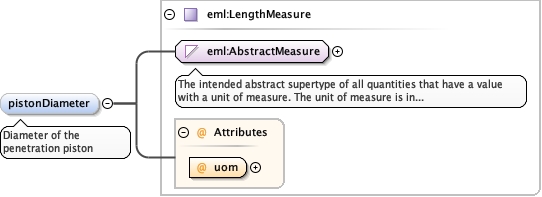

Element diggs:LabCBRTestTrialType / diggs:pistonDiameter
Namespace http://diggsml.org/schema-dev
Annotations

Diameter of the penetration piston
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="pistonDiameter" type="eml:LengthMeasure">
  <annotation>
    <documentation>Diameter of the penetration piston</documentation>
  </annotation>
</element>

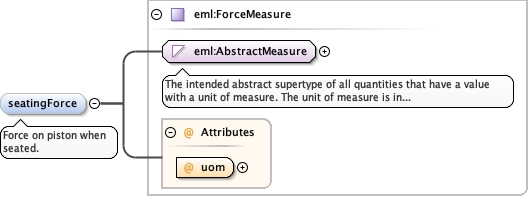

Element diggs:LabCBRTestTrialType / diggs:seatingForce
Namespace http://diggsml.org/schema-dev
Annotations

Force on piston when seated.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element name="seatingForce" type="eml:ForceMeasure" minOccurs="0">
  <annotation>
    <documentation>Force on piston when seated.</documentation>
  </annotation>
</element>
Element diggs:LabCBRTestTrialType / diggs:soaking
Namespace http://diggsml.org/schema-dev
Annotations

True or false if specimen soaked before test
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element name="soaking" type="boolean" minOccurs="0">
  <annotation>
    <documentation>True or false if specimen soaked before test</documentation>
  </annotation>
</element>

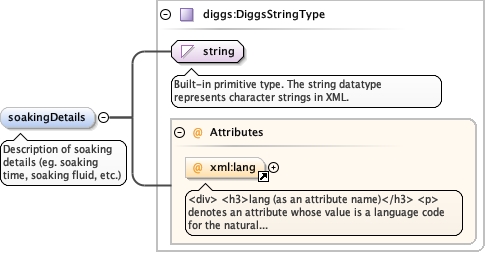

Element diggs:LabCBRTestTrialType / diggs:soakingDetails
Namespace http://diggsml.org/schema-dev
Annotations

Description of soaking details (eg. soaking time, soaking fluid, etc.)
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="soakingDetails" type="diggs:DiggsStringType" minOccurs="0">
  <annotation>
    <documentation>Description of soaking details (eg. soaking time, soaking fluid, etc.)</documentation>
  </annotation>
</element>
Element diggs:LabCBRTestTrialType / diggs:surchargePressure
Namespace http://diggsml.org/schema-dev
Annotations

Load imposed by surchage from test
equipment.

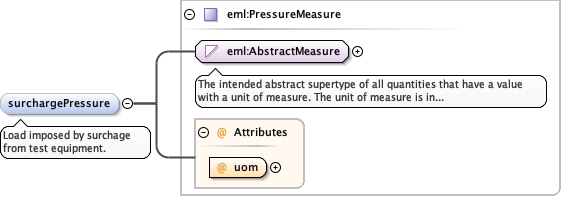

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element name="surchargePressure" type="eml:PressureMeasure" minOccurs="0">
  <annotation>
    <documentation>Load imposed by surchage from test equipment.</documentation>
  </annotation>
</element>

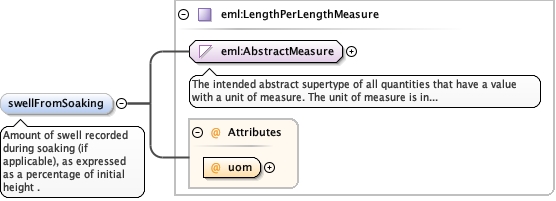

Element diggs:LabCBRTestTrialType / diggs:swellFromSoaking
Namespace http://diggsml.org/schema-dev
Annotations

Amount of swell recorded during soaking (if
applicable), as expressed as a percentage of initial height
.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure
Type eml:LengthPerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthPerLengthUom required
Source

<element name="swellFromSoaking" type="eml:LengthPerLengthMeasure" minOccurs="0">
  <annotation>
    <documentation>Amount of swell recorded during soaking (if applicable), as expressed as a percentage of initial height .</documentation>
  </annotation>
</element>

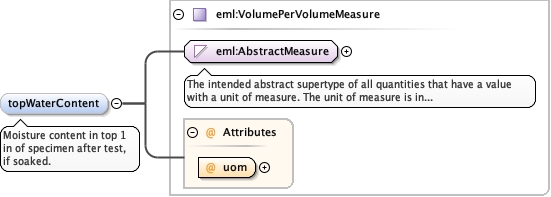

Element diggs:LabCBRTestTrialType / diggs:topWaterContent
Namespace http://diggsml.org/schema-dev
Annotations

Moisture content in top 1 in of specimen after test, if soaked.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element name="topWaterContent" type="eml:VolumePerVolumeMeasure" minOccurs="0">
  <annotation>
    <documentation>Moisture content in top 1 in of specimen after test, if soaked.</documentation>
  </annotation>
</element>

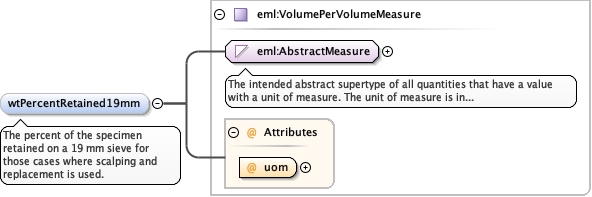

Element diggs:LabCBRTestTrialType / diggs:wtPercentRetained19mm
Namespace http://diggsml.org/schema-dev
Annotations

The percent of the specimen retained on a 19 mm sieve for those cases where scalping and replacement is used.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element name="wtPercentRetained19mm" type="eml:VolumePerVolumeMeasure" minOccurs="0">
  <annotation>
    <documentation>The percent of the specimen retained on a 19 mm sieve for those cases where scalping and replacement is used.</documentation>
  </annotation>
</element>
Complex Type diggs:LabCBRTestTrialType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for LabCBRTestTrials

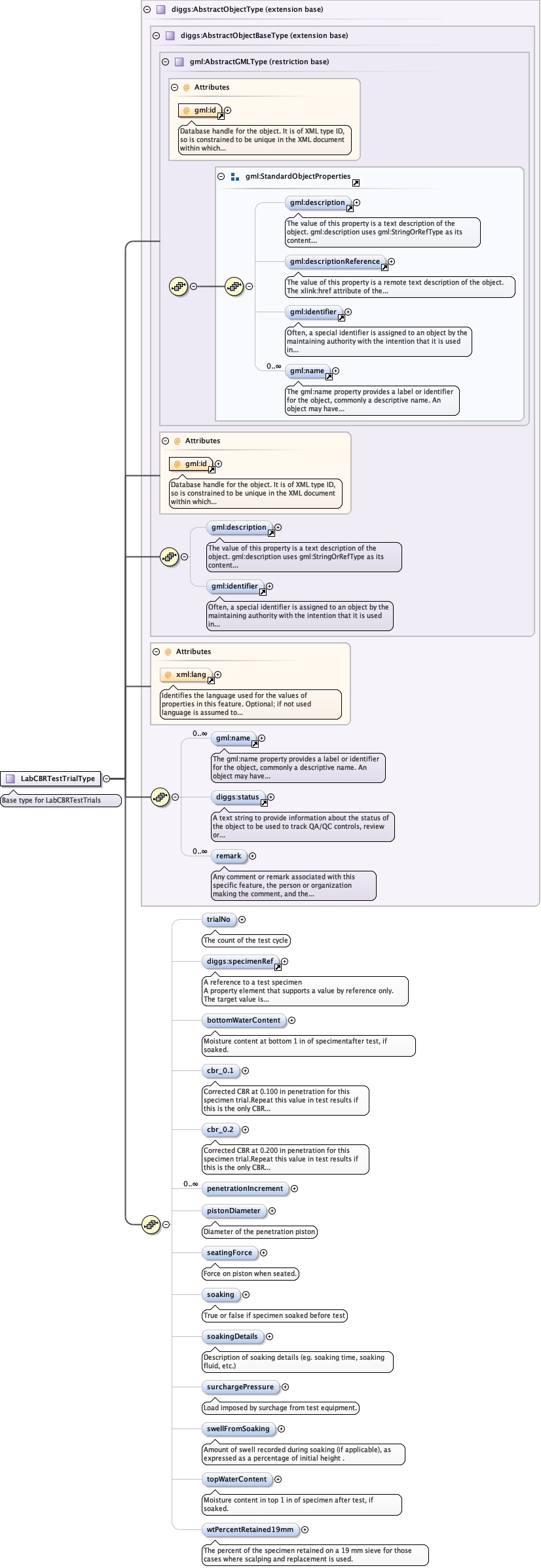

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_trialNoKernel_xsd_Element_diggs_specimenRef.tmp#specimenRefTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_bottomWaterContentTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_cbr_0.1TestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_cbr_0.2TestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_penetrationIncrementTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_pistonDiameterTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_seatingForceTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_soakingTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_soakingDetailsTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_surchargePressureTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_swellFromSoakingTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_topWaterContentTestProcedures_xsd_Complex_Type_diggs_LabCBRTestTrialType.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialType_wtPercentRetained19mm
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:LabCBRTestTrial
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:trialNo{0,1} , diggs:specimenRef{0,1} , diggs:bottomWaterContent{0,1} , diggs:cbr_0.1{0,1} , diggs:cbr_0.2{0,1} , diggs:penetrationIncrement* , diggs:pistonDiameter{0,1} , diggs:seatingForce{0,1} , diggs:soaking{0,1} , diggs:soakingDetails{0,1} , diggs:surchargePressure{0,1} , diggs:swellFromSoaking{0,1} , diggs:topWaterContent{0,1} , diggs:wtPercentRetained19mm{0,1}
Children diggs:bottomWaterContent, diggs:cbr_0.1, diggs:cbr_0.2, diggs:penetrationIncrement, diggs:pistonDiameter, diggs:remark, diggs:seatingForce, diggs:soaking, diggs:soakingDetails, diggs:specimenRef, diggs:status, diggs:surchargePressure, diggs:swellFromSoaking, diggs:topWaterContent, diggs:trialNo, diggs:wtPercentRetained19mm, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="LabCBRTestTrialType">
  <annotation>
    <documentation>Base type for LabCBRTestTrials</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="trialNo" type="positiveInteger" minOccurs="0">
          <annotation>
            <documentation>The count of the test cycle</documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:specimenRef"/>
        <element name="bottomWaterContent" type="eml:VolumePerVolumeMeasure" minOccurs="0">
          <annotation>
            <documentation>Moisture content at bottom 1 in of specimentafter test, if soaked.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="cbr_0.1" type="eml:DimensionlessMeasure">
          <annotation>
            <documentation>Corrected CBR at 0.100 in penetration for this specimen trial.Repeat this value in test results if this is the only CBR trial for this sample. If other CBRs at different compaction and water content are run, overall test CBR value (as average or otherwise) is reported in the test result.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="cbr_0.2" type="eml:DimensionlessMeasure">
          <annotation>
            <documentation>Corrected CBR at 0.200 in penetration for this specimen trial.Repeat this value in test results if this is the only CBR trial for this sample. If other CBRs at different compaction and water content are run, overall test CBR value (as average or otherwise) is reported in the test result.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="penetrationIncrement" type="diggs:CBRIncrementPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="pistonDiameter" type="eml:LengthMeasure">
          <annotation>
            <documentation>Diameter of the penetration piston</documentation>
          </annotation>
        </element>
        <element name="seatingForce" type="eml:ForceMeasure" minOccurs="0">
          <annotation>
            <documentation>Force on piston when seated.</documentation>
          </annotation>
        </element>
        <element name="soaking" type="boolean" minOccurs="0">
          <annotation>
            <documentation>True or false if specimen soaked before test</documentation>
          </annotation>
        </element>
        <element name="soakingDetails" type="diggs:DiggsStringType" minOccurs="0">
          <annotation>
            <documentation>Description of soaking details (eg. soaking time, soaking fluid, etc.)</documentation>
          </annotation>
        </element>
        <element name="surchargePressure" type="eml:PressureMeasure" minOccurs="0">
          <annotation>
            <documentation>Load imposed by surchage from test equipment.</documentation>
          </annotation>
        </element>
        <element name="swellFromSoaking" type="eml:LengthPerLengthMeasure" minOccurs="0">
          <annotation>
            <documentation>Amount of swell recorded during soaking (if applicable), as expressed as a percentage of initial height .</documentation>
          </annotation>
        </element>
        <element name="topWaterContent" type="eml:VolumePerVolumeMeasure" minOccurs="0">
          <annotation>
            <documentation>Moisture content in top 1 in of specimen after test, if soaked.</documentation>
          </annotation>
        </element>
        <element name="wtPercentRetained19mm" type="eml:VolumePerVolumeMeasure" minOccurs="0">
          <annotation>
            <documentation>The percent of the specimen retained on a 19 mm sieve for those cases where scalping and replacement is used.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
