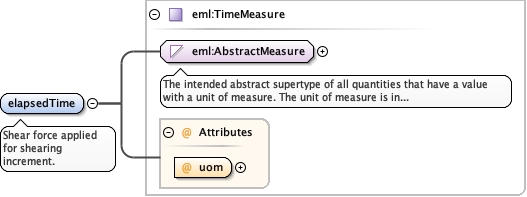

Element diggs:DirectShearTestIncrementType / diggs:elapsedTime
Namespace http://diggsml.org/schema-dev
Annotations

Shear force applied for shearing
increment.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="1" name="elapsedTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>Shear force applied for shearing increment.</documentation>
  </annotation>
</element>

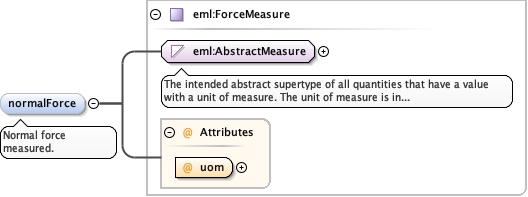

Element diggs:DirectShearTestIncrementType / diggs:normalForce
Namespace http://diggsml.org/schema-dev
Annotations

Normal force measured.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="normalForce" type="eml:ForceMeasure">
  <annotation>
    <documentation>Normal force measured.</documentation>
  </annotation>
</element>

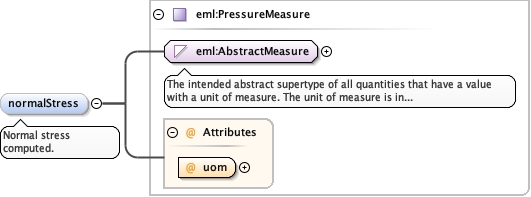

Element diggs:DirectShearTestIncrementType / diggs:normalStress
Namespace http://diggsml.org/schema-dev
Annotations

Normal stress computed.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="normalStress" type="eml:PressureMeasure">
  <annotation>
    <documentation>Normal stress computed.</documentation>
  </annotation>
</element>

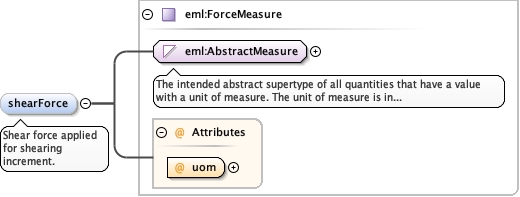

Element diggs:DirectShearTestIncrementType / diggs:shearForce
Namespace http://diggsml.org/schema-dev
Annotations

Shear force applied for shearing
increment.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="shearForce" type="eml:ForceMeasure">
  <annotation>
    <documentation>Shear force applied for shearing increment.</documentation>
  </annotation>
</element>

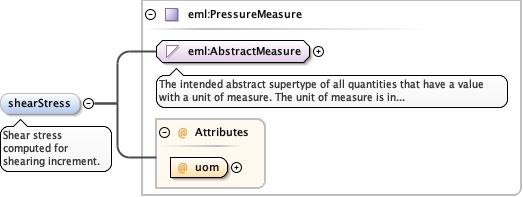

Element diggs:DirectShearTestIncrementType / diggs:shearStress
Namespace http://diggsml.org/schema-dev
Annotations

Shear stress computed for shearing
increment.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="shearStress" type="eml:PressureMeasure">
  <annotation>
    <documentation>Shear stress computed for shearing increment.</documentation>
  </annotation>
</element>

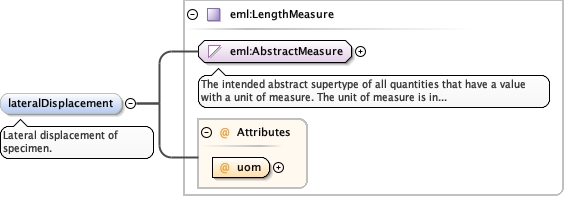

Element diggs:DirectShearTestIncrementType / diggs:lateralDisplacement
Namespace http://diggsml.org/schema-dev
Annotations

Lateral displacement of specimen.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="lateralDisplacement" type="eml:LengthMeasure">
  <annotation>
    <documentation>Lateral displacement of specimen.</documentation>
  </annotation>
</element>

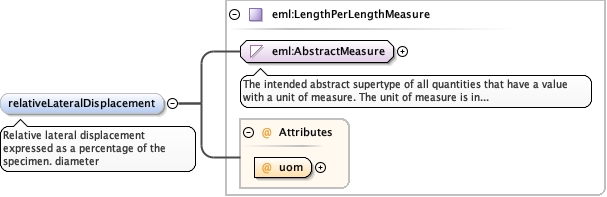

Element diggs:DirectShearTestIncrementType / diggs:relativeLateralDisplacement
Namespace http://diggsml.org/schema-dev
Annotations

Relative lateral displacement expressed as a percentage
of the specimen. diameter
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure
Type eml:LengthPerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthPerLengthUom required
Source

<element minOccurs="0" name="relativeLateralDisplacement" type="eml:LengthPerLengthMeasure">
  <annotation>
    <documentation>Relative lateral displacement expressed as a percentage of the specimen. diameter</documentation>
  </annotation>
</element>

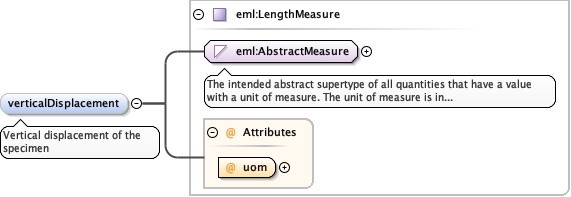

Element diggs:DirectShearTestIncrementType / diggs:verticalDisplacement
Namespace http://diggsml.org/schema-dev
Annotations

Vertical displacement of the specimen
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="verticalDisplacement" type="eml:LengthMeasure">
  <annotation>
    <documentation>Vertical displacement of the specimen</documentation>
  </annotation>
</element>

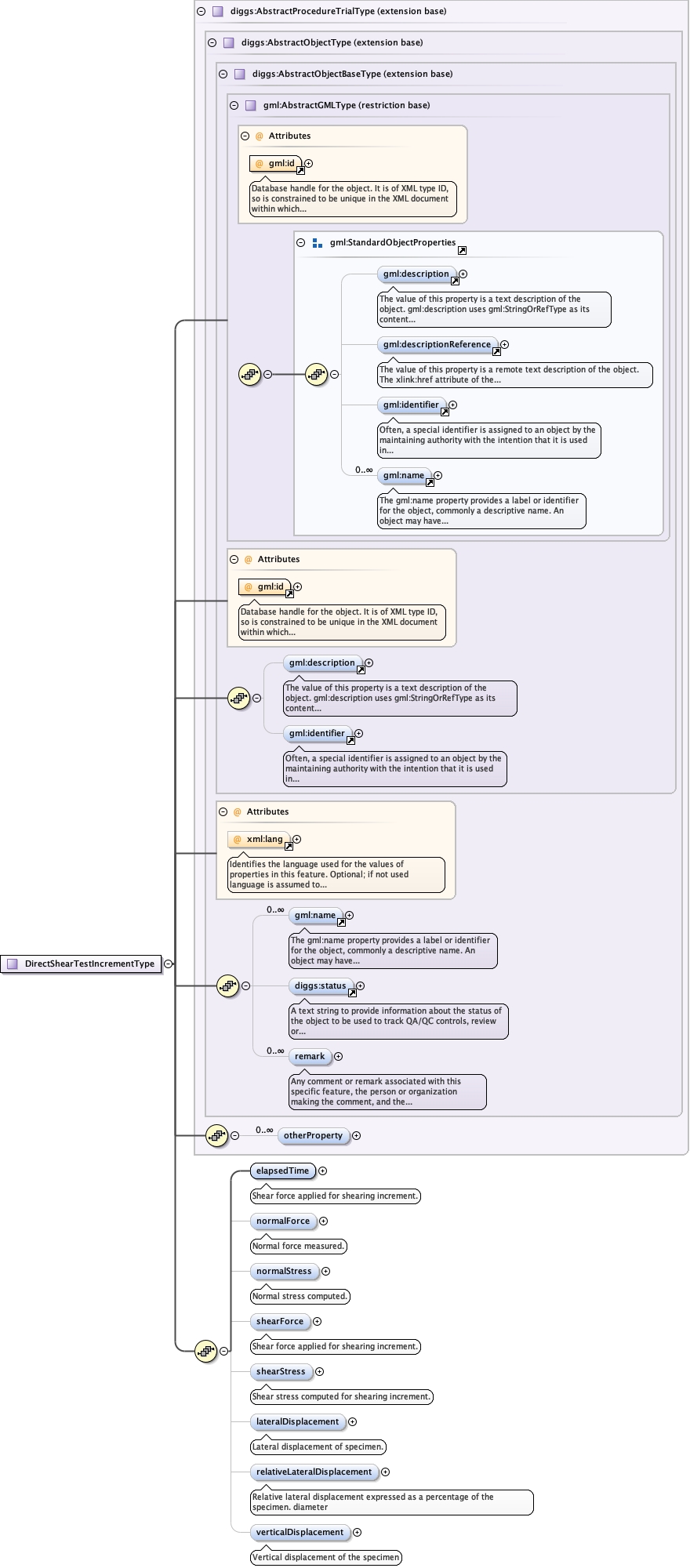

Complex Type diggs:DirectShearTestIncrementType
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementType_elapsedTimeTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementType_normalForceTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementType_normalStressTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementType_shearForceTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementType_shearStressTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementType_lateralDisplacementTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementType_relativeLateralDisplacementTestProcedures_xsd_Complex_Type_diggs_DirectShearTestIncrementType.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementType_verticalDisplacement
Type extension of diggs:AbstractProcedureTrialType
Type hierarchy
Used by
Element diggs:DirectShearTestIncrement
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs:elapsedTime , diggs:normalForce{0,1} , diggs:normalStress{0,1} , diggs:shearForce{0,1} , diggs:shearStress{0,1} , diggs:lateralDisplacement{0,1} , diggs:relativeLateralDisplacement{0,1} , diggs:verticalDisplacement{0,1}
Children diggs:elapsedTime, diggs:lateralDisplacement, diggs:normalForce, diggs:normalStress, diggs:otherProperty, diggs:relativeLateralDisplacement, diggs:remark, diggs:shearForce, diggs:shearStress, diggs:status, diggs:verticalDisplacement, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="DirectShearTestIncrementType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProcedureTrialType">
      <sequence>
        <element minOccurs="1" name="elapsedTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>Shear force applied for shearing increment.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="normalForce" type="eml:ForceMeasure">
          <annotation>
            <documentation>Normal force measured.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="normalStress" type="eml:PressureMeasure">
          <annotation>
            <documentation>Normal stress computed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="shearForce" type="eml:ForceMeasure">
          <annotation>
            <documentation>Shear force applied for shearing increment.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="shearStress" type="eml:PressureMeasure">
          <annotation>
            <documentation>Shear stress computed for shearing increment.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lateralDisplacement" type="eml:LengthMeasure">
          <annotation>
            <documentation>Lateral displacement of specimen.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="relativeLateralDisplacement" type="eml:LengthPerLengthMeasure">
          <annotation>
            <documentation>Relative lateral displacement expressed as a percentage of the specimen. diameter</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="verticalDisplacement" type="eml:LengthMeasure">
          <annotation>
            <documentation>Vertical displacement of the specimen</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
