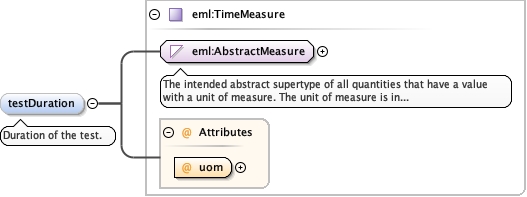

Element diggs:UnconfinedCompressiveStrengthTestType / diggs:testDuration
Namespace http://diggsml.org/schema-dev
Annotations

Duration of the test.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="testDuration" type="eml:TimeMeasure">
  <annotation>
    <documentation>Duration of the test.</documentation>
  </annotation>
</element>

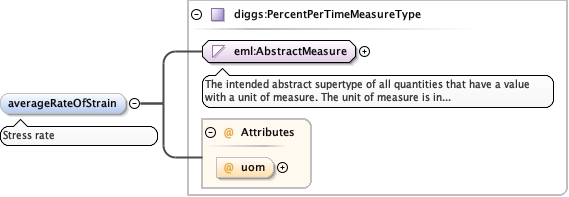

Element diggs:UnconfinedCompressiveStrengthTestType / diggs:averageRateOfStrain
Namespace http://diggsml.org/schema-dev
Annotations

Stress rate
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_PercentPerTimeMeasureType.tmp#PercentPerTimeMeasureType_uomKernel_xsd_Complex_Type_diggs_PercentPerTimeMeasureType.tmp#PercentPerTimeMeasureType
Type diggs:PercentPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:percentPerTimeUom optional
Source

<element minOccurs="0" name="averageRateOfStrain" type="diggs:PercentPerTimeMeasureType">
  <annotation>
    <documentation>Stress rate</documentation>
  </annotation>
</element>

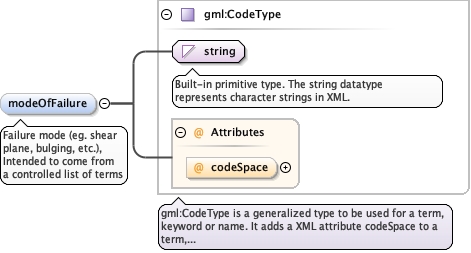

Element diggs:UnconfinedCompressiveStrengthTestType / diggs:modeOfFailure
Namespace http://diggsml.org/schema-dev
Annotations

Failure mode (eg. shear plane, bulging, etc.), Intended
to come from a controlled list of terms
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="modeOfFailure" type="gml:CodeType">
  <annotation>
    <documentation>Failure mode (eg. shear plane, bulging, etc.), Intended to come from a controlled list of terms</documentation>
  </annotation>
</element>

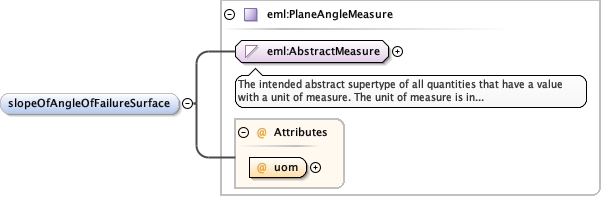

Element diggs:UnconfinedCompressiveStrengthTestType / diggs:slopeOfAngleOfFailureSurface
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure
Type eml:PlaneAngleMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="slopeOfAngleOfFailureSurface" type="eml:PlaneAngleMeasure"/>

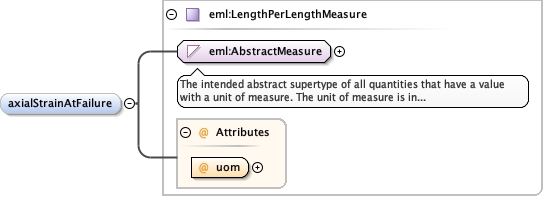

Element diggs:UnconfinedCompressiveStrengthTestType / diggs:axialStrainAtFailure
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure
Type eml:LengthPerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthPerLengthUom required
Source

<element minOccurs="0" name="axialStrainAtFailure" type="eml:LengthPerLengthMeasure">
</element>

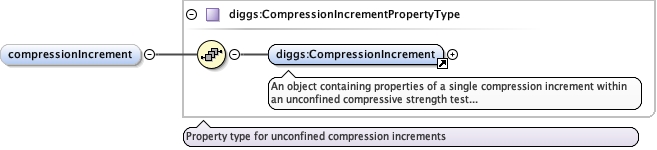

Element diggs:UnconfinedCompressiveStrengthTestType / diggs:compressionIncrement
Namespace http://diggsml.org/schema-dev
Diagram
DiagramTestProcedures_xsd_Element_diggs_CompressionIncrement.tmp#http___diggsml.org_schema-dev_CompressionIncrementTestProcedures_xsd_Complex_Type_diggs_CompressionIncrementPropertyType.tmp#http___diggsml.org_schema-dev_CompressionIncrementPropertyType
Type diggs:CompressionIncrementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:CompressionIncrement
Children diggs:CompressionIncrement
Instance

<diggs:compressionIncrement xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:CompressionIncrement gml:id="" xml:lang="">{1,1}</diggs:CompressionIncrement>
</diggs:compressionIncrement>
Source

<element maxOccurs="unbounded" minOccurs="0" name="compressionIncrement" type="diggs:CompressionIncrementPropertyType"/>

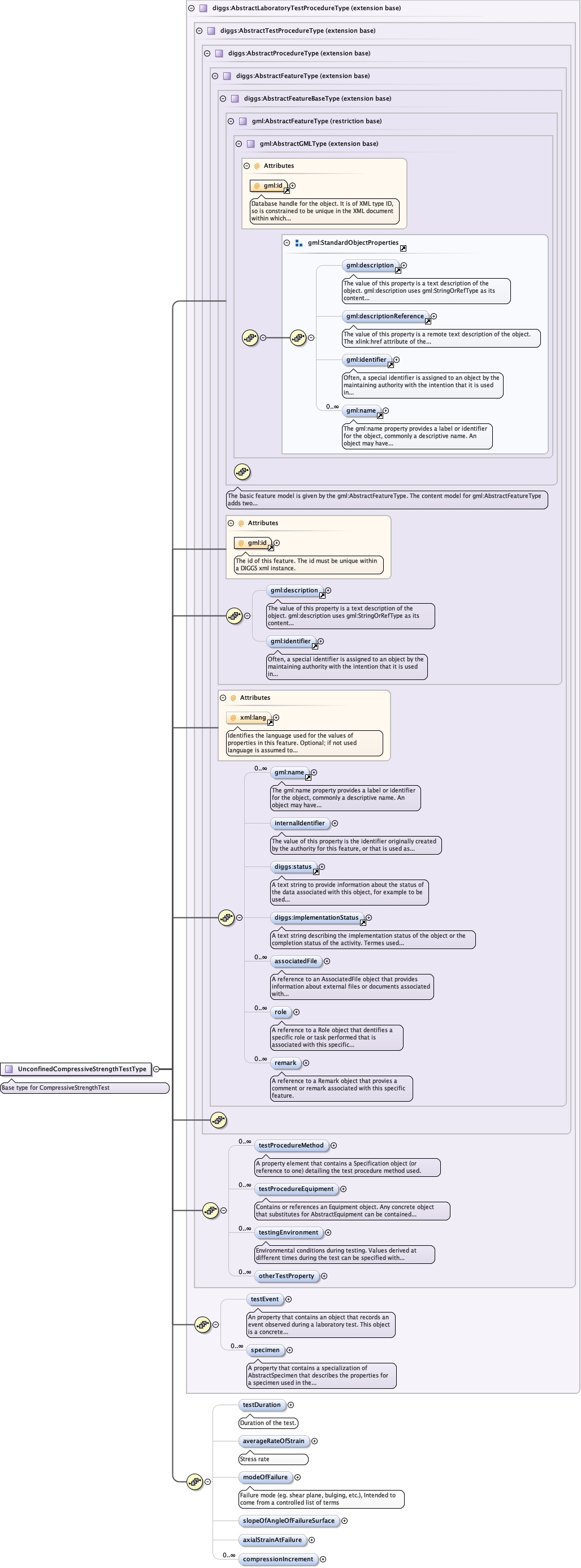

Complex Type diggs:UnconfinedCompressiveStrengthTestType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for CompressiveStrengthTest
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_specimenKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schema-dev_UnconfinedCompressiveStrengthTestType_testDurationTestProcedures_xsd_Complex_Type_diggs_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schema-dev_UnconfinedCompressiveStrengthTestType_averageRateOfStrainTestProcedures_xsd_Complex_Type_diggs_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schema-dev_UnconfinedCompressiveStrengthTestType_modeOfFailureTestProcedures_xsd_Complex_Type_diggs_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schema-dev_UnconfinedCompressiveStrengthTestType_slopeOfAngleOfFailureSurfaceTestProcedures_xsd_Complex_Type_diggs_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schema-dev_UnconfinedCompressiveStrengthTestType_axialStrainAtFailureTestProcedures_xsd_Complex_Type_diggs_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schema-dev_UnconfinedCompressiveStrengthTestType_compressionIncrement
Type extension of diggs:AbstractLaboratoryTestProcedureType
Type hierarchy
Used by
Element diggs:UnconfinedCompressiveStrengthTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent{0,1} , diggs:specimen* , diggs:testDuration{0,1} , diggs:averageRateOfStrain{0,1} , diggs:modeOfFailure{0,1} , diggs:slopeOfAngleOfFailureSurface{0,1} , diggs:axialStrainAtFailure{0,1} , diggs:compressionIncrement*
Children diggs:associatedFile, diggs:averageRateOfStrain, diggs:axialStrainAtFailure, diggs:compressionIncrement, diggs:implementationStatus, diggs:internalIdentifier, diggs:modeOfFailure, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:slopeOfAngleOfFailureSurface, diggs:specimen, diggs:status, diggs:testDuration, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="UnconfinedCompressiveStrengthTestType">
  <annotation>
    <documentation>Base type for CompressiveStrengthTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLaboratoryTestProcedureType">
      <sequence>
        <element minOccurs="0" name="testDuration" type="eml:TimeMeasure">
          <annotation>
            <documentation>Duration of the test.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="averageRateOfStrain" type="diggs:PercentPerTimeMeasureType">
          <annotation>
            <documentation>Stress rate</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="modeOfFailure" type="gml:CodeType">
          <annotation>
            <documentation>Failure mode (eg. shear plane, bulging, etc.), Intended to come from a controlled list of terms</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="slopeOfAngleOfFailureSurface" type="eml:PlaneAngleMeasure"/>
        <element minOccurs="0" name="axialStrainAtFailure" type="eml:LengthPerLengthMeasure">
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="compressionIncrement" type="diggs:CompressionIncrementPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
