Element diggs:LugeonStepType / diggs:lugeonStepNumber
Namespace http://diggsml.org/schema-dev
Annotations

The number of this step, with 1 representing the first
step, 2 the second step, etc.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 1
Source

<element minOccurs="1" name="lugeonStepNumber" type="positiveInteger">
  <annotation>
    <documentation>The number of this step, with 1 representing the first step, 2 the second step, etc.</documentation>
  </annotation>
</element>

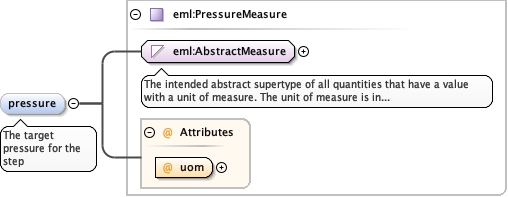

Element diggs:LugeonStepType / diggs:pressure
Namespace http://diggsml.org/schema-dev
Annotations

The target pressure for the step
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element name="pressure" type="eml:PressureMeasure" minOccurs="0">
  <annotation>
    <documentation>The target pressure for the step</documentation>
  </annotation>
</element>

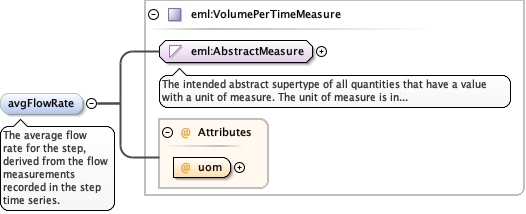

Element diggs:LugeonStepType / diggs:avgFlowRate
Namespace http://diggsml.org/schema-dev
Annotations

The average flow rate for the step, derived from the flow
measurements recorded in the step time series.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="avgFlowRate" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>The average flow rate for the step, derived from the flow measurements recorded in the step time series.</documentation>
  </annotation>
</element>

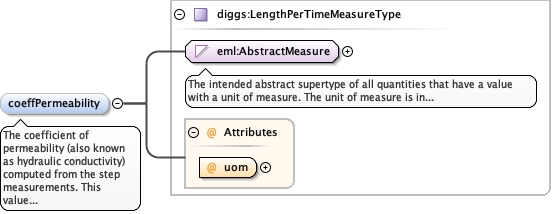

Element diggs:LugeonStepType / diggs:coeffPermeability
Namespace http://diggsml.org/schema-dev
Annotations

The coefficient of permeability (also known as hydraulic
conductivity) computed from the step measurements. This value is
averaged with other step results and is reported as one of the
primary test results
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType_uomKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType
Type diggs:LengthPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:lengthPerTimeUom required
Source

<element minOccurs="0" name="coeffPermeability" type="diggs:LengthPerTimeMeasureType">
  <annotation>
    <documentation>The coefficient of permeability (also known as hydraulic conductivity) computed from the step measurements. This value is averaged with other step results and is reported as one of the primary test results</documentation>
  </annotation>
</element>

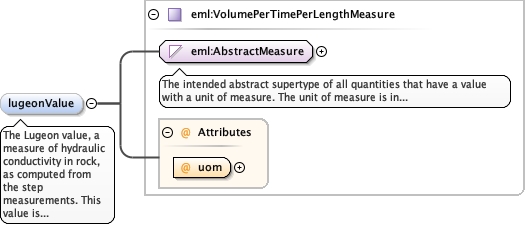

Element diggs:LugeonStepType / diggs:lugeonValue
Namespace http://diggsml.org/schema-dev
Annotations

The Lugeon value, a measure of hydraulic conductivity in
rock, as computed from the step measurements. This value is averaged
with other step results and is reported as one of the primary test
results
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimePerLengthMeasure.tmp#VolumePerTimePerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimePerLengthMeasure.tmp#VolumePerTimePerLengthMeasure
Type eml:VolumePerTimePerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimePerLengthUom required
Source

<element minOccurs="0" name="lugeonValue" type="eml:VolumePerTimePerLengthMeasure">
  <annotation>
    <documentation>The Lugeon value, a measure of hydraulic conductivity in rock, as computed from the step measurements. This value is averaged with other step results and is reported as one of the primary test results</documentation>
  </annotation>
</element>

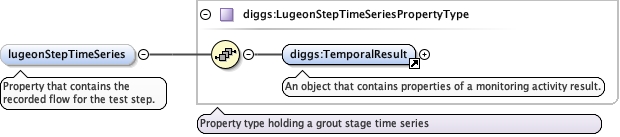

Element diggs:LugeonStepType / diggs:lugeonStepTimeSeries
Namespace http://diggsml.org/schema-dev
Annotations

Property that contains the recorded flow for the test
step.
Diagram
DiagramKernel_xsd_Element_diggs_TemporalResult.tmp#TemporalResultConstruction_xsd_Complex_Type_diggs_LugeonStepTimeSeriesPropertyType.tmp#LugeonStepTimeSeriesPropertyType
Type diggs:LugeonStepTimeSeriesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TemporalResult
Instance

<diggs:lugeonStepTimeSeries xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TemporalResult gml:id="">{1,1}</diggs:TemporalResult>
</diggs:lugeonStepTimeSeries>
Source

<element name="lugeonStepTimeSeries" type="diggs:LugeonStepTimeSeriesPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Property that contains the recorded flow for the test step.</documentation>
  </annotation>
</element>

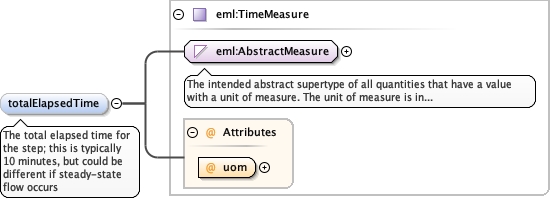

Element diggs:LugeonStepType / diggs:totalElapsedTime
Namespace http://diggsml.org/schema-dev
Annotations

The total elapsed time for the step; this is typically 10
minutes, but could be different if steady-state flow
occurs
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="totalElapsedTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>The total elapsed time for the step; this is typically 10 minutes, but could be different if steady-state flow occurs</documentation>
  </annotation>
</element>

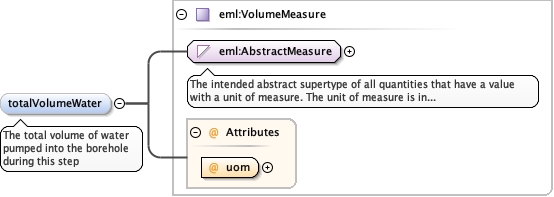

Element diggs:LugeonStepType / diggs:totalVolumeWater
Namespace http://diggsml.org/schema-dev
Annotations

The total volume of water pumped into the borehole during
this step
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="totalVolumeWater" type="eml:VolumeMeasure">
  <annotation>
    <documentation>The total volume of water pumped into the borehole during this step</documentation>
  </annotation>
</element>

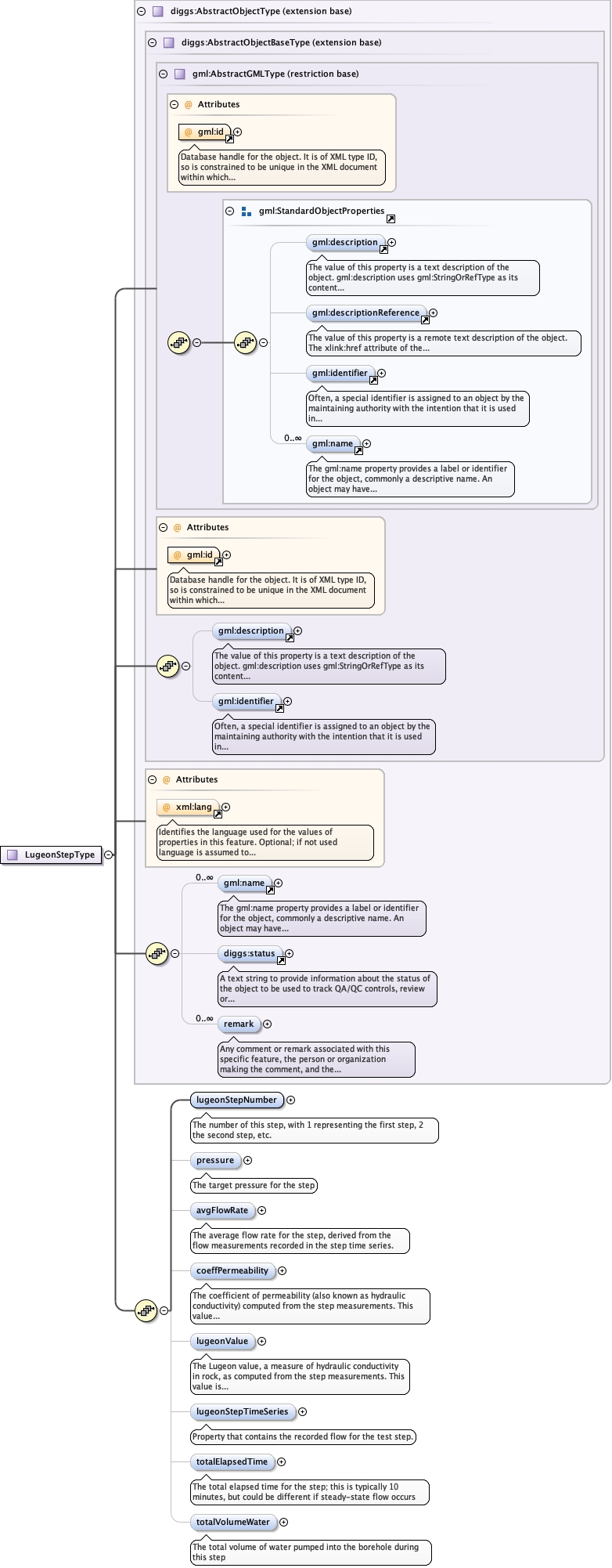

Complex Type diggs:LugeonStepType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeConstruction_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_lugeonStepNumberConstruction_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_pressureConstruction_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_avgFlowRateConstruction_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_coeffPermeabilityConstruction_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_lugeonValueConstruction_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_lugeonStepTimeSeriesConstruction_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_totalElapsedTimeConstruction_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_totalVolumeWater
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:avgFlowRate, diggs:coeffPermeability, diggs:lugeonStepNumber, diggs:lugeonStepTimeSeries, diggs:lugeonValue, diggs:pressure, diggs:remark, diggs:status, diggs:totalElapsedTime, diggs:totalVolumeWater, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="LugeonStepType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="1" name="lugeonStepNumber" type="positiveInteger">
          <annotation>
            <documentation>The number of this step, with 1 representing the first step, 2 the second step, etc.</documentation>
          </annotation>
        </element>
        <element name="pressure" type="eml:PressureMeasure" minOccurs="0">
          <annotation>
            <documentation>The target pressure for the step</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="avgFlowRate" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>The average flow rate for the step, derived from the flow measurements recorded in the step time series.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="coeffPermeability" type="diggs:LengthPerTimeMeasureType">
          <annotation>
            <documentation>The coefficient of permeability (also known as hydraulic conductivity) computed from the step measurements. This value is averaged with other step results and is reported as one of the primary test results</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lugeonValue" type="eml:VolumePerTimePerLengthMeasure">
          <annotation>
            <documentation>The Lugeon value, a measure of hydraulic conductivity in rock, as computed from the step measurements. This value is averaged with other step results and is reported as one of the primary test results</documentation>
          </annotation>
        </element>
        <element name="lugeonStepTimeSeries" type="diggs:LugeonStepTimeSeriesPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Property that contains the recorded flow for the test step.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalElapsedTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>The total elapsed time for the step; this is typically 10 minutes, but could be different if steady-state flow occurs</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalVolumeWater" type="eml:VolumeMeasure">
          <annotation>
            <documentation>The total volume of water pumped into the borehole during this step</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
