Complex Type eml:VolumePerTimePerLengthMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

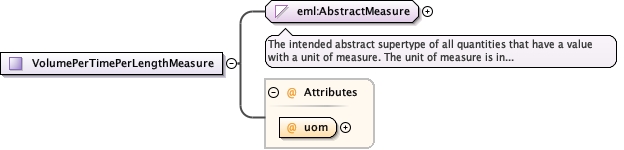

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimePerLengthMeasure.tmp#VolumePerTimePerLengthMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Used by
Attributes
QName Type Use
uom eml:VolumePerTimePerLengthUom required
Source

<xs:complexType name="VolumePerTimePerLengthMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:VolumePerTimePerLengthUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:VolumePerTimePerLengthMeasure / @uom
Namespace No namespace
Type eml:VolumePerTimePerLengthUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 1000 ft3/(d.ft)
(thousand cubic foot per day) per foot
enumeration 1000 m3/(d.m)
(thousand cubic metre per day) per metre
enumeration 1000 m3/(h.m)
(thousand cubic metre per hour) per metre
enumeration bbl/(d.ft)
barrel per day foot
enumeration ft3/(d.ft)
(cubic foot per day) per foot
enumeration gal[UK]/(h.ft)
UK gallon per hour foot
enumeration gal[UK]/(h.in)
UK gallon per hour inch
enumeration gal[UK]/(min.ft)
UK gallon per minute foot
enumeration gal[US]/(h.ft)
US gallon per hour foot
enumeration gal[US]/(h.in)
US gallon per hour inch
enumeration gal[US]/(min.ft)
US gallon per minute foot
enumeration m3/(d.m)
(cubic metre per day) per metre
enumeration m3/(h.m)
(cubic metre per hour) per metre
enumeration m3/(s.ft)
(cubic metre per second) per foot
enumeration m3/(s.m)
cubic metre per second metre
Used by
Source

<xs:attribute name="uom" use="required" type="eml:VolumePerTimePerLengthUom"/>
