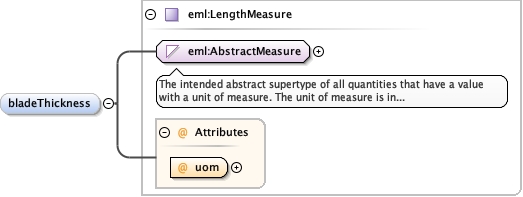

Element diggs:FlatPlateDilatometerTestType / diggs:bladeThickness
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="bladeThickness" type="eml:LengthMeasure"/>

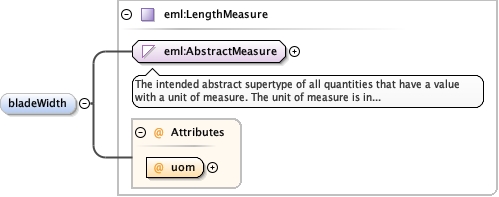

Element diggs:FlatPlateDilatometerTestType / diggs:bladeWidth
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="bladeWidth" type="eml:LengthMeasure"/>

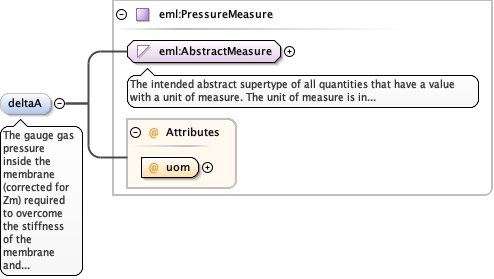

Element diggs:FlatPlateDilatometerTestType / diggs:deltaA
Namespace http://diggsml.org/schema-dev
Annotations

The gauge gas pressure inside the membrane (corrected for
Zm) required to overcome the stiffness of the membrane and move it
inward to a center-expansion of 0.05 mm (a negative gauge or suction
pressure, but recorded as positive) with only ambient atmospheric
pressure acting externally.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="deltaA" type="eml:PressureMeasure">
  <annotation>
    <documentation>The gauge gas pressure inside the membrane (corrected for Zm) required to overcome the stiffness of the membrane and move it inward to a center-expansion of 0.05 mm (a negative gauge or suction pressure, but recorded as positive) with only ambient atmospheric pressure acting externally.</documentation>
  </annotation>
</element>
Element diggs:FlatPlateDilatometerTestType / diggs:deltaB
Namespace http://diggsml.org/schema-dev
Annotations

The gauge gas pressure inside the membrane (corrected for
Zm) required to overcome the stiffness of the membrane and move it
outward to a center-expansion of 1.10 mm against only the ambient
atmospheric pressure.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="deltaB" type="eml:PressureMeasure">
  <annotation>
    <documentation>The gauge gas pressure inside the membrane (corrected for Zm) required to overcome the stiffness of the membrane and move it outward to a center-expansion of 1.10 mm against only the ambient atmospheric pressure.</documentation>
  </annotation>
</element>

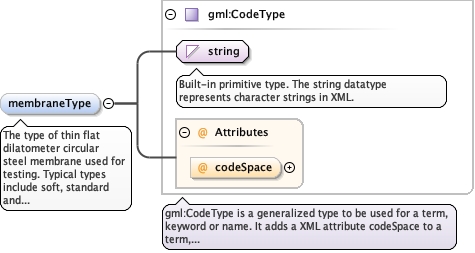

Element diggs:FlatPlateDilatometerTestType / diggs:membraneType
Namespace http://diggsml.org/schema-dev
Annotations

The type of thin flat dilatometer circular steel membrane
used for testing. Typical types include soft, standard and
hard.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="membraneType" type="gml:CodeType">
  <annotation>
    <documentation>The type of thin flat dilatometer circular steel membrane used for testing. Typical types include soft, standard and hard.</documentation>
  </annotation>
</element>

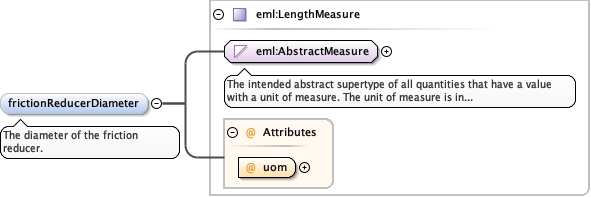

Element diggs:FlatPlateDilatometerTestType / diggs:frictionReducerDiameter
Namespace http://diggsml.org/schema-dev
Annotations

The diameter of the friction reducer.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="frictionReducerDiameter" type="eml:LengthMeasure">
  <annotation>
    <documentation>The diameter of the friction reducer.</documentation>
  </annotation>
</element>

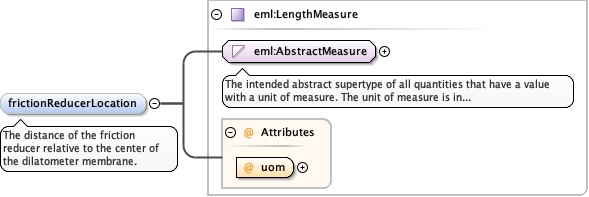

Element diggs:FlatPlateDilatometerTestType / diggs:frictionReducerLocation
Namespace http://diggsml.org/schema-dev
Annotations

The distance of the friction reducer relative to the
center of the dilatometer membrane.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="frictionReducerLocation" type="eml:LengthMeasure">
  <annotation>
    <documentation>The distance of the friction reducer relative to the center of the dilatometer membrane.</documentation>
  </annotation>
</element>

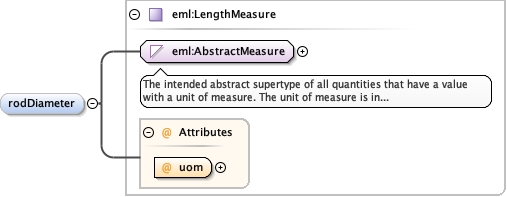

Element diggs:FlatPlateDilatometerTestType / diggs:rodDiameter
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="rodDiameter" type="eml:LengthMeasure"/>

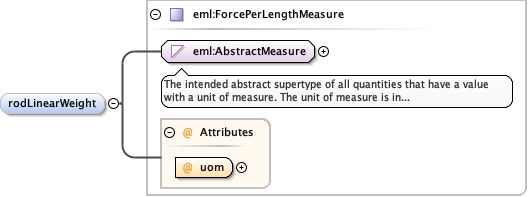

Element diggs:FlatPlateDilatometerTestType / diggs:rodLinearWeight
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure
Type eml:ForcePerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForcePerLengthUom required
Source

<element minOccurs="0" name="rodLinearWeight" type="eml:ForcePerLengthMeasure"/>

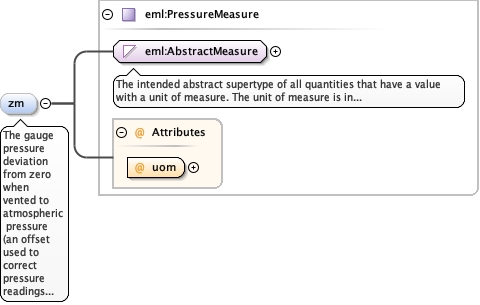

Element diggs:FlatPlateDilatometerTestType / diggs:zm
Namespace http://diggsml.org/schema-dev
Annotations

The gauge pressure deviation from zero when vented to
atmospheric pressure (an offset used to correct pressure readings to
the true gauge pressure).
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="zm" type="eml:PressureMeasure">
  <annotation>
    <documentation>The gauge pressure deviation from zero when vented to atmospheric pressure (an offset used to correct pressure readings to the true gauge pressure).</documentation>
  </annotation>
</element>

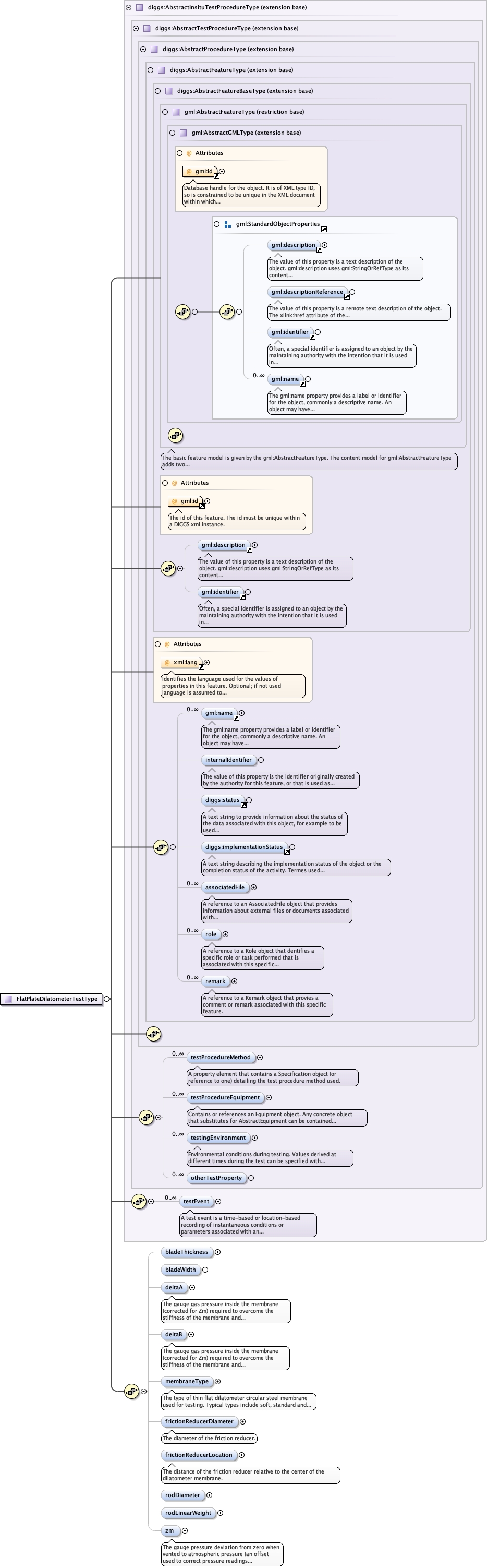

Complex Type diggs:FlatPlateDilatometerTestType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_bladeThicknessTestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_bladeWidthTestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_deltaATestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_deltaBTestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_membraneTypeTestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_frictionReducerDiameterTestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_frictionReducerLocationTestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_rodDiameterTestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_rodLinearWeightTestProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schema-dev_FlatPlateDilatometerTestType_zm
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Element diggs:FlatPlateDilatometerTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent* , diggs:bladeThickness{0,1} , diggs:bladeWidth{0,1} , diggs:deltaA{0,1} , diggs:deltaB{0,1} , diggs:membraneType{0,1} , diggs:frictionReducerDiameter{0,1} , diggs:frictionReducerLocation{0,1} , diggs:rodDiameter{0,1} , diggs:rodLinearWeight{0,1} , diggs:zm{0,1}
Children diggs:associatedFile, diggs:bladeThickness, diggs:bladeWidth, diggs:deltaA, diggs:deltaB, diggs:frictionReducerDiameter, diggs:frictionReducerLocation, diggs:implementationStatus, diggs:internalIdentifier, diggs:membraneType, diggs:otherTestProperty, diggs:remark, diggs:rodDiameter, diggs:rodLinearWeight, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:zm, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="FlatPlateDilatometerTestType">
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="bladeThickness" type="eml:LengthMeasure"/>
        <element minOccurs="0" name="bladeWidth" type="eml:LengthMeasure"/>
        <element minOccurs="0" name="deltaA" type="eml:PressureMeasure">
          <annotation>
            <documentation>The gauge gas pressure inside the membrane (corrected for Zm) required to overcome the stiffness of the membrane and move it inward to a center-expansion of 0.05 mm (a negative gauge or suction pressure, but recorded as positive) with only ambient atmospheric pressure acting externally.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="deltaB" type="eml:PressureMeasure">
          <annotation>
            <documentation>The gauge gas pressure inside the membrane (corrected for Zm) required to overcome the stiffness of the membrane and move it outward to a center-expansion of 1.10 mm against only the ambient atmospheric pressure.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="membraneType" type="gml:CodeType">
          <annotation>
            <documentation>The type of thin flat dilatometer circular steel membrane used for testing. Typical types include soft, standard and hard.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="frictionReducerDiameter" type="eml:LengthMeasure">
          <annotation>
            <documentation>The diameter of the friction reducer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="frictionReducerLocation" type="eml:LengthMeasure">
          <annotation>
            <documentation>The distance of the friction reducer relative to the center of the dilatometer membrane.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="rodDiameter" type="eml:LengthMeasure"/>
        <element minOccurs="0" name="rodLinearWeight" type="eml:ForcePerLengthMeasure"/>
        <element minOccurs="0" name="zm" type="eml:PressureMeasure">
          <annotation>
            <documentation>The gauge pressure deviation from zero when vented to atmospheric pressure (an offset used to correct pressure readings to the true gauge pressure).</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
